High-Efficiency Warehouse Racking & Industrial Storage Systems
Direct factory supply of verified industrial rack configurations engineered to accommodate Euro pallets (1200×800mm), industrial ISO pallets, dynamic roll containers, and high-cube small-parts bins with zero structural deflection.
Custom Heavy Duty Industrial Steel Selective Pallet Rack Adjustable Warehouse Storage Rack Shelves
- 1,000–4,500 kg/level beam load
- 50mm / 75mm pitch adjustable
- Q355B cold-rolled structural steel
OEM ODM Custom Color Pallet Flow Gravity Racking With Free Professional Warehouse Layout Drawing
- Gravity-fed roller brake systems
- Up to 60% floor space savings
- Full 3D CAD proposal included

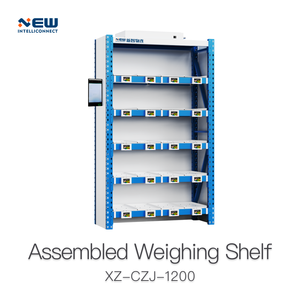

Smart Warehouse Shelf for Industrial Inventory Tracking and High-Throughput Management
- WMS/RFID sensor-bracket ready
- Barcode positioning channels
- Modular pick-to-light support
Custom Member Supermarket Shelves Heavy Duty Warehouse Rack Match Black Gondola Shelving
- Dual storage & display load
- Matte black anti-scratch coating
- Cash-and-carry wholesale spec
Industrial Heavy Duty Adjustable Steel Garage Storage Shelving Rack For Warehouse Stacking
- Boltless quick-interlock system
- 500–1,500 kg per shelf layer
- Anti-corrosive powder finish
OEM Heavy Duty Steel Selective Pallet Rack Wholesale Stainless Storage Rack For Warehouse Use
- Certified to EN 15512 safety
- Customized frame depths 800-1100mm
- High structural rigidity factors
Live Pallet Flow Racking Gravity-Fed Heavy Duty Steel Wire Shelving Adjustable Installation
- Automatic centrifugal speed brakes
- Wire deck drop-in protection
- Cold chain rating down to -30°C
Durable Compact Powder Coated Steel Light-Duty Warehouse Rack for Small Parts Storage
- Multi-tier walkway integration
- 200–500 kg shelf capacity
- Ergonomic pick cart clearances
Structural Design Principles of Multi-Tier Pallet Racking Systems
A comprehensive analysis of multi-level catwalk systems, rack-supported platforms, dynamic load distribution formulas, and European compliance verifications under EN 15512 and FEM 10.2.02 regulations.
Multi-tier pallet racking systems represent the pinnacle of vertical cubic optimization within high-clearance distribution centers, fulfillment hubs, and automotive manufacturing logistics. Unlike conventional single-elevation pallet racks, a multi-tier structure functions as an integrated structural skeleton where vertical upright columns simultaneously support horizontal pallet load beams, elevated intermediate walkways, conveyor runs, and dynamic picking mezzanine platforms. For international procurement directors and logistics engineers, selecting a certified manufacturer requires an intimate understanding of structural integrity, cold-formed steel tensile capacities, and strict compliance with global codes such as EN 15512:2020 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design) and EN 15620 (Tolerances, deformations and clearances).
Floor Area Multiplier
Converts single-level footprint into 2-tier or 3-tier active picking zones without acquiring additional industrial commercial real estate.
Decking Load Threshold
Engineered deck loading capacities supporting hand pallet jacks, powered order pickers, sorting conveyors, and personnel.
Deflection Rigidity
Strict structural deflection compliance ensuring zero perceptible floor bounce or conveyor track alignment distortion under peak operational stress.
The core mechanical foundation of Guangzhou Heda Shelves Co., Ltd.'s multi-tier racking lies in the metallurgical precision of our cold-formed profile sections. We utilize certified Q355B (equivalent to European S355JR) structural grade steel, known for exceptional yield strength (up to 355 MPa) and superior elongation under cyclical seismic and operational fatigue. Column uprights are rolled on continuous computer-numerical-controlled (CNC) roll-forming lines featuring up to 24 rolling passes. This eliminates microscopic micro-fracturing along bend radiuses, guaranteeing uniform thickness from 1.5mm to 3.0mm across the entire 12-meter column profile without seam failure.
Seismic Stability & Progressive Collapse Mitigation
Multi-tier pallet racking elevates dead loads and live loads several meters above the warehouse slab. Under FEM 10.2.02 guidelines, seismic horizontal drift and fork truck impact loads must be arrested through vertical spine bracing, horizontal portal cross-ties, and seismic anchor bolt matrices. Our engineering team incorporates proprietary 5-claw interlocking connector plates stamped with integrated mechanical safety pins that resist unexpected upward shear forces exceeding 5,000 N, completely eliminating accidental beam dislodgement.
Critical Structural Components Breakdown
Every multi-tier installation configured for European and overseas facilities includes specialized structural components engineered for longevity, life safety, and effortless vertical cargo movement:
Reinforced Upright Columns
Continuous closed-box or open-omega cold-formed profiles with precision teardrop or diamond punching on 50mm centers, designed to absorb combined axial and torsional loads.
Integrated Catwalk Decking
Options include serrated open-grid steel grating for maximum sprinkler water penetration, perforated anti-slip steel planks, or 25-38mm high-density chipboard with galvanized steel undersides.
Modular Staircases & Safety Gates
OSHA and EN ISO 14122 compliant staircases featuring 45° ergonomic angles, self-closing pallet swing safety gates, and 100mm kickplates along perimeter handrails.
Fire Sprinkler Routing Channels
Pre-engineered structural mounting brackets for NFPA-13 and EN 12845 in-rack sprinkler pipe runs, smoke evacuation zones, and recessed low-voltage LED track wiring.
Multi-Tier Pallet Racking vs. Alternative High-Density Systems
A rigorous structural, throughput, and capital expenditure (CAPEX) comparison prepared by our technical engineering team for logistics executives evaluating space expansion options.
| Racking System Type | Cubic Volumetric Efficiency | Direct SKU Accessibility | Average CAPEX per Pallet Position | Automation & AGV Interoperability | Typical European / Global Use Case |
|---|---|---|---|---|---|
| Multi-Tier Pallet Racking (Catwalk) | Extremely High (90%+) | 100% on Active Walkways | Moderate (€80–€140) | High (AMR / Vertical Reciprocating Conveyor) | E-commerce fulfillment, spare parts hubs, multi-SKU DCs |
| Standard Selective Pallet Rack | Standard (40–50%) | 100% Direct Access | Low (€35–€60) | Standard Forklifts / Reach Trucks | General freight, 3PL logistics, fast turnover warehouses |
| Radio Shuttle High-Density Racking | Ultra High (85%+) | Lane-Dependent (LIFO/FIFO) | High (€150–€240) | Autonomous Pallet Shuttle Integration | Cold storage (-30°C), beverage depots, raw material bulk |
| Structural Column Mezzanine | High (Clear Span) | 100% Open Space | Medium-High (€120–€200) | Modular sorting systems, manual assembly lines | Warehouse offices, light assembly, secondary packing zones |
| Gravity Pallet Flow Racking | Very High (75%+) | FIFO Picking Face Only | High (€160–€260) | Gravity roller tracks & forklift loading | Food processing, pharmaceutical expiration-sensitive lines |
Future Procurement Trends in Industrial Racking Systems (2025–2030)
Key regulatory shifts, sustainability imperatives, and automation transitions driving procurement decisions across European and international supply chains.
Decarbonization & CBAM Preparedness
European purchasers face the Carbon Border Adjustment Mechanism (CBAM). Racking factories utilizing electric arc furnace (EAF) low-carbon steel coils with transparent Product Carbon Footprint (PCF) declarations are securing preference over high-emission blast furnace mills.
AMR & Mobile Robot Interoperability
Modern catwalk floors are transitioning away from rough open grating toward laser-leveled anti-static resin-coated composite decking, facilitating smooth autonomous mobile robot (AMR) navigation across upper tier corridors.
Heavy-Zinc & Self-Healing Coatings
Surging cold storage and humid coastal terminal investments demand hot-dip galvanizing (HDG) and novel zinc-aluminum-magnesium (ZAM) alloy coatings that deliver 50+ years of salt-spray and moisture resistance without peeling.
Turnkey BIM Layout Integration
Procurement teams now require native Revit / Building Information Modeling (BIM) files prior to purchase. Direct-to-factory CAD integration ensures clash detection against existing HVAC, overhead lighting, and building columns before container departure.
Technological Innovations Shaping the Future of Multi-Tier Storage
How digital sensing, advanced metallurgy, and automated production are eliminating structural failure risks in heavy industrial warehouse installations.
The development of multi-tier pallet racking has evolved far beyond traditional static steel assemblies. In contemporary high-velocity distribution centers, the physical rack structure is being redefined as an active, data-connected logistics asset. Guangzhou Heda Shelves Co., Ltd. continuously invests in metallurgical testing and automated processing technologies that set new benchmarks for structural performance and operational life.
CNC Punching Tolerance
High-speed hydraulic punching dies ensure micron-level beam connector alignment, eliminating structural racking skew over tall 10-meter upright spans.
Electrostatic Powder Layer
Automated pre-treatment pickling, phosphating, and thermosetting epoxy-polyester powder application guarantees impact and abrasion protection.
Weld Seam Verification
Robotic welding cells for multi-claw beam connectors with automated ultrasonic testing protocols to eliminate cold weld structural defects.
Looking forward, Structural Health Monitoring (SHM) via strain-gauge micro-sensors embedded directly inside critical upright bases is gaining rapid traction. These IoT telemetry sensors detect micro-deflections caused by forklift column collisions or excessive localized beam overloads in real time, triggering alerts to warehouse management before progressive structural fatigue can jeopardize worker safety.
Why International Buyers Partner With Guangzhou Heda Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates a premier 30,000 m² smart manufacturing plant producing over 30,000 tonnes of certified pallet racking per month for 120+ countries.
CE & ISO 9001 Certified Quality
Independently verified under CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 No. 18624Q00169R0M. We supply full factory production control (FPC) documentation, Mill Test Certificates (MTC), and third-party laboratory test reports for effortless municipal permit approvals across the European Union, UK, and Americas.
Free Engineering & 3D CAD Proposals
Our dedicated team of 30+ senior structural engineers develops custom AutoCAD layout drawings, 3D structural renderings, and comprehensive static load calculations tailored specifically to your floor plan, pallet dimensions, seismic zone ratings, and reach truck mast constraints—all completely free of charge.
Robust Export Packing & EU Port Delivery
Every order is strapped using heavy-gauge PET bands, edge-protected with industrial corner guards, and wrapped in moisture-barrier film. Bundled components feature clear alpha-numeric barcoded labeling aligned with installation manuals, shipping directly to Rotterdam, Hamburg, Antwerp, Felixstowe, Valencia, and worldwide destinations.
CE CPR Certified
No. 2435-CPR-8605159
ISO 9001:2015
No. 18624Q00169R0M
Structural Test Report
EN 15512 Laboratory Load Test
RoHS / Material Safety
Non-Toxic Heavy Coating Verified
Frequently Asked Questions on Multi-Tier Pallet Racking Sourcing
Authoritative technical answers addressing compliance, building permits, floor slab capacities, fire regulations, and export shipping logistics.
Can your multi-tier racking accommodate standardized European pallets (1200×800mm)?
Yes, absolutely. Our racking systems are pre-engineered specifically for EUR/EPAL 1 (1200 × 800 mm), EUR 2 (1200 × 1000 mm), and customized industrial skid formats. Clear bay lengths (typically 2700mm for three 800mm pallets or 1800mm for two 800mm pallets) and frame depths (1000mm or 1100mm) ensure the standard 50mm to 100mm pallet overhang required by European warehouse safety regulations.
What concrete slab specifications are required to support a 2-tier or 3-tier racking system?
Multi-tier systems introduce concentrated point loads transmitted through column baseplates to the warehouse foundation. In typical installations, a reinforced concrete slab thickness of 150mm to 250mm with minimum compressive strength of C20/25 or C25/30 is required. We supply custom oversized baseplates and structural load dispersion footings calculated to keep localized ground pressure within your facility's allowable slab capacity.
How are fire safety and in-rack sprinkler regulations addressed in multi-level walkways?
Multi-tier platforms create intermediate horizontal ceilings that can obstruct overhead building sprinkler coverage. To meet NFPA 13 and EN 12845 life safety standards, we supply open steel wire mesh or punched serrated grating with 50% to 70% open surface area to permit unobstructed water penetration and smoke detection. Furthermore, our structural frames feature integrated pipe brackets for intermediate in-rack sprinkler runs.
What is the typical production lead time and maritime shipping timeline for global orders?
Standard production lead time for customized multi-tier systems ranges from 15 to 25 days depending on total project tonnage. Shipping from our Guangzhou or Shenzhen facilities to major European deep-sea ports (Rotterdam, Antwerp, Hamburg, Valencia) takes approximately 30 to 40 days. We manage container space booking, seaworthy bundling, Fumigation (ISPM 15) compliance, and custom clearance export documentation.
Can you provide private label / OEM color options for system integrators and distributors?
Yes. As a direct manufacturer, over 40% of our capacity serves international racking distributors, material handling dealers, and system integrators under OEM and ODM agreements. We provide custom electrostatic powder coat finishes matched precisely to any standard RAL color code (e.g., RAL 5015 Blue, RAL 2004 Orange, RAL 7035 Grey), along with customized component labels and neutral packaging.
How is on-site installation supported for complex multi-tier projects overseas?
Every order is dispatched with comprehensive CAD layout blueprints, 3D exploded view assembly diagrams, and sequenced packing lists indicating which component bundle belongs to each specific aisle. For large-scale installations, we offer remote video engineering support or dispatch experienced bilingual installation supervisors directly to your project location to ensure safe, code-compliant assembly.
