Warehouse Mezzanine Racking Production
Engineered Storage Solutions

Mezzanine Racking Systems & Industrial Floors

Double or triple warehouse storage capacity within the existing building footprint. Factory-direct, CE certified multi-tier mezzanine floors manufactured by Guangzhou Heda Shelves Co., Ltd.

Space Optimization

Engineered Mezzanine Systems for High-Cubic Warehouses

Industrial mezzanine racking systems transform vertical clear height into usable square metres without expanding premises or leasing extra warehouse space. Guangzhou Heda Shelves Co., Ltd. provides comprehensive engineering, structural calculation, and custom fabrication for European distributors, 3PL logistics hubs, and industrial manufacturers.

01

Structural Steel Mezzanine Platform

Heavy Duty · Column & Beam

Free-standing, heavy-duty column-and-beam platforms engineered to support wide clear spans, mezzanine offices, order consolidation zones, or automation equipment without ground-level racking obstructions.

  • Load ratings from 300 kg/m² up to 2,000 kg/m² UDL
  • Hot-rolled H-beam and cold-formed profile structural design
  • Integrated staircases, kickplates, handrails, and pallet up-and-over gates
02

Rack-Supported Mezzanine Floor

High Density · Integrated System

Combines heavy-duty selective pallet racking on the lower level with a high-capacity mezzanine platform above. Heavy upright frames serve as primary load-bearing structural columns, drastically reducing total steel material costs.

  • Bulk pallet positions underneath with active work floor above
  • Optimized for 1200 × 800 mm Euro and 1200 × 1000 mm ISO pallets
  • Multi-tier configurations available up to 4 functional levels
03

Cantilever Mezzanine System

Long Loads · Pipe & Timber

A specialized vertical configuration combining heavy-duty cantilever arms with an elevated working mezzanine floor. Designed specifically for builders' merchants and distributors handling timber, piping, bar stock, and sheet goods.

  • Unobstructed horizontal storage reach on all cantilever tiers
  • Raised mezzanine walkway provides safe pedestrian access to upper arms
  • Custom arm lengths and high point-load capacities
04

Shelving-Supported Mezzanine

Manual Picking · E-Commerce

Utilizes industrial longspan or medium-duty shelving uprights to support walkway flooring tiers. Highly efficient for multi-SKU bin storage, garment distribution, automotive parts logistics, and rapid hand-picking applications.

  • Modular 50 mm vertical shelf height adjustability
  • Galvanized steel grating, solid steel plate, or plywood decking
  • High picking density with narrow aisle human-scale ergonomic layouts
Mezzanine Type Primary Support Member Standard Load Rating Floor Decking Options Best Sector Fit
Structural Steel Mezzanine H-beam / Structural Box Columns 300 – 2,000 kg/m² Galvanized Grating / Checker Plate / Durafloor Heavy manufacturing, sorting hubs, plant offices
Rack-Supported Mezzanine Heavy-Duty Upright Racking Columns 300 – 1,000 kg/m² Steel B-decking + Plywood / Open Grate 3PL fulfillment, wholesale FMCG, consumer goods
Cantilever Mezzanine Heavy Cantilever Uprights & Arms 300 – 800 kg/m² walkway Perforated Steel Planks / Grating Building materials, metal pipe distribution, plastics
Shelving-Supported Mezzanine Longspan Industrial Shelving Frames 200 – 500 kg/m² walkway Textured Plywood / Open Mesh / Solid Plate E-commerce fulfillment, spare parts, pharmaceutical picking
Technical Support

Full Engineering & Complimentary Project Design

Guangzhou Heda Shelves Co., Ltd. provides end-to-end structural engineering documentation for European building compliance and safety inspections.

01 · FAST CAD DESIGN

Precision 2D Layouts

Our structural team calculates bay clearances, column placement, and aisle dimensions. We deliver complete CAD drawings within 48 to 72 hours based on your architectural drawings.

02 · 3D RENDERING

Realistic 3D Visualizations

Detailed 3D models allow operational managers, safety officers, and facility landlords to evaluate workflow, vertical clearances, staircase locations, and goods access points prior to fabrication.

03 · TURNKEY INTEGRATION

Complete System Engineering

Seamless design coordination across pallet positions, safety netting, mezzanine gates, and dynamic storage zones, delivering an optimized end-to-end warehouse layout.

Manufacturing Excellence

Why European Clients Partner with HEDA Shelves

Direct factory production, rigorous structural calculations, and verified quality management guarantee long-term operational safety.

25+

Years Manufacturing Experience

Specialized production of warehouse storage systems and steel mezzanines since 2001, serving installations across 120+ countries worldwide.

30k t

Monthly Steel Capacity

High-capacity 30,000 m² factory equipped with automated cold-roll forming lines, precision punching, and electrostatic powder coating plants.

EN / CE

European Compliance

Certified under CE Factory Production Control (No. 2435-CPR-8605159) and ISO 9001:2015 with structural calculations aligning with EN standards.

10,000+

Global Installations

Proven execution across complex warehouse projects including seismic zone adaptations, low-temperature cold stores, and automated picking platforms.

Proven Experience

Recent Mezzanine & Heavy Racking Projects

Explore how our customized multi-tier mezzanine and racking installations improve storage efficiency globally.

Consult An Engineer
Rack-Supported Mezzanine Floor for Manual Picking
Order PickingRecent Project

Rack-Supported Mezzanine for Distribution Center

Pallet storage on ground levels with an integrated high-density order fulfillment floor overhead, doubling usable floor area.

Multi-Level Mezzanine with Reinforced Racking
Automotive LogisticsRecent Project

Multi-Level Reinforced Mezzanine for Auto Parts

Heavy-duty column structures configured for high-density automotive spare parts picking and high-throughput sorting.

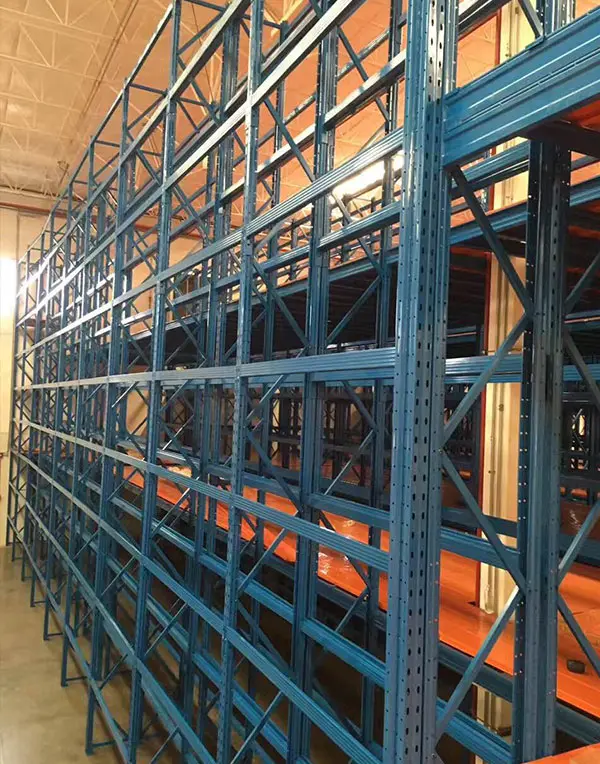

Shelving-Supported Mezzanine System
High-Bay StorageRecent Project

Shelving-Supported Multi-Tier Mezzanine Platform

Configured with anti-slip galvanized steel walkways and integrated stair towers for rapid carton manual picking.

Engineering FAQ

Mezzanine Technical & Specification Answers

Get reliable answers to crucial structural, safety, and logistical questions commonly addressed by international buyers and project engineers.

Are you a direct manufacturer of warehouse mezzanine systems?
Yes. Guangzhou Heda Shelves Co., Ltd. is a dedicated manufacturer founded in 2001. We produce pallet racking, structural steel mezzanines, and industrial shelving in our self-owned 30,000 m² factory, ensuring strict quality control from raw coil slit to final packaging.
What uniform distributed load (UDL) capacities can your mezzanines carry?
Our standard mezzanine platforms accommodate loads from 300 kg/m² to 1,000 kg/m². We also engineer custom heavy-duty structural steel platforms supporting up to 2,000 kg/m² for machinery, robotics, or concentrated point loads.
Do you provide engineering design calculations and CAD layouts?
Yes. We deliver complimentary 2D CAD layouts, load capacity charts, and 3D realistic renderings within 1 to 3 working days upon receipt of warehouse building drawings (DWG/PDF) and load requirements.
Can mezzanine floors be integrated with existing racking systems?
Yes. We regularly design rack-supported, cantilever-supported, and hybrid mezzanines that integrate directly with selective pallet racking, carton flow beds, and overhead pallet drop gates.
Which decking types are available for European installations?
Options include hot-dip galvanized open steel grating (optimal for fire sprinkler penetration and natural light), solid steel checker plate, perforated steel planks, and heavy-duty structural plywood over profiled steel B-decking.
What certifications are supplied for European regulatory compliance?
All systems are produced in accordance with ISO 9001:2015 quality procedures and hold CE Certification (No. 2435-CPR-8605159) with RoHS compliance, ensuring compliance with European warehouse safety regulations.

Ready to Plan Your Warehouse Mezzanine System?

Contact the engineering department at Guangzhou Heda Shelves Co., Ltd. for structural advice, accurate load calculation, and free project design layouts within CET business hours.
