High-Capacity Manual Storage & Picking Solutions
Guangzhou Heda Shelves Co., Ltd. designs and manufactures industrial shelving systems engineered specifically for non-palletised items, multi-SKU picking operations, and e-commerce logistics. Built with Q235B cold-rolled steel and compliant with European warehouse safety regulations.

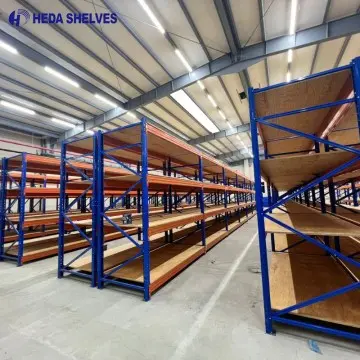

Longspan Shelving
Specifically constructed for bulky, irregular, and heavy items. Longspan shelving provides broad shelf bays up to 2,500 mm in clear width with solid steel, wire mesh, or timber decking options.
- 500 – 1,000 kg capacity per layer
- Spans of 2,000 mm or wider
- Boltless 50 mm pitch adjustability
- Electrostatic powder-coat finish

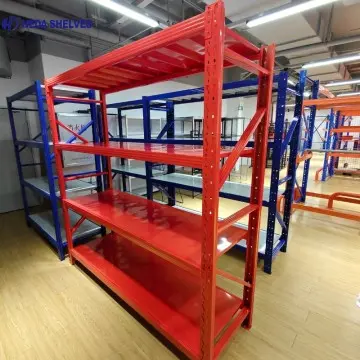

Light & Medium Duty Shelving
Precision-manufactured steel shelving for retail stockrooms, spare parts warehouses, and order preparation zones. Clean, slag-free argon-arc welded joints with rapid snap-in assembly.
- 200 – 800 kg per shelf tier
- Tool-free modular build
- High-grade cold-rolled steel
- Scratch-resistant coating

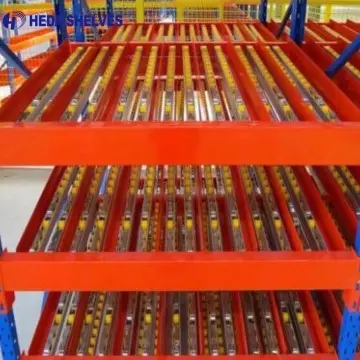

Carton Flow Racking
Gravity-driven roller tracks automatically feed cartons from loading aisle to picking aisle. Delivers strict FIFO rotation, reduces picker transit times, and accelerates fulfilment in e-commerce centres.
- Automated gravity-fed movement
- Up to 50% faster pick rates
- Ergonomic pick face alignment
- Adjustable lane widths & brakes

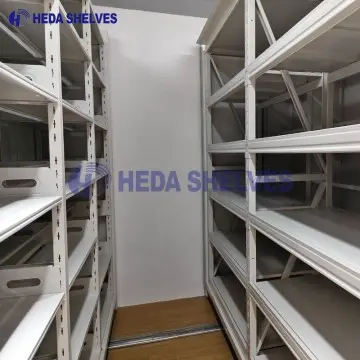

Mobile Shelving System
High-density mobile shelving mounted on precision guide tracks eliminating static service aisles. Increases storage capacity by up to 80% in toolrooms, medical supply hubs, and corporate archives.
- Smooth mechanical hand-crank drive
- Maximises usable floor area
- Integrated safety locks & anti-tip
- Modular expansion capability
| System Type | Load Capacity / Level | Standard Bay Width | Stock Access Method | Recommended Application |
|---|---|---|---|---|
| Longspan Shelving | 500 – 1,000 kg | 1,500 – 2,500 mm | Direct Manual Picking | Automotive parts, heavy cartons, hardware |
| Medium Duty Shelving | 200 – 500 kg | 1,000 – 1,800 mm | Direct Manual Picking | Retail backrooms, light spare parts, electronics |
| Carton Flow Racking | 300 – 800 kg / bed | 1,200 – 2,400 mm | Strict FIFO Gravity Flow | High-velocity order fulfilment, food & pharma |
| Mobile Shelving | 80 – 150 kg / shelf | 900 – 1,200 mm | Compacted Single Aisle | Archives, pharmaceutical vaults, maintenance tools |
