Warehouse Racking & Industrial Storage Systems

Factory-engineered pallet racking, automated shuttle systems, and heavy-duty structural steel platforms designed to European safety standards.

Home / Products
Engineered Storage Solutions

Heavy-Duty Racking Designed for Industrial Logistical Demands

Manufactured by Guangzhou Heda Shelves Co., Ltd., each industrial storage system undergoes finite element structural verification to deliver maximum storage density, structural safety, and rapid picking cycles.

01 VNA Racking System Manufacturer

VNA (Very Narrow Aisle) Racking System

High-density configuration engineered to the tighter structural tolerances demanded by specialized VNA turret trucks. Achieves aisle widths as narrow as 1.5–1.8 metres and bay heights up to 18 metres while keeping 100% direct pallet selectivity.

  • Up to 18m operational bay height
  • Saves up to 40% floor space vs standard aisles
  • Integrated floor-mounted guidance tracks
CE & ISO 9001 Certified Get Catalog
02 Roll Material Pallet Racking

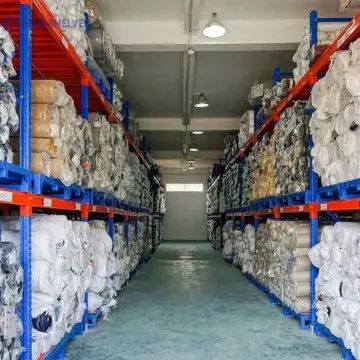

Roll Material Pallet Racking

Specialized structural racking designed for horizontal storage of carpets, textiles, paper rolls, plastic films, and cylindrical coils. Fitted with contoured cradle beams and retention stops to prevent material deformation and roll-off accidents.

  • Heavy-duty cradles for cylindrical loads
  • Custom diameter & load span fabrication
  • Overhead crane or forklift accessible
Custom Engineering Get Catalog
03 Selective Pallet Racking

Selective Pallet Racking

The European logistics benchmark for high-turnover multi-SKU storage. Configured with 50 mm vertical adjustment pitch, supporting single or double-deep layouts compatible with EUR 1200×800mm and EPAL 1200×1000mm standards.

  • 100% direct pallet access without shifting
  • Load capacity up to 4,500 kg per beam level
  • Supplied with EN-standard safety locking pins
Euro Pallet Standard Get Catalog
04 Drive-In Rack

Drive-In Pallet Racking

Ultra-dense storage system that eliminates access corridors by allowing reach or counterbalance trucks to enter internal storage bays. Ideal for cold store chambers and seasonal items operating on a Last-In, First-Out (LIFO) inventory cycle.

  • Up to 75% increase in storage volume
  • Heavy structural pallet support rails
  • Reinforced ground entry guide rails
High-Density Cold Chain Get Catalog
05 Gravity Flow Racking

Gravity Flow Pallet Racking

Dynamic FIFO live storage system utilizing inclined roller tracks. Unit loads move automatically from loading face to unloading side by gravity force, incorporating mechanical speed controllers and end separators for controlled picking rates.

  • Guaranteed First-In, First-Out rotation
  • Separated replenishment and picking aisles
  • Integrated centrifugal braking rollers
Pharma & Perishables Get Catalog
06 Radio Shuttle Rack

Radio Shuttle Pallet Racking

Semi-automated deep lane storage relying on remote-controlled wireless electric shuttles. Pallets travel within lanes while forklift drivers work purely at aisle faces, drastically lowering operational cycle times and reducing rack collision hazards.

  • Selectable FIFO or LIFO operating logic
  • Sub-zero operation capability down to -25°C
  • High-capacity lithium battery packs
Semi-Automated System Get Catalog
07 Cantilever Racking

Heavy-Duty Cantilever Racking

Designed with unobstructed horizontal reach without front upright columns to store timber packs, steel bars, extrusions, and composite panels. Available with bolted or pinned cantilever arms offering loads up to 3,000 kg per arm.

  • Single and double-sided structural towers
  • Hot-dip galvanised finish for yard storage
  • Adjustable arm positions on punched pitch
Builders' Merchant Grade Get Catalog
08 Push back rack

Push Back Pallet Racking

Dynamic nested cart system operating on inclined steel guide rails. Accommodates 2 to 5 pallets deep per storage channel. Front-loaded pallets push back subsequent pallets on interlocking carts, returning via gravity upon unloading.

  • 2 to 5 pallets deep storage capability
  • Independent access lane per SKU level
  • Low maintenance nested structural carts
Dynamic Gravity Storage Get Catalog
Engineering Support

Free Engineering Layouts & Technical Consultation

Guangzhou Heda Shelves Co., Ltd. delivers turnkey engineering verification before container loading, providing European partners with certified project certainty.

PHASE 01

Fast CAD Drawings

Send your building dimensions or architectural CAD file. Our design engineers prepare complete bay layouts, elevation profiles, and aisle clearance drawings within 72 hours.

PHASE 02

3D Warehouse Visualization

Clear 3D models demonstrating forklift turn radii, mezzanine stair placement, column grids, and pallet capacities to present directly to your project investors or building owners.

PHASE 03

Load Calculations & Standards

Comprehensive engineering calculation reports referencing EN 15512 and FEM principles, providing your safety officers with certified load charts and anchor tension data.

Manufacturing Authority

Key Advantages of Sourcing From HEDA Shelves

25+ Years

Direct Factory Experience

Serving industrial clients, 3PL distributors, and logistics facilities across 120+ countries since 2001 with continuous technical innovation.

30,000 Tonnes

Monthly Production Scale

State-of-the-art continuous roll-forming lines, automated laser profiling, and electrostatic powder coating plants for consistent project delivery.

End-to-End

One-Stop Turnkey Supply

Comprehensive supply from cold-formed uprights and beams to mesh decking, pallet stops, and heavy anchor bolts ready for rapid assembly.

10,000+ Projects

Proven Installation Track

Thousands of completed facilities engineered for seismic requirements, cold store temperatures, and specialized multi-tier pick towers.

Recent Projects

Engineered Installations Delivered Globally

A selection of recent heavy-duty storage projects engineered, manufactured, and shipped by our team.

Heavy-Duty Racking System for Chemical Storage
Chemical Logistics

Heavy-Duty Drum & Pallet Racking with Integrated Spill Control Bays

Rack-Supported Mezzanine Floor for Manual Picking
Order Fulfillment

Rack-Supported Mezzanine Platform Doubling Usable Pick Operations

Multi-Level Mezzanine for Auto Parts
Automotive Spares

Reinforced Multi-Tier Industrial Mezzanine with High-Bay Picking Aisles

Technical Clarifications

Cantilever Racking & Industrial Storage FAQ

Key engineering considerations for warehouse planners, logistics directors, and structural procurement teams.

What is the difference between single-sided and double-sided cantilever racking?
Single-sided systems feature load arms protruding from only one side of the vertical column tower. These are typically installed flush against structural perimeter walls or at the end of building bays where access is unidirectional. Double-sided configurations utilize a centralized vertical structural tower with arms projecting from both faces, allowing forklifts to operate from dual aisles and doubling available storage positions on the same footprint.
What types of items are best suited for cantilever storage systems?
Cantilever systems are explicitly engineered for long, cumbersome, or non-palletised cargo that cannot be accommodated in standard pallet racking bays without upright column obstruction. Common industrial applications include timber bundles, PVC and copper piping, structural steel beams, drywall sheets, and rolled aluminum extrusions.
What is the maximum load rating per cantilever arm level?
Load ratings range from 200 kg per arm on light-duty manual shelving towers up to 3,000 kg per arm for heavy-duty structural steel lines. Specific load capacity is calculated based on arm length, structural steel section thickness, and point of connection to the tower. Guangzhou Heda Shelves Co., Ltd. provides certified load tables with every installation proposal.
Can cantilever arm positions be modified after warehouse setup?
Yes. Our upright column columns are precision-punched with uniform hole pitch along the entire height. Cantilever arms can be adjusted vertically without cutting or welding, accommodating evolving product lines and varying load pack heights over the operating life of the racking system.
Are these storage systems certified for outdoor yard installation?
Yes. For external storage areas and builders' yards, we provide full hot-dip galvanised (HDG) steel components. This zinc immersion treatment conforms to international corrosion resistance standards, preventing rust in humid, maritime, or unheated open environments without requiring periodic repainting.
