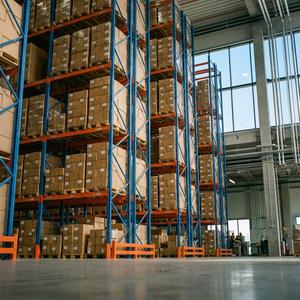

Custom structural calculations, certified cold-formed high-tensile steel, and precision tolerances configured for standard Euro-pallets (1200×800 mm), ISO industrial pallets (1200×1000 mm), and bespoke unit loads.
Gravity-driven aluminum and plastic roller tracks designed for strict FIFO carton order picking, eliminating handling bottlenecks in fast-moving FMCG distribution hubs.
High-tensile Q355B structural steel box beams designed for extreme loads (up to 5,000 kg/tier) with seismic base-plate anchoring engineered for heavy industrial and mining applications.
Modular multi-layer shelving units featuring boltless teardrop lock connectors, corrosion-resistant powder finishing, and adjustable pitch heights for flexible parts storage.
Specialized cradle-beam geometry engineered to stabilize cylindrical textile rolls, non-wovens, and cable reels while preventing compression distortion and enabling safe high-bay storage.
Continuous hot-dip galvanized cold-rolled structural steel profiles delivering anti-corrosion protection in high-humidity facilities, outdoor yards, and cold storage operations.
Integrated speed controllers and brake rollers enable controlled slope transit for 1,500 kg pallets. Maximizes floor utilization by eliminating access aisles between dispatch faces.
Multi-tier structural column-and-beam elevated platforms engineered for floor loads from 300 to 1,000 kg/m², doubling warehouse operational footprint without civil construction costs.
Precision-formed light-to-medium utility shelving with epoxy polyester powder finish, engineered for automotive maintenance bays, toolrooms, and spare parts picking aisles.
In global supply chain infrastructure, warehouse racking is not a generic commodity—it is an engineered load-bearing steel structure subjected to severe static, dynamic, and seismic forces. Procurement executives sourcing from Chinese manufacturers must navigate structural safety standards, steel grade chemistries, deflection tolerances, and manufacturing verification to guarantee long-term operational resilience.
A structural failure in a high-bay racking system carries catastrophic direct and indirect liabilities, from worker injury and inventory destruction to complete supply chain cessation. The primary design standard across the European Union and international markets adhering to CEN guidelines is EN 15512:2020 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design), complemented by EN 15620 for dimensional tolerances and FEM 10.2.02 across dynamic handling operations. In the Americas, structural compliance centers around RMI (Rack Manufacturers Institute) ANSI MH16.1.
Structural reliability begins with raw material verification. Reputable Chinese exporters utilize certified hot-rolled and cold-formed coils compliant with GB/T 700 Q235B (yield strength $f_y \ge 235 \text{ MPa}$, equivalent to European EN 10025 S235JR) for standard uprights, and Q355B ($f_y \ge 355 \text{ MPa}$, equivalent to S355JR) for heavy load-bearing upright profiles, dynamic shuttle channels, and mezzanine main columns. Under full working load, the maximum vertical elastic deflection ($\delta$) of any pair of beams must not exceed $L/200$ (where $L$ is the clear span distance) according to EN 15512 parameters.
Comparative technical benchmark for operations executives evaluating density, selectivity, forklift compatibility, and total cost of ownership (TCO).
| System Architecture | Storage Density | Direct Selectivity | Stock Rotation Logic | Floor Utilization (%) | Forklift / Automation Interface | Typical Applications |
|---|---|---|---|---|---|---|
| Selective Pallet Racking | Standard (1.0x) | 100% (Instant) | FIFO or LIFO | 35% – 40% | Counterbalance, Reach Truck, VNA | 3PL multi-SKU hubs, FMCG, retail distribution |
| Drive-In / Drive-Through | High (2.2x) | Low (Lane-dependent) | LIFO (Drive-In) / FIFO (Through) | 65% – 75% | Reach Truck, Counterbalance | Cold storage, beverage batching, seasonal surplus |
| Gravity Pallet Flow | High (2.0x) | Medium (Face pallet) | Strict FIFO | 60% – 70% | Standard Forklifts, Conveyor Feeders | Perishable food, pharmaceuticals, batch expiration items |
| Semi-Automated Radio Shuttle | Ultra-High (2.8x) | Medium (Channel-dependent) | Configurable FIFO / LIFO | 75% – 85% | Pallet Runner Shuttle + Standard Mast Truck | Freezer hubs (-25°C), raw material buffering, mega-DCs |
| Heavy-Duty Cantilever Racking | Variable | 100% for long items | Any (Flexible) | 40% – 50% | Side-loaders, 4-way reach trucks | Steel pipes, timber profiles, sheet metal, rebar packs |
| Structural Steel Mezzanines | Floor Doubling | 100% Surface Access | Continuous workflow | Up to 100% elevated | AGV, AMR, pallet jacks, vertical lifts | E-commerce sortation, assembly floors, picking towers |
How Guangzhou Heda Shelves Co., Ltd. controls metallurgical tolerance, weld integrity, and coating durability across 30,000 square meters of automated manufacturing infrastructure.
Certified Q235B/Q355B coils undergo ultrasonic thickness testing and precision longitudinal slitting within ±0.1mm dimensional tolerance.
Continuous CNC multi-station punch presses cut teardrop/hex holes at 50mm increments, followed by cold roll-forming with up to 24 rolling passes.
Robotic MIG/MAG welding stations join beam connectors with 3 or 4 claw hooks, producing uniform penetrative weld beads tested under EN 15512 shear loads.
Alkaline degreasing, ultrasonic water rinsing, acid pickling, and nanoceramic phosphating ensure complete oxide removal for maximum coating adhesion.
Automated Swiss Gema powder application (60–80 µm dry film thickness) cured at 200°C. Verified by cross-hatch adhesion and salt spray testing (ASTM B117 > 500 hrs).
Supply chain infrastructure is evolving from passive static steel assemblies into dynamically integrated, automated, and environmentally verifiable assets.
Global logistics facilities are transitioning away from wide-aisle forklift operations toward automated storage and retrieval systems (AS/RS) and AMR-assisted multi-tier platforms. Sourcing specifications now require ultra-tight deflection tolerances under continuous dynamic cycling ($L/300$ or lower), laser-verified straightness along 15+ meter uprights, and standardized guide-rail mounting interfaces.
With distribution mega-hubs concentrating hundreds of millions of dollars in inventory under single roofs, seismic engineering codes (such as Eurocode 8, US IBC/ASCE 7, and AS 4084) are mandating ductile structural base plates, reinforced column wraparounds, back-to-back portal ties, and dynamic horizontal bracing arrays to prevent catastrophic failure during seismic events.
Multinational enterprise buyers subject to EU CSRD (Corporate Sustainability Due Diligence) and Scope 3 emissions reporting are demanding Environmental Product Declarations (EPDs). Chinese mills and tier-1 racking exporters are responding with scrap-based electric arc furnace (EAF) steel, TGIC-free eco-friendly powder coatings, and minimized carbon footprints in overseas container packing.
Procurement teams no longer accept flat 2D DWG layouts. Modern facility engineering mandates full 3D Building Information Modeling (BIM) with Revit/IFC compliance. This enables collision detection with HVAC, overhead fire suppression sprinkler systems (NFPA 13), and structural building columns prior to steel fabrication, saving weeks during on-site erection.
Combining 25 years of specialized manufacturing history with rigorous European compliance, free layout engineering, and direct export packing optimization.
Founded in 2001, Heda Shelves has delivered over 10,000 turnkey racking and industrial shelving installations across 120+ countries, spanning Europe, the Americas, the Middle East, and Southeast Asia.
Holding audited CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 (No. 18624Q00169R0M), and independent third-party mill test reports. Full EN 15512 calculation sheets provided for local engineering review.
Our in-house team of 20+ structural racking engineers generates detailed floor layouts, capacity load tables, seismic anchoring calculations, and 3D renderings within 24–48 hours of initial brief submission.
Structural components are bubble-wrapped, steel-banded, and packed with dedicated heavy-duty timber skids. Uprights and beams are numbered for sequence-aligned unloading, maximizing container cube utilization.
Downloadable verification documents for compliance departments, warehouse insurers, and municipal building regulators.
Authoritative answers addressing structural engineering, customs clearance, freight optimization, and site assembly protocols.
Under Chinese National Standard GB/T 700, Q235B offers a minimum yield strength of 235 MPa and tensile strength of 370–500 MPa, directly equivalent to European EN 10025 S235JR and American ASTM A36. It provides excellent cold-forming ductility and weldability for standard uprights, beams, and diagonal bracing.
Q355B (GB/T 1591) provides a minimum yield strength of 355 MPa and tensile strength of 470–630 MPa, matching European S355JR and American ASTM A572 Grade 50. We engineer Q355B into heavy-duty load-bearing upright profiles (>15,000 kg frame capacity), deep-lane drive-in cantilever arms, radio shuttle guide tracks, and primary structural mezzanine columns to reduce section weight while maximizing safety margins.
Every commercial order is accompanied by an engineering submittal package including: 1) Mill Test Certificates (MTC) verifying heat-batch chemical composition and yield/tensile testing; 2) Static Load Calculation Sheets generated in accordance with EN 15512:2020 principles, defining beam allowable loads at $L/200$ deflection and upright frame capacities; 3) 2D/3D CAD layout drawings detailing aisle clearances, bay dimensions, and frame tie positions; 4) Audited CE Certificate (No. 2435-CPR-8605159); and 5) Official EN 15635 compliant safety load notices (Plaques) ready for physical installation on rack frames.
Yes. As a global exporter, all racking systems are custom-fabricated around client-specific unit load footprints. For standard Euro-pallets (EUR 1, 1200×800 mm), bays are conventionally engineered at 2700 mm clear entry widths (3 pallets per beam level) with 1050 mm or 1100 mm frame depths to ensure the required 50 mm front and rear overhang. For North American GMA 48×40 inch pallets, we configure 96-inch or 108-inch clear beam lengths with 42-inch frame depths. Wire mesh decking, drop-in pallet support bars, and pallet back-stops are integrated for mixed-footprint distribution centers.
Factory fabrication lead time generally ranges from 15 to 25 business days depending on total tonnage, roll-forming profile setup, and custom RAL powder coat colors. Shipping from our Guangzhou export facility via major coastal ports (Nansha, Shenzhen, Hong Kong):
• To Western Europe (Rotterdam, Hamburg, Antwerp, Valencia): 28 to 36 days transit.
• To US West Coast (Los Angeles, Long Beach): 14 to 18 days transit.
• To US East Coast (New York, Savannah, Charleston): 28 to 34 days transit.
We provide full FOB, CIF, CFR, or DDP (Delivered Duty Paid) door-to-door forwarding support including container stuffing plans and customs declaration documentation.
Marine transit exposes cargo to extreme relative humidity and corrosive salt-spray environments. All HEDA Shelves painted components receive an electrostatic thermosetting epoxy polyester powder coating (60–80 µm thickness) pre-treated through a 9-stage degreasing and nanoceramic phosphating wash. Structural bundles are wrapped in multi-layer heavy-duty polyethylene stretch film with reinforced cardboard edge corner protectors, strapped with high-tensile steel bands onto custom timber skids, and loaded with industrial desiccant bags inside enclosed 40ft High Cube containers to prevent condensation and sweat damage.
Every shipment includes an engineering installation dossier with: 1) Numbered component schedules corresponding directly to shipping manifests; 2) Step-by-step 3D assembly sequence drawings; 3) Torque specifications for base-plate expansion anchors and frame bracing bolts. For large-scale distribution centers and multi-level structural mezzanines, HEDA Shelves provides remote video engineer supervision or can dispatch experienced on-site installation supervisors to direct your local mechanical rigging crews.
Send your warehouse floor plan (DWG/PDF), clear height under beam, pallet load specifications, and handling equipment model. Our senior structural engineers will prepare an optimized 3D layout, static calculation summary, and direct factory price schedule within 24 hours.
