China Top Lightweight Pallet Racking Factory & Exporter

Precision-engineered light, medium, and heavy-duty industrial storage racks. CE & ISO 9001:2015 certified steel manufacturing directly supplying European and global supply chain hubs since 2001.

2001
Founded with 25+ Years of Racking Manufacturing
30,000 m²
State-of-the-Art Automated Production Facilities
30,000 t
Monthly Structural Profile Fabrication Capacity
10,000+
Projects Successfully Delivered to 120+ Countries
Factory Catalog Showcase

High-Efficiency Warehouse Storage & Racking Systems

Explore our export-ready racking architectures, built with cold-rolled Q235B high-tensile steel, EN 15512 safety factors, and electrostatic powder coatings for maximum load-to-weight structural ratios.

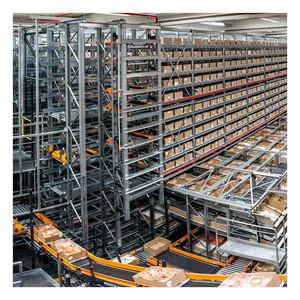

Automated Storage and Retrieval System ASRS

Customized Adjustable Intelligent Automation Picking Warehouse Storage Automated ASRS

Ultra-dense vertical automated storage system integrating precision stacker cranes, high-speed shuttle bays, and IoT telemetry for unattended logistics fulfillment.
View Specs → Get Catalog

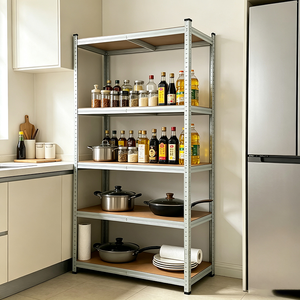

5 Tier Boltless Steel Shelving Rack

5 Tier Boltless Steel Storage Shelving Rack Unit Adjustable Slotted Angle Display Garage Warehouse Shelves

Modular lightweight boltless angle system featuring interlocking steel uprights, adjustable 50mm pitch levels, and 150-300kg per level manual loading.
View Specs → Get Catalog
Heavy Duty Selective Pallet Racking System

Warehouse Storage Pallet Racks Durable Adjustable Steel Metal Heavy Duty Selective Pallet Racking

Universal 100% selective beam configuration engineered for EUR/EPAL pallet footprints (1200x800mm), supporting heavy loads up to 4,000kg per beam level.
View Specs → Get Catalog

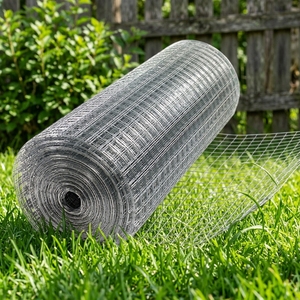

Galvanized Welded Wire Mesh Hardware Cloth

Galvanized Welded Wire Mesh Roll Hardware Cloth Square Grid Warehouse Fence Animal Screen Manufacturer

Electro-galvanized and hot-dipped welded wire partitioning panels designed for rack flue-space decking, anti-collapse falling safety backings, and secure enclosures.
View Specs → Get Catalog
Heavy Duty Adjustable Cantilever Storage Rack

OEM Heavy-Duty Single Size Steel Storage Shelf Adjustable Cantilever Rack for Warehouse Pallet-Packed

Clear-span cantilever arm architecture without front-column obstruction, ideal for raw timber, extrusion billets, and steel profile distribution yards.
View Specs → Get Catalog
Single Sided I-Beam PVC Pipe Storage Cantilever Rack

Selective Single Sided I-Beam PVC Pipe Storage Cantilever Rack System High Stability

Heavy structural hot-rolled H-beam columns equipped with adjustable tapered arms to hold conduits, pipes, and tubing without deflection or risk of rolling spillover.
View Specs → Get Catalog

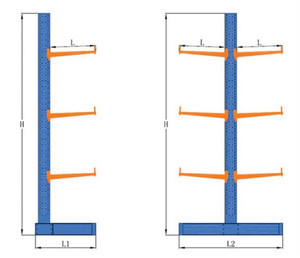

CE Certified Warehouse Cantilever Racking for Steel Profiles

CE Certified Warehouse Storage Shelving Rack Adjustable Heavy-Duty Cantilever Rack for Steel Profile Storage

Independently certified structural cantilever frame built under CE Certificate No. 2435-CPR-8605159, rated for 1,000kg to 3,000kg dynamic load per cantilever arm.
View Specs → Get Catalog
High Density Steel Storage Mezzanine Floor Platform

Customized High Density Storage Mezzanine Steel Wholesale Mezzanine Floor Platform Metal Mezzanine

Rack-supported and structural multi-tier mezzanine engineering delivering 300 to 1,000 kg/m² floor capacity to double warehouse square footage without facility expansion.
View Specs → Get Catalog
Industry Whitepaper Report

Engineering the Future: Lightweight Pallet Racking in Modern Logistics

Why modern global supply chains are abandoning over-engineered, heavy hot-rolled steel in favor of high-yield-strength cold-formed lightweight profile configurations.

In modern warehouse logistics, the term "Lightweight Pallet Racking" no longer denotes light-duty retail display racks. Instead, it defines a major engineering shift: utilizing advanced high-yield cold-formed structural steel profiles (such as Q235B and Q355B micro-alloyed coils) to dramatically reduce dead structural weight while strictly preserving rated dynamic load envelopes. By optimizing cross-sectional moment of inertia through precision computer-aided roll-forming, modern lightweight pallet racking delivers superior structural rigidity, reduced seismic vulnerability, and significant shipping freight advantages for international procurement teams.

For European and North American importers, freight rates represent a substantial percentage of total landed procurement costs. Conventional heavy racking sections consume container gross weight capacities long before filling volumetric 40ft High-Cube container dimensions. Through optimized profile geometries—featuring 50mm pitch omega upright configurations with engineered multi-flange stiffening ribs—our export engineering teams achieve up to a 28% reduction in structural deadweight. This allows distributors to ship up to 35% more pallet storage locations per standard ocean container without violating international gross vehicle weight directives.

Optimized Strength-to-Weight Ratio

Multi-bend cold-rolled upright sections increase mechanical inertia and rotational stiffness, resisting lateral forklift impacts while lowering raw steel mass.

Substantial Freight & Handling Savings

Maximizes container cubing capacity for international maritime shipping. Lower tare weight translates into easier manual handling, faster erection, and lower floor slab dead loads.

Full Compliance with EN Standards

Manufactured under ISO 9001:2015 and CE Certificate No. 2435-CPR-8605159. Fully modeled around EN 15512 static calculation methods and EN 15620 clearance guidelines.

Strategic Procurement Trends

Emerging Procurement Trends in Pallet Racking (2025–2030)

Global fulfillment directors are transforming their intralogistics procurement to adapt to supply chain volatility, omnichannel retail, and automation convergence.

Pre-Configured Automation Compatibility

B2B buyers are bypassing single-purpose static racking. Uprights and beams are now specified with tighter manufacturing tolerances (±0.5mm) to support future Autonomous Mobile Robot (AMR) docking and 2D radio shuttle shuttles without rack retrofits.

Carbon-Neutral & Closed-Loop Steel

European and US corporate governance mandates verifiable ESG documentation. Tier-1 buyers require Life Cycle Assessments (LCA), RoHS certified anti-VOC coatings, and verified scrap-recycled content in structural steel billet sourcing.

Standardized Euro & ISO Compatibility

Cross-border logistics operators demand modular universal pitch layouts capable of shifting from EUR-1 (800x1200mm) to industrial ISO block pallets (1000x1200mm) through simple tool-less beam repositioning along continuous 50mm perforations.

Total Factory-Direct Digital Procurement

Supply chain managers are replacing intermediate local distributors by collaborating directly with certified Chinese manufacturing plants that provide full CAD/BIM layouts, FEA stress simulations, and DDP delivery tracking directly to job sites.

Engineering Datasheet

Structural Load Matrix: Lightweight vs Standard Pallet Racks

Engineered data verifying how precision profile forming retains high load envelopes while reducing structural steel weight.

System Classification Material Grade Profile Section (mm) Rated Capacity per Bay Primary Suitable Application
Lightweight Longspan / Shelving Q235B Cold-Rolled 55 × 47 × 1.5 / 1.8 Up to 2,500 kg Manual picking, e-commerce small parts, auto-spares
Optimized Light-Medium Pallet Rack Q235B / Q355B 80 × 60 × 1.8 / 2.0 Up to 6,000 kg FMCG, retail distribution hubs, light machinery
Heavy-Duty Selective Pallet Rack Q355B Micro-Alloyed 100 × 70 × 2.0 / 2.5 Up to 15,000 kg Industrial cold chain, bulk logistics, heavy chemical drums
Rack-Supported Mezzanine Platform Hot/Cold Rolled Hybrid 120 × 95 × 2.5 / 3.0 300–1,000 kg/m² Dual-purpose bulk storage plus multi-tier picking deck
Cantilever Profile Racking H-Beam / Box Section 200 × 100 Upright 1,000–3,000 kg/arm Timber lumber, PVC & steel tubing, rebar profiles
Manufacturing Rigor

Guangzhou HEDA Shelves: 10-Step Certified Production Workflow

Every ton of steel manufactured in our 30,000 m² factory passes through an audited quality assurance sequence to guarantee field safety and international structural compliance.

STEP 01

Raw Steel Spectrometry

Mill test certificates (MTC) and spectral tension verification of incoming Q235B/Q355B coil stock.

STEP 02

Precision CNC Slitting

High-tolerance automated longitudinal coil slitting ensuring zero micro-burrs along raw profile edges.

STEP 03

Automated Perforation

Multi-punch CNC press lines punch 50mm pitch teardrop or diamond beam connection slots at ±0.2mm accuracy.

STEP 04

Continuous Roll Forming

18-station precision cold roll-forming lines generate structural omega upright profiles with built-in stiffeners.

STEP 05

Robotic Laser & Sawing

High-speed laser cutters trim box beams and roll sections precisely to custom clearance lengths.

STEP 06

Robotic Jig Welding

MIG/CO2 automated robotic welders secure 3-claw and 4-claw connectors to beam bodies with uniform penetration.

STEP 07

Polishing & Deburring

Mechanical rotary tumbling and hand polishing eliminate all edge imperfections prior to surface treatment.

STEP 08

Pickling & Phosphating

A 5-stage chemical pre-treatment dipping bath cleanses grease, etches the surface, and applies an anti-rust phosphate film.

STEP 09

Electrostatic Coating

Automated powder spray booths apply non-toxic, RoHS-compliant thermoset epoxy powders cured at 200°C.

STEP 10

QC & Seaworthy Packing

Cross-hatch adhesion testing, ultrasonic thickness gauging, and corrugated strapping for ocean container transit.

Why Partner With Us

Guangzhou HEDA Shelves: Enterprise Strengths

Operating since 2001, Guangzhou Heda Shelves Co., Ltd. delivers full-lifecycle manufacturing capabilities from initial CAD conceptualization to international port delivery.

Global Export Footprint

Exporting to more than 120 nations with dedicated sea freight routing to primary European hubs (Rotterdam, Hamburg, Antwerp, Valencia, Felixstowe) and major American container terminals under flexible FOB, CIF, or DDP terms.

Complimentary Engineering & CAD/3D Layouts

Our in-house technical department produces free DWG layout schematics, 3D warehouse renderings, building column clash detection reviews, and load calculation sheets tailored to your local site parameters within 24 to 48 hours.

Full OEM / ODM Private-Label Manufacturing

Tailored custom profile designs, specialized RAL color powder applications, corporate private labeling, and packaging engineered to support regional European and global storage equipment distributors and system integrators.

Procurement Guidance

Frequently Asked Questions on Importing Racking from China

Comprehensive technical and commercial answers addressing common engineering queries, shipping workflows, load certifications, and installation logistics.

What distinguishes "lightweight pallet racking" from traditional heavy pallet racking? +
Lightweight pallet racking utilizes advanced cold-formed profile geometries and high-tensile steel grades (such as Q235B or Q355B micro-alloys) rather than bulky structural hot-rolled steel. By engineering multiple stiffening ribs along the profile cross-section, structural deadweight is reduced by 20% to 30% while retaining structural rigidity and load capabilities (typically up to 1,500kg–4,000kg per beam pair). This lowers ocean container freight costs, reduces building foundation loads, and speeds up manual handling on site without sacrificing safety factors defined by international standards like EN 15512.
Can your pallet racking systems be configured specifically for EUR/EPAL standard pallets? +
Yes, our racking systems are fully optimized for European pallet standards, including EUR-1 (800 × 1200 mm), EUR-2 (1200 × 1000 mm), and EUR-3 (1000 × 1200 mm). Clear bay dimensions, frame depths (typically 1100 mm for 1200 mm deep pallets to ensure a standard 50 mm front/back overhang), and beam spans are calculated according to EN 15620 class clearance rules during our free engineering layout design stage.
What international quality certifications and structural test reports do you hold? +
Guangzhou HEDA Shelves holds official CE Certification (Certificate No. 2435-CPR-8605159) under Construction Products Regulation requirements, alongside ISO 9001:2015 Quality Management System Certification (Certificate No. 18624Q00169R0M). Our electrostatic powder coatings are RoHS certified. Detailed finite element analysis (FEA) reports, raw steel Mill Test Certificates (MTC), and structural static calculation sheets conforming to EN 15512 are provided upon request to support your municipal building permits or safety authority inspections.
What is the standard production lead time and typical shipping transit duration? +
Factory production typically takes 15 to 25 calendar days depending on total project tonnage and whether custom RAL powder coating is requested. Sea freight from our manufacturing base in Guangzhou to major European destination ports (such as Rotterdam, Hamburg, Antwerp, Felixstowe, or Valencia) normally requires 28 to 38 days. We manage comprehensive export documentation including Bill of Lading, Certificate of Origin, Packing Lists with component labeling, and commercial export customs clearance.
What essential site data is needed to generate a customized racking design and quote? +
To prepare an accurate CAD layout and load quotation, our structural engineering team requires: (1) Warehouse architectural drawings in DWG or PDF showing building columns, ceiling clear heights, and doors; (2) Pallet specifications including overall dimensions (W × D × H), maximum load weight per pallet, and pallet type; (3) Forklift specifications including aisle clearance requirements, maximum mast lift height, and turning radius; and (4) The project destination city or port.
How does your factory ensure product safety against shipping damage during sea transit? +
All structural components are packaged according to strict seaworthy export standards. Upright frames and beams are nested, wrapped with protective heavy-gauge bubble and stretch film, banded with heavy-duty PET/steel strapping, and supported on wooden dunnage or custom steel skids to prevent metal-to-metal rubbing. Small hardware, baseplates, and safety pins are sorted, marked, and packed in reinforced corrugated export cartons.
Do you offer OEM private-label manufacturing for overseas distributors and installers? +
Yes. A significant portion of our 30,000-tonne monthly output is dedicated to OEM and ODM contracts for regional material handling companies across Europe, North America, and Australia. We support custom profile punching, bespoke beam connectors, distributor-branded component labeling, customized product manual printing, and dedicated RAL color matching (e.g., standard RAL 5015 Blue uprights with RAL 2004 Orange beams, or custom monochrome schemes).

Plan Your Storage Project with HEDA's Engineering Team

Receive an engineered 2D/3D CAD warehouse layout proposal, comprehensive load calculation sheets, and direct-from-factory pricing within 24 hours. No intermediary markups, verified CE certification, and full technical support.
