Dynamic Flow
Custom Warehouse Racking System Steel Storage Rack Solution For Logistics And Manufacturing
Q235B High-Tensile
Custom Bay Size
Heavy Capacity
Factory-Direct Engineered Roller Racking Configurations
Precision cold-rolled high-strength steel systems matched with precision dynamic brake rollers, impact feed trays, and customizable modular tracks for seamless FIFO warehousing.
Adjustable Height
Industrial 5-Layer Adjustable Height Roller Racking Shelf Corrosion Protection Metal Rack for Garage Warehouse Use Fluent
5-Tier Fluent Track
Anti-Corrosion Finish
50mm Pitch
Carton Live Pick

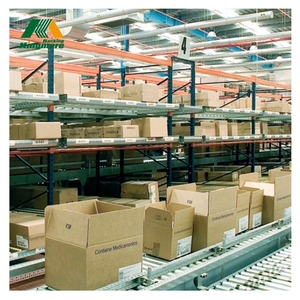

Customized Gravity Carton Flow Pallet Roller Rack System
Carton Live Flow
Aluminum Roller Beds
Split-Lane Track
1000kg/Pallet FIFO

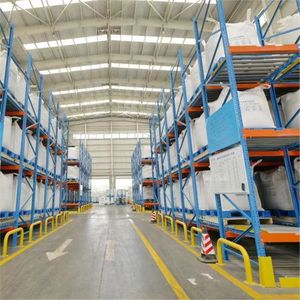

Heavy Duty Steel Roller Dynamic FIFO Gravity Racking System 1000kg Capacity Powder Coated for Certified Collapsible ODM Storage
1000kg/Pallet Unit
Centrifugal Speed Brake
Powder Coated
Stacking Storage

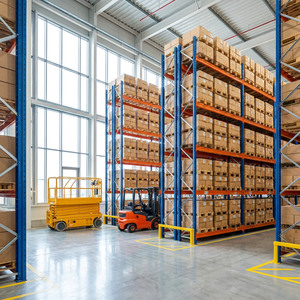

Storage Stacking Racks Pallet Steel Metal Racking Heavy Loading Multi Level Cold Roll Shelving
Cold Roll Shelving
Multi-Tier Stack
High Rigidity
Mobile Workshop

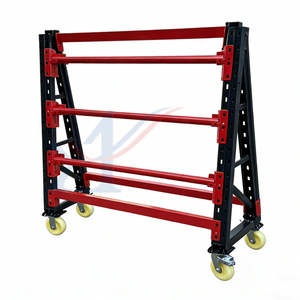

Customized Medium Duty Metallic Roller Rack with Wheels 3-Layer Adjustable Height Storage Rack for Industrial Use
Heavy Duty Casters
Line-Side Feeding
Galvanized Steel
Space Optimization
Factory Direct Steel Gravity Roller Racks Adjustable High Space Utilization Warehouse Gravity Flow Shelving Powder Coated
85% Space Density
Epoxy Powder Coated
Custom Slope Angles
High Throughput

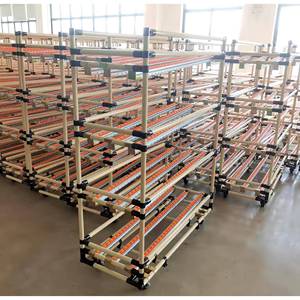

AOCHEN Industrial Collapsible Adjustable Gravity Roller Shelves Steel Flow Rack Shelving System High-Strength
Modular Uprights
Full Width Steel Rollers
Safety Separators
Engineering Whitepaper: The Strategic Imperative of Gravity Roller Racking
A deep technical assessment on density gains, operational ergonomics, and mechanical integrity for global supply chain leaders.
In today's omnichannel fulfillment corridors and volatile manufacturing environments, warehouse footprint economics demand an uncompromising shift from passive, aisle-heavy storage toward dynamic, high-density gravity roller racking systems. Operating purely on calibrated gravitational potential energy, roller racking (commonly referred to as live pallet flow or carton live storage) maximizes volumetric efficiency by up to 85% compared to conventional selective pallet racking, while enforcing rigid First-In, First-Out (FIFO) inventory rotation with zero electrical energy overhead.
85%
Volumetric Utilization
60%
Forklift Travel Reduction
100%
Strict FIFO Compliance
0 kWh
Power Consumption
As a premier China wholesale roller racking manufacturer and high-capacity export supplier, our engineering methodology tackles the primary pain points that plague industrial operations: rack collisions, pallet trajectory deviation, run-away momentum, and structural fatigue. Utilizing high-yield cold-rolled steel (SS400 / Q235B equivalent under EN 10025 standards), our upright frames and step beams undergo rigorous FEA (Finite Element Analysis) to guarantee resilience under sustained dynamic live-load cycling.
| System Architecture | Typical Payload / Level | Inclination Gradient | Braking Mechanism | Ideal Industry Use-Case |
|---|---|---|---|---|
| Heavy Pallet Flow Racking | 500 kg – 1,500 kg / pallet | 2.5% – 3.5% (1.5°–2.0°) | Centrifugal Magnetic Speed Controller | Cold Storage, Beverage, FMCG Distribution |
| Carton Flow (Fluent Racking) | 30 kg – 120 kg / line | 3.0% – 5.0% (1.7°–2.9°) | Impact End-Stops & Entry Guides | E-commerce Piece Picking, Automotive Assembly |
| Push-Back Roller System | 500 kg – 1,000 kg / lane | 1.8% – 2.2% (Reverse slope) | Progressive Resistance Friction Dampers | LIFO Seasonal Bulk Storage, Buffer Staging |
| Line-Side Mobile Roller Racks | 200 kg – 600 kg total | 3.5% Static Incline | Manual Foot Brake + Positive Wheel Locks | Lean Manufacturing, Just-In-Time (JIT) Kitting |
Critical to system longevity is the engineering precision embedded into our roller tracks. Unlike standard unpowered gravity rails that suffer from roller seizure, our dynamic tracks incorporate sealed, precision ball bearings lubricated with high-grade synthetic greases suited for ambient temperatures ranging from -30°C in deep-freeze cold storage up to +50°C in equatorial industrial zones. Integrated safety separators ensure that when the front pallet is retrieved by a reach truck or forklift, the succeeding line of pallets is held back until the retrieval face is completely cleared, totally eliminating operational back-pressure hazards.
Global Sourcing & Procurement Trends (2025–2030)
How forward-thinking supply chain directors are aligning warehouse infrastructure investments with decarbonization, modular robotics, and localized compliance.
1. Convergence of AMR & Gravity Roller Feeds
The boundary between autonomous mobile robots (AMRs) and mechanical gravity racking is blurring. Procurement heads are increasingly requesting conveyor-roller discharge stations where AMRs interface directly with pick-face gravity tracks, eliminating human fork truck involvement entirely and achieving zero-labor transfer cycles.
2. Cold Chain Carbon Reductions
Refrigerated warehouse cubic meters carry 3x the utility operating cost of ambient facilities. Global cold-storage operators are replacing motorized conveyor lanes with passive, heavy-duty FIFO gravity roller racking to eliminate internal heat generation from drive motors, slicing continuous refrigeration loads by 14% to 22%.
3. Direct Factory-Engineered Sourcing
Mid-tier engineering contractors are bypassing traditional regional brand markups, preferring to collaborate directly with verified Chinese manufacturing facilities capable of delivering stamped structural FEA calculations, localized EN 15512 compliance documents, and customized RAL color palettes without middleman delays.
Why Tier-1 Global Distributors Partner With Our Factory
Over 25 years of specialized storage manufacturing, advanced automated production, and world-class structural engineering support.
25+ Years Manufacturing
Founded in 2001, providing continuous production leadership with over 10,000 successful warehouse layout completions across 120+ international markets.
30,000t Monthly Output
Our expansive 30,000 m² automated facility operates continuous roll-forming lines, automated punch presses, and robotic welding clusters to guarantee rapid project turnarounds.
Rigorous Certifications
Fully compliant with CE standards (No. 2435-CPR-8605159), ISO 9001:2015 quality control, and RoHS environmental powder coating certifications.
Free 2D/3D CAD Layouts
Send us your building architectural drawing (DWG/PDF), and our certified structural engineers provide compliant bay calculations and optimal flow layouts within 24 hours.
Precision Manufacturing & Quality Control Pipeline
From prime cold-rolled steel coils to multi-stage pickling, electrostatic powder curing, and seaworthy shipping containers.
01. Certified Raw Steel Coil
02. High-Precision Punching
03. Continuous Roll Forming
04. Pickling & Phosphating
05. Electrostatic Powder Curing
Frequently Asked Questions by Industrial Sourcing Managers
Clear, direct answers regarding pallet compatibility, brake calibration, structural engineering standards, and worldwide port logistics.
Q How do roller racking systems accommodate warped or defective wooden pallets?
Pallet quality is the most critical variable in gravity flow reliability. For GMA, EUR, or custom skids with cracked runners or deflection, we engineer full-width steel roller tracks rather than dual split-roller tracks. Furthermore, triple-roller support configurations and entry impact plates prevent pallet snagging and guarantee continuous transit even with non-uniform wooden bases.
Q How is terminal velocity controlled over deep storage lanes (up to 20 pallets deep)?
In deep-lane configurations, gravitational acceleration can cause high-speed impacts at the picking face. We install dynamic centrifugal speed controllers (brake rollers) every 1 to 2 pallet positions along the lane. These internal gear-driven or eddy-current magnetic brake rollers operate entirely passively, restricting pallet rolling speeds to a safe, steady 0.2 to 0.3 meters per second regardless of payload weight.
Q What structural certifications and documentation are provided for permitting?
Every shipment is accompanied by factory mill test certificates (MTC), CE Declaration of Conformity documents (under EN 15512 and EN 15620 guidelines), ISO 9001:2015 tracking, and stamped structural calculation sheets reflecting dead, live, and seismic load parameters customized to your local building code authorities.
Q What is the production lead time and sea freight schedule to European and American hubs?
Standard manufacturing cycle times range between 15 and 25 days depending on total project tonnage and custom RAL powder-coating requirements. Containerized ocean transit from Guangzhou / Nansha / Shenzhen ports takes approximately 28 to 35 days to major European ports (Rotterdam, Hamburg, Valencia) and 18 to 24 days to US West Coast terminals (Long Beach, Oakland).
Q Can roller tracks be retrofitted onto existing selective pallet racking frames?
Yes. Our dynamic roller tracks and carton live flow beds are engineered with universal mounting brackets compatible with teardrop, slotted, diamond, and hexagonal beam profiles. You can easily convert underutilized static lower tiers into high-speed carton or pallet live picking tunnels without replacing your primary upright frames.
Q Do you offer private label (OEM) and custom packaging for international racking dealers?
We actively support equipment distributors, warehouse integrators, and racking contractors worldwide. We offer complete OEM services, including custom beam end-connector designs, client-specified RAL color formulations, customized laser-cut upright branding, and barcode-labeled seaworthy bundling for direct drop-shipping to end-user job sites.
