Engineered for precision logistics, high-throughput fulfillment hubs, and heavy-capacity distribution centers. Each rack is cold-rolled using certified structural Q235B/Q355B steel to deliver fail-safe load bearing, effortless beam reconfiguration, and global standard compatibility.

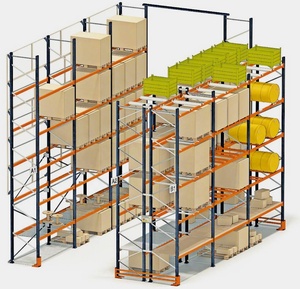

North American standard teardrop connection with boltless assembly. Up to 4,500 kg per beam level with integrated automatic safety lock pins.
Multi-tier selective rack configuration offering 100% direct pallet selectivity. Designed for counterbalanced and reach truck navigation.

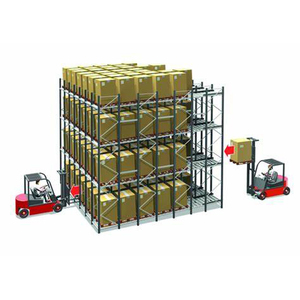

Self-propelling gravity roller beds optimized for first-in, first-out stock rotation in cold storage, pharmaceutical, and high-turnover grocery lines.
50mm and 75mm beam adjustment increments with dual structural interlocking clips for flexible SKU profiles and dynamic pallet heights.
Seamlessly integrates with existing North American warehouse infrastructure. Precision punched upright profiles with electrophoretic powder coating.
Bespoke clear span racking engineered to specific building dimensions, floor load capacities, and automated guide vehicle (AGV) parameters.
High-speed manual order picking solution for e-commerce sortation and retail backrooms. Fast clip-together erection with zinc/powder coat surface.
Heavy-load boltless longspan steel racking with steel or timber drop-in deck panels. Optimized for manual tote handling and box picking pathways.
An exhaustive exploration of load path physics, seismic mitigation, structural deflection thresholds, and cold-formed profile optimization for wholesale distributors, global 3PLs, and automated facilities.
Warehouse order picking dynamics have transitioned rapidly from low-density manual floor storage into high-density multi-tiered vertical architectures. As modern automated picking cells, autonomous mobile robots (AMRs), and reach trucks interact within high-velocity picking aisles, structural engineering demands on industrial picking racks have escalated. In contemporary wholesale procurement, acquiring picking racks requires far more than comparing the base price of formed steel: it requires rigorous verification of material ductility, buckling factor tolerances, moment connection capacities, and surface passivation.
Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves), established in 2001, has engineered rack architectures that accommodate dynamic seismic activity and intense cyclical stress. Our automated continuous cold-bending roll-forming lines process certified structural Q235B and Q355B coils with zero internal structural micro-fracturing. By calculating upright frame depth, horizontal bracing cross-sections, and heavy column base plates via finite element analysis (FEA), our racking systems maintain absolute perpendicularity under full nominal static and kinetic load distributions.
Uprights are produced through precision multi-station roller dies that yield uniform flange thickness and tight corner radii. This increases the torsional moment resistance of the profile while decreasing dead-weight load onto warehouse floor slabs.
Beam-to-column connections feature precision-punched multi-claw connectors that create rigid mechanical interlocks. High-visibility spring steel locking pins prevent beam dislodgement caused by upward forklift or pallet snagging forces.
Every profile undergoes an automated 8-stage pre-treatment regimen including degreasing, acid pickling, phosphating, and deionized water rinsing before electrostatic thermoset powder curing, guaranteeing 500+ hours of salt-spray resistance.
How automation integration, cold-chain resilience, green steel sourcing, and modular engineering are redefining global procurement criteria through 2030.
Procurement directors and warehouse design engineers face significant structural shifts when sourcing racking from China wholesale suppliers. Racking can no longer be viewed as static steel; it serves as the rigid structural skeleton for sophisticated automated picking, warehouse management software (WMS) routing, and autonomous transport systems. The following macro procurement trends dominate industrial storage specifications:
Modern fast-order operations favor hybrid setups where Autonomous Mobile Robots (AMRs) run underneath elevated picking bays. Standard racks must now integrate wider lower clear-spans, reinforced floor plates, and guidance wire channel conduits without compromising multi-ton upper-level pallet capacities.
With rapid expansion in perishable distribution, picking racks require structural steel with documented Charpy V-notch impact toughness down to -30°C. Standard alloys become brittle under sustained deep-freeze environments; hence, certified micro-alloyed structural steels are becoming a standard procurement mandate.
Global ESG benchmarks drive tier-1 procurement specialists to assess the carbon footprint of factory production. Forward-thinking manufacturers are transitioning to electric arc furnace (EAF) secondary steel processing, zero-VOC heavy metal-free powder coatings, and localized European bonded logistics hubs.
| System Architecture | Direct Selectivity | Volumetric Efficiency | Handling Equipment Type | Structural Load Rating |
|---|---|---|---|---|
| Selective Teardrop Pallet Racks | 100% (Instant Access) | 40% – 50% | Counterbalanced / Reach Trucks | 1,000 – 4,500 kg / beam level |
| Gravity Roller Pallet Flow Racks | FIFO (First-In, First-Out) | Up to 80% High Density | Standard Forklifts / AGVs | 500 – 1,500 kg / pallet position |
| Multi-Tier Mezzanine Picking Racks | 100% Manual Hand-Pick | 85% – 95% Vertical Cube | Personnel / Carts / Vertical Lifts | 300 – 1,000 kg / m² deck loading |
| Boltless Industrial Longspan Racks | 100% Bin / Carton Access | 55% – 65% | Manual / Order Picking Ladders | 200 – 800 kg / shelf tier |
Direct-from-plant manufacturing guarantees cost containment, rigorous quality verification, and rapid custom structural tailoring for large-scale logistics developments.
Guangzhou Heda Shelves Co., Ltd. provides end-to-end manufacturing oversight from our 30,000 m² facility. Unlike commercial trading intermediaries, we eliminate margin duplication, maintain direct control over chemical metallurgy, and provide rapid structural iterations. Holding CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Certification No. 18624Q00169R0M, HEDA Shelves delivers verified compliance documentation required by municipal building inspectors and European insurers.
Mill-certified Q235B and Q355B prime hot-rolled and cold-rolled steel coils verified via ultrasonic and spectrometer analysis.
Automated continuous punch presses punch upright teardrop and diamond holes with micro-millimeter tolerance repeatability.
CO2 gas-shielded multi-axis robotic welders bond beam connector heads, eliminating manual spatter and cold lap risks.
Bundled with protective corrugated angle boards, heavy steel strapping, and moisture barrier wrap for damage-free ocean transit.
Key considerations regarding certifications, material tolerances, ocean shipping logistics, and layout design answered directly by our senior structural engineers.
A: Yes. Our US teardrop racking profiles are 100% interoperable with major North American brands. The teardrop punching punch-pitch (usually 2 inches) and beam connector rivets adhere strictly to RMI standards, allowing seamless integration into existing warehouse bays.
A: Absolutely. We configure clear beam spans (typically 2700mm for three EUR pallets per bay) and frame depths (usually 1100mm) to allow standard 100mm safety overhang according to EN 15620 clearance guidelines, preventing pallet corner displacement.
A: We deliver full CAD assembly blueprints, 3D spatial layout renders, static load calculation sheets, steel mill test certificates (MTC), and official CE / ISO compliance certificates. Structural calculations can reference EN 15512 or RMI criteria upon initial engineering submission.
A: Factory production typically requires 15 to 25 days depending on total project tonnage. Shipping from Guangzhou/Shenzhen to main European base ports (Rotterdam, Hamburg, Antwerp) takes 28 to 35 days; West Coast North America takes roughly 16 to 22 days.
A: Steel frames and beams receive an electrostatic thermosetting polyester powder coat. Prior to ocean container stowage, components are packed using edge protectors, high-tensile plastic wrapping, timber dunnage, and moisture-absorbing desiccant canisters to resist sea-freight humidity.
A: Yes, we supply extensive OEM and ODM manufacturing services to equipment distributors globally. Custom frame heights, beam profiles, punched connector patterns, custom corporate RAL colors, and branded packaging labels are fully supported.
Send our senior engineering team your warehouse architectural floor plan (DWG/PDF), clear internal ceiling heights, pallet load parameters, and handling vehicle specifications. Receive a certified 3D CAD proposal and factory-direct quotation within 24 hours.
