Factory-Engineered Carton Flow & Heavy-Duty Racking Systems
Review our core structural storage solutions produced with cold-formed structural steel, automated punching lines, and robotic electrostatic powder coating.
Technical Insight & Engineering White Paper
Engineering High-Performance Carton Flow Racking: Kinematics, Tolerances, and Steel Integrity

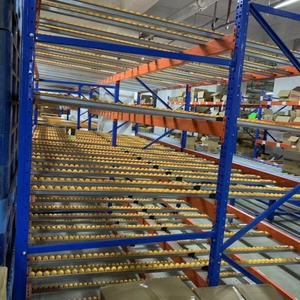

In modern high-velocity fulfillment environments, Carton Flow Racking (frequently termed carton live storage or gravity-fed case flow) represents the critical mechanical interface between bulk reserve storage and piece picking. Unlike static wide-span shelving or drive-in infrastructure, dynamic flow racks utilize inclined wheel tracks, precision aluminum or steel roller tracks, and kinetic gravity feeding to transport totes, cartons, and corrugated boxes automatically from the charge side (replenishment face) to the discharge side (retrieval face). From an engineering and physics perspective, achieving seamless carton conveyance requires strict balance among gravitational pitch, roller inertia, dynamic friction coefficients, and structural deflection limits under full live dynamic load conditions.
Direct OEM/ODM manufacturers like HEDA Shelves address this engineering matrix through rigorous fabrication parameters. The system's backbone comprises roll-formed upright frames manufactured from high-yield structural steel coils (Q235B or equivalent international grades), cold-punched with high-precision pitch arrays (50mm standard European modular pitch). Longitudinal tie-beams and custom hanger brackets suspend engineered roller beds at gradient angles precisely calibrated between 2.5% and 5.5% (1.5° to 3.2°), depending directly on carton weight distribution, contact surface rigidity, and bottom deflection. Inadequate structural calculations by non-specialized factories frequently result in "line pinch," roller shaft distortion, and intermittent carton stalling, forcing warehouse operators to halt picking cycles.
Kinematic Load Distribution: Engineered Roller Bed Mechanics
The mechanical efficiency of a carton live storage module depends upon roller friction dynamics. In high-density ODM contracts, HEDA Shelves engineers each track using engineered thermoplastic wheels (polyethylene/polypropylene alloys) fitted on high-tensile steel axles, or full-width zinc-plated steel rollers for abrasive industrial containers. Track beds feature built-in full-length zinc-plated sheet metal dividers that prevent cross-lane drift. When operators load totes at the rear replenishment aisle, potential energy converts cleanly into kinetic forward movement. As cartons approach the pick front, heavy-duty structural steel entry stops and integrated brake rollers (or mechanical deceleration springs) absorb kinetic momentum, eliminating impact shock on sensitive goods and maintaining safe worker ergonomics.

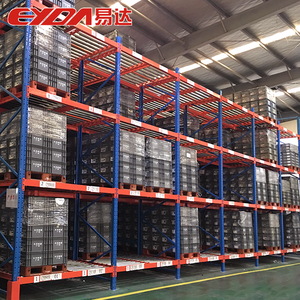

| System Type | Handling Medium | Storage Density | Stock Rotation Rule | Typical Picking Velocity | Structural Compliance |
|---|---|---|---|---|---|
| Carton Flow Racking | Cartons, Plastic Totes, Bins | High (85% Cube Util.) | Strict FIFO (First-In, First-Out) | Up to 350+ Picks/Hour/Picker | EN 15512, ISO 9001:2015 |
| Selective Pallet Racking | Palletized Unit Loads | Standard (Aisle-Heavy) | Flexible (FIFO / LIFO) | Forklift Dependent (30–45 Moves/Hr) | EN 15512, RMI, CE |
| Push-Back Trolley Racking | Pallet Loads (Nested Carts) | High (Deep Lane) | Strict LIFO (Last-In, First-Out) | Medium Pallet Throughput | EN 15620, ISO 9001 |
| Pallet Gravity Flow | Heavy Unit Pallet Loads | Ultra-High Density | Strict FIFO (Speed Separators) | High Volume Pallet Rotation | EN 15512, CE Marked |
Future Procurement Trends in Carton Flow Racking Systems
Global supply chain disruptions, soaring commercial real estate expenses, and escalating labor costs are transforming warehouse racking specifications.
Hybrid Integration with Pick-to-Light (PTL) and AMR Fleets
Procurement specifications are shifting toward digitalized picking interfaces. Modern ODM carton flow configurations incorporate pre-machined wiring chases and snap-on fascia channels designed for rapid mounting of Pick-to-Light electronic displays, sensor bars, and collaborative Autonomous Mobile Robot (AMR) drop-shelves, pushing pick accuracy beyond 99.98%.
Multi-Tier Mezzanine-Supported Flow Systems
Rather than sprawling outward across expensive concrete footprints, logistics facilities are utilizing their full vertical clear heights. Carton flow beds are integrated directly into 2-tier and 3-tier rack-supported mezzanine platforms, combining reserve bulk pallet storage on top tiers with dense, ergonomic manual case picking zones on the ground levels.
Sustainable Lifecycle Procurement & Low-Carbon Steel
International enterprise tenders across Europe and the Americas demand stringent environmental documentation. Procurement protocols favor manufacturers that utilize sustainably sourced scrap-blend steels, non-toxic phosphate-free pre-treatments, zero-VOC electrostatic powder coatings, and completely recyclable roller polymers under RoHS and ISO 14001 governance.
Technological Development & Structural Innovations
How next-generation material science and robotic fabrication are eliminating legacy operational failure points in carton flow operations.
Modularity via Tool-Free Drop-In Track Clamping
Traditional carton flow beds required labor-intensive bolted brackets to adjust track width when packaging dimensions changed. Next-generation ODM designs employ tool-free, zinc-passivated drop-in clips and notched beam profiles. Warehouse operators can reconfigure lane widths, adjust incline pitch, and reposition guides in minutes without structural disassembly.
Advanced Polymeric Roller Compounds
Plastic wheel deformation under persistent static storage has historically plagued cold chain and heavy carton installations. Recent chemical formulations introduce glass-fiber reinforced nylon and ultra-high-molecular-weight polyethylene (UHMW-PE) wheels. These advanced wheels resist flat-spotting, perform reliably down to -30°C in freezing facilities, and cut rolling resistance by 30%.
FEA Dynamic Simulation & Stress Mapping
Utilizing high-end Finite Element Analysis (FEA) software during the project engineering phase allows our structural engineers to simulate dynamic carton impacts, seismic cross-aisle wave harmonics, and torsional beam deflection. This ensures every manufactured rack structure provides certified safety factors exceeding 1.5 without redundant steel tare weight.
Enterprise Strengths
Why Global Brands & Integrators Trust HEDA Shelves
With over 25 years of specialized storage manufacturing, we deliver end-to-end reliability from precision CAD layout to containerized shipping.
Verified CE & ISO Certification
We maintain full verified compliance with European and American structural codes, holding CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 Certificate No. 18624Q00169R0M, and comprehensive RoHS testing for eco-friendly surface coatings.
Complimentary 3D & CAD Layouts
Our in-house project engineering department provides comprehensive DWG floor layout plans, picking travel-time simulations, and 3D structural visual renders prior to commercial sign-off, completely free of charge.
Integrated 10-Stage In-House Production
Every structural profile undergoes a strict 10-step fabrication cycle: Raw Material Chemical Analysis, Precision Shearing, Automated CNC Upright Punching, Precision Cold Roll-Forming, Profile Welding, Chemical Pickling & Phosphating, Electrostatic Powder Coating, and Rigorous Export QC Packing.
Carton Flow Racking Procurement: Frequently Asked Questions
Direct technical answers addressing system load limits, pitch calibration, installation parameters, and OEM/ODM private-label conditions.
What is the standard roller bed gradient for Carton Flow Racking, and how is it determined? +
The typical incline angle for carton live storage tracks ranges from 2.5% to 5.5% (approximately 1.5° to 3.2° of decline). The exact gradient depends on three core physical factors: package weight (cartons between 2 kg and 35 kg behave differently), container bottom contact characteristics (smooth molded rigid plastic totes require less decline than soft, corrugated paperboard with bottom sag), and lane travel depth. During our free engineering stage, our technical lab performs roller conveyor flow tests using your actual sample carton packaging to ensure steady gravity flow without premature arrest or excessive impact momentum.
Can Carton Flow roller tracks be integrated into existing selective pallet racking upright frames? +
Yes. As an OEM/ODM direct factory, HEDA Shelves manufactures universal mounting brackets and adapter hangars compatible with standard teardrop upright profiles, European 50 mm / 75 mm pitch frames, and custom slotted uprights. We supply custom beam levels and intermediate track supports that drop directly into your existing warehouse racking uprights, transforming lower pallet storage tiers into high-efficiency dynamic carton picking tunnels while preserving upper tiers for bulk pallet storage.
What are the maximum load capacities per lane and shelf level for heavy-duty flow racks? +
Standard carton flow tracks support between 25 kg and 60 kg per linear meter when using standard thermoplastic roller channels. For heavy industrial use—such as automotive casting storage, metal stamped hardware, or liquid totes—we supply reinforced galvanized steel roller channels with hardened steel ball bearings, achieving load ratings up to 150 kg per linear meter. A standard 2,700 mm wide bay fitted with 4 to 6 roller tracks easily accommodates shelf-level live loads ranging from 800 kg to 1,500 kg, fully engineered under EN 15512 safety deflection factors (typically limited to L/200).
How does carton live storage guarantee strict First-In, First-Out (FIFO) stock management? +
Carton flow systems feature dedicated, physical separation between the loading and picking operations. Replenishment workers feed fresh SKU cartons at the rear loading aisle (charge face). The units travel by natural gravity down inclined tracks to the front picking aisle (discharge face). Order pickers only extract cartons from the front stop edge. This physical one-way dynamic prevents picking errors, completely eliminates cross-aisle traffic interference between warehouse stockers and pickers, and enforces absolute FIFO batch rotation—vital for pharmaceuticals, food, beverages, and date-sensitive consumables.
What OEM and ODM customization services are available for international distributor networks? +
We offer complete private-label manufacturing programs for racking distributors, system integrators, and logistics contractors worldwide. Customization options include custom corporate RAL electrostatic powder coat color matching, precision-punched profile hole configurations compatible with your proprietary proprietary designs, client-branded product plaques and load capacity notices, custom palletized container packaging designed for easy deconsolidation, and full structural documentation stamped for local municipal engineering inspections.
What lead times and container loading specs apply for sea freight to European and global ports? +
Standard production cycles for full-container-load (FCL) projects range from 15 to 25 working days from approved technical CAD shop drawings. Shipments originate directly from our factory in Guangzhou, China, with direct sea routing to major hubs such as Rotterdam, Hamburg, Antwerp, Felixstowe, Valencia, Long Beach, and Santos within 25 to 40 days. Racking uprights and track assemblies are bundle-packed with heavy-duty protective corner boards, waterproof stretch wrapping, and custom steel strapping to eliminate transit friction and container destuffing damage.
Request an Engineered Layout & Factory-Direct Quotation
Send us your warehouse CAD floor plan, target carton dimensions, and throughput parameters. Our structural project engineers will supply a complete 3D concept layout, structural load calculations, and itemized factory pricing within 24 hours.
