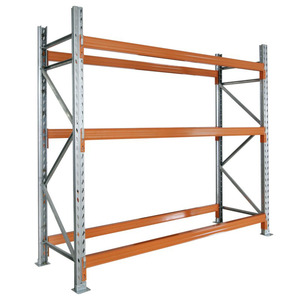

NOVA Full Automatic Warehouse Q235 Steel Boltless Heavy Duty Stacking Rack Industrial Storage System
- High-Density Stacking
- Q235 Certified Steel
- Modular Expansion
Automated FIFO/FILO
High Density Automated Warehouse Storage FIFO & FILO Pallet Radio Shuttle Racking System
- Semi-Automated Shuttle
- Cold Chain Ready (-30°C)
- Deep Lane High Bay
Factory Heavy Duty
HEDA Guangzhou Steel Pallet Racking System Warehouse Rack Storage Shelves Heavy Duty
- Direct Access Layout
- EN 15512 Compliance
- Custom Bay Spans
Custom Light Duty
Good Quality Customized Size Light Duty Shelves Warehouse Rack System Steel Storage Shelving
- Manual Picking Flow
- Rapid Clip Assembly
- Custom RAL Powder Coats
OEM / ODM Custom
OEM ODM Warehouse Industrial Metal Heavy Duty Pallet Shelf Storage Rack Steel Shelving Unit
- Bespoke Punching Pitch
- Structural Channel Steel
- Export Grade Packaging
Turnkey Logistics
Professional Industrial Racking System Steel Warehouse Storage Equipment Supplier
- Integrated Logistics Flow
- Forklift Interface Guards
- Full CAD / Static Calcs
Kinematic Engineering Analysis
Physics-Driven Gravity Flow Rail Engineering & Structural Dynamics
Flow rail racking (frequently specified as pallet flow, gravity live storage, or dynamic roller lane systems) represents the mechanical zenith of first-in, first-out (FIFO) logistics efficiency. Unlike passive selective pallet systems requiring continuous reach truck travel into racking aisles, a custom-engineered flow rail installation utilizes a calibrated gravitational declination gradient—strictly calculated between 2.8% and 3.5% (approx. 1.6° to 2.0°)—to facilitate uninterrupted pallet transit across lane depths spanning 2 to 30 pallets deep.
As a specialized OEM/ODM supplier and exporter, Guangzhou Heda Shelves Co., Ltd. designs roller rail geometries under rigorous finite element limit state methods. Every dynamic lane must manage kinetic energy accumulation ($E_k = \frac{1}{2}mv^2$) via integrated dynamic centrifugal brakes and hydraulic speed-limiting dampers. This ensures pallets traveling down a 30-meter lane never exceed a safe terminal velocity of 0.30 m/s, preventing structural collisions, product breakage, and racking fatigue.
Critical Engineering Tolerances for Euro (EPAL) and US Pallet Interfaces:
Flow tracks must feature custom lead-in guides, heavy-duty three-roller brake configurations, and separated mechanical exit separators. Our OEM configurations dynamically detach the lead picking pallet from upstream queue weight, eliminating cumulative hydrostatic backpressure at the forklift retrieval face.
Our engineering division customizes the wheel pitch, roller diameter (typically Ø50mm to Ø80mm cold-drawn steel or impact-resistant polyurethane), and load capacities (500kg to 2,000kg per pallet position). All profile sections utilize Q235B or Q355B structural steel, conforming strictly to EN 15512:2020 and FEM 10.2.02 structural deformation thresholds.
Centrifugal Speed Controller Rollers
Specially geared friction and eddy-current brake rollers regulate descent rates automatically across uneven pallet bottom runners. When a heavy pallet accelerates, internal centrifugal flyweights engage brake shoes, dissipating kinetic energy safely into the heavy steel frame.
0.25 - 0.30 m/s Speed
No Electrical Wiring
Continuous Duty
Mechanical Pallet Separators
Installed at the picking face, our mechanical disconnect levers hold back the second and upstream pallets by 150mm until the lead pallet is completely lifted by the forklift. This eliminates catastrophic backpressure pinching against handling equipment masts.
Zero Backpressure
Fail-Safe Latch
Operator Protection
Multi-Track Precision Rollers
Engineered with dual or triple staggered split-roller channels, full-width steel tubes, or high-density polycarbonate roller skate wheels for carton flow. Encapsulated precision ball bearings provide ultra-low break-away rolling resistance under high static cold.
Ø50 - 80mm Rollers
Zinc Electro-Plated
-30°C Cold Rated
Architectural Selection Matrix
Flow Rail Racking vs. Alternative High-Density Systems
A detailed parametric comparison between dynamic gravity flow systems, automated shuttle racks, push-back carts, and conventional selective configurations to guide warehouse capital expenditure.
| Storage Metric | Gravity Flow Rail (Pallet Flow) | Radio Shuttle Racking | Push-Back Cart Racking | Standard Selective Pallet Rack |
|---|---|---|---|---|
| Storage Density | Very High (Up to 80% Cube) | Extremely High (>85%) | Medium-High (55-65%) | Low (35-40% Floor) |
| Stock Rotation Logic | Strict FIFO (First-In, First-Out) | FIFO or FILO Configurable | LIFO (Last-In, First-Out) | Unrestricted Selective Access |
| Forklift Aisle Demand | 2 Aisles Only (1 Load + 1 Pick) | 1 or 2 Aisles Depending on Cycle | Single Operating Aisle | Dedicated Aisle per Double Bay |
| Operating Labor Velocity | Fastest (-45% Drive Time) | Fast (Semi-Automated Travel) | Moderate (Driver Pushes Carts) | Slow (Long Traversal Aisle Lines) |
| Energy / Power Need | Zero Electricity (100% Gravity) | Rechargeable Lithium Batteries | Zero Electricity (Manual Push) | Zero Power |
| Ideal SKU Profile | High Volume, Fast Turning, Perishable | High Volume, Deep Batches, Cold Chain | Medium Turning, 2-5 Pallets/SKU | High SKU Variance, Low Volume/SKU |
Custom Fabrication Competence
Bespoke OEM/ODM Manufacturing: Cold Stores, Harsh Chemicals & Custom RALs
Standard off-the-shelf racking rarely meets the rigorous spatial constraints of modern automated fulfillment centers. Through our dedicated OEM and ODM manufacturing pipelines, Guangzhou Heda Shelves Co., Ltd. delivers customized flow rail profiles adapted to unique seismic zones, non-standard slab loadings, and aggressive chemical or sub-zero environments.
For cold-storage and flash-freezing facilities operating between -20°C and -30°C, regular bearings seize and inferior steels turn brittle. We formulate specialized low-temperature synthetic lubricants inside hermetically shielded roller bearings, coupled with Q355D grade structural steel possessing guaranteed Charpy V-notch impact toughness at freezing conditions.
Surface treatments are executed on our fully automated continuous finishing line. Components undergo an intensive 7-stage chemical pre-treatment (degreasing, acid pickling, rinsing, surface activation, zinc phosphating, deionized rinsing, and passivation) prior to receiving an electrostatic thermosetting epoxy-polyester powder coating (60μm to 90μm dry film thickness). For outdoor lumber yards or humid coastal installations, continuous hot-dip galvanizing to EN ISO 1461 ensures multi-decade corrosion defense.
Strategic Market Foresight
Future Procurement & Technology Trends in Flow Rail Logistics (2025–2035)
Warehouse automation is shifting from standalone mechanical racks to intelligent, sensor-monitored, cyber-physical fulfillment ecosystems. Discover key industry procurement shifts shaping dynamic flow systems.
2025 - 2027
AMR & AGV Optical Interface Standards
Modern distribution hubs are replacing manual counterbalance trucks with Autonomous Mobile Robots (AMRs) and automated guided forklifts. Flow rail pick faces are now integrated with laser-cut docking targets, photoelectric arrival confirmation sensors, and tight-tolerance beam stop plates engineered within ±1.5mm positioning precision.
2026 - 2028
Self-Powered IoT Dynamic Telemetry
Next-generation dynamic flow lanes are adopting kinetic-energy harvesting roller assemblies. As pallets roll down the track, micro-dynamos generate milliwatts of electricity to power wireless strain sensors and infrared tracking nodes, delivering real-time lane occupancy and deceleration telemetry to the host Warehouse Execution System (WES).
2027 - 2030+
Decarbonized Green Steel & Circular Supply
Driven by strict European Corporate Sustainability Due Diligence and Scope 3 emissions reporting, procurement directors demand low-carbon electric arc furnace (EAF) steel sourcing. Heda Shelves is advancing certified green-steel manufacturing, using 100% recyclable powder coatings and closed-loop water treatment protocols across production.
Verified Enterprise Pedigree
Guangzhou Heda Shelves Co., Ltd. — Engineering Precision Since 2001
Operating from a sprawling 30,000 square meter intelligent manufacturing base with over 300 experienced technical specialists, our monthly capacity exceeds 30,000 metric tons of export-grade warehouse storage systems.
For over two decades, Guangzhou Heda Shelves has stood as an authoritative manufacturer and tier-1 exporter of pallet racking, structural mezzanines, and dynamic dynamic flow rail solutions. European distributors, system integrators, and logistics directors rely on us for seamless OEM/ODM fulfillment backed by uncompromised compliance certifications.
Our structures comply strictly with CE Certificate No. 2435-CPR-8605159, certified under EN 15512 static calculations, alongside ISO 9001:2015 Certificate No. 18624Q00169R0M for end-to-end quality assurance and RoHS environmental validation. Every single shipment includes numbered component tags, clear installation blue-prints, third-party tensile coupon test certificates, and full load capacity safe working limit documentation.
Seamless Maritime Logistics to Global & European Container Ports:
Our strategic export facilities in Guangzhou provide scheduled container dispatches to major international maritime terminals: Rotterdam, Hamburg, Antwerp, Felixstowe, Gdańsk, Le Havre, Valencia, and Genoa with transparent FOB, CIF, or DDP handling terms.
Our 10-Stage Precision Automated Production Flow
STEP 01
Spectrometric Steel Inspection
STEP 02
CNC Precision Slitting & Cutting
STEP 03
Automated Column Punching
STEP 04
Continuous Cold Roll Forming
STEP 05
Heavy Box-Beam Profiling
STEP 06
Automated Seam Deburring
STEP 07
Robotic CO2 Shielded Welding
STEP 08
7-Stage Chemical Pretreatment
STEP 09
Electrostatic Powder Coating
STEP 10
Ultrasonic QC & Seaworthy Pack
Procurement Knowledge Base
Technical & Procurement FAQ for Industrial Flow Racking
Clear, authoritative technical answers addressing pallet tolerances, slope engineering, structural standards, and global logistics execution.
Need Project Layout Verification?
Our senior structural engineers provide free 2D CAD layouts, 3D dynamic simulations, and static load calculation books referencing EN 15512 and FEM standards before contract confirmation.
Get a QuoteHow do you calculate the exact gradient and roller spacing for non-standard pallets?
Pallet declination is calculated using the coefficient of rolling friction between the pallet bottom runner material (solid softwood, hardwood, compressed chipboard, or HDPE plastic) and the roller profile. Standard wood EUR-pallets (800×1200mm) typically require a 3.0% to 3.5% incline. Plastic runners with lower friction coefficients may operate at 2.5% to 2.8%. Roller pitch is configured so that a minimum of three rollers remain in structural contact with each pallet runner at all times to avoid bridging deflection.
What mechanisms prevent high line-pressure and backpressure at the picking face?
In flow lanes exceeding 5 pallets in depth, cumulative gravitational weight creates tremendous static force (backpressure) on the lead pallet, which can pinch forklift forks or cause uncontrolled discharge. We engineer heavy-duty mechanical lane separators. When the first pallet arrives at the front stop, it triggers a spring-assisted latch that locks the second pallet 150mm upstream. Only when the lead pallet is completely lifted does the separator automatically disengage, allowing the trailing pallets to advance smoothly.
Which structural certifications and standards govern your European and overseas shipments?
Heda Shelves manufactures all industrial racking under CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Certificate No. 18624Q00169R0M. Our static and seismic calculation models adhere to EN 15512 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design), EN 15620 (Tolerances, deformations and clearances), and EN 15635 for inspection compliance. Full mill test certificates (MTC 3.1) and finite element analysis (FEA) reports are available upon project engineering sign-off.
Can flow rail systems operate reliably in sub-zero cold chain and pharmaceutical warehouses?
Yes. Our cold-store flow configurations are engineered for environments down to -30°C. Roller bearings utilize synthetic low-viscosity cryogenic grease that will not solidify, preventing roller lockup. Brake assemblies utilize zinc-plated housings with non-hygroscopic friction materials to avoid moisture freeze-stick. Upright frames are rolled from high-impact toughness structural steel to avoid brittle fracture under thermal shock.
What are the standard factory lead times, container packing, and ocean freight logistics?
Standard manufacturing lead time ranges from 15 to 25 business days depending on tonnage and custom tooling requirements. All upright frames, beams, and dynamic roller beds are bound using protective polyethylene wrapping, heavy-duty steel banding, and corner edge protectors to withstand rough ocean handling. Shipments depart via Guangzhou, Shenzhen, or Hong Kong ports with direct sailings to Rotterdam, Hamburg, Antwerp, Valencia, and North American hub ports (approx. 22 to 38 transit days).
Do you offer white-label OEM manufacturing for overseas racking distributors and integrators?
Yes. Over 40% of our production volume is delivered under OEM and ODM private-label agreements for established material handling distributors across Germany, the UK, the Netherlands, Australia, and North America. This includes customized upright punch hole geometry (50mm, 75mm, or 76.2mm pitch), custom beam connector brackets, client-branded load capacity notices, proprietary packaging, and specific RAL color matches.
