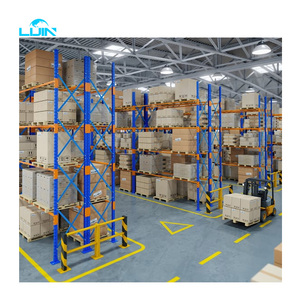

Drive-In / Selective
Heavy-Duty Warehouse Solutions
Featured Industrial Pallet Racking & Storage Systems
Manufactured in our 30,000 m² high-precision fabrication plant, each storage system combines cold-rolled Q235B structural steel, high-durability electrostatic powder coating, and load-tested upright-beam geometry adhering to international EN 15512 and RMI standards.

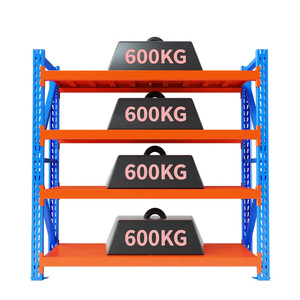

500kg / Layer
1000 - 3000KG

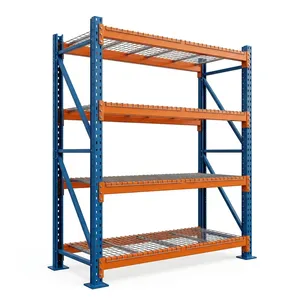

5-Layer Adjustable
6-Layer Wire

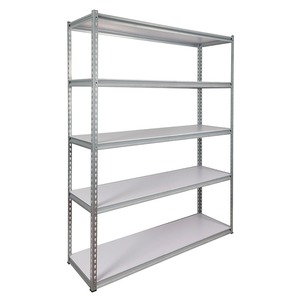

Stacking Stillage
Heavy-Duty Pallet

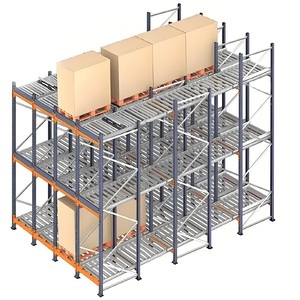

Dynamic Gravity Flow
Manufacturing Excellence Since 2001
Engineering Integrity Backed by Real Manufacturing Capacity
As an established industrial manufacturing powerhouse headquartered in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. has accumulated over 25 years of specialized design, structural calculation, and robotic fabrication expertise. Supplying warehouse racking systems to logistics distributors, industrial contractors, and Fortune 500 distribution operations across 120+ countries, our engineering baseline guarantees structural longevity, safety compliance, and direct factory pricing.
25+
Years Engineering Expertise
30,000m²
Modern Production Facility
30,000t
Monthly Steel Output
10,000+
Global Projects Completed
| Storage Racking System | Typical Load Rating | Space Utilization Ratio | Picking Accessibility | Optimal Stock Rotation | Application Archetype |
|---|---|---|---|---|---|
| Selective Pallet Racking | 1,000 – 4,000 kg / level | 40% – 50% | 100% Direct Access to Every Pallet | FIFO or LIFO Arbitrary | Fast-moving retail distribution, FMCG, multi-SKU 3PL warehouses |
| Drive-In / Drive-Through | 800 – 1,500 kg / pallet | 75% – 85% | Lane-based (Aisle eliminated) | Strict LIFO (Drive-In) / FIFO (Drive-Thru) | Cold storage, beverage manufacturing, homogenous bulk agricultural storage |
| Radio Shuttle Automation | 500 – 2,000 kg / pallet | 85% – 90% | Semi-Automated Pallet Shuttle Carrier | Programmable FIFO & LIFO | Sub-zero freezer warehouses, high-throughput food and pharmaceutical processing |
| Gravity Pallet Flow Rack | 500 – 1,500 kg / pallet | 70% – 80% | Gravity roller channel picking face | Absolute FIFO (Automatic roll) | Perishable provisions, time-sensitive food, expiration date-governed medicine |
| Heavy Duty Cantilever | 1,000 – 5,000 kg / arm | Specialized High | Continuous open front, uninhibited | Direct selective access | Extruded aluminum, structural timber, steel tubes, PVC pipes, sheet metal |
| Multi-Tier Mezzanine Platform | 300 – 1,200 kg / m² | 100% – 200% Floor Gain | Walkway, staircase & lift accessible | Manual bin pick / Carton flow | E-commerce fulfillment centers, automotive spare parts, sorting facilities |
Procurement Intelligence Whitepaper
Future Strategic Procurement Trends in Storage Racking (2025–2030)
Navigating macro-economic disruptions, land scarcity, and fluctuating steel commodity values demands that supply chain executives transition from static price-per-ton evaluations to total lifecycle engineering resilience. As China continues to dominate high-tensile structural steel fabrication, global procurement directors must leverage these transformative procurement trends.
1. Modular Reconfigurability & TCO
Industrial warehouse tenancy cycles are shortening while SKU variety explodes due to omnichannel e-commerce. Procurement teams no longer purchase fixed-welded systems. The modern mandate focuses on 50mm or 75mm teardrop/diamond slotted modular beam-to-frame connections that allow rapid vertical bay adjustments without hot work or structural recalculation. Sourcing adjustable bolted frame components cuts long-term Total Cost of Ownership (TCO) by over 38% across a 10-year facility lifespan.
2. Direct Mill-to-Port Supply Chains
Tier-1 western racking intermediaries historically imposed 40% to 65% distribution markups. The current trend shifts toward direct-from-manufacturer procurement via Tier-1 Chinese fabricators who maintain verified CE marking (EN 1090-1 / CPR 305/2011) and ISO 9001:2015 traceability. With containerized sea freight rates normalized, direct export packaging from ports such as Guangzhou, Nansha, or Shenzhen directly to Rotterdam, Hamburg, Los Angeles, and Felixstowe delivers immediate capital expenditure advantages.
3. Automation-Ready Engineering
Procurement briefs increasingly mandate that static racking installed today must integrate seamlessly with Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and Automated Storage and Retrieval Systems (AS/RS) tomorrow. This requires strict fabrication tolerances: beam deflection coefficients restricted to L/200 under maximal dynamic load, upright verticality maintained within 1/1000th of building clear height, and floor guide rail integrations designed into baseplates during the initial CAD stage.
Structural Mechanics & Metallurgy
Technological & Structural Engineering Advancements
Modern heavy-duty storage racking has transitioned from crude structural steel channels to mathematically optimized, cold-formed thin-walled sections designed via Finite Element Analysis (FEA). Understanding structural metallurgy, deflection thresholds, and corrosion mitigation separates compliant warehouse infrastructure from catastrophic structural collapse.
High-Strength Micro-Alloyed Steel Profiles
We utilize prime cold-rolled steel coils conforming to Q235B and Q355B (equivalent to European S235JR and S355JR / ASTM A36 and A572 Grade 50). Cold-roll multi-station continuous forming machines produce upright columns with complex omega-profile profiles featuring up to 12 cold-formed folds. This geometry significantly enhances the cross-sectional moment of inertia and radius of gyration, elevating compressive buckling resistance by up to 26% while reducing unnecessary deadweight.
EN 15512 & Seismic Design Verification
In compliance with EN 15512:2020 and RMI MH16.1 specifications, beam-to-column connector moment rotations are rigorously tested using multi-axis hydraulic loading frames. For projects situated in seismic-active zones (such as Southern Europe, the Pacific Rim, or Latin America), our engineering department runs dynamic seismic spectral response analyses to calibrate upright anchor bolt embedment depths, baseplate surface contact areas, and horizontal/vertical cross-bracing frameworks.
Surface Pre-Treatment & Zero-Heavy-Metal Coating
Industrial rack longevity is directly determined by chemical surface pre-treatment. Components undergo an automated multi-stage washing process: high-pressure alkaline degreasing, water rinsing, acid rust removal, zinc-phosphating, and deionized passivation. Automated reciprocator electrostatic lines then deposit lead-free, RoHS-compliant thermoset epoxy-polyester powder coats cured at 180°C to 200°C. This delivers an impact-resistant film thickness of 60 to 90 microns with salt-spray corrosion resistance exceeding 500 hours.
Manufacturing Traceability
Rigorous 10-Step Factory Production Process
Every beam, frame upright, row spacer, and wire deck manufactured at Heda Shelves progresses through standardized quality gates to guarantee zero-defect field installation.
STEP 01
Spectrometric Steel Inspection
Verification of carbon content, tensile yield point, and mill thickness tolerances of prime steel coils.
STEP 02
CNC Slitting & Blanking
Precision longitudinal coil unrolling and shearing to millimeter tolerances matching roll former dies.
STEP 03
Continuous Progressive Punching
Multi-ton mechanical presses pierce teardrop or diamond slot patterns with continuous center-pitch fidelity.
STEP 04
Multi-Pass Cold Roll Forming
Up to 24 hardened chrome roll forming stations gradually shape closed box beams and complex open uprights.
STEP 05
Robotic Spot & Seam Welding
Automated Panasonic multi-axis robotic welders fuse 3-claw/4-claw connector plates to beam tubes.
STEP 06
Dimensional Geometry Check
Frame diagonal symmetry, beam drop-lock pin tolerances, and weld penetration testing.
STEP 07
Automated Immersion Pickling
Complete chemical scale removal, degreasing, and micro-crystalline zinc phosphate conversion coating.
STEP 08
Electrostatic Powder Coating
Application of uniform RAL custom shades via high-voltage corona spray guns in pressurized clean booths.
STEP 09
Thermal Curing Tunnel
Strict temperature zone control at 190°C ensures cross-linked polymerization for maximum chip resistance.
STEP 10
Seaworthy Export Crating
Bundling with steel strapping, corrugated corner protection, and anti-friction stretch wrap for sea transit.
Procurement & Engineering FAQ
Frequently Asked Technical & Purchasing Inquiries
Clear, authoritative answers directly from our senior structural engineering team addressing international compliance, pallet sizing, import logistics, and warranty coverage.
Can Heda Shelves racking systems be engineered specifically for standard Euro pallets (1200 x 800 mm) and US GMA pallets (48 x 40 in)? +
Yes, absolutely. Our engineering department custom designs bay clear widths, frame depths, and pallet support bars based on your specific load carrier dimensions. For standard European warehouses using EUR/EPAL 1 (1200 × 800 mm) pallets, standard clear bay widths are configured at 2700 mm (to accommodate three pallets with 75 mm side clearances) or 1800 mm (two pallets). Frame depths are engineered at 1100 mm to ensure the standard 50 mm front and rear overhang required by EN 15620. For North American GMA pallets (48 × 40 in / 1219 × 1016 mm), frame depths are standardized at 42 or 44 inches with 96-inch or 108-inch clear beam lengths.
Which structural certifications, load calculations, and safety standards are provided with each order? +
Every production batch is certified under CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 No. 18624Q00169R0M. For municipal building permit approvals or independent third-party structural inspections, our licensed structural engineers provide full finite element calculation dossiers referencing EN 15512:2020 (Steel static storage systems), EN 15620 (Tolerances and clearances), and ANSI/RMI MH16.1. Each project ships with stamped loading plaques detailing maximum permissible uniformly distributed load (UDL) per pair of beams and maximum frame capacities based on the specified first-beam vertical elevation.
What are typical manufacturing lead times and ocean shipping durations from China to major global hubs? +
Standard fabrication lead times average 15 to 25 business days from final CAD drawing approval and deposit receipt, depending on project tonnage. Ocean freight durations from our local loading terminal (Guangzhou / Nansha / Shenzhen) are approximately:
- Europe (Rotterdam, Hamburg, Antwerp, Valencia): 28 to 35 days transit.
- North America West Coast (LA, Long Beach, Vancouver): 14 to 18 days transit.
- North America East Coast (New York, Savannah): 26 to 32 days transit.
- Middle East & GCC (Jebel Ali, Dammam): 14 to 20 days transit.
- Australia / Oceania (Sydney, Melbourne): 12 to 16 days transit.
How do you support on-site installation, component assembly, and local contractor guidance? +
We provide a multi-tiered installation support framework. Every shipment includes step-by-step 3D exploded assembly diagrams, detailed column layout drawings matching architectural gridlines, and labeled component bundles. Additionally, we provide high-definition video walkthroughs and real-time remote engineer video calls during baseplate anchoring and plumb-line calibration. For large-scale logistics developments exceeding 5,000 pallet positions, we can dispatch bilingual on-site site installation supervisors to oversee your local installation crews.
Can Heda Shelves manufacture OEM / ODM custom profiles and bespoke RAL powder coating colors for distributors? +
Yes. We serve as the core contract manufacturer for leading racking brands, distributors, and integrators across Europe, the Americas, and Australasia. We offer customized roll-forming tooling for unique column teardrop, hex-hole, or slotted profiles. Custom electrostatic powder coating is available across the entire RAL spectrum (standard warehouse combinations include RAL 5015 Sky Blue uprights with RAL 2004 Pure Orange beams, or modern charcoal themes like RAL 7016 Anthracite Grey). Custom private branding, barcoded part labeling, and customized pallet packaging are fully supported.
What essential project specifications are required to receive a complimentary 3D & CAD layout proposal? +
To allow our project engineers to return an optimized floor plan and quote within 24 hours, provide: (1) Facility floor plan (DWG or PDF) showing structural column locations, fire egress exits, and dock doors; (2) Clear ceiling height to bottom of lowest roof obstruction or sprinkler head; (3) Pallet parameters: Depth × Width × Height (inclusive of goods) and gross weight per pallet; (4) Material handling equipment: forklift model, mast reach height, turning radius, and minimum right-angle stacking aisle width; (5) Environmental requirements: ambient warehouse, cold store, or seismic/outdoor yard installation.
