Featured Warehouse Storage Systems for KSA Logistics
From fully automated ASRS high-bays in Riyadh to heavy-duty cantilever and dynamic cold room racking in Jeddah and Dammam, explore our certified storage architectures designed for maximum volumetric utilization.
Customized Adjustable Intelligent Automation Picking Warehouse Storage Automated ASRS
- Up to 40m Building Height
- Stacker Cranes & WMS/WCS
- 300% Higher Pallet Density
1000KG Warehouse Heavy Duty Pallet Rack Adjustable Storage Racking System Factory Direct
- Q235B/Q355B Structural Steel
- 50mm / 75mm Pitch Pitch Adjust
- 100% Direct Accessibility

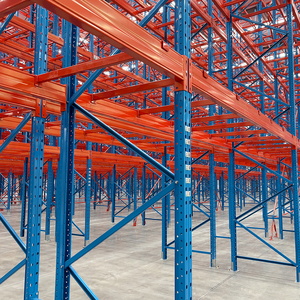

Jracking Modular Design Warehouse Storage Shelf CE Certified Heavy Duty Pallet Racking System for Cold Room
- Anti-Brittleness Low Temp Steel
- Radio Shuttle & Drive-In Opt.
- Food-Grade Hygienic Finish
Automation Equipment Integration Material Flow Using Aluminum Alloy Frame PU Belt Conveyor And Food Packaging Conveyor
- High-Speed Sorter Sync
- Anodized Anti-Corrosion Alloy
- FMCG & E-commerce Ready
Modern High Density Storage Heavy Duty Pallet Rack For Industrial Warehouse Safety Load Tested Reliable Supply
- 5-Hook Precision Connectors
- Heavy Box & Step Beams
- Crash-Tested Foot Guards
Mracking China Stack Rack for Sale Customizable Portable Stack Racking Supplier Affordable Price High Quality Stack Rack
- Dynamic Yard & Port Stacking
- 4 to 5 Tiers High Stacking
- Collapsible Return Logistics
Double Deep Pallet Racking System Are Essential for Optimizing Warehouse Space and Providing Easy Access to Each Pallet
- 2 Pallets Deep per Aisle Face
- Pantograph Forklift Compatible
- Best for Dry Goods & 3PL
Automotive Parts Storage Rack Adjustable Storage Shelf with Transport Function Heavy-duty Storage Carrier for Car Components
- Custom Damping & Sub-Dividers
- Assembly Line Mobile Carriers
- Heavy Duty Engine/Tire Storage
Engineering High-Capacity Intralogistics for the Kingdom of Saudi Arabia
The warehousing, freight, and third-party logistics (3PL) ecosystem across the Kingdom of Saudi Arabia (KSA) is undergoing the most rapid modernization in the Middle East. Propelled by the National Industrial Development and Logistics Program (NIDLP) under Saudi Vision 2030, the Kingdom is transforming into a premier global crossroad connecting Asia, Europe, and Africa. However, building and outfitting modern fulfillment centers in Riyadh, Jeddah, Dammam, and NEOM presents distinct physical, structural, and regulatory challenges that standard off-the-shelf racking cannot endure.
As one of China's pioneer heavy-duty industrial racking manufacturers and global exporters founded in 2001, Guangzhou Heda Shelves Co., Ltd. delivers factory-direct engineering, SASO conformity clearance via the SABER system, and structural compliance with both European EN 15512 and Saudi Building Code (SBC 301/304) standards. This whitepaper analyzes the engineering variables required for high-density racking in Saudi logistics parks, lifecycle optimization, and procurement risk reduction.
Structural Physics in Arid Climates: Steel Grade, Thermal Expansion, and Seismic Damping
Warehouse structures across the Arabian Peninsula endure radical diurnal thermal variances. In the Central Province (Riyadh, Al-Kharj), warehouse roof ambient temperatures can surge past 55°C in mid-summer and contract sharply overnight. Substandard cold-rolled steel without certified microstructure homogeneity develops progressive residual stress fatigue, leading to premature frame buckling under rated design loads.
Our heavy-duty standard pallet racking systems utilize certified Q235B and high-yield Q355B cold-formed structural steel, verified through spectrographic chemical analysis and tensile yield testing. Profiles undergo continuous automated cold-roll punch forming, ensuring that every omega-upright and double-C box beam maintains precision tolerances within ±0.5mm across spans up to 3900mm. Furthermore, all structural surfaces receive a multi-stage pre-treatment featuring hot alkaline degreasing, zinc-phosphate conversion, and anti-static architectural epoxy-polyester electrostatic powder coating (baked at 200°C). This ensures high scratch resilience, UV resistance, and corrosion-free operation in both humid Red Sea coastal zones (Jeddah, Yanbu) and high-dust interior desert zones.
Seismic zoning under SBC 301 (Saudi Building Code: Structural - General Requirements) and SBC 304 (Structural Concrete and Steel Design) dictates strict ductility and base-plate anchoring requirements, particularly along the tectonically active western corridor near the Gulf of Aqaba and Red Sea rift. Our engineering division integrates 3D FEA (Finite Element Analysis) to evaluate baseplate anchorage shear, column splice moments, and aisle-direction seismic dissipation frames, ensuring zero-collapse structural stability under dynamic peak ground acceleration (PGA) conditions.
Localized Application Scenarios Across the Kingdom
How leading Saudi logistics hubs, industrial cities, and hyper-fulfillment projects leverage our tailored pallet storage systems.
Central Province • Riyadh
E-Commerce & 3PL Multi-Tier Mega-Hubs
Serving the intensive regional retail distribution centers across Riyadh Logistics Zone, MODON Industrial Cities (1st, 2nd, and 3rd), and King Salman International Airport supply chain parks.
- Systems Applied: VNA (Very Narrow Aisle) & Multi-Tier Mezzanine Racking
- Key Benefit: Maximizes 14m-18m vertical clearances, enabling direct access to over 60,000 SKUs
- Handling: Wire-guided turret trucks & automated tote-to-person conveyors
Western Province • Jeddah
Perishable Cold Chain & Pharmaceutical Storage
Supporting pharmaceutical stockpiling and import/export food refrigeration around Jeddah Islamic Port, King Abdullah Economic City (KAEC), and the Holy Makkah/Madinah supply lines.
- Systems Applied: Radio Shuttle Pallet Racking & Gravity Pallet Flow
- Key Benefit: Reduces chilled chamber volume by 45%, slashing refrigeration energy costs
- Temperature Rating: Low-temperature resilience guaranteed from +4°C to -30°C
Eastern Province • Dammam / Jubail
Petrochemical, Heavy Machinery & EPC Staging
Engineered for polymer resin bagging plants, industrial manufacturing, and oil & gas support warehouses throughout Dammam 2nd Industrial City and Jubail Industrial Port.
- Systems Applied: Heavy-Duty Cantilever & Double Deep Pallet Racking
- Key Benefit: Rated for up to 4,500 kg per beam level; withstands extreme heavy raw stock
- Special Feature: Hot-dip galvanized frame options for chemical ambient durability
Engineering Comparative Matrix: Standard vs. Dynamic Racking
Engineered decision-making matrix referenced by industrial logistics consultants and warehouse general contractors in Saudi Arabia.
| Racking Configuration | Storage Density | Pallet Accessibility | Inventory Rotation | Forklift Compatibility | Optimal KSA Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | Baseline (100%) | 100% Direct (Immediate) | FIFO / LIFO Any | Standard Counterbalance, Reach | General FMCG, Retail DCs, Spare Parts |
| Double Deep Racking | +40% to 55% | 50% Immediate Access | LIFO Preference | Deep-Reach Pantograph Truck | Wholesale bulk, High SKU volume |
| Drive-In / Drive-Thru | +75% to 85% | Lane by Lane Entry | LIFO (Drive-In) / FIFO (Thru) | Narrow Reach / Counterbalance | Seasonal grain, Beverage, Cold Storage |
| Semi-Automated Radio Shuttle | +85% to 110% | Shuttle-Carrier Retrieval | Programmed FIFO & LIFO | Standard Forklift at Aisle Face | Frozen Food, Pharmaceutical Hubs |
| Fully Automated ASRS High-Bay | +200% to 300% | High-Speed Automatic Crane | Software-Driven Dynamic | Integrated Stacker Cranes & AGVs | Giga-projects, E-commerce Fulfillment Centers |
| Heavy-Duty Cantilever | Specialized Long Loads | 100% Direct Column Access | Flexible | Side-Loader / Heavy Forklift | Steel pipes, Lumber, Aluminum Extrusions |
Macro Trends Transforming Saudi Warehouse Procurement
Procuring warehouse storage infrastructure in Saudi Arabia is no longer simply about buying steel beams; it is an optimization calculus involving automation readiness, energy decarbonization, land yield, and regulatory alignment with national mega-initiatives.
Vertical Densification
With prime logistics land values in Riyadh Logistics Hub and Sulay expanding rapidly, operators are abandoning traditional 8m buildings in favor of 16m to 35m super-structures, making high-tolerance tall upright engineering paramount.
Shift to Automated Radio Shuttles
Labor localization mandates (Saudization) and operator comfort requirements in freezing conditions have made semi-automated radio shuttle racking the fastest-growing dense storage format in KSA cold chain hubs.
SABER & Civil Defense Audit Compliance
Municipal authorities and the General Directorate of Civil Defense (Salamah) now enforce rigorous structural load notices, mandatory flue spaces, in-rack sprinkler integration, and SABER certification on all imported steel racking.
Guangzhou Heda Shelves: Direct-From-Factory Capabilities
Over 25 years of specialized racking manufacturing since 2001, providing complete end-to-end reliability for Saudi distributors, turnkey contractors, and end-users.
Precision Slitting & Roll Forming
Prime grade hot-rolled coil inspected, slit, and continuously roll-formed into high-rigidity structural upright columns with uniform load distribution.
CNC Multi-Point Punching
Continuous CNC computerized pitch punching ensures micron-accurate hole centers (50mm or 75mm) for seamless beam hook locking.
Automated Robotic Welding
Heavy beam connectors receive automated robotic gas metal arc welding (GMAW) to guarantee flawless fillet welds capable of handling full design shear stress.
Surface Pre-treatment & Powder Cure
8-stage pickling, phosphating, and deionized wash followed by electrostatic epoxy-polyester coating baked at 200°C for extreme scratch & rust resistance.
Free 3D & CAD Layout Proposals
Our project engineering team supplies fully dimensioned DWG floor plans, 3D BIM visualizations, and load stress calculation sheets prior to contract signing, ensuring your project meets local Civil Defense clearance.
CE & ISO 9001 Certified Quality
Manufactured under CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Certificate No. 18624Q00169R0M. Every production batch is certified to EN 15512 and FEM principles for structural storage verification.
Direct Export Packing to KSA Ports
Heavy steel bundle strapping, protective foam corners, edge interleaving, and modular labeling designed for sea freight directly to King Abdulaziz Port (Dammam) and Jeddah Islamic Port, with FOB, CIF, or DDP support.
Frequently Asked Questions by Saudi Buyers & Engineers
Direct technical, customs, and logistical clarifications for project managers, procurement directors, and warehouse owners across Saudi Arabia.
? How do you handle SABER registration and SASO conformity for Saudi customs clearance?
Every shipment of pallet racking exported to Saudi Arabia is registered through the online SABER platform. We assist your importer of record by providing mill test certificates, CE documentation, and test reports to secure the Certificate of Conformity (PCoC) and Shipment Certificate (SCoC), ensuring smooth release at Jeddah or Dammam ports without customs detention.
? Can your pallet racks be customized for both standard GMA/Saudi pallets and European pallets?
Yes. While Europe relies heavily on 1200 × 800 mm EUR pallets, warehouse operations in Saudi Arabia predominantly use 1200 × 1000 mm GMA/ISO pallets or 1100 × 1100 mm chemical drums. Our beam lengths (e.g., 2300mm, 2700mm, 3300mm, or 3900mm) and frame depths (typically 1000mm or 1100mm) are custom-engineered to ensure optimal 75mm-100mm pallet overhang and compliant flue spacing.
? How do your racking systems comply with Saudi Civil Defense fire sprinkler regulations?
Saudi Civil Defense (Salamah) mandates strict transverse and longitudinal flue spaces between back-to-back pallet racks (typically 100mm to 150mm clear vertical aperture) to allow overhead sprinkler penetration and heat release. We design row spacers, wire mesh decks, and drop-in sprinkler pipe supports strictly to NFPA 13 and Civil Defense code requirements.
? What are the standard lead times for manufacturing and sea freight to Dammam or Jeddah?
Production typically takes 15 to 25 business days at our Guangzhou factory depending on project tonnage (from a single 40ft HQ container up to 50+ containers). Direct sea freight transit from South China major ports to Jeddah Islamic Port or King Abdulaziz Port (Dammam) takes approximately 18 to 28 days, enabling total project realization within 6 to 8 weeks.
? Do you provide installation supervision and structural engineering support in Saudi Arabia?
Yes. Every project ships with comprehensively numbered component manifests, 3D exploded assembly diagrams, anchor torque schedules, and step-by-step installation guides. For large-scale logistics centers, cold stores, and mezzanine systems, we provide remote video engineering supervision or can dispatch experienced on-site installation supervisors to coordinate with your local crew.
? Can you manufacture racking in custom corporate RAL colors and provide private-label branding?
Yes. We offer complete OEM and ODM manufacturing services. We regularly produce frames and beams finished in custom electrostatic RAL powder coating (such as RAL 5015 Sky Blue, RAL 2004 Pure Orange, RAL 7035 Light Grey, or custom brand palettes) along with client-branded load capacity plaques, bay labels, and specialized component packaging for local Saudi racking distributors.
Transform Your Warehouse Storage Space Today
Consult with our structural racking engineers to receive a free, tailor-made 2D/3D CAD layout, load capacity calculation, and transparent factory-direct pricing for your project in Saudi Arabia.
