Engineered Boltless & Heavy-Duty Storage Series for Japanese Facilities
Direct from our ISO-certified Guangzhou manufacturing base, our modular storage units integrate high-tensile cold-rolled steel, standardized 50mm pitch adjustability, and seismic-ready locking pins tailored for Japanese distribution centers.

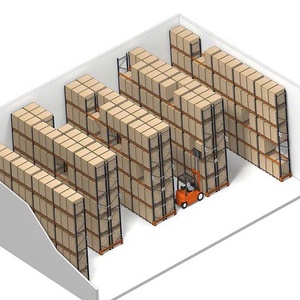

Heavy Duty Pallet Beam Racking Industrial Warehouse Storage Shelf Rack
- Load Capacity: 1,000 – 3,500 kg / level
- Compatibility: T11 Japanese Standard Pallets
- Locking: Interlocking Safety Drop Pins
Heavy-Duty Boltless Steel Shelving Unit, 4-Tier Adjustable Teardrop Rack
- Load Capacity: 300 – 800 kg / tier
- Adjustment: Tool-Free Teardrop Pitch
- Surface: Electrostatic Epoxy Finish
Garage Warehouse Rack Adjustable Storage Stacking Selective Racks
- Profile: Cold-Bended Box Beam
- Footplate: Seismic Floor Anchor Base
- Flexibility: Multi-tier Stacking Frame
Wholesale Heavy-Duty Steel Metal Boltless Corrosion Protected Shelf Rack
- Pre-treatment: Acid Pickling & Phosphating
- Corrosion Resistance: High Humidity Grade
- Design: Rivet Snap-Lock Upright
Heavy Duty Industrial Shelving Unit 4 Tier Metal Storage Rack Boltless
- Layer Capacity: 250 – 500 kg / layer
- Decking: Steel Sheet / Wire Decking
- Color: Custom Japanese Munsell / RAL
3 Layers Boltless Steel Racking Industrial Shelf Adjustable Assemble Unit
- Assembly Time: < 10 Minutes / Bay
- Safety Factor: 1.5 Structural Ratio
- Application: Automotive Spares / 3PL
5 Tier Boltless Shelving Unit 150kg Per Layer With MDF Board / Steel Deck
- Capacity: 150 kg UDL Per Level
- Beam Connection: Keyhole / Butterfly Slot
- Usage: Fulfillment Bins & Oricon Crates

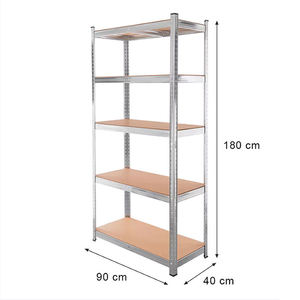

Iron Garage 4 Shelf 5 Tier Boltless Rivet Easy Assemble Storage Shelf
- Rivet Geometry: Dual-Rivet Lateral Lock
- Upright: Cold Rolled Heavy Gauge C-Channel
- Compliance: JIS G 3141 Commercial SPCC
The Strategic Shift to Boltless Storage in Japanese Modern Logistics
Evaluating how rapid-assembly, high-density modular steel racking directly resolves operational bottlenecks across Tokyo, Kanagawa, Osaka, and Fukuoka distribution hubs.
Solving the "2024 Problem" in Japan Logistics
With strict legal caps placed on commercial truck driver overtime hours (物流の2024年問題), Japanese supply chains are decentralizing into regional cross-docking facilities. Our boltless shelving systems reduce setup and reconfiguration time by over 65% compared to nut-and-bolt structures, allowing warehousing contractors to operationalize new distribution branches within tight schedules without hiring certified structural welders.
Cubic Density vs. Astronomical Real Estate Rent
Industrial land costs in Tokyo Bay (Koto, Shinagawa) and Greater Osaka command steep monthly rates. Traditional medium-duty shelving leaves significant upper vertical clearance unutilized. HEDA boltless upright profiles are cold-roll-formed from high-yield steel coils, offering continuous slotting up to 6 meters in single spans, facilitating multi-tier picking towers and rack-supported mezzanines that double usable square footage.
Full Integration with Japanese Standard Containers
Japanese warehouse operations run strictly around standardized modular containers: T11 standard wooden/plastic pallets (1100×1100 mm) and folding plastic crates (折りたたみコンテナ / Oricon). Our shelving bay dimensions (clear spans of 900mm, 1200mm, 1500mm, 1800mm and depths of 450mm, 600mm, 800mm) are precision-calibrated to eliminate dead gaps, assuring snug, slip-free alignment for manual or semi-automated picking.
Engineered to Japanese Industrial Standards (JIS Compatibility)
From raw strip mill inspection to cold profile roll-forming and environmentally compliant surface passivation, explore how our technical specifications fulfill stringent Japanese procurement audits.
High-Yield Steel Grades: JIS G 3101 SS400 & SPCC Equivalent
We reject re-rolled or substandard scrap steel. Every batch of cold-formed steel uprights, C-beams, and shelf shelves begins with mill-certified prime structural steel coils (Q235B / Q355B structural steel, strictly equivalent to Japanese Industrial Standards JIS G 3101 SS400 and JIS G 3141 SPCC). Tensile strength ranges between 370–500 MPa with minimum elongation exceeding 26%, ensuring the steel absorbs shock deformation during earthquake sway without brittle fracture.
10-Stage Surface Treatment & Eco-Compliant Coating
Japanese site managers uphold strict 5S visual standards. Our automated finishing lines apply a 10-stage pre-treatment: hot alkaline degreasing, twin water cascades, pickling, neutralisation, zirconium-based nano-ceramic phosphating, and deionized water rinsing. Automated electrostatic powder guns then coat parts with lead-free, non-toxic epoxy-polyester powder (RoHS compliant), oven-cured at 200°C for superior impact resilience, abrasion resistance, and salt spray endurance (> 500 hours ASTM B117).
| Racking Architecture | Structural Locking Mechanism | Unit Layer UDL Capacity | Assembly Speed (2 Operators) | Seismic Resistance Level | Target Application in Japan |
|---|---|---|---|---|---|
| Light Boltless Shelving | Angle Post + Butterfly Snap Clip | 100 – 150 kg / tier | 6 – 8 min / bay | Moderate (Upper Ties Advised) | E-commerce bin storage, small parts assembly |
| Medium-Duty Boltless Unit | Tapered Dual-Rivet / Teardrop Keyhole | 200 – 500 kg / tier | 8 – 12 min / bay | High (Seismic Anchor Baseplate) | Oricon crate storage, 3PL logistics picking |
| Heavy Boltless Longspan | Claw-Hook Connector + Spring Safety Pin | 500 – 1,000 kg / tier | 12 – 15 min / bay | Very High (Cross-braced Frame) | Automotive components, industrial machinery spares |
| Boltless Pallet Beam System | 3/4-Tooth Connector Claws + Drop Pins | 1,000 – 3,500 kg / tier | 15 – 20 min / bay | Superior (Ground Anchors + Top Portal) | T11 standard wooden/plastic pallet bulk storage |
Localized Use Cases Across Japan's Commercial Hubs
From refrigerated logistics in Hokkaido to compact automated centers along Tokyo Bay, discover how our shelving systems perform across specialized environments.
E-Commerce Multi-SKU Fulfillment (Kanto Region)
Warehouses in Chiba and Saitama handling next-day delivery for Rakuten and Amazon Japan require hyper-dense manual picking bays. Our multi-level medium-duty boltless shelving integrates integrated dividers, rear mesh backsplashes to prevent package drops during seismic tremors, and flush-mount steel decking that allows picking staff to slide heavy plastic totes effortlessly.
Automotive Just-In-Time Staging (Aichi & Nagoya)
Supplying Tier-1 and Tier-2 automotive manufacturing chains demands zero downtime. Our heavy-duty boltless racking houses metal stillages and engine components up to 1,000 kg per beam level. The absence of exterior bolts avoids snagging sensitive wiring harness boxes, while optional gravity roller inserts transform standard static bays into FIFO carton-flow picking lanes.
Cold-Chain Food & Beverage Distribution (Kansai & Tohoku)
Refrigerated and blast-freezer rooms (-25°C to -30°C) represent huge power consumption per cubic meter. Dense boltless drive-in and shuttle-compatible frames maximize volumetric density. Furthermore, our anti-corrosive powder coatings resist moisture condensation during thaw cycles, preventing the premature rust staining that often triggers sanitation violations under Japanese Food Hygiene Law audits.
10-Step Precision Manufacturing Process
At Guangzhou Heda Shelves Co., Ltd., our 30,000 square meter facility deploys German CNC roll-forming lines and robotic stamping arrays, ensuring millimeter precision across every container exported to Japan.
Steel Inbound QC
Spectrometer chemical checks & yield tensile test certificates for all steel coils.
CNC Precision Slitting
High-speed longitudinal slitting lines cutting coil stock within ±0.05mm width tolerance.
Continuous CNC Punching
High-tonnage progressive punching presses creating teardrop, butterfly, or keyhole slots.
Cold Roll-Forming
Multi-station cold roll-forming units shaping omega (Ω) and box upright profiles.
Robotic Beam Welding
CO2 shielded robotic arm welding for end-connectors, providing complete penetration.
Automated Polishing
Mechanical descaling and deburring of sharp sheet edges to prevent personnel injury.
Chemical Pre-Treatment
Immersion pickling, neutralisation, and zirconium nano-phosphate passivating baths.
Electrostatic Coating
Swiss Gema powder coating system providing uniform 60–90µm dry film thickness.
Baking & Curing
High-temp infrared curing tunnel (200°C) securing high cross-linking polymer hardness.
Export Strapping & Pack
Protective bubble wrap, corrugated corner protectors, steel banding, and barcode palletization.
Why Leading Japanese Importers & Contractors Partner with HEDA Shelves
Combining China's deep steel supply chain cost advantages with rigorous ISO 9001:2015 process compliance, we serve trading companies (商社), racking installers, and logistics operators across Japan.
Free 2D/3D CAD & Seismic Deflection Calculations
Japanese warehouse clients require detailed layout drawings and finite element analysis (FEA) reports before green-lighting capital expenditures. Our dedicated bilingual engineering department produces complete DWG floor plans, 3D BIM visualizations, and bay deflection calculations (referencing EN 15512 and Japanese Building Standards Law seismic coefficient criteria) within 24 to 48 hours, free of charge.
Full OEM / ODM Private Labeling for Japanese Brands
We serve leading Japanese material handling suppliers with complete white-label production. From custom Japanese-language assembly manuals (組立説明書) and carton silkscreen printing to precise Munsell color matching (e.g., 5Y 7/1 ivory gray, 2.5PB 4/10 industrial blue) and customized barcoded parts packaging, your brand identity remains pristine.
Direct Maritime Routes to Major Japanese Seaports
Our Guangzhou plant is situated close to Nansha and Shenzhen ports, with direct scheduled container vessels calling weekly at Tokyo, Yokohama, Nagoya, Osaka, and Kobe. Average ocean transit times are just 4 to 7 days, allowing Japanese distributors to maintain lean inventory reserves and execute just-in-time warehouse fits without costly inland buffer warehousing.
Frequently Asked Questions by Japanese Procurement Teams
Transparent, technically exhaustive responses addressing structural compliance, customs clearances, seismic resilience, and shipping logistics.
Are your boltless shelving dimensions compatible with standard Japanese T11 pallets and Oricon crates?
How does your boltless design withstand earthquakes in Japanese seismic zones?
What certifications and test reports are provided for Japanese municipal or insurer inspections?
How does boltless shelving compare to traditional bolted shelving in labor costs?
What are your manufacturing lead times and ocean shipping timelines to Japanese main ports?
Can you supply OEM private-label packaging and Japanese assembly documentation?
Plan Your Warehouse Optimization Project with HEDA Engineers
Whether you are expanding a 3PL logistics park in Chiba, retrofitting an automotive parts hub in Nagoya, or seeking a trusted OEM manufacturing partner in China, contact our technical team today for direct factory pricing and free CAD proposals.
