Precision Pallet Racking & Industrial Shelving Inventory
Direct-from-manufacturer heavy-duty storage configurations fabricated under ISO 9001:2015 and CE certifications, custom-sized for US 48"×40" GMA pallets, high-density distribution centers, and commercial storage hubs across Northern California.

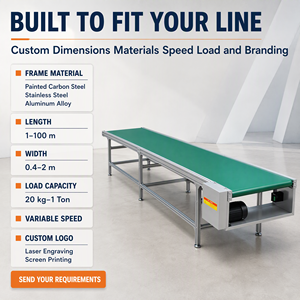

Automation Equipment Integration Material Flow PU Belt Conveyor
Aluminum alloy frame material flow conveyor engineered for integrated packaging lines, e-commerce order sorting, and automated picking loops.
View Specifications →
Industrial Adjustable Steel 5-Tier Snap-In Longspan Storage Shelving
Durable powder-coated steel modular rack for maintenance garages, hardware fulfillment hubs, and heavy parcel multi-tier picking tiers.
View Specifications →

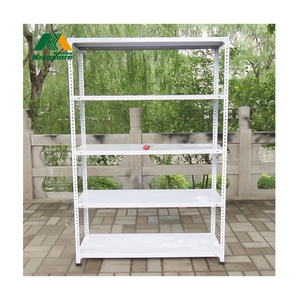

Warehouse Metal Slotted Angle Storage Racking & Multi-Purpose Shelving
Flexible cold-rolled steel slotted angle system for archive rooms, spare parts sorting, electrical components, and light industrial picking bays.
View Specifications →
Adjustable Boltless Warehouse Storage Rack & Medium-Duty Shelves
Quick-assembly snap-lock metal shelving designed for rapid commercial deployment, retail backroom overflow, and medium-load distribution.
View Specifications →
Selective Pallet Rack & Heavy-Duty Cantilever Stacking Systems
100% direct selective access engineered for high-rotation FMCG, timber profiles, pipe staging, and lumber distribution across Bay Area depots.
View Specifications →

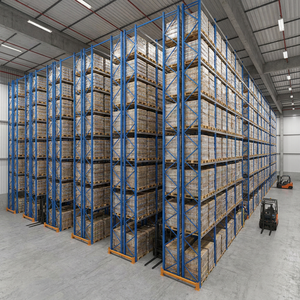

Distribution Center Heavy-Duty Pallet Racking Storage Equipment
Engineered uprights and step beams tailored for reach trucks, counterbalance forklifts, and high-bay Class-A third-party logistics facilities.
View Specifications →
Universal Double-Deep Steel Pallet Racking for Cold Room & Workshop
Space-saving two-deep pallet storage reducing aisle footprint by 35% in cold chain refrigeration facilities and pharmaceutical storage plants.
View Specifications →

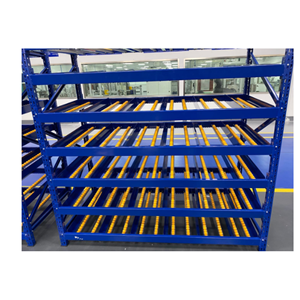

High-Strength Steel Warehouse Carton Flow Racking System (FIFO)
Gravity-fed roller bed dynamic racking providing strict First-In First-Out rotation for rapid split-case grocery, wine cases, and pharma picking.
View Specifications →San Francisco & Bay Area Warehouse Logistics: The High-Density & Seismic Mandate
Operating an industrial fulfillment facility, cold storage terminal, or cross-docking logistics station within the San Francisco Bay Area requires navigating two unforgiving economic factors: unprecedented commercial industrial lease rates and stringent seismic design category regulations. From South San Francisco's biotech flex spaces and Brisbane distribution parks to the bustling East Bay freight arteries of Oakland, San Leandro, Hayward, and Fremont, warehouse operators face average triple-net (NNN) rents exceeding $1.60 to $2.30 per square foot per month.
Under such high-cost square footage, static, single-level ground storage is an economic impossibility. Facility planners must maximize vertical cubic utilization up to ceiling clear heights of 28 to 36 feet. However, stacking high loads in Northern California triggers mandatory adherence to the California Building Code (CBC 2022 / 2025 updates) and the Rack Manufacturers Institute (RMI) ANSI MH16.1 Specification for the Design, Testing, and Utilization of Industrial Steel Storage Racks.
As a seasoned China direct-export manufacturer founded in 2001, Guangzhou Heda Shelves Co., Ltd. bridges the gap between global industrial manufacturing scale and local San Francisco municipal requirements. By integrating precision automated cold-roll forming, in-house finite element structural analysis (FEA), and certified welding standards under ISO 9001:2015 and CE certification No. 2435-CPR-8605159, we deliver tailor-engineered pallet racking systems that reduce procurement capital expenditures by 30% to 45% compared to domestic distributors, while fully meeting California seismic safety benchmarks.
Seismic Structural Engineering: Upright Frame & Connection Integrity
Standard low-seismic racking solutions commonly utilized in inland zones fail local building safety reviews in San Francisco and Alameda counties. For Bay Area installations, our engineering team reinforces four structural nodes:
- Enlarged Seismic Footplates: Upgraded from standard 4"×4" plates to heavy 6"×8" or 8"×8" high-tensile baseplates (up to 12mm thickness) featuring multi-hole punch patterns to accommodate dual seismic wedge anchors without interfering with rebar tendons in post-tensioned slab floors.
- High-Moment Beam End Connectors: High-yield 4-hook and 5-hook cold-forged connectors that clamp snugly into teardrop or hex-punch upright columns, providing maximum rotational stiffness under cyclical seismic displacement.
- Heavy-Gauge Column Punching: Uprights roll-formed from cold-rolled steel with gauges ranging from 14-gauge (2.0mm) to heavy 11-gauge (3.0mm), equipped with continuous robotic MIG seam welds along column stiffeners.
- Engineered Horizontal & Diagonal Bracing: Closed-section roll-formed bracing members triangulated to distribute lateral seismic shear loads directly into anchor foundations, preventing torsional racking buckling.
Racking System Engineering & Operational Fitment
Evaluate load capacities, density ratios, and typical Bay Area sector fitment across our core manufactured pallet racking and heavy-duty shelving lines.
| Racking Type | Load Capacity / Level | Storage Density | Pallet Accessibility | Rotation System | Primary Bay Area Application |
|---|---|---|---|---|---|
| Selective Pallet Racks | 2,200 – 8,800 lbs (1,000–4,000 kg) | Baseline (100% aisles) | 100% Direct Immediate Access | FIFO / LIFO Flexible | 3PL hubs, multi-SKU tech retail, biomedical spare parts |
| Double Deep Racks | 2,000 – 6,500 lbs (900–3,000 kg) | High (+35% vs selective) | 50% Direct (Pantograph Reach) | LIFO | Dry grocery wholesale, paper goods, bulk raw materials |
| Radio Shuttle System | 1,100 – 3,300 lbs (500–1,500 kg) | Ultra-High (+80% vs selective) | Lane-level automatic retrieval | Programmable FIFO/LIFO | South SF frozen food, seafood cold chain, Napa bulk wine storage |
| Carton Flow Racks | 200 – 1,100 lbs (100–500 kg)/shelf | High (picking footprint) | 100% Pick Face Presentation | Strict FIFO (Gravity roller) | E-commerce split-case pick modules, retail order fulfillment |
| Heavy Cantilever Racks | 1,500 – 6,600 lbs (700–3,000 kg)/arm | Specialized open-front | Unobstructed lengthwise loading | Flexible | San Leandro lumber, solar racking, steel pipes, plumbing supplies |
| Rack-Supported Mezzanines | 60 – 250 lbs/sq.ft (300–1,200 kg/m²) | Multiplies usable floor 200–300% | Manual & vertical lift access | Flexible batching | Silicon Valley hardware R&D, e-commerce garment fulfillment |
Localized Industrial Applications Across the Greater Bay Area
How specialized logistics clusters in Northern California leverage our direct-factory warehouse storage configurations.
South SF Biotech & Temperature-Controlled Cold Chain
South San Francisco serves as a premier biomedical and perishable goods hub. Our high-density radio shuttle and double-deep racking systems are engineered with zinc-galvanized or low-temperature electrostatic polyester powder coatings that withstand down to -30°C (-22°F) freezers without cracking, optimizing costly refrigerated cubic storage in cold rooms near SFO International Airport.
Silicon Valley & Fremont Hardware Assembly & 3PLs
In Fremont, Milpitas, and San Jose, advanced robotics, EV production, and consumer electronics rely on rapid-access high-bay selective pallet racks and multi-tier picking mezzanines. Our slotted angle and boltless modular shelving integrate seamlessly with conveyor belts and ESD-safe container bays to streamline just-in-time component kitting for tech assembly operations.
East Bay Heavy Material & Construction Supplies
Along the I-880 corridor in Oakland, San Leandro, and Hayward, heavy building supplies, plumbing master distributors, and timber yards demand cantilever racks capable of holding structural I-beams, drywall packs, and PVC tubing. Our heavy-duty structural cantilever systems feature bolted arm connections with shear pins engineered specifically for outdoor and indoor seismic stability.
San Francisco Bay Area Industrial Market Trends: Automation, Mezzanine Expansion & Port Access
Logistics operators across Northern California are actively transforming legacy floor plans to combat labor overhead and land scarcity. Three distinct trends define the modern Bay Area warehousing landscape:
1. Vertical Floor-Space Multiplication via Heavy Structural Mezzanines
With city development approvals for new industrial construction in San Francisco, Brisbane, and South SF severely constrained by zoning, companies cannot build out—they must build up. Adding structural column-supported or rack-supported mezzanines has emerged as the most cost-effective capital strategy, enabling logistics companies to establish secondary mezzanine floors rated from 300 kg/m² to over 1,000 kg/m² without expanding the physical building footprint or triggering heavy real-estate reassessments.
2. Migration Toward Semi-Automated Shuttle Systems (ASRS Integration)
Forklift operator hourly rates in Northern California are among the highest in the United States. Furthermore, standard drive-in racking creates severe forklift collision risk in seismic zones. San Francisco distributors are transitioning toward Radio Pallet Shuttle Racking. Battery-powered shuttle robots traverse internal rails to index pallets forward and backward, keeping forklifts out of the racking structure. This slashes retrieval cycle times by up to 40%, decreases rack collision damage by 85%, and maximizes pallet density across tight floor plans.
3. Maritime Drayage Logistics: Port of Oakland Direct Delivery
One of the strongest competitive advantages for Bay Area buyers sourcing directly from our China manufacturing plant is direct ocean freight consolidation into the Port of Oakland. Located on the eastern shore of the San Francisco Bay, Oakland is Northern California's primary ocean cargo gateway. By coordinating 40HQ container shipments directly from our Guangzhou factory terminal to Oakland marine terminals (OICT, TraPac), our logistics team bypasses congested Southern California ports (Los Angeles/Long Beach), avoiding costly interstate trucking transfers and slashing inland transit times to San Francisco facilities.
Why Enterprise Logistics Choose HEDA Shelves as Their Direct Manufacturer
Eliminate distributor markups. Partner directly with an established engineering plant equipped with advanced roll-forming machinery, automated powder coating, and comprehensive global quality credentials.
Certified Global Quality Standards
Certified CE (Certificate No. 2435-CPR-8605159) and ISO 9001:2015 compliant quality management. Material test reports, mill certificates, and coating thickness analyses accompany every international shipment.
Free 2D CAD & 3D Visual Layouts
Our licensed design engineers prepare comprehensive AutoCAD layouts and 3D architectural renders within 24 to 48 hours, detailing bay dimensions, beam clearances, forklift turn radiuses, and structural load charts.
30,000 Ton Monthly Production Scale
Spread over our 30,000 m² factory site, automated roll-forming lines, computerized multi-station punching presses, and robotic welders process over 30,000 tons of structural steel monthly, ensuring tight delivery lead times.
Heavy-Duty Surface Pre-Treatment
All steel components undergo a thorough 8-stage industrial pre-treatment process: automated shot blasting, chemical degreasing, acid pickling, rust removal, phosphating, and 180°C thermosetting electrostatic powder coating.
End-to-End DDP Sea Freight into SF Bay
We manage export documentation, containerized seaworthy packing with steel band strapping, customs clearance, ISF filing, and door-to-door drayage directly to your facility in San Francisco, Oakland, Hayward, or San Jose.
OEM / Private Label for US Distributors
We serve as a trusted white-label manufacturing partner for Northern California material handling contractors and distributors, supporting custom RAL powder-coat colors, branded steel stamping, and customized carton packaging.
Precision 10-Step Manufacturing & Structural Verification Process
Every upright frame, load-bearing step beam, and structural cantilever arm manufactured in our facility passes through an uncompromising 10-stage fabrication protocol designed to meet high-seismic integrity standards:
Frequently Asked Questions by San Francisco Bay Area Warehouse Buyers
Clear, direct answers regarding building permits, seismic engineering calculations, ocean shipping to the Port of Oakland, and installation protocols.
Does pallet racking in San Francisco require high-piled combustible or building department permits?
Yes. Under the California Building Code (CBC Chapter 16) and the San Francisco Fire Code (SFFC Chapter 32), any storage racking system exceeding 8 feet in top-of-storage height—or designated as "High-Piled Combustible Storage" (exceeding 12 feet in height or 6 feet for high-hazard commodities)—requires structural building permits and fire department approval. This involves submitting certified structural load calculations, slab verification reports, and sprinkler density analyses. As an experienced manufacturer, we supply detailed structural CAD shop drawings, connection moments, anchor shear values, and steel physical properties to support your local California-licensed Professional Engineer (PE) during city plan check submissions.
How do you ensure pallet rack frames comply with California Seismic Design Categories D through F?
Our engineering department utilizes structural calculations aligned with ANSI/RMI MH16.1 specifications and ASCE 7 seismic guidelines. For San Francisco and East Bay projects, we calculate maximum site spectral response accelerations (Ss and S1 values). We achieve compliance by utilizing heavier-gauge cold-rolled steel columns (up to 11-gauge / 3.0mm), heavy-duty seismic baseplates with multi-anchor hole provisions, reinforced bracing patterns, and high-strength beam end connectors with heavy safety lock pins that withstand cyclic lateral ground motions without disengagement.
What is the total ocean shipping transit time from your factory to the Port of Oakland?
Production typically requires 15 to 25 days depending on the project bay count. Direct ocean container transit from the Port of Guangzhou or Shenzhen to the Port of Oakland typically takes between 14 to 18 days on direct trans-Pacific sailings. Custom clearance, terminal container grounding, and final flatbed drayage to San Francisco, Oakland, Hayward, or San Jose usually add 3 to 5 business days. Overall, clients receive their systems within 5 to 7 weeks from final design approval—at a cost savings of up to 40% compared to local reseller stock.
Can your racking accommodate standard US 48"×40" GMA pallets and wire decking?
Absolutely. While we supply global markets with European 1200×800mm formats, our US-destined product lines are calibrated specifically for standard Grocery Manufacturers Association (GMA) 48" wide × 40" deep pallets. Typical bay beam lengths are fabricated at 96 inches (two-pallet bay) or 144 inches (three-pallet bay) with standard 42-inch or 48-inch deep upright frames. Our step beams feature standard 1-5/8" steps engineered to drop-in standard US-manufactured flared or step-style welded wire mesh decks and structural pallet support crossbars.
Do you provide teardrop-style punching compatible with existing US warehouse racking?
Yes. We manufacture universal teardrop-punch uprights on 2-inch vertical increments, which are 100% interchangeable with major American teardrop profiles. This allows San Francisco facilities to expand existing warehouse racking systems seamlessly, replacing damaged uprights or adding new beam levels without needing to decommission existing structural components.
How is installation handled across Northern California job sites?
All shipped materials are bundled in seaworthy, export-grade packaging with component numbering that corresponds directly to the provided installation blueprint guide and bay layout plan. Clients can utilize their preferred local non-union or union millwright / racking installation crews. We provide comprehensive English-language assembly schematics, torque specifications for anchor bolts, and real-time remote engineering video support to ensure smooth, compliant erection.
What are the terms of payment and shipping incoterms offered for Bay Area orders?
We provide standard international B2B incoterms including FOB (Guangzhou/Shenzhen), CIF (Port of Oakland), and complete turnkey DDP (Delivered Duty Paid) to your warehouse dock door. Under DDP terms, our global logistics network handles all ocean freight, marine insurance, US Customs entry, harbor maintenance fees (HMF), merchandise processing fees (MPF), and inland container delivery, eliminating logistics complexity for your operations team.
Optimize Your Bay Area Warehouse Space With Factory-Direct Engineering
Send our senior engineering team your architectural building floor plan (DWG or PDF), ceiling clear heights, forklift specifications, and pallet load requirements. We will return an optimized CAD layout, capacity chart, and wholesale factory quotation within 24 hours.
