Modular Heavy Duty
Export-Grade Inventory Systems
Engineered Racking & Multi-Tier Storage Systems
Engineered for cold chain centers in Incheon, automated parcel distribution centers across Gyeonggi-do, and precision manufacturing plants in Ulsan and Changwon. Fully compliant with Korean Standard (KS) pallet profiles.
Modular Heavy Duty
100% Pallet Access
Manual Picking
Sub-Zero Rated
Long Stock Storage
Rapid Assembly
Ultra-High Density
ISO & CE Certified
Strategic Engineering & Whitepaper
Engineering Warehouse Density for South Korea’s Industrial Real Estate
South Korea represents one of the most sophisticated and dense logistics ecosystems in the Asia-Pacific region. Balancing ultra-high industrial land prices in Gyeonggi Province with hyper-fast fulfillment requirements necessitates innovative racking and multi-tier structural mezzanine designs.
KS T-11 & T-12 Dimensional Conformity
South Korea operates predominantly on the standard KS T-11 pallet (1,100 × 1,100 mm), while import-export corridors utilize the KS T-12 (1,200 × 1,000 mm) format. Unlike off-the-shelf Western racking, our beam lengths (2,300mm, 2,500mm, and 3,300mm clear bays) are laser-calculated to eliminate dead space and preserve the mandatory 75–100mm chimney clearances demanded by South Korean fire safety bureaus.
KDS 41 Seismic Code Calculations
The southern and central industrial regions of Korea (including Gyeongju, Pohang, and Busan hinterlands) enforce strict compliance with the Korean Design Standard (KDS 41) for structural steel. Our upright frames utilize high-yield Q355B cold-formed steel with enlarged footplates, customized Hilti chemical anchors, and reinforced diagonal bracings engineered to resist horizontal ground acceleration.
KOSHA Safety Regulations
Under guidelines set forth by the Korea Occupational Safety and Health Agency (KOSHA), dynamic racking must feature secondary beam locking mechanisms to prevent unseating during reach-truck operation. We incorporate spring-loaded automatic locking pins with an anti-dislodgement threshold exceeding 5,000N per connection node.
Engineering Matrix
Technical Comparison: Industrial Storage Architectures
Select the optimal balance of storage density, pallet selectivity, and handling velocity based on your facility's ceiling height and SKU turnover profile.
| Storage System | Pallet Selectivity | Density Rating | Floor Footprint Efficiency | KS Pallet Compatibility | Typical Korean Facility |
|---|---|---|---|---|---|

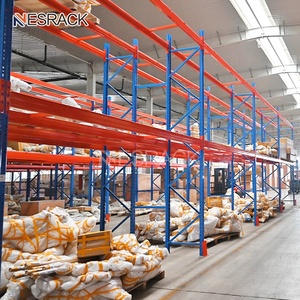

| Selective Pallet Racking | 100% Direct | Medium | 40% – 50% Utilization | T-11 (1100mm) & T-12 (1200mm) | 3PL multi-client centers (Yongin, Icheon) |
| Drive-In / Drive-Through | Last-In, First-Out | High | 65% – 75% Utilization | T-11 (Uniform Spec) | Beverage, packaging & seasonal stockpiles |
| Radio Shuttle System | Semi-Automated (FIFO/LIFO) | Ultra-High | Up to 85% Utilization | T-11 / T-12 Universal | Sub-zero cold chain complexes (Incheon Port) |
| Structural Steel Mezzanine | 100% Open Access | Multiplies Floor Area | 200% – 300% Usable Space | Hand pallet & AGV friendly | E-commerce sortation & electronics testing |
| Cantilever Racks | 100% Frontal Clearance | Variable by Arm Depth | Dedicated Linear Storage | Non-palletized / Bundle loads | Steel fabricators & PVC pipes (Pohang, Busan) |
Targeted Korean Applications
Where Our Systems Operate Across South Korea
From metropolitan Gyeonggi-do e-commerce fulfillment engines to coastal export manufacturing plants, our systems are designed to withstand specific regional working conditions.
1. Gyeonggi-do Mega E-Commerce & 3PL Fulfillment Hubs
The industrial cluster spanning Icheon, Yongin, Gwangju, and Anseong forms the heart of South Korea's parcel and "Dawn Delivery" (새벽배송) network. Here, warehouses operate on clear heights between 10 to 14 meters.
The Engineering Solution: We supply multi-tier rack-supported mezzanine systems integrated with spiral carton chutes, high-bay narrow-aisle selective racking, and specialized pick-to-light shelving. These layouts allow operators to utilize total cubic volume while segmenting SKUs across 2 to 4 vertical mezzanine decks without expanding the land footprint.
2. Maritime Port Free Trade Zones (Busan New Port & Incheon Port)
Busan New Port (부산신항) and Incheon FEZ represent primary transit gateways for imported perishables, dairy, and pharmaceutical products. Space inside refrigerated warehouses carries high electrical and refrigeration CAPEX per cubic meter.
The Engineering Solution: Our high-density radio shuttle and drive-in racking solutions feature cryogenic cold-rolled steel treated with electrostatic zinc-rich primers and powder topcoats designed to withstand continuous operating temperatures down to -30°C without embrittlement or surface delamination.
3. High-Tech Automotive & Battery Parks (Ulsan, Gwangju, Pyeongtaek)
South Korea’s automotive manufacturing supply chain and electric vehicle (EV) battery production nodes require safe, orderly, and robust buffering of high-value components, heavy molds, and stamping dies.
The Engineering Solution: Heavy-duty selective pallet racking equipped with flame-retardant galvanized wire decks, cross-beam pallet supports, and structural floor-to-upright bollards. Every beam level is certified for up to 4,000kg per level to accommodate dense engine blocks, tooling sets, and lithium-ion raw inventory.
4. Precision Machinery & Semiconductor Tooling (Hwaseong, Cheonan)
Cleanroom-adjacent parts warehouses supporting South Korea's high-tech semiconductor ecosystem demand zero dust shedding, anti-static epoxy flooring compatibility, and high ergonomic efficiency.
The Engineering Solution: Heavy-duty boltless metal shelving with smooth powder coatings that pass stringent particulate abrasion tests. These are configured alongside modular mezzanine office platforms for quality assurance and clean assembly stations.
Market Dynamics & Trends
Strategic Trends Reshaping South Korean Warehousing
Analyzing the macro developments that impact procurement decisions among Korean logistics real estate developers, warehouse operators, and factory managers.
Surging Urban Land Costs Driving Verticalization
With land prices in southern Gyeonggi-do at record highs, developers cannot afford single-tier layouts. The dominant structural trend is constructing multi-story ramp-up warehouse structures paired with internal structural steel mezzanines, effectively doubling or tripling storage capacity within the same land envelope.
AMR & AGV Integration with Racking Bases
South Korea’s logistics automation pace leads the world. Modern selective and flow racking must now integrate seamlessly with Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). This demands tighter baseplate tolerances, flush ground-rail integration, and reinforced guide rails along lower bay clearances.
Strict Post-Fire Safety Standard Revisions
Following major industrial warehouse fire incidents in Gyeonggi logistics parks, local fire departments have updated sprinkler penetrability requirements. Our engineering team designs racking systems with customized wire mesh decking and dedicated internal in-rack sprinkler bracket channels to ensure full regulatory approval.
Enterprise Strength & Verification
Direct Factory Authority: Guangzhou Heda Shelves Co., Ltd.
Since 2001, HEDA Shelves has engineered and exported turnkey industrial storage systems across 120+ countries. Korean buyers benefit from factory-direct pricing, certified steel metallurgy, and full structural traceability.
2001
Year Established
30,000 m²
Fabrication Facility Area
30,000 t
Monthly Steel Output Capacity
10,000+
Global Completed Installations
Complete Certification Suite
Our manufacturing runs strictly under verified quality systems: CE Certificate No. 2435-CPR-8605159, ISO 9001:2015 Certificate No. 18624Q00169R0M, and full RoHS compliance. Mill test certificates (MTC) verifying yield point and tensile strength accompany every sea container.
Rapid 24-Hour CAD & 3D Proposals
Provide your building floor plan (DWG/PDF), clear height, pallet dimensions, and forklift fleet details. Our dedicated structural engineering department prepares comprehensive 2D layouts and 3D architectural views with localized bay calculations within 24–48 hours.
Direct Maritime Logistics to Korea
Located in proximity to Guangzhou and Shenzhen ports, we provide streamlined shipping directly to Busan Port, Incheon Port, and Gwangyang Port. Shipping schedules offer rapid transit of 3 to 7 days, complete with seaworthy bundle packaging and numbered structural parts.
Knowledge Center
Frequently Asked Questions by Korean Procurement Teams
Clear, technical answers regarding KS compliance, shipping times, customs handling, and installation support across the Republic of Korea.
How do your rack dimensions accommodate South Korea's standard KS T-11 and T-12 pallets?
South Korean domestic warehousing relies heavily on the KS T-11 pallet (1,100 × 1,100 mm). For a standard two-pallet bay, we engineer beam lengths at 2,500 mm clear span, with frame depths of 1,000 mm. This provides a balanced 50 mm pallet overhang front and rear for forklift visual seating, as well as the standard 100 mm clearance between adjacent pallets. For export-focused hubs using the KS T-12 (1,200 × 1,000 mm), we supply 2,700 mm beams and 1,100 mm frames to prevent deflection and protect structural uprights from fork impact.
What design documents do you provide for Korean local safety and fire approvals?
We provide full English technical documentation including detailed 2D CAD architectural placement drawings, 3D structural perspective renderings, static load capacity calculations, anchor hole layout diagrams, and raw material chemical/mechanical mill test sheets. These calculations reference EN 15512 and KDS 41 principles, allowing your local Korean structural architect, fire marshal, or safety inspector to verify floor point loads and anchor pull-out ratings.
What is the delivery timeline from factory dispatch to Busan or Incheon Port?
Standard fabrication at our 30,000 m² plant takes approximately 15 to 25 business days depending on order tonnage. Sea freight transit from Guangzhou/Shenzhen port to Busan Port takes only 3 to 5 days, and to Incheon Port approximately 4 to 6 days. Fast customs clearance and short shipping corridors make factory-direct sourcing from our plant both cost-effective and competitive compared to domestic steel pricing.
Can your mezzanine platforms handle powered pallet jacks or electric walkie stackers?
Yes. While standard mezzanines are engineered for 300–500 kg/m² uniform distributed loads (UDL) for manual picking, our heavy-duty structural steel platforms can be specified for 1,000–1,500 kg/m² ratings. We incorporate heavy primary hot-rolled H-beams, cold-formed secondary C-purlins on tight centers, and heavy-gauge galvanized steel decking sheets overlaid with high-density anti-slip composite board, engineered to withstand point loads from wheel configurations.
Do you offer custom powder coating colors to match corporate branding (e.g., Coupang, CJ Logistics)?
Yes, our fully automated electrostatic powder coating lines accommodate any standard RAL color code. While safety orange (RAL 2004) and cobalt blue (RAL 5015) remain industry benchmarks for uprights and beams, we frequently customize framing to match specific corporate visual identity standards, including charcoal grey, pure white, and high-visibility alert yellows, with coating thicknesses calibrated to 60–80 microns.
How do you manage installation within Korean facilities?
Every shipment arrives with numbered components, bundled frames, stamped identification plates, and a comprehensive bolt-by-bolt installation manual. Most Korean clients partner with local mechanical erectors or general contractors, while our engineering team provides real-time remote technical supervision via video link and CAD markups. For multi-tier mezzanine projects exceeding 2,000 m², on-site installation supervisors can be dispatched on request.
