Durable Anti-Rust Heavy Duty Steel Electric Sheet Metal Rack Drawer Type Storage System Automated Retrieval Warehouse Shelving
Product Description

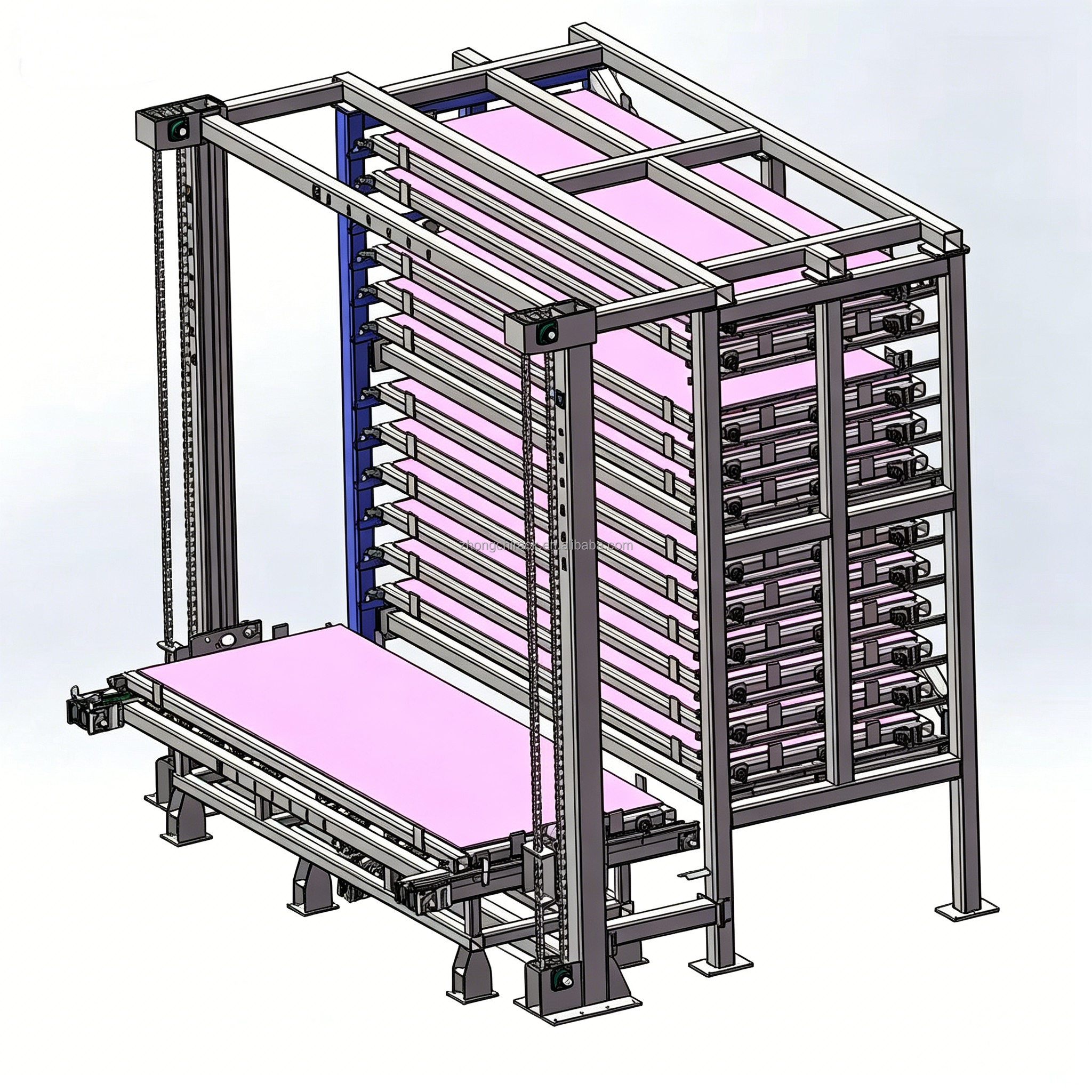

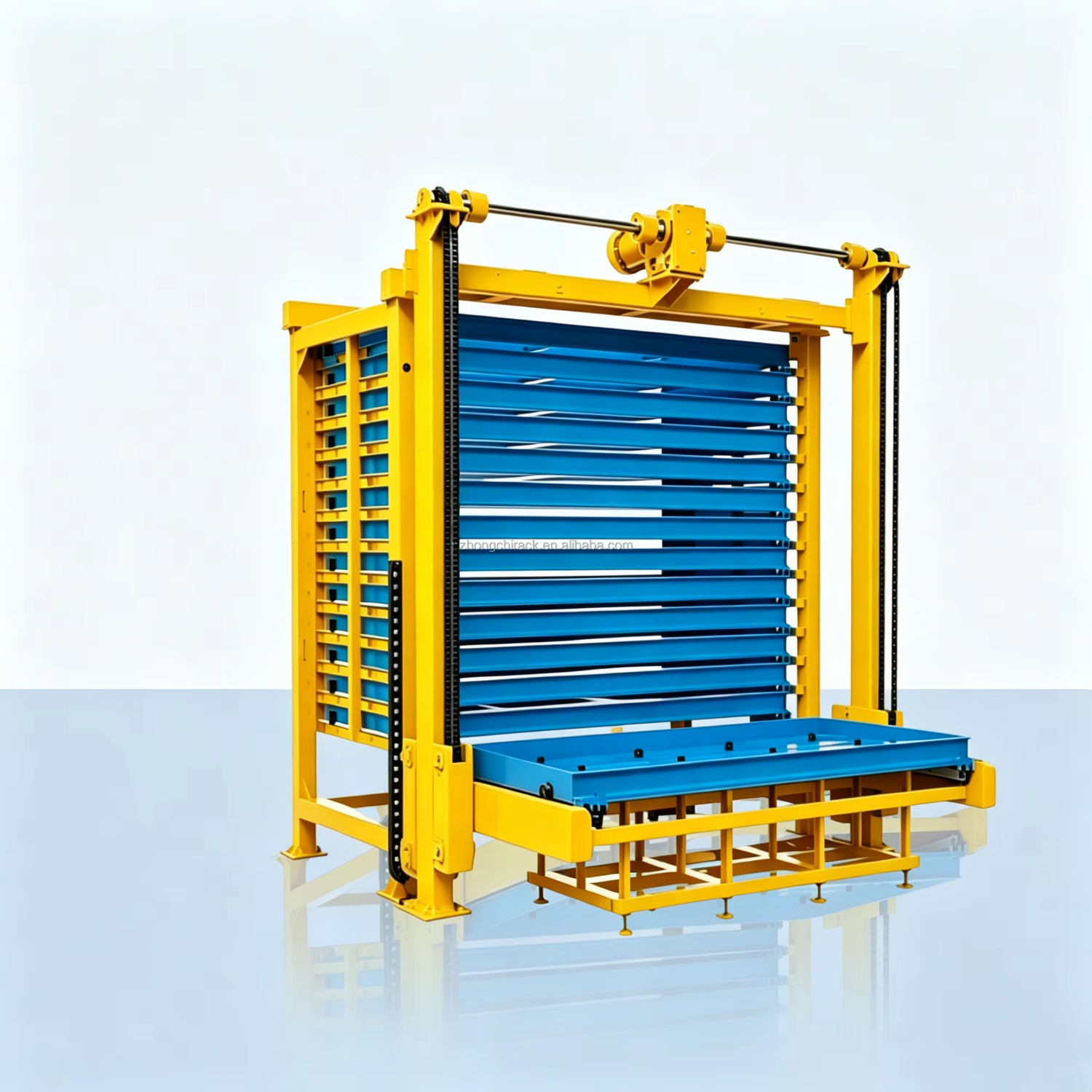

Highlights of Plate Automatic Vertical Storage System
⚡
Maximize Warehouse Space & Efficiency
Our automated vertical storage system is designed for efficient storage and retrieval of large-format plates, sheets, and panels. It reduces floor space usage by up to 70%, eliminates manual handling risks, and integrates seamlessly with forklifts and production lines.
📐
Space-Saving Vertical Design
Store multiple layers of plates vertically, cutting floor space occupancy by 60-70% compared to flat stacking. Ideal for factories with limited warehouse area.
🛡️
Automated & Safe Material Handling

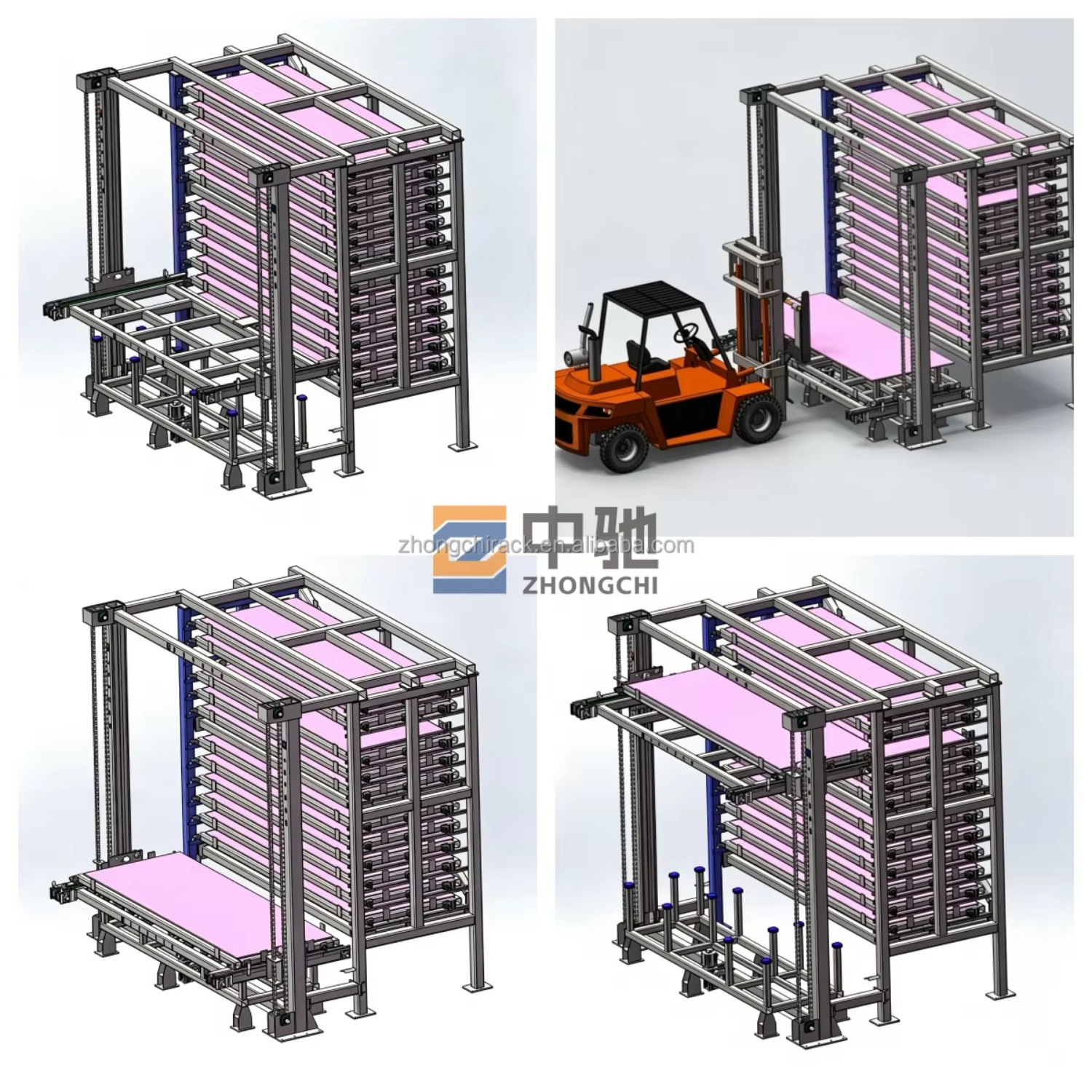

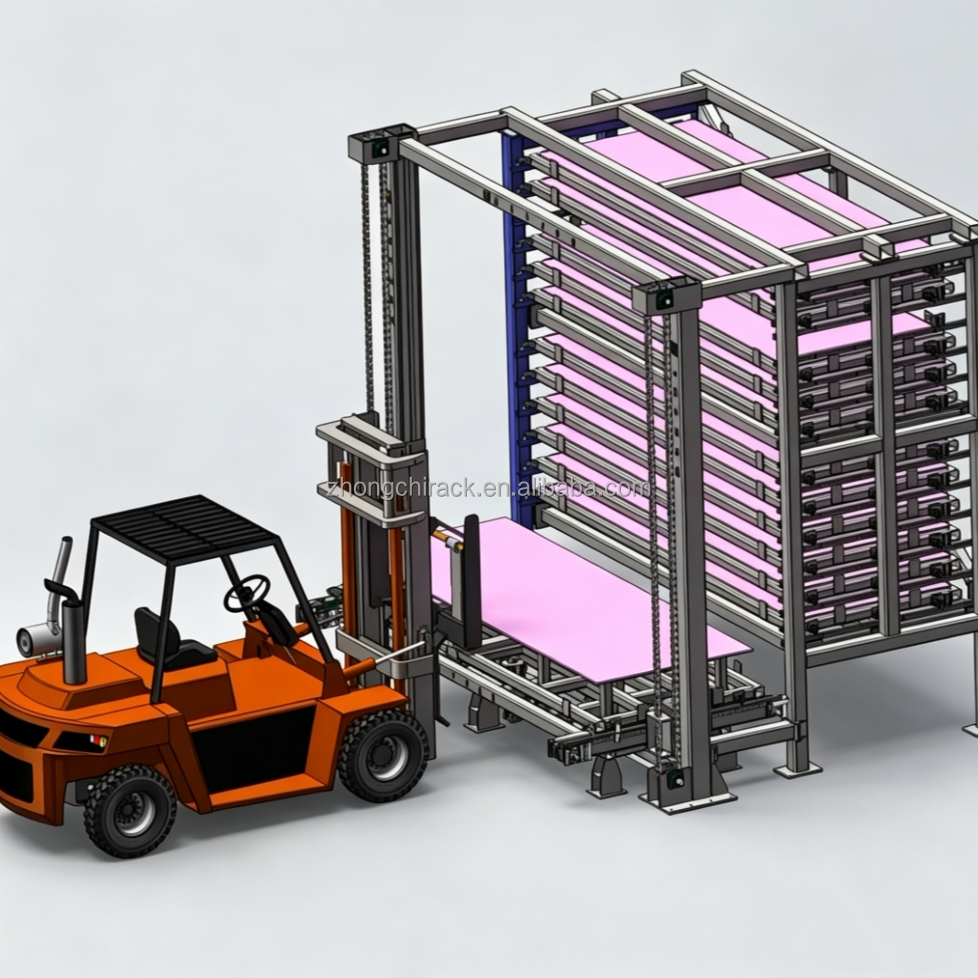

Equipped with chain-driven lifting system and forklift-compatible loading/unloading station. Eliminates manual lifting injuries and plate scratching during handling.
🏋️
High Load Capacity & Durability
Heavy-duty steel frame construction, each layer supports 1000kg-5000kg (customizable). Anti-rust coating and precision guide rails ensure long service life.
⚙️
Customizable for Various Plate Sizes
Adjustable layer height, shelf length, and load capacity. Suitable for steel sheets, aluminum plates, wood panels, glass, and other flat materials.
🔧
Easy Integration & Low Maintenance
Works with standard forklifts. Simple structure with few moving parts, requiring minimal maintenance.

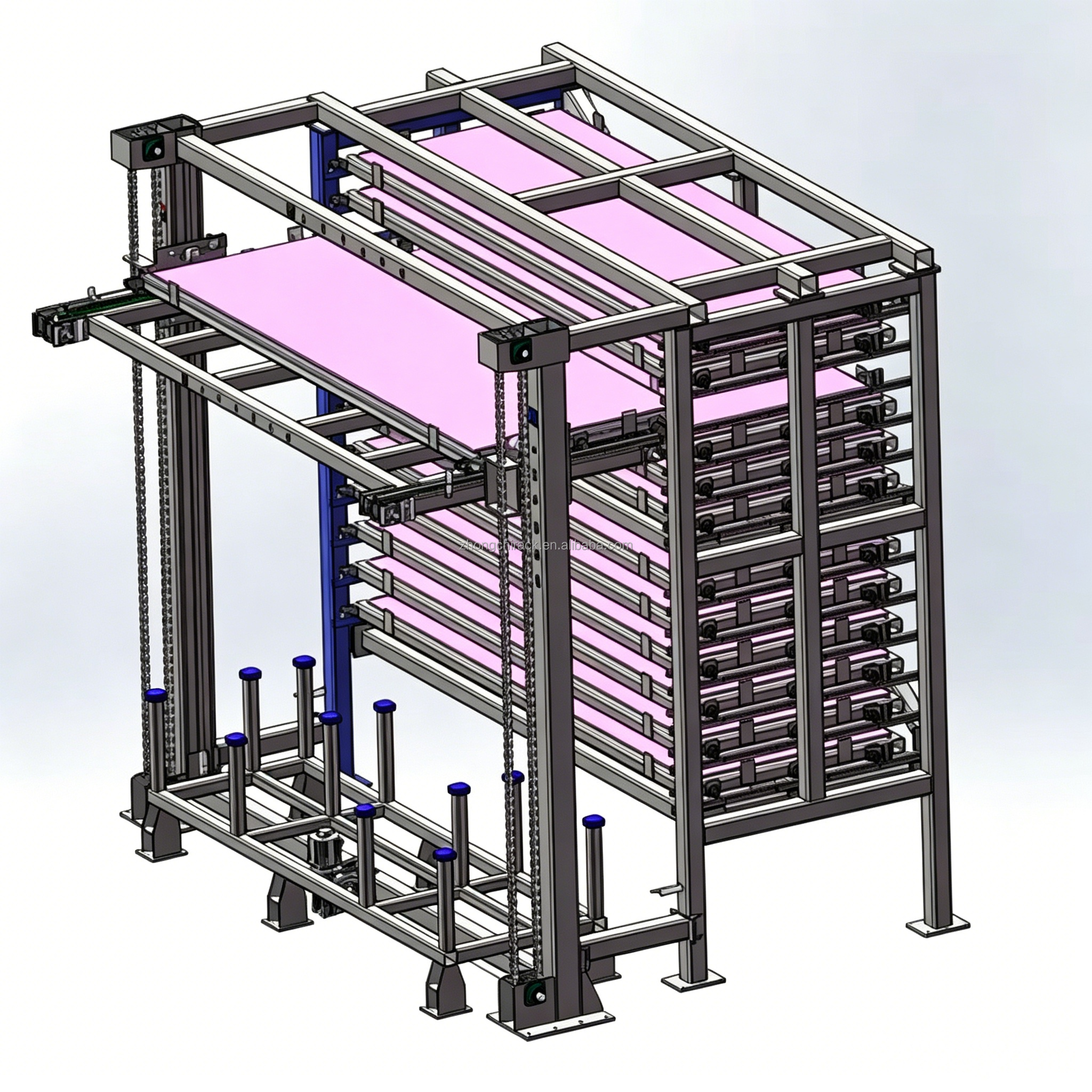

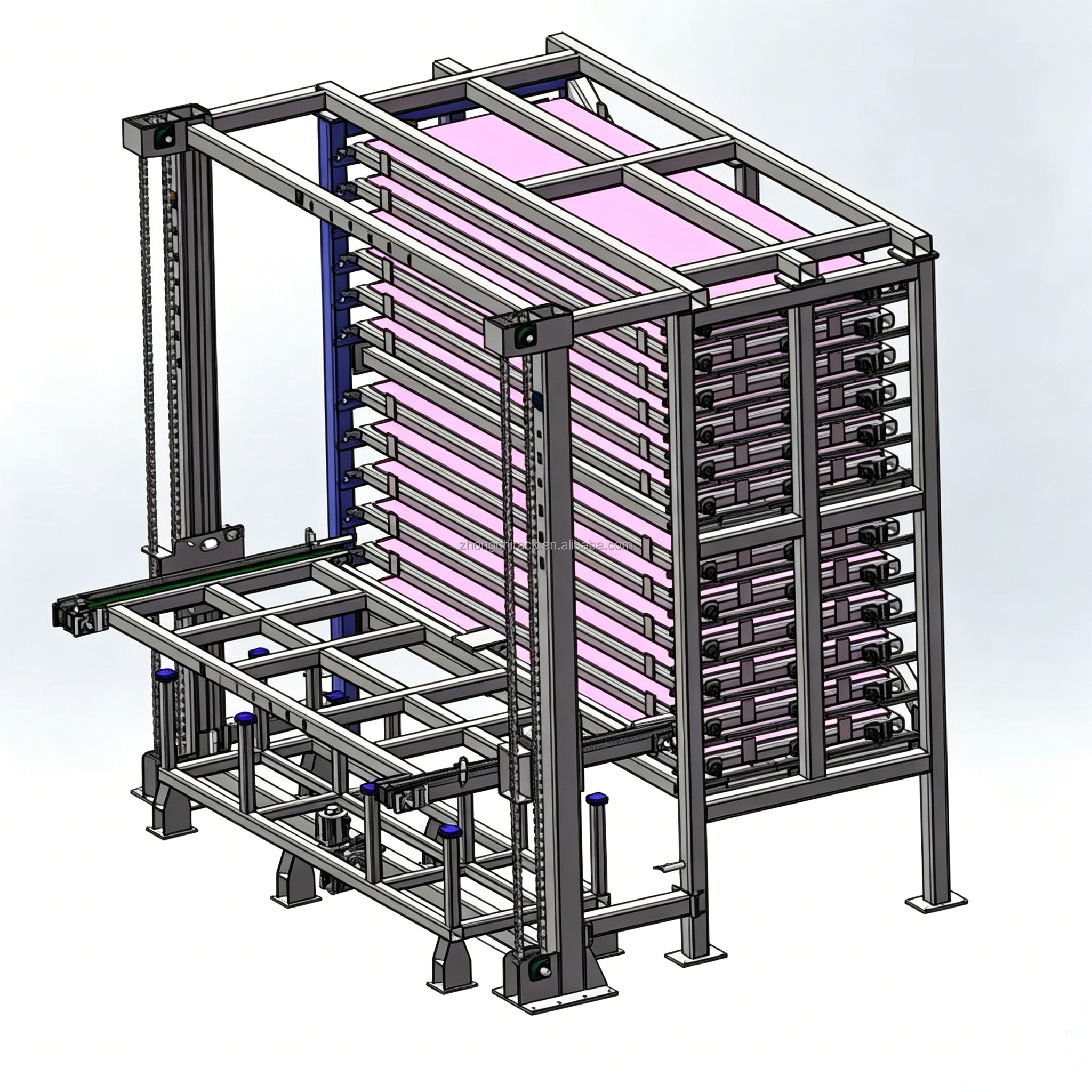

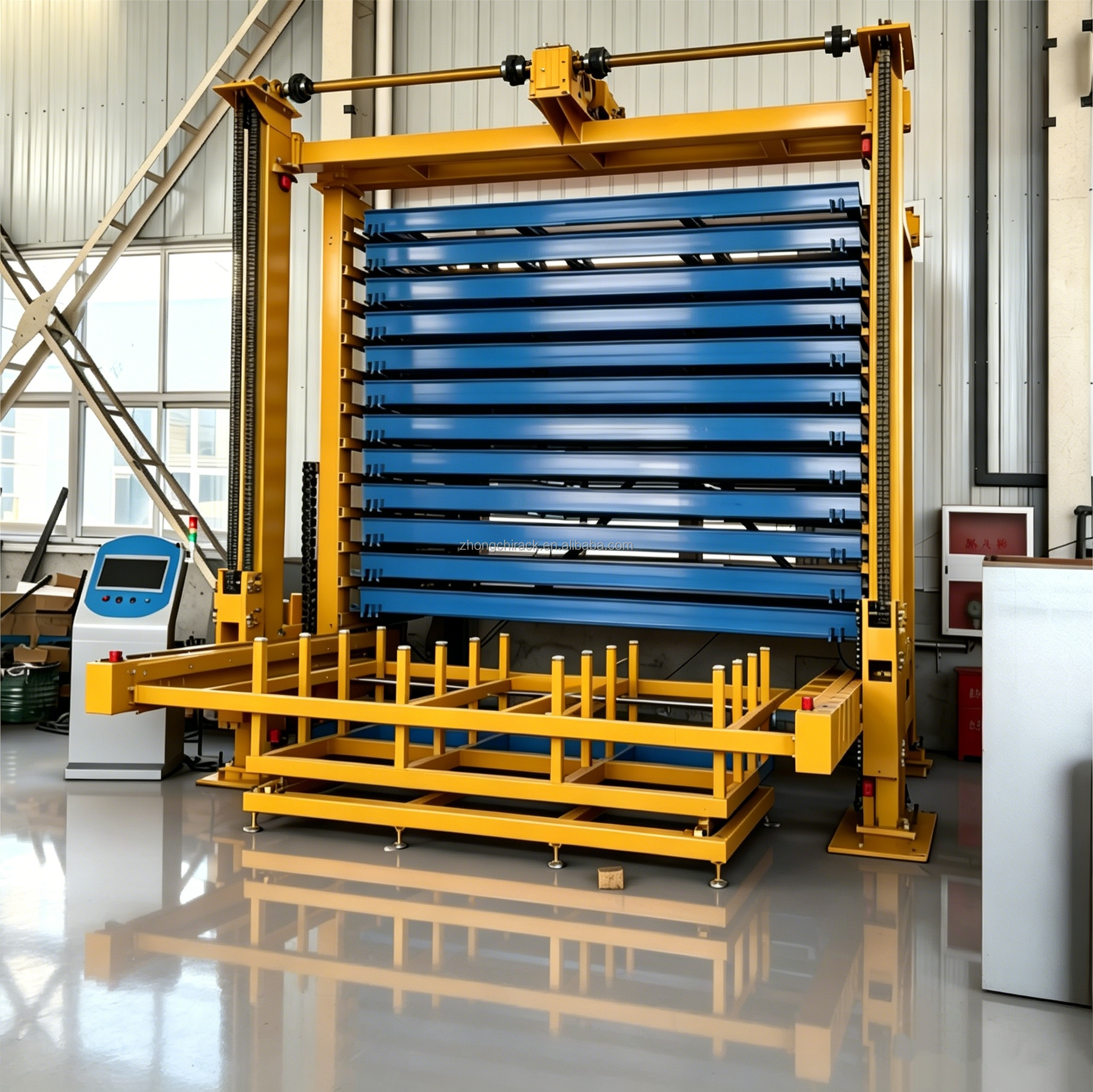

Details Of Plate Automatic Vertical Storage System
Specifications of Plate Automatic Vertical Storage System
| Storage Board Dimensions | 6000mm*2300mm / 6000mm*1500mm / 3400*1600mm or customizable |
| Number of Layers | 5-12 layers or customizable |
| Discharging Mode | Electric translation and sliding (in the width direction of the board) |
| Travel Mode | Electrical |
| Max Carrying Weight of Each Layer | 2000Kg / 3000Kg / 4000Kg / 5000Kg or customizable |
| Single Layer Height | 200mm or customizable |
| Stack Height | ≤ 200mm |
| Equipment Color | Customizable |
| Lifting Speed | 3-7.5m/min |
| Control System | PLC control |
| Touch Screen | Inovance |
| Power Supply | 380V 50Hz 3 phase or customizable |

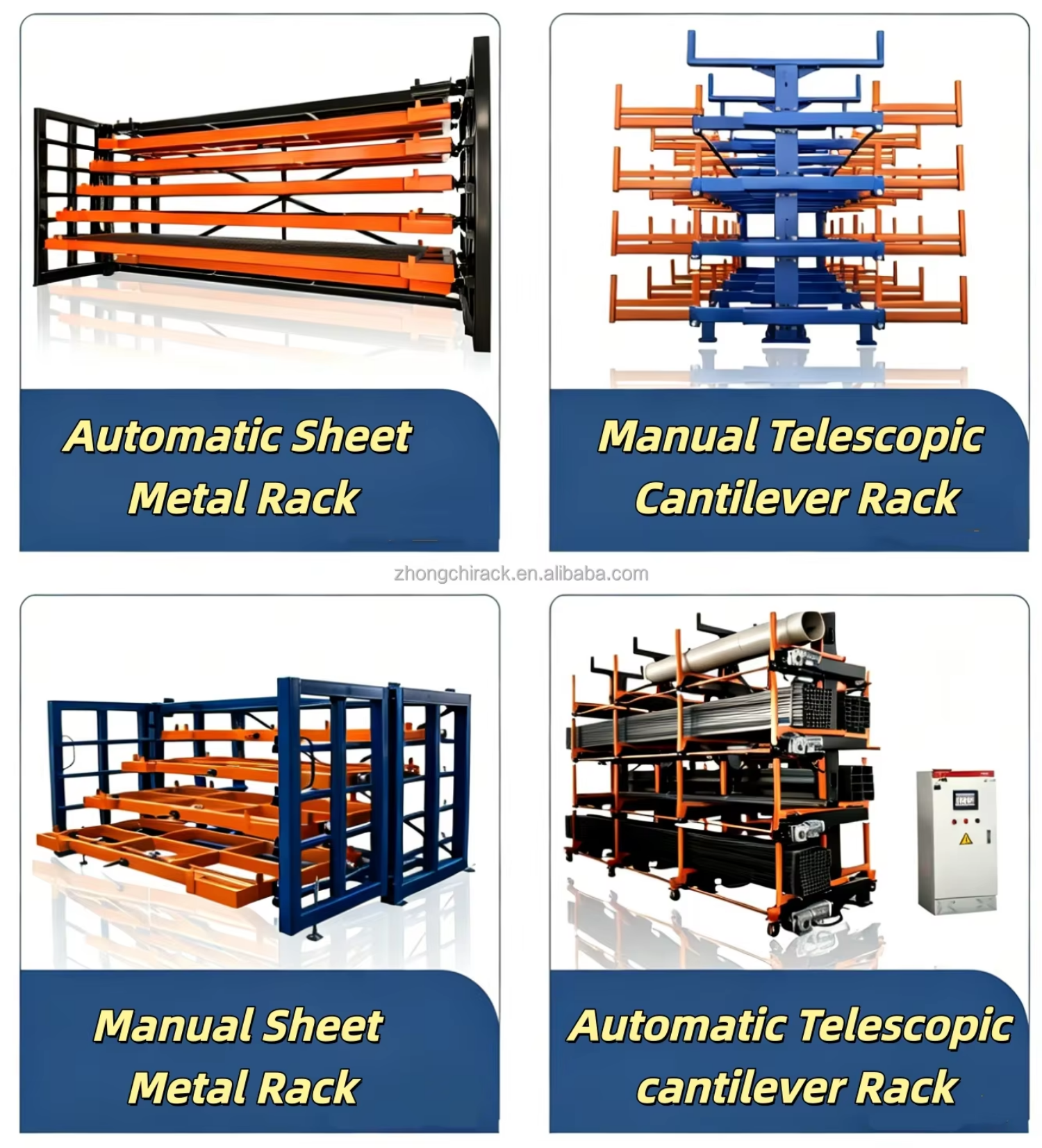

Other Products shows
About the Zhongchi Company
Shandong Zhongchi Machinery Co., Ltd. is a modern intelligent manufacturing enterprise integrating R&D, production, sales, and service. Located in Jinan, Shandong Province, China.
Our main products includes:
- Intelligent warehouse unit
- Heavy-duty sheet metal rack
- Cantilever racks
- Drawer-type racks
- Loading and unloading equipment
- Sheet metal processing and auxiliary equipment
Those products can be matched with laser cutting machines, shearing machines and other metal processing equipment.
Zhongchi Machinery is equipped with standardized production workshops, advanced processing machinery, and a dedicated technical R&D team. We provide customized intelligent warehousing and metal processing solutions tailored to specific customer requirements. From initial design and manufacturing to installation, commissioning, and after-sales support, we offer a complete one-stop service.
Thanks to our reliable product quality, strict production management, and excellent after-sales service, our solutions are widely used in industries such as machinery manufacturing, mold processing, electronics and electrical appliances, and warehousing and logistics.
Committed to the philosophy of "survive on quality, grow through innovation," Zhongchi Machinery strives to deliver efficient, intelligent, safe, and durable industrial automation equipment to our customers. Our goal is to become a leading supplier of intelligent manufacturing equipment in China and beyond.
Zhongchi Company Overview

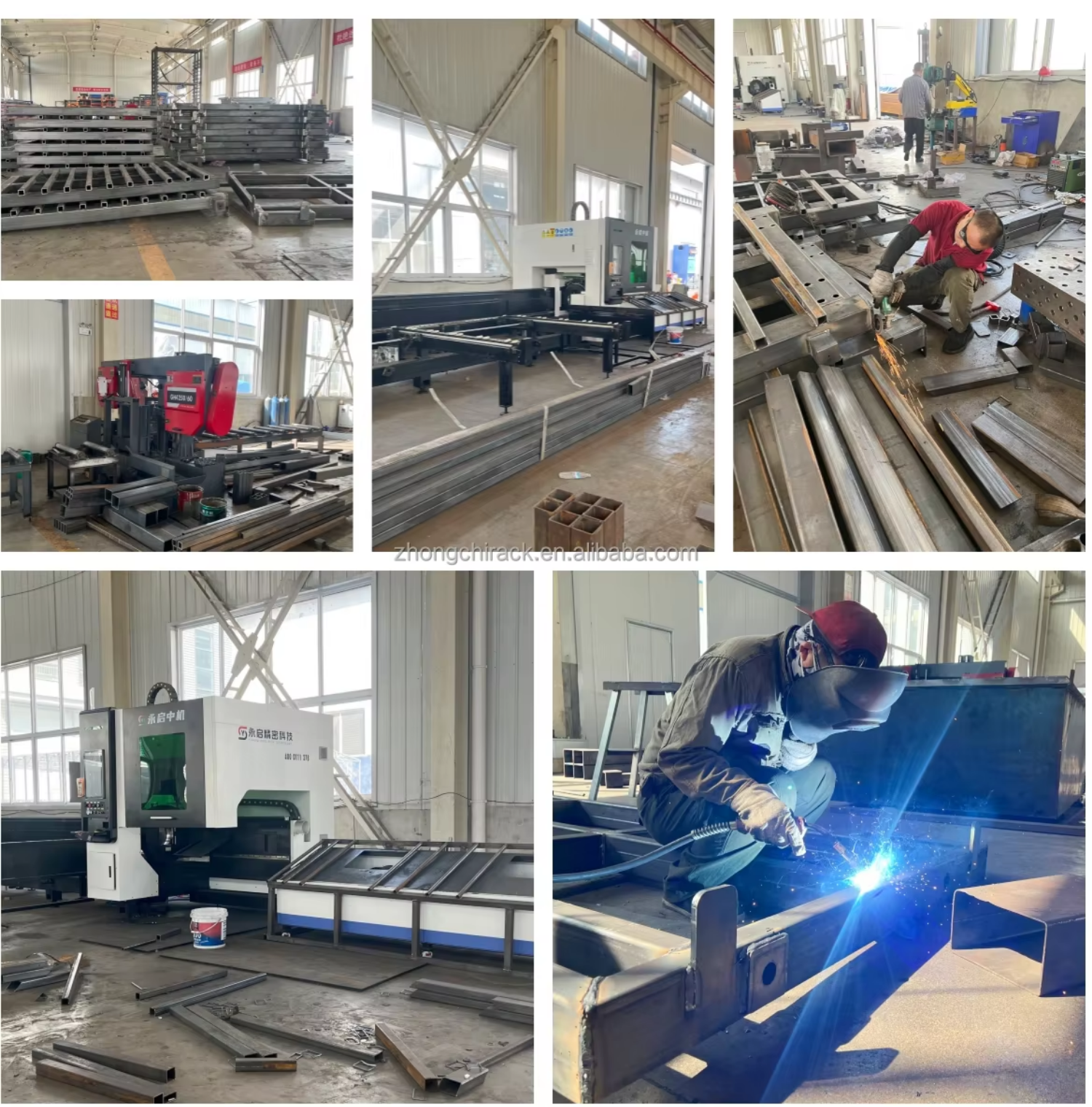

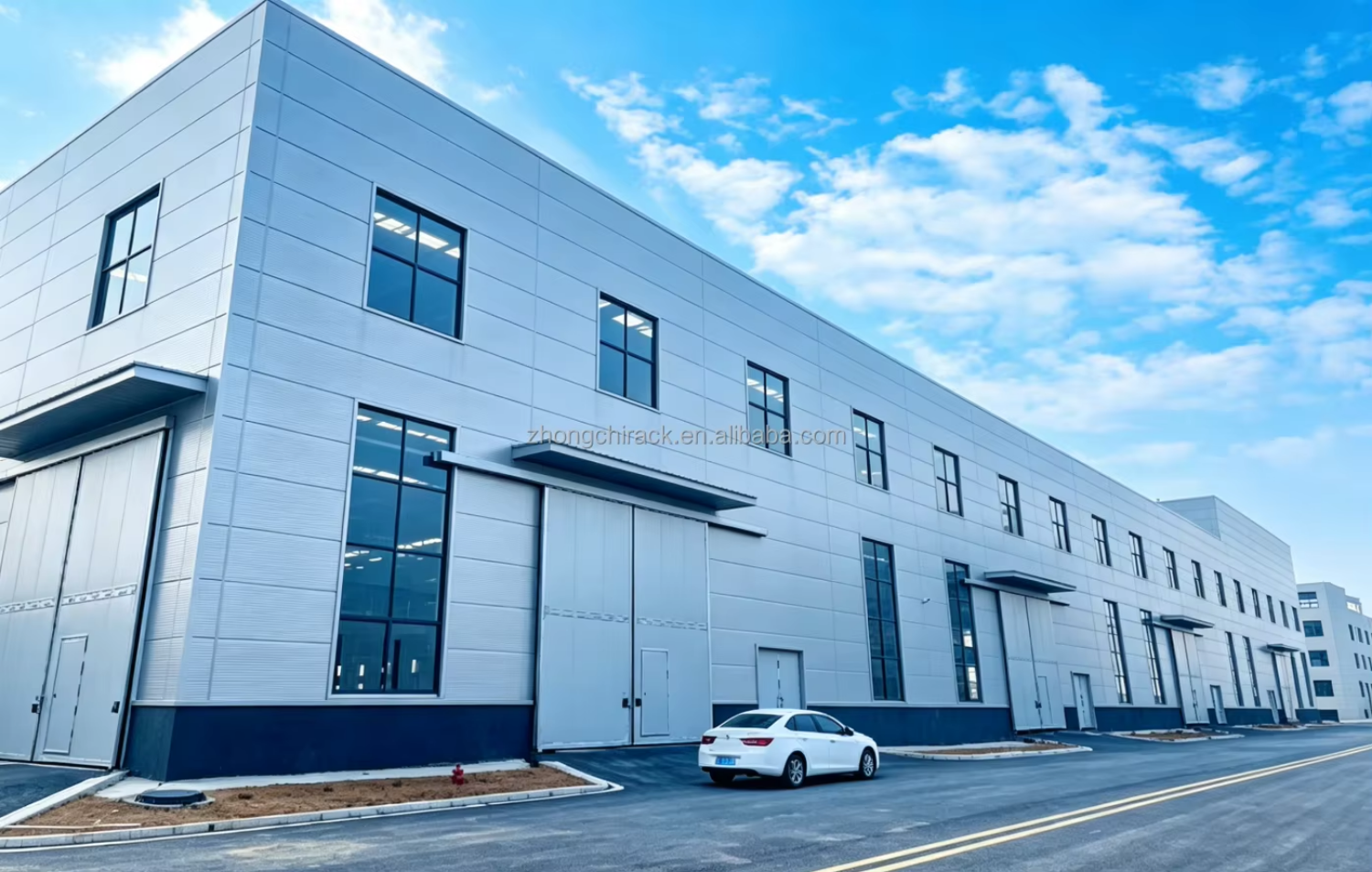

FACTORY PROFILE

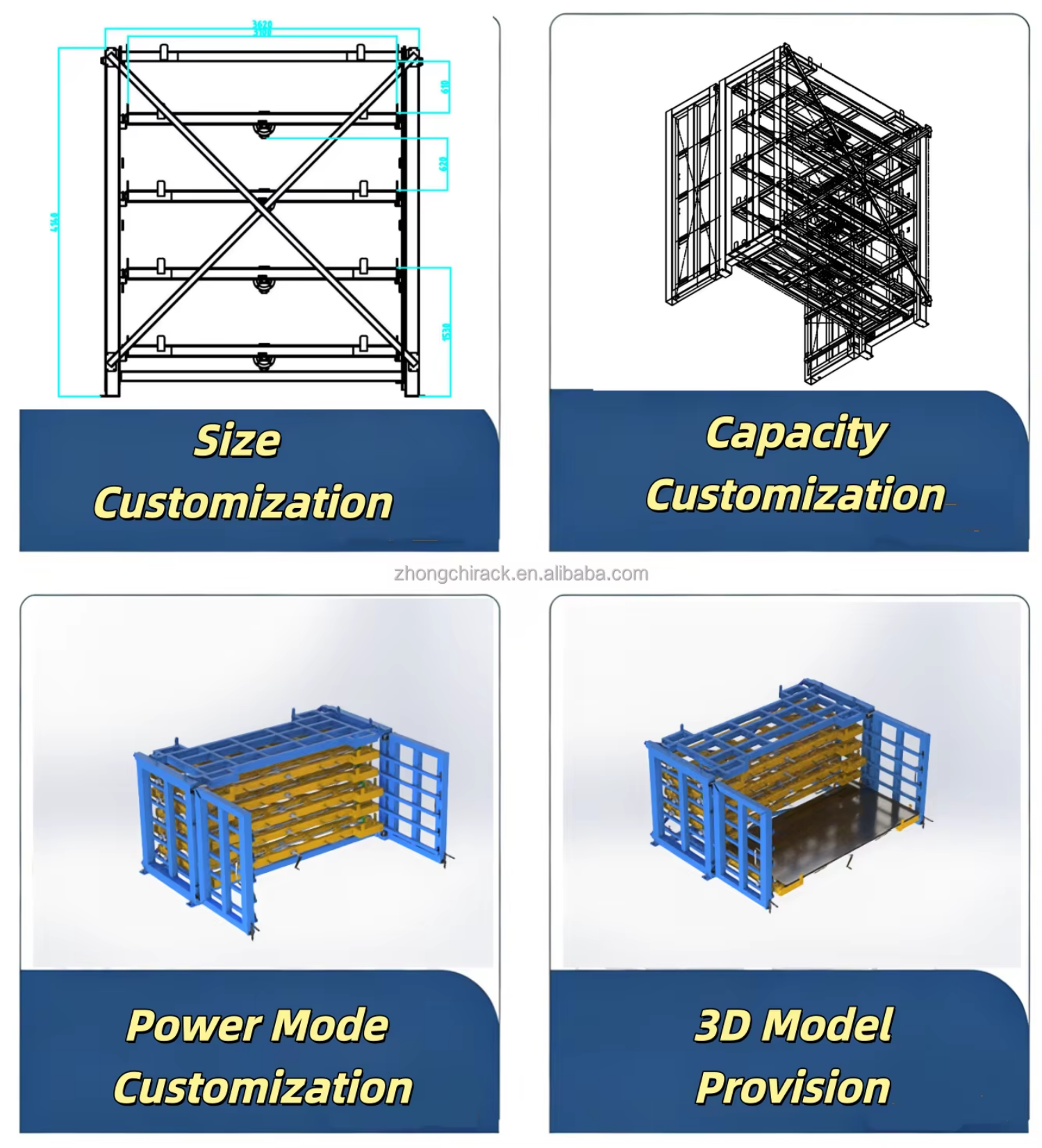

CUSTOMIZATION CAPABILITIES
PACKAGING & SHIPPING SPECIFICATIONS
FAQs
Q1How to place an order?
You may send us your technical parameters and leave your contact information. Our sales team will contact you promptly and provide a formal quotation.
Q2How to select suitable racks?
Please provide your material size, load capacity, required quantity and special requirements. We will customize the professional storage solution for you.
Q3How do you guarantee product quality?
We have a professional engineering team and strict QC system under ISO9001 certification. All products are CE certified and undergo full load testing before delivery to ensure safety and stability.
Q4Where is your factory located?
Our factory is located in Guowang Industrial Park, Jiyang District, Jinan, Shandong, China. We are a direct manufacturer with no middlemen. Factory video inspection and on-site visits are welcome.
Q5What are your payment and trade terms?
Standard payment term: 30% TT deposit in advance, 70% TT balance before shipment. We support FOB, CFR, CIF, EXW, DAP, and DDP door-to-door terms based on your destination port.
Q6What is your lead time and installation service?
Lead time is normally 15-25 working days after receiving the deposit. We provide professional engineers for on-site installation and commissioning globally, including past projects in the Netherlands, Saudi Arabia, Vietnam, and South Korea.
