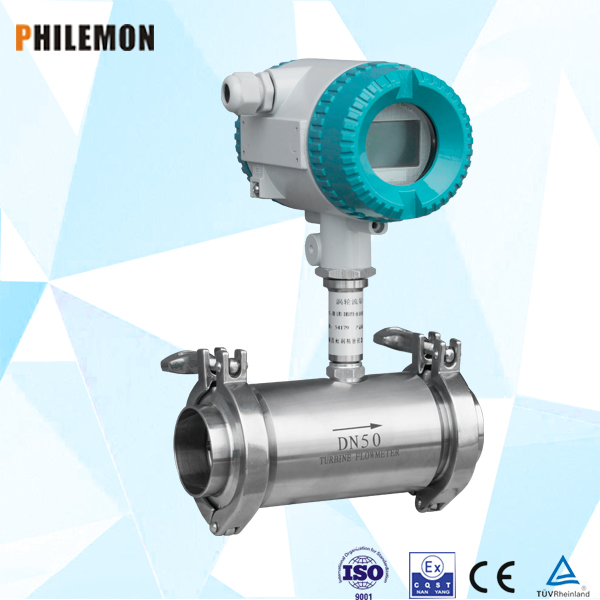

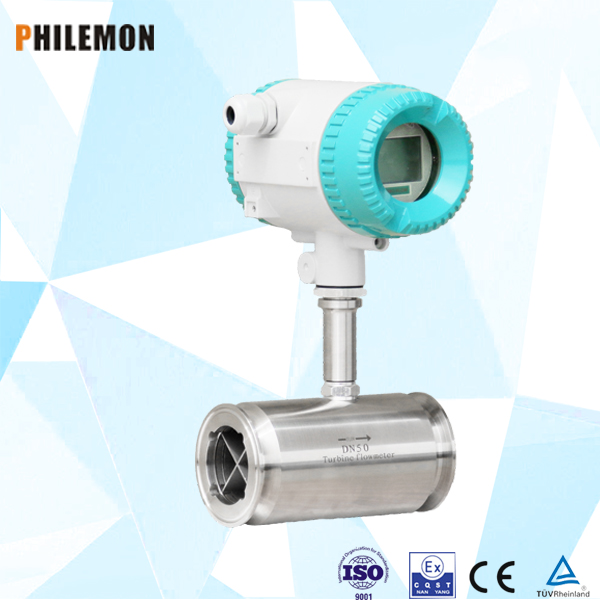

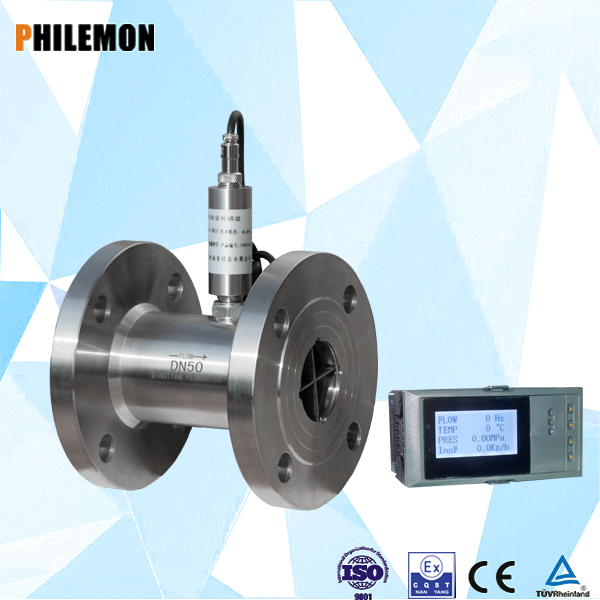

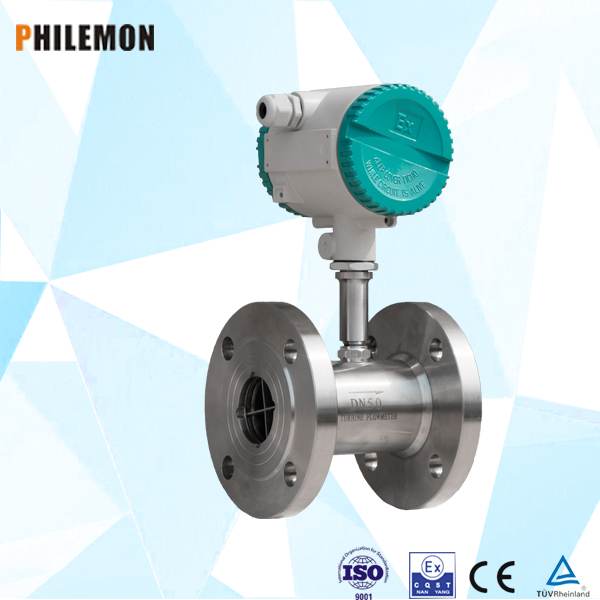

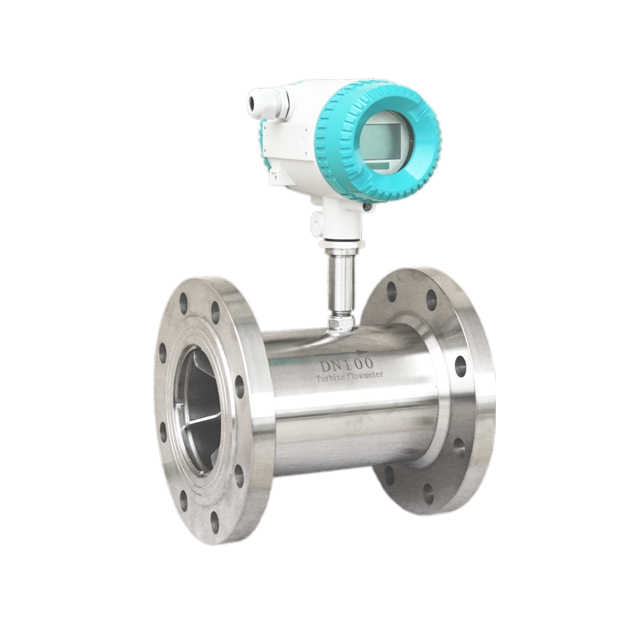

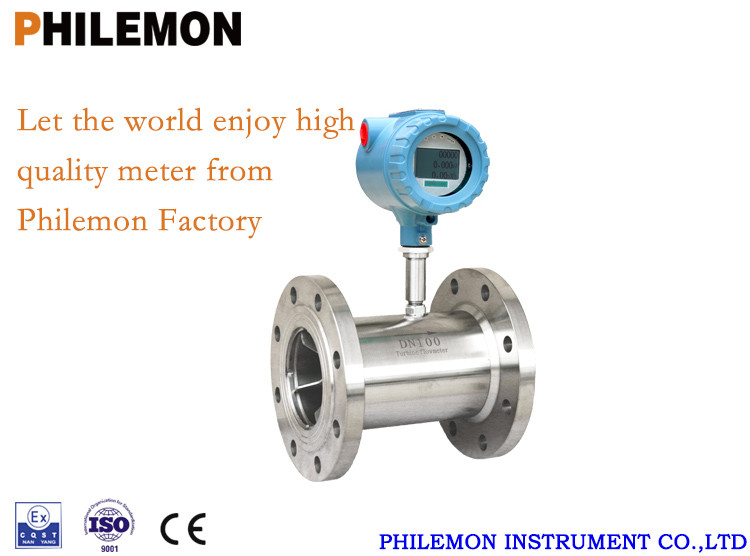

China Smart Pelton Wheel Turbine Industrial Flowmeter
Product Description

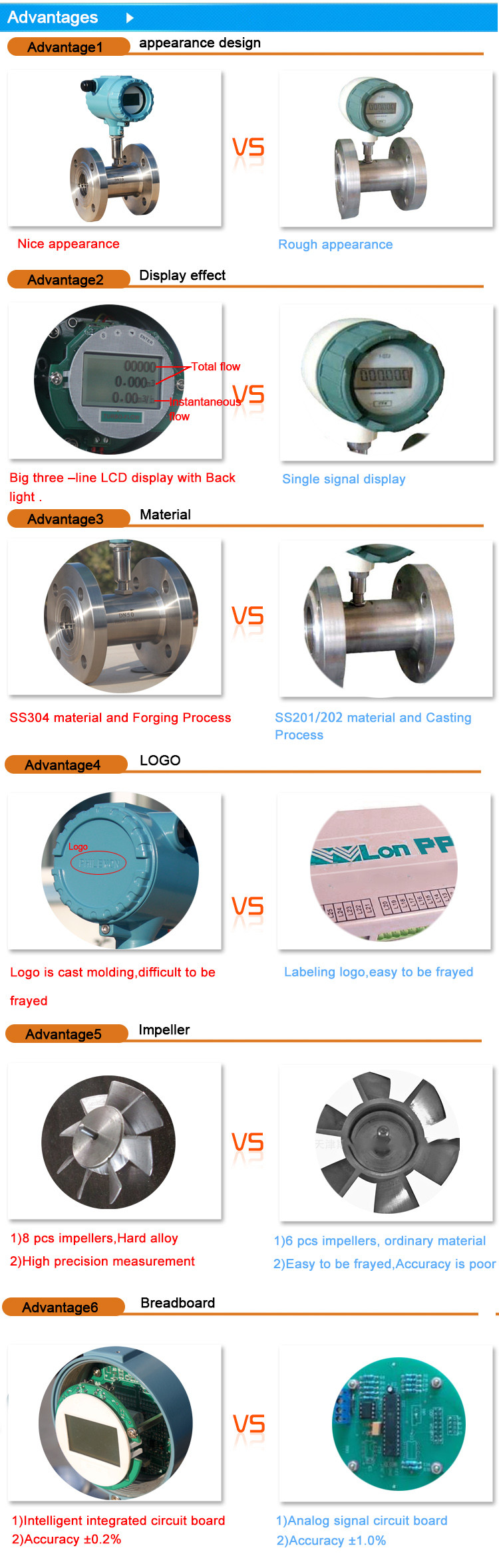

Key Features

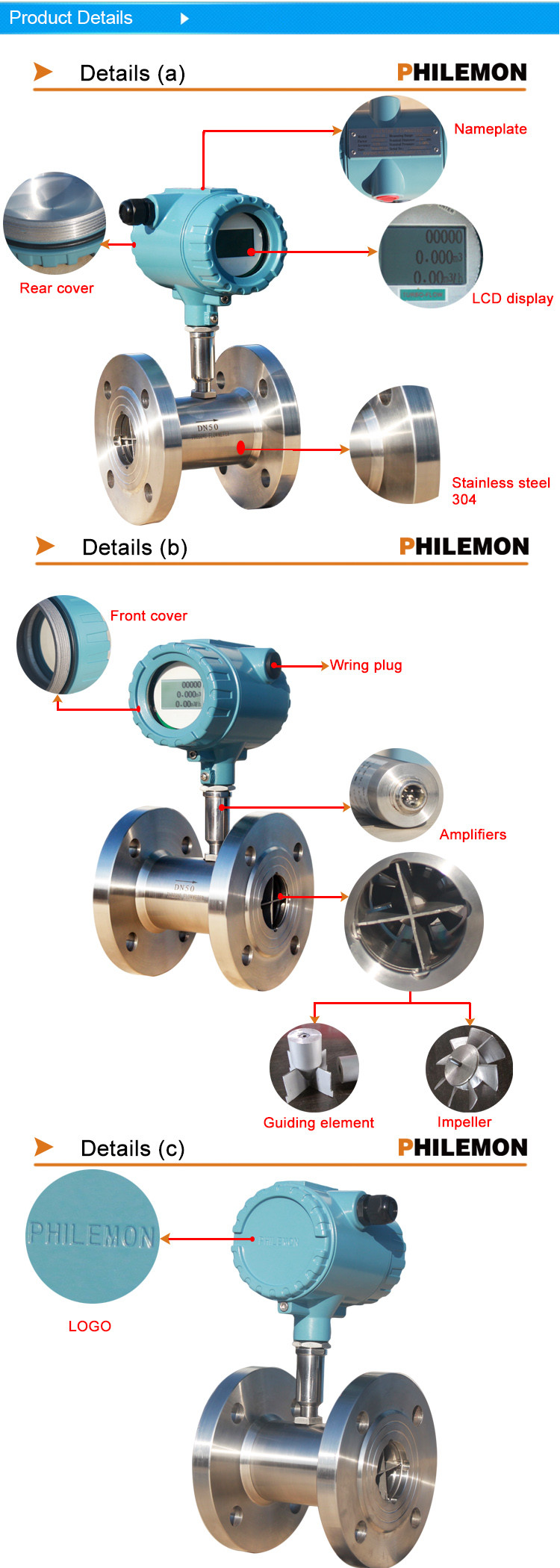

- The sensor is with hard alloy bearing thrust type, which may guarantee the precision and improve the wear resistance performance as well.
- Simple and firm structure, easy for installation and dismantling.
- Wide range of measuring with very lower flow velocity limit.
- Small loss of pressure,fine repeat ability and high precision.
- High resistance to electromagnetic interference and vibration.
Technical Specifications
| Size & Process Connection |
Thread connection: DN4, 6, 10, 15, 20, 25, 32, 40, 50, 65, 80, 100; Flange connection: DN15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 200; Clamp connection: DN4, 6, 10, 15, 20, 25, 32, 40, 50, 65, 80; |
| Accuracy / Range Ratio | ±0.5%R; 1:10; 1:15; 1:20 |
| Sensor Material | SS304, SS316L |
| Ambient Conditions | Medium temperature: -20°C ~ +120°C; Atmospheric pressure: 86Kpa ~ 106Kpa Ambient temperature: -20°C ~ +60°C; Relative humidity: 5% ~ 90% |
| Output | Pulse, 4-20mA, RS485 communication, HART protocol |
| Power Supply | A: +24VDC, for 4-20mA, pulse, RS485 output B: 3.6V lithium battery, battery voltage: 2.0V ~ 3.0V |
| Electrical Connector | Standard: 3-core wire cable; Explosion-proof: M20*1.5 |
| Explosion-proof Class | ExiaIICT4 or ExdIIBT6 |
| Protection Class | IP65 or higher (customized) |
Diameter & Flow Range Parameters
| Diameter (mm) | Standard Range (m³/h) | Extended Range (m³/h) | Connection Standard (Optional) | Standard Pressure (MPa) | Customized Pressure (MPa) |
|---|---|---|---|---|---|
| DN4 | 0.04~0.25 | 0.04~0.4 | Thread | 6.3 | 12, 16, 25 |
| DN6 | 0.1~0.6 | 0.06~0.6 | Thread | 6.3 | 12, 16, 25 |
| DN10 | 0.2~1.2 | 0.15~1.5 | Thread | 6.3 | 12, 16, 25 |
| DN15 | 0.6~6 | 0.4~8 | Thread (Flange) | 6.3, 2.5 (Flange) | 4.0, 6.3, 12, 16, 25 |
| DN20 | 0.8~8 | 0.45~9 | Thread (Flange) | 6.3, 2.5 (Flange) | 4.0, 6.3, 12, 16, 25 |
| DN25 | 1~10 | 0.5~10 | Thread (Flange) | 6.3, 2.5 (Flange) | 4.0, 6.3, 12, 16, 25 |
| DN32 | 1.5~15 | 0.8~15 | Flange (Thread) | 6.3, 2.5 (Flange) | 4.0, 6.3, 12, 16, 25 |
| DN40 | 2~20 | 1~20 | Flange (Thread) | 6.3, 2.5 (Flange) | 4.0, 6.3, 12, 16, 25 |
| DN50 | 4~40 | 2~40 | Flange (Thread) | 2.5 | 4.0, 6.3, 12, 16, 25 |
| DN65 | 7~70 | 4~70 | Flange | 2.5 | 4.0, 6.3, 12, 16, 25 |
| DN80 | 10~100 | 5~100 | Flange | 2.5 | 4.0, 6.3, 12, 16, 25 |
| DN100 | 20~200 | 10~200 | Flange | 1.6 | 4.0, 6.3, 12, 16, 25 |
| DN125 | 25~250 | 13~250 | Flange | 1.6 | 2.5, 4.0, 6.3, 12, 16 |
| DN150 | 30~300 | 15~300 | Flange | 1.6 | 2.5, 4.0, 6.3, 12, 16 |
| DN200 | 80~800 | 40~800 | Flange | 1.6 | 2.5, 4.0, 6.3, 12, 16 |
Model Suffix Code & Description
| Model Selection Structure (LWGY-) | Description | |
|---|---|---|
| Diameter | Three Digits | For example: 010 (10 mm), 015 (15 mm), 080 (80 mm), 100 (100 mm) |
| Converter | N | No display; 24V DC; Pulse Output |
| A | No display; 24V DC; 4-20mA Output | |
| B | Local display; Lithium Battery Power; No output | |
| C | Local display; 24V DC Power; 4-20mA Output; Optional backup power: Lithium Battery | |
| C1 | Local display; 24V DC Power; 4-20mA Output; Modbus RS485 Communication; Optional backup power: Lithium Battery | |
| C2 | Local display; 24V DC Power; 4-20mA Output; HART Communication; Optional backup power: Lithium Battery | |
| Accuracy | 10 | 1.0% of Rate |
| 05 | 0.5% of Rate | |
| Flow Range | S | Standard Range (refer to flow range table) |
| W | Wide Range (refer to flow range table) | |
| Body Material | S | SS304 |
| L | SS316 | |
| Explosion Rating | N | Safety Field without Explosion |
| E | ExdIIBT6 | |
| Pressure Rating | N | Per Standard |
| H(x) | Customized Pressure Rating | |
| Connection | -DXX | DIN Standard: D06 (DIN PN6), D10 (DIN PN10), D16 (DIN PN16), D25 (DIN PN25), D40 (DIN PN40) |
| -AX | ANSI Standard: A1 (ANSI 150#), A3 (ANSI 300#), A6 (ANSI 600#) | |
| -JX | JIS Standard: J1 (JIS 10K), J2 (JIS 20K), J4 (JIS 40K) | |
| -TH | Thread: DN4...DN100 | |
| -Tr | Tri-clamp, sanitary structure | |
| Fluid Temperature | -T1 | -20...+80°C |
| -T2 | -20...+120°C | |
Frequently Asked Questions (FAQ)

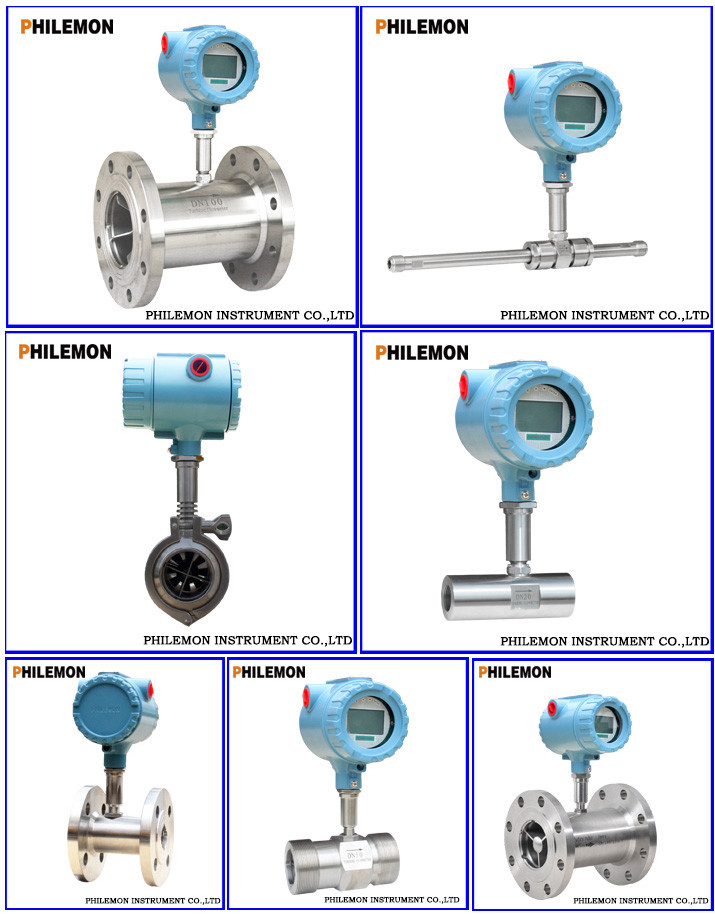

What types of process connections are available for the LWGY series?
The LWGY turbine flow meter supports thread connections (DN4 to DN100), flange connections (DN15 to DN200 complying with DIN, ANSI, and JIS standards), and sanitary tri-clamp connections (DN4 to DN80).
What output signals and communication protocols are supported?
Depending on the converter configuration, it can output pulse signals, standard 4-20mA analog current, and supports digital industrial communication via Modbus RS485 or HART protocols.
Can the flow meter operate in hazardous or explosive environments?
Yes, explosion-proof models are available with ExiaIICT4 intrinsically safe or ExdIIBT6 flameproof ratings, suitable for classified industrial environments.
What power supply options are available?
You can select either an external 24V DC power supply for continuous remote monitoring and outputs, or a built-in 3.6V lithium battery for standalone, local display field installations. Battery backup options with 24V DC are also available.
What are the medium and ambient temperature limitations?
The standard medium temperature rating is -20°C to +80°C (-T1 option) and can be extended up to -20°C to +120°C (-T2 option). The allowable ambient operating temperature is -20°C to +60°C.
Which materials are used for the sensor body and internal structure?
The flow meter body is manufactured from high-grade SS304 or SS316L stainless steel, paired with a hard alloy thrust bearing that ensures superior wear resistance and long-term measurement stability.
