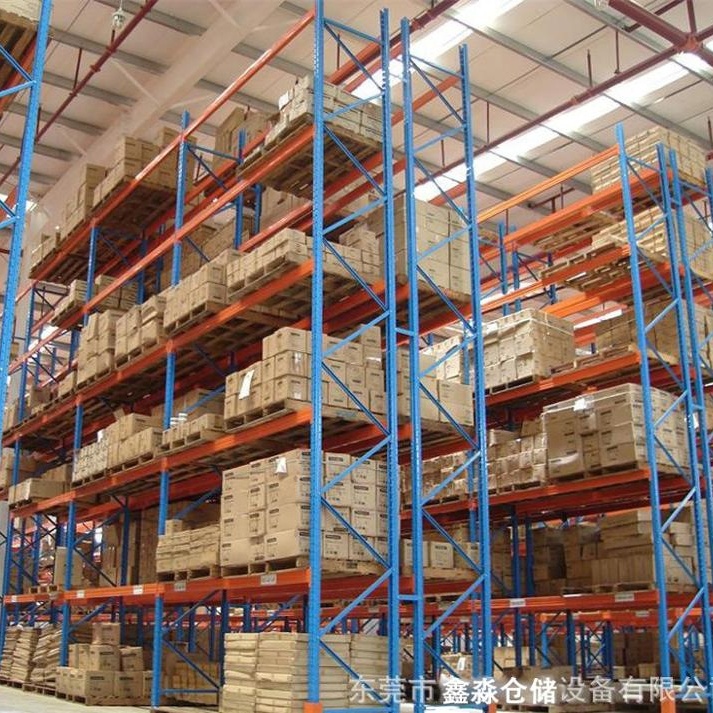

Customized Automatic Heavy Duty Warehouse Vertical Cargo Rack End Pallet Racking Pallet Shelves Racking Systems
Product Description
Hot Sale
Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack
Cantilever Rack
Mezzanine Floor
Wire Mesh Container
Product Description
Heavy Duty Rack:
Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 75mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chosen as the layer board. This kind of rack is an ideal storage rack for small and medium-sized warehouse for its advantages of appropriate height, and convenience in accessing goods.
| Brand | XINMIAO |
| Raw-Material | High-Quality Q235 Cold rolled steel |
| Color | Upright frame is blue, Beam is orange, can be customized. |
| Standards Size | L2300*D1000*H4500 and size can be customized according to your requirement |
| Height | 1500-8000mm or Customized; |
| Wide/Depth | 400-1500mm or Customized; |
| Length | 1500-3200mm or Customized; |
| Upright-Section | 80*60*1.5/1.8/2.0mm, 90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm etc. |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs |
| Beam-Section | 80*45mm, 100*45mm, 120*45mm, 140*45mm, 160*45mm, 180*45mm etc. |
| Treatment Surface | Powder coated |
| Packing Term | Air bubble, Wooden Case, etc. |
Features:
- Pallets can be located, accessed and moved individually.
- Rapid handling almost all types of palletized goods.
- The loading capacity per level of such rack may reach 5000KG.
- Bottom level of pallets can be stored on the floor, lowering structure costs.
- Durable powder coated finish, clean appearance, fire proof.
- Height of level can be adjusted by 75mm.
- Widely used in the manufacturing, Third-Party Logistics and Distribution center, etc., applies to multi-varieties and small batch goods, and few varieties and big batch goods.

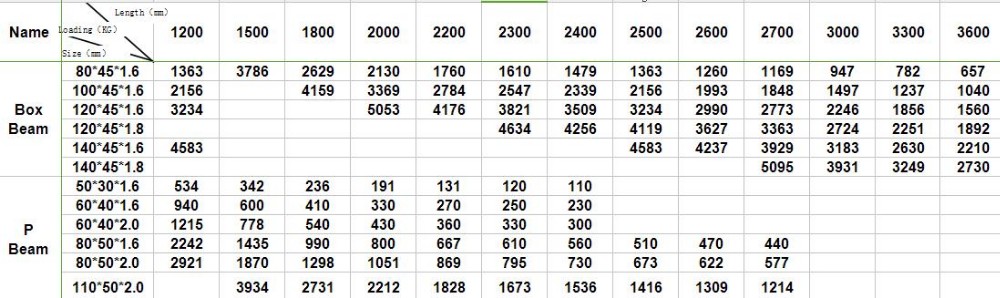

Beam Loading Capacity & Size
Detailed Images
Upright & Beam Installed

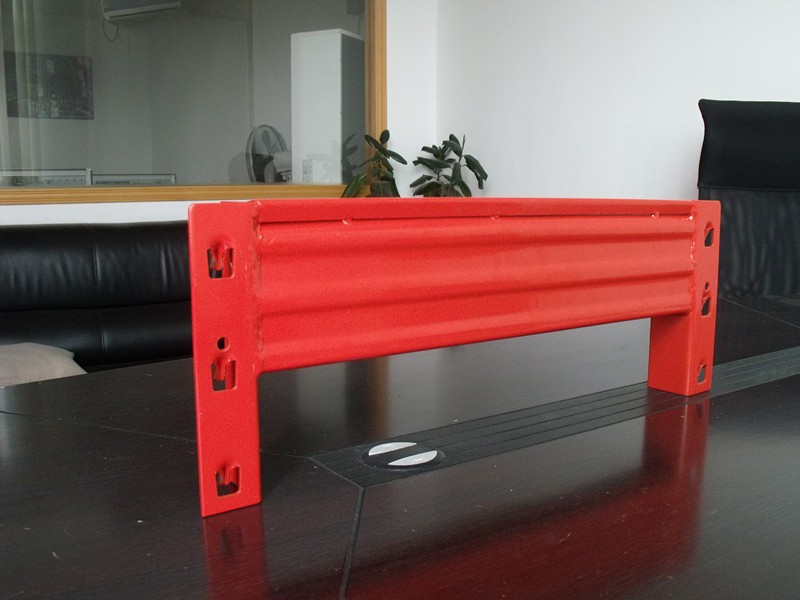

Box Beam

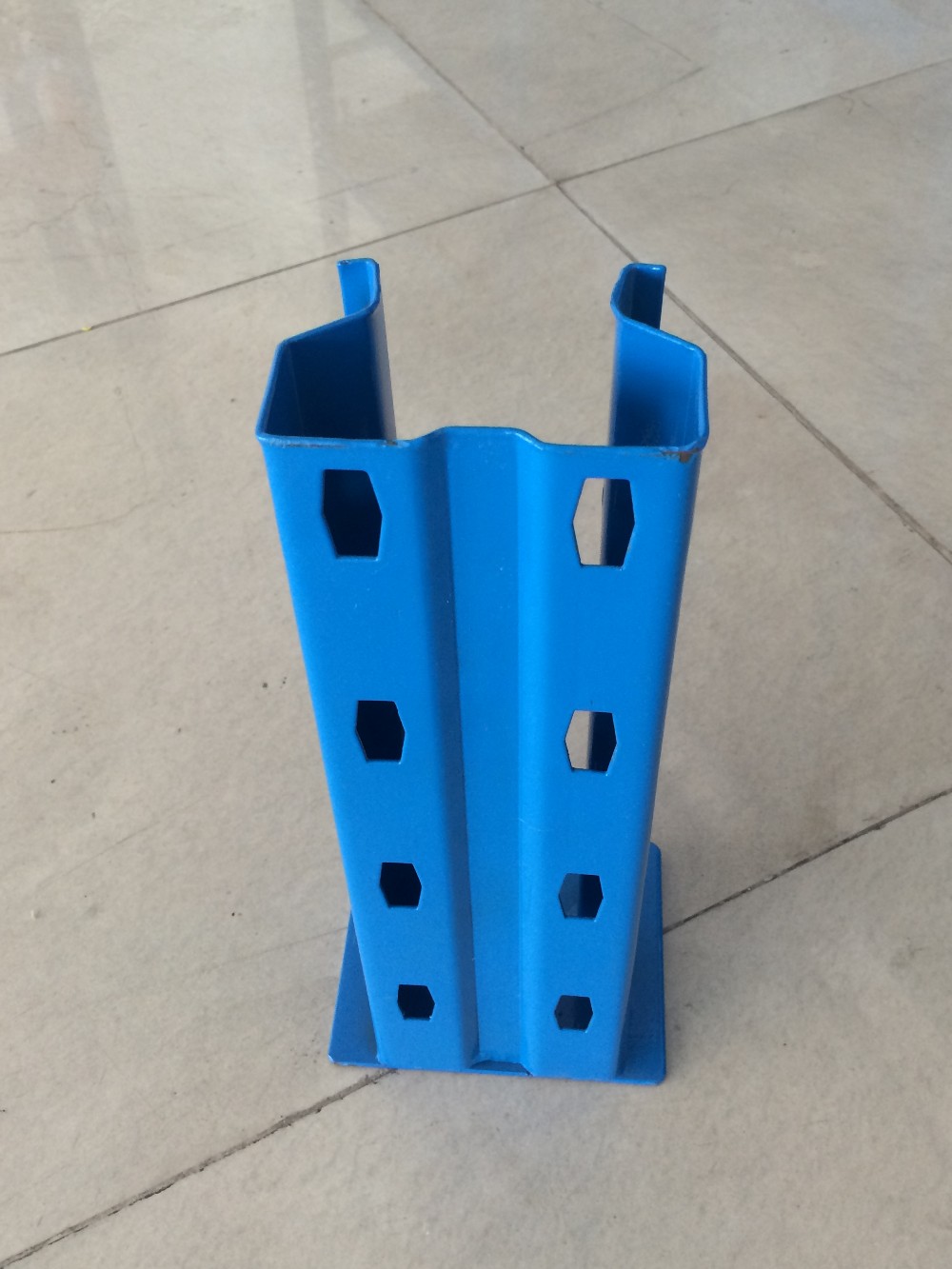

Upright

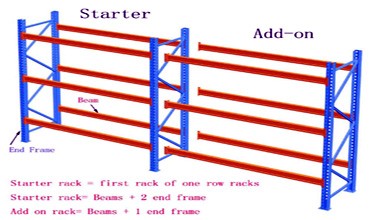

What's Start-bay and Add-bay?
Start-bay = First rack of one row racks
Start-bay = 2 end frame + Beams
Add-bay = 1 end frame + Beams

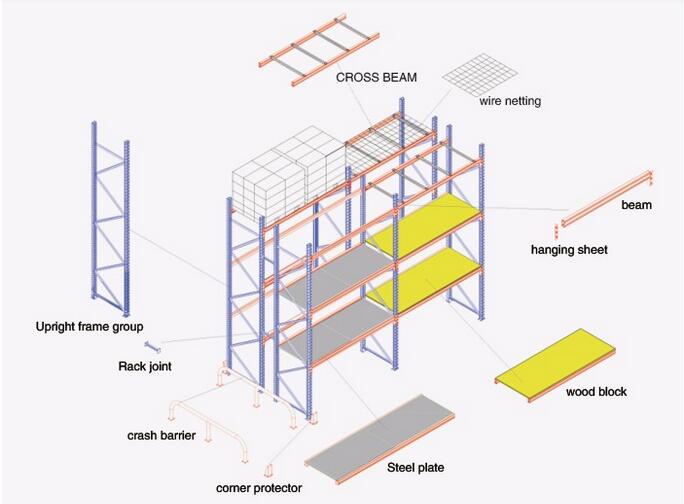

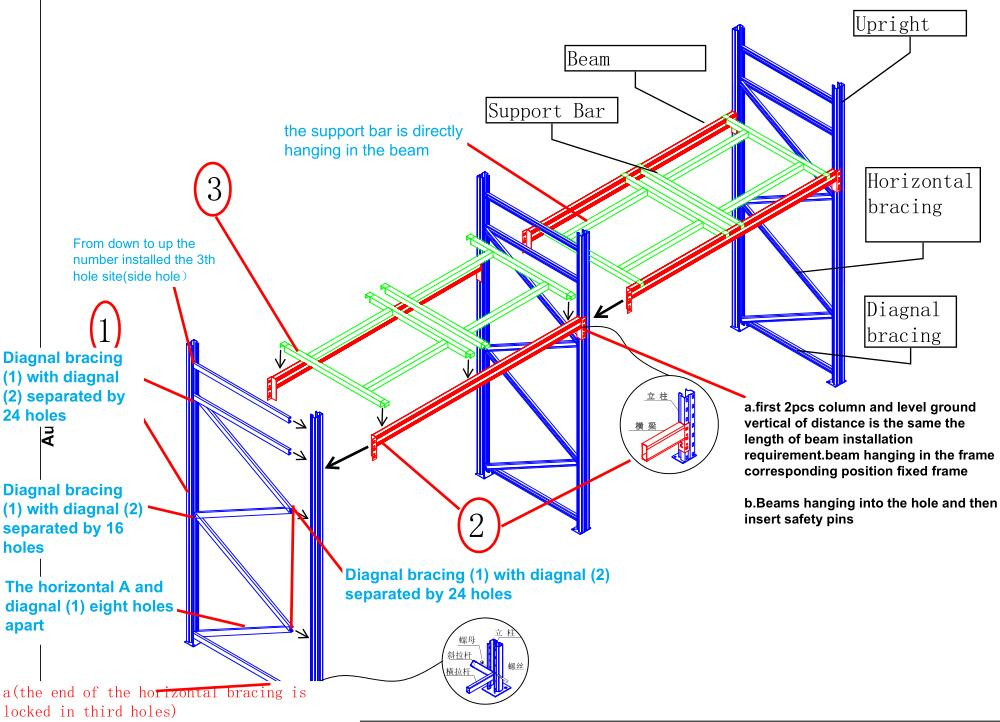

Installation Drawing
Packaging & Shipping
About XINMIAO
Dongguan Xinmiao Storage Equipment Co., Ltd. devotes itself to the design and manufacture of storage equipment. We are specialised in producing various pallet racking, longspan shelving, warehouse rack, mould rack, wire container, mobile filing cabinet, cantilever racks, rivet shelving, drive in racks, mezzanine and platform, canton flow rack, stacking racking and other related storage equipment.
Through products and service aimed at providing complete assistance for all warehousing, products showcasing and sales outlet requirements. We are able to offer our customers a wide range of products of highest quality with competitive price, as well as rapid delivery time and first-class back-up service.
Frequently Asked Questions (FAQ)
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Chang'an City, Guangdong Province, China, near Shenzhen. You can fly to Shenzhen & Guangzhou airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is the material of your products?
A: The material is Q235 Cold rolled steel. We can also choose material as customers' requirement.
4. Q: How can I get some samples?
A: We are honored to offer you samples.
5. Q: How does your factory do regarding quality control?
A: "Quality is priority. Jusonwoodpeople always attach great importance to quality controlling from the very beginning to the very end. Our factory has ISO9001 2001, SGS authentication.
