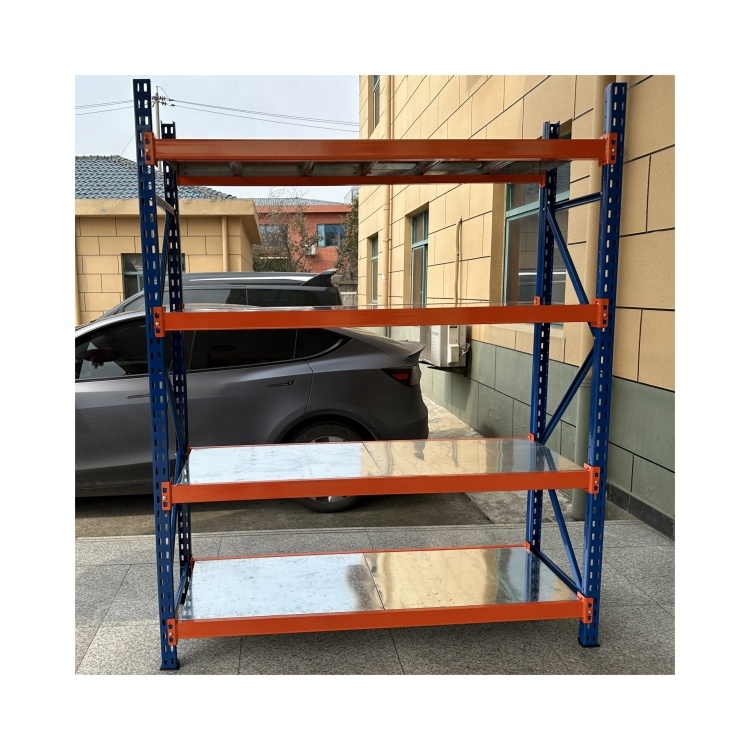

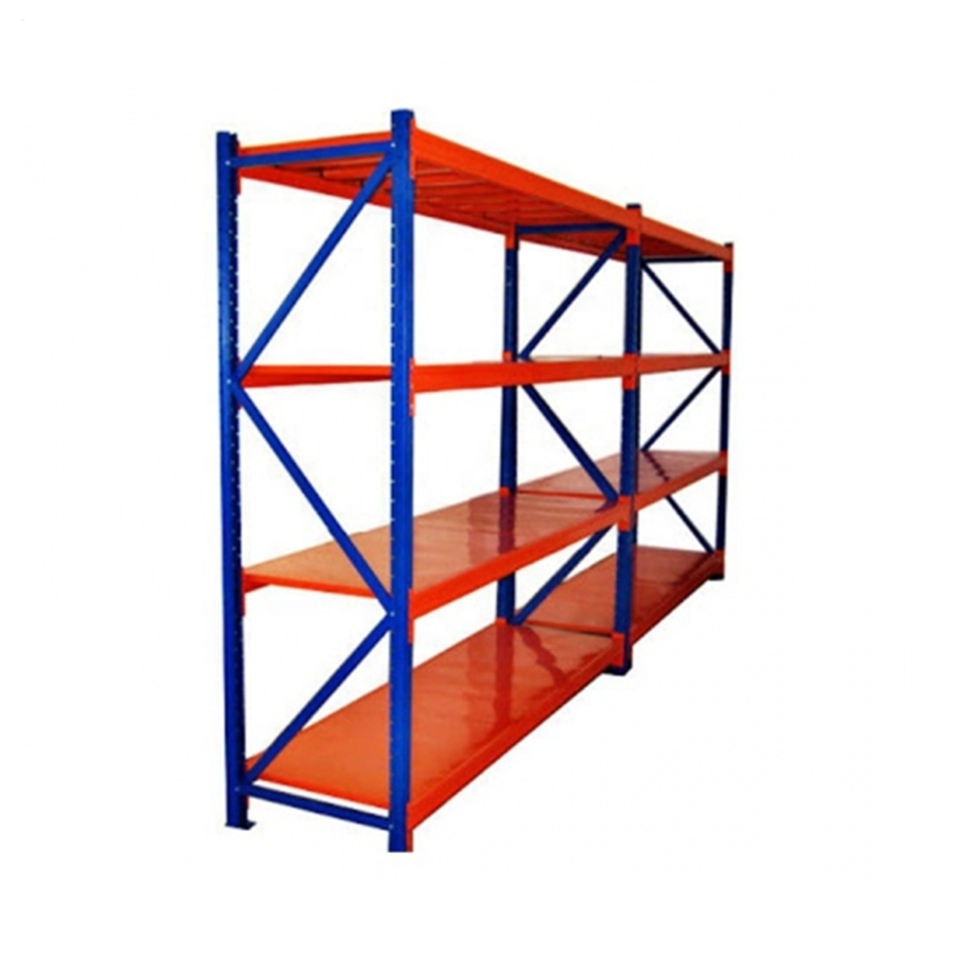

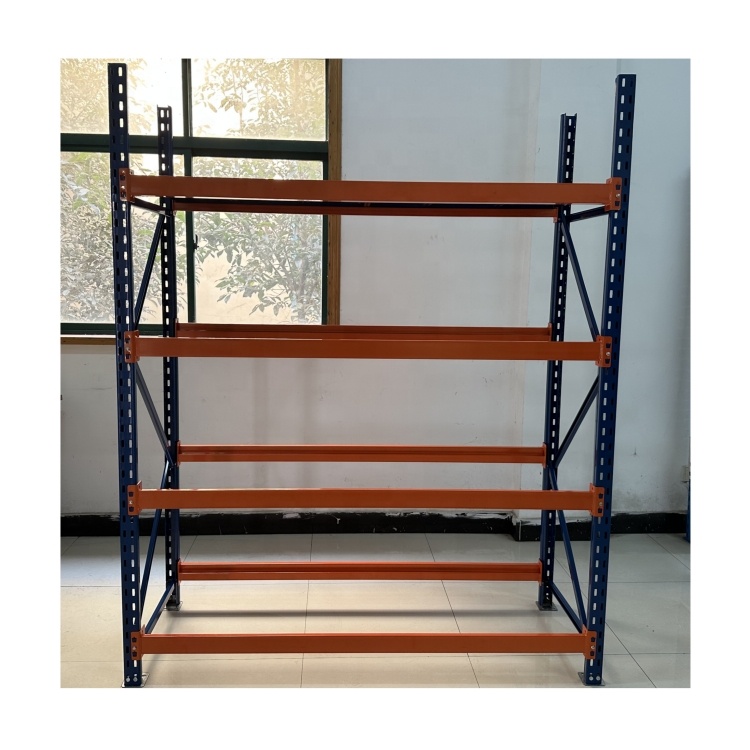

Garage Storage Factory Steel Warehouse Metal Van Rack System Medium Duty Shelving Single Deep Industrial Pallet Rack Shelving
Product Description
Product Categories

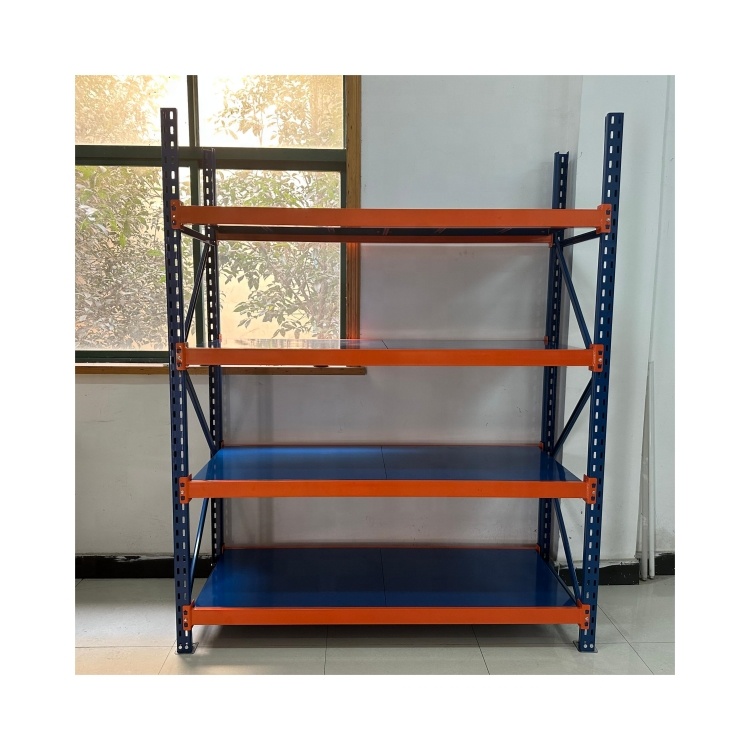

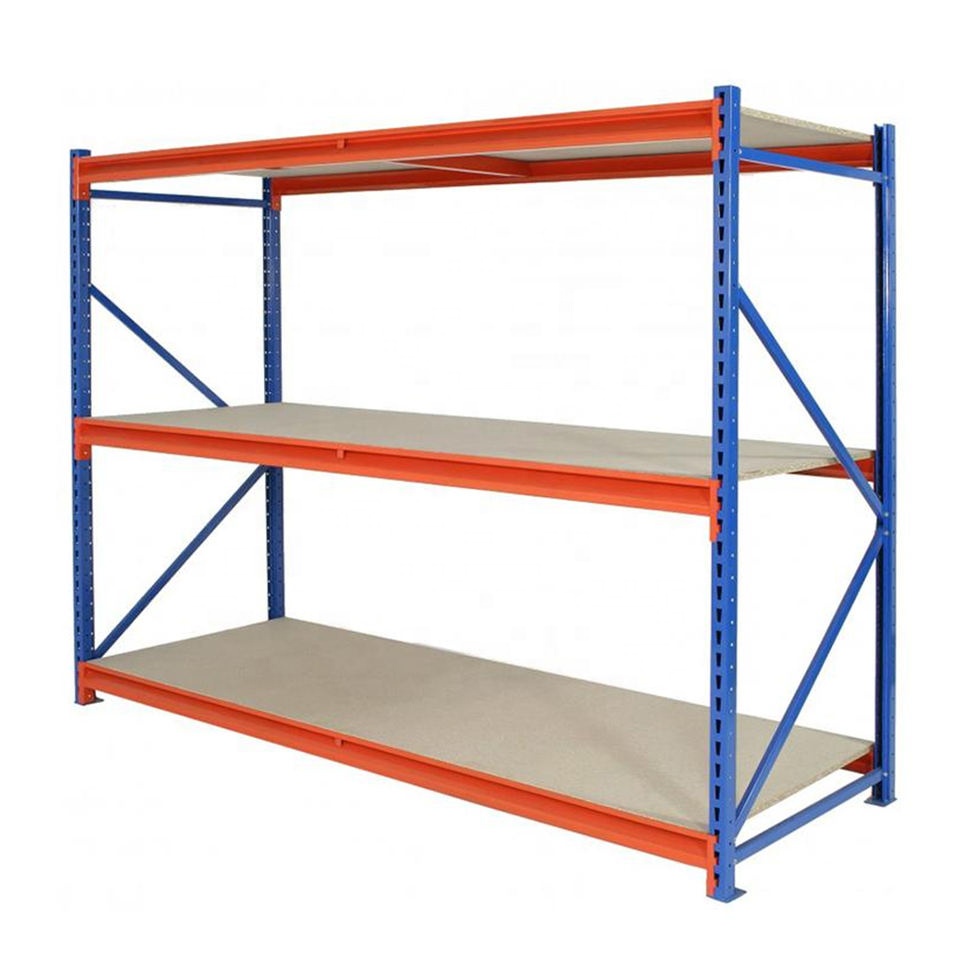

Product Description: Medium Duty Rack
| Product Name | Storage Racking | Style | Medium Duty Rack |
| Brand | Peterack | Colour | Blue, white, orange, green, etc. |
| Material | Steel | Place of Product | Jiangsu Province, China |
| Feature | Corrosion Protection, Assembly | Packing | Export Package |
| Size | Customizable | Application | Widely used in light industries |
Medium duty shelves adopts plug-in combination structure, which is easy to install and disassemble. It can be equipped with steel and wood laminates with high floor height. Every 50mm can be adjusted, the width of the laminate can be freely combined, the unit can bear 200-800kg, and the specifications can be customized.
Features & Benefits
Upright section: 55*47

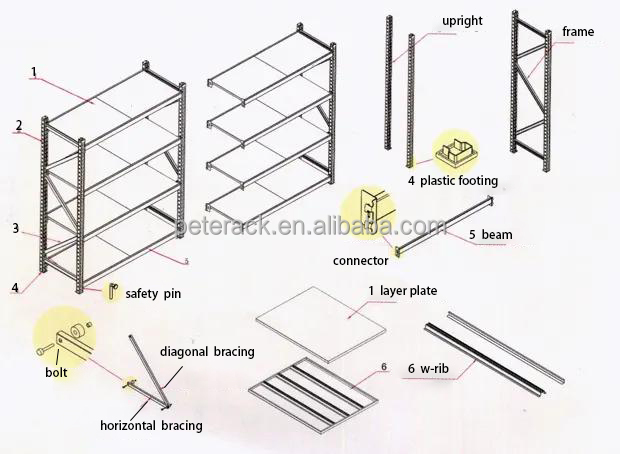

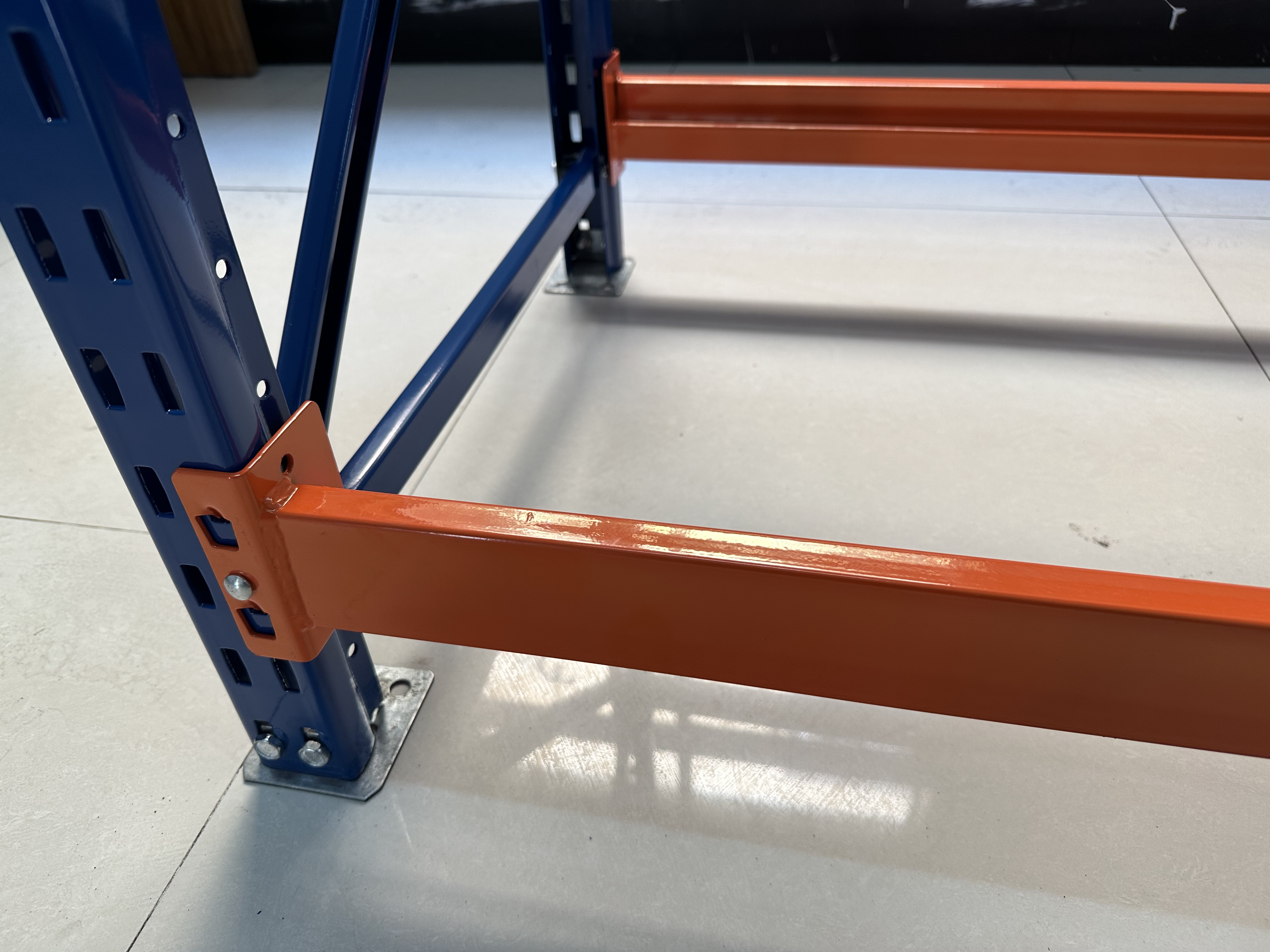

Adopt the structural form of combination of beams and decking
Can carry 200-800kg cross-sections with various specifications
Can be installed and removed freely
Each layer height can be adjusted, pitch: 50mm
Lightweight, strong bearing capacity and low cost
| Weight Capacity | Product Code | Specification (L*D*H) mm | Color | Remark |
|---|---|---|---|---|
| 250KG/layer | PT-W205-1252A | 1200*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm beam:P50*30*1.2mm |
| 250KG/layer | PT-W205-2058A | 2000*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm beam:P50*30*1.5mm |
| 300KG/layer | PT-W205-1552A | 1500*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm beam:P50*30*1.5mm |
| PT-W205-1868A | 1800*500/600*2000*4layer | Blue/Grey/Orange | ||
| 500KG/layer | PT-W205-1252B | 1200*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm beam:P50*30*1.5mm |
| PT-W205-1552B | 1500*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm beam:P60*40*1.2mm | |
| PT-W205-1858B | 1800*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm beam:P60*40*1.2mm | |
| PT-W205-2058B | 2000*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm Beam:P80*50*1.2mm |

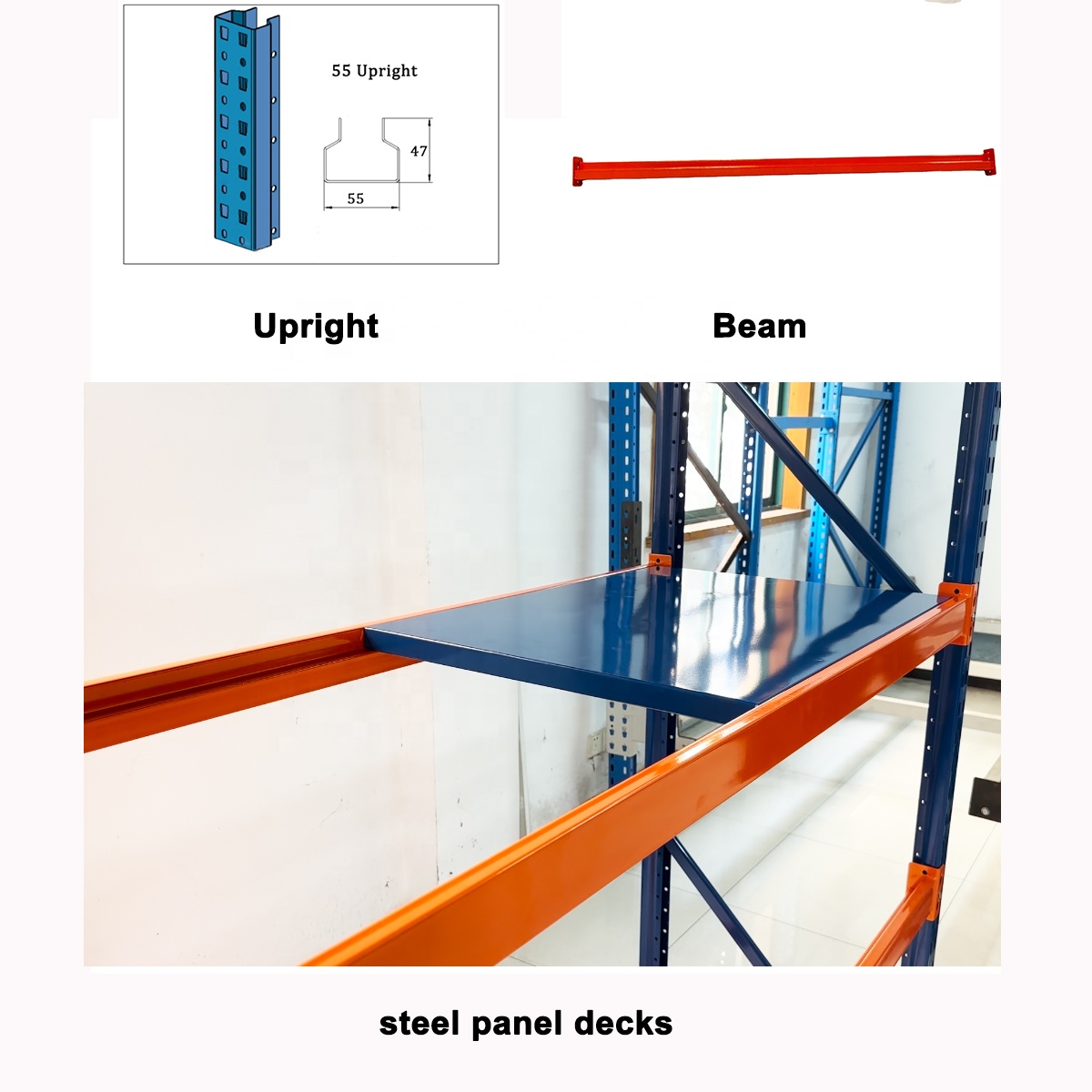

Medium duty shelves load carrying
Click here for a free design and quotation
Certifications

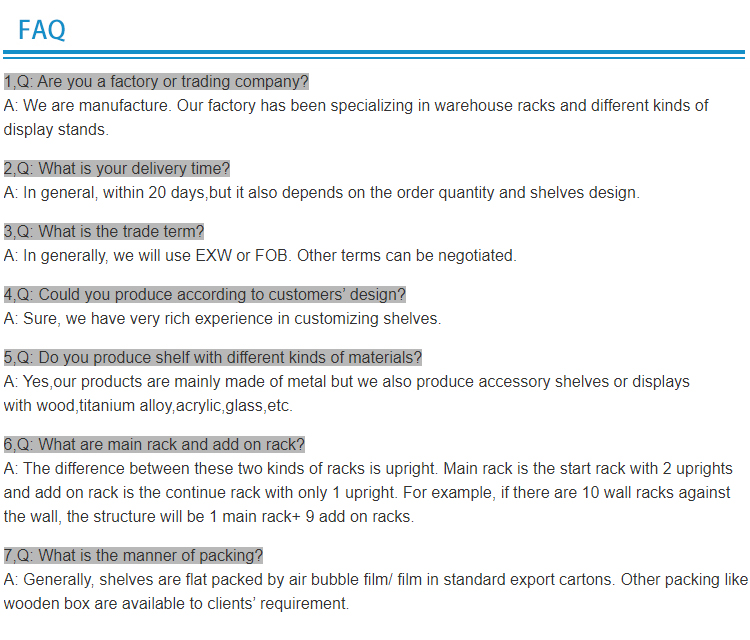

Frequently Asked Questions (FAQ)
What is the loading capacity range of these medium duty racks?
The medium duty rack supports load capacities ranging from 200kg to 800kg per layer, depending on the beam and upright configurations selected.
Can the height of each shelf level be adjusted?
Yes, the shelves feature an adjustable pitch of 50mm, allowing you to freely modify the height of each tier according to your storage requirements.
Are specialized tools needed for assembly and disassembly?
No, these racks adopt a plug-in combination structure that allows fast, boltless assembly and disassembly without specialized equipment.
What surface treatment is applied to prevent rust and corrosion?
The steel surface is processed with high-quality electrostatic powder coating for durable anti-corrosion and wear resistance.
Can dimensions and shelf colors be customized?
Yes, both sizes and colors (such as blue, orange, white, and grey) can be fully customized based on your facility layout and storage needs.
