URGO Heavy Duty Steel Selective Pallet Rack Corrosion Protected Warehouse Storage Shelving
Product Description
Product Description

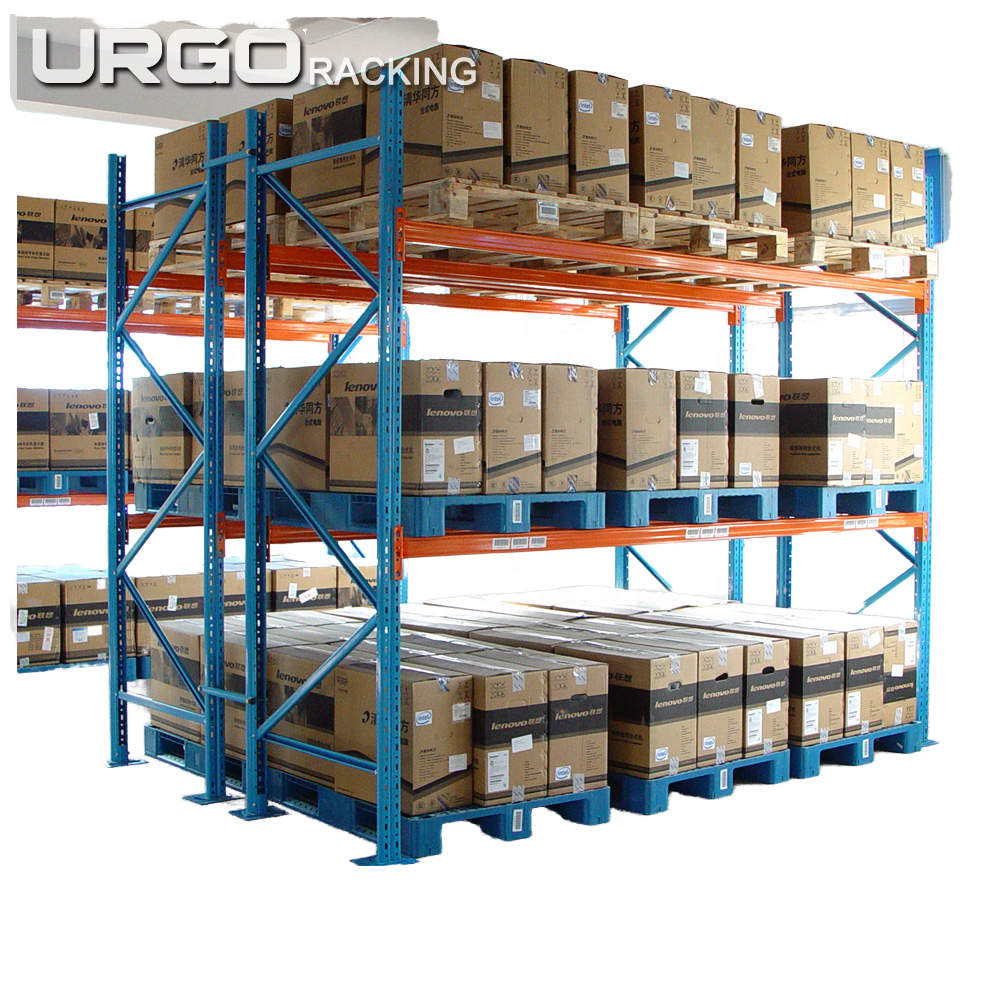

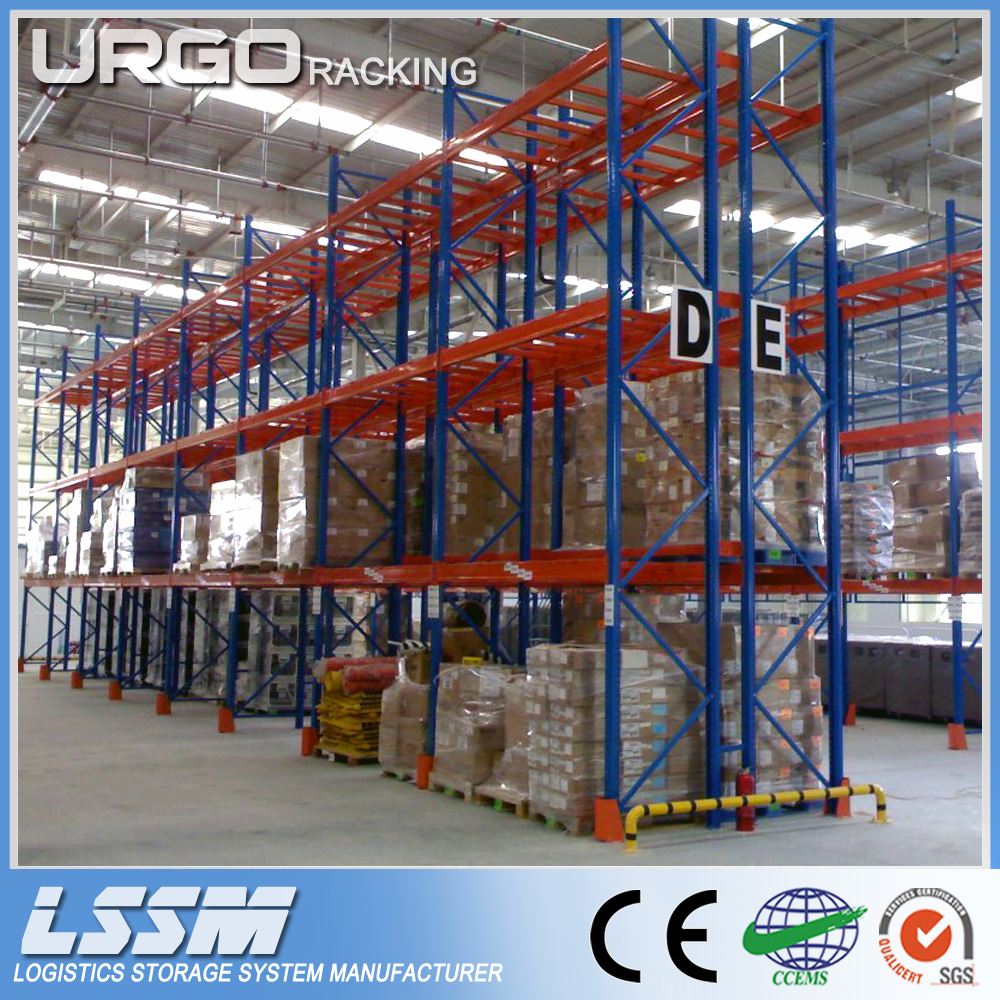

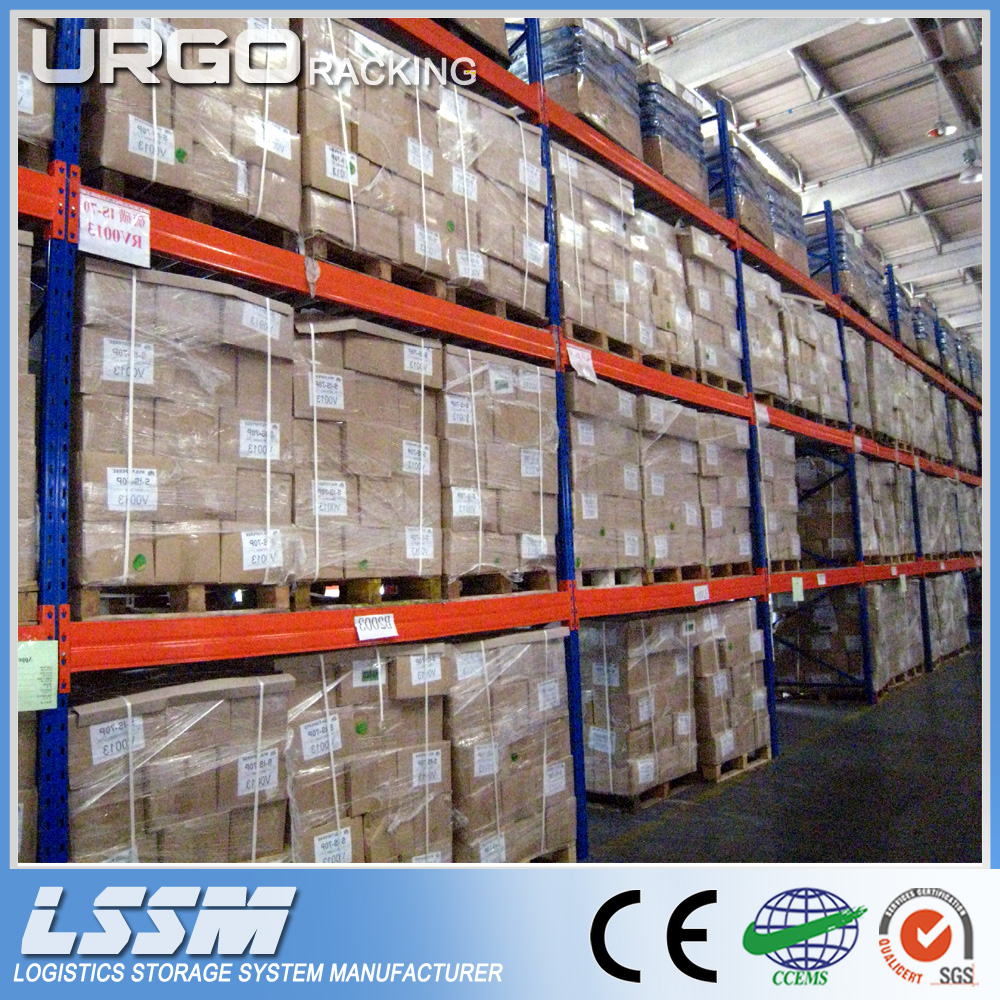

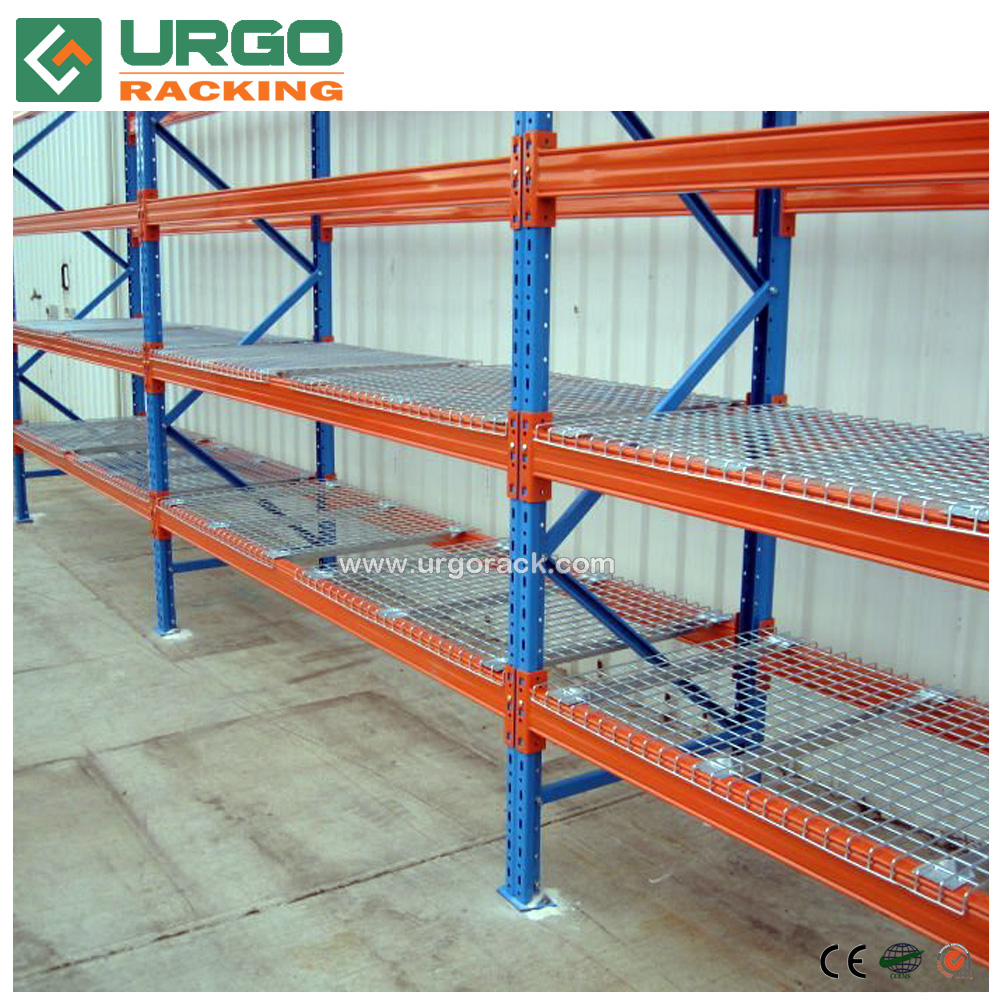

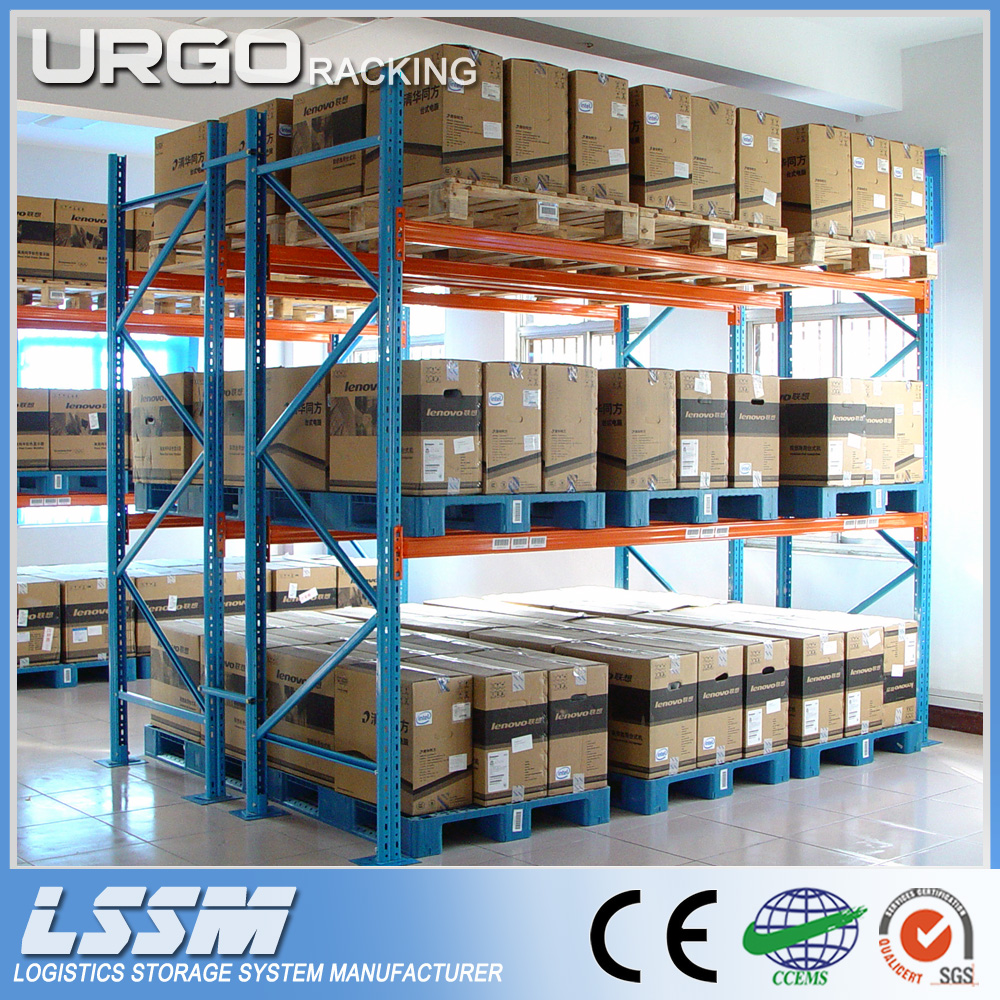

URGO Heavy duty pallet rack
URGO Heavy duty pallet rack is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility. It installs quickly and adjusts easily to your specific needs.
Product Structure

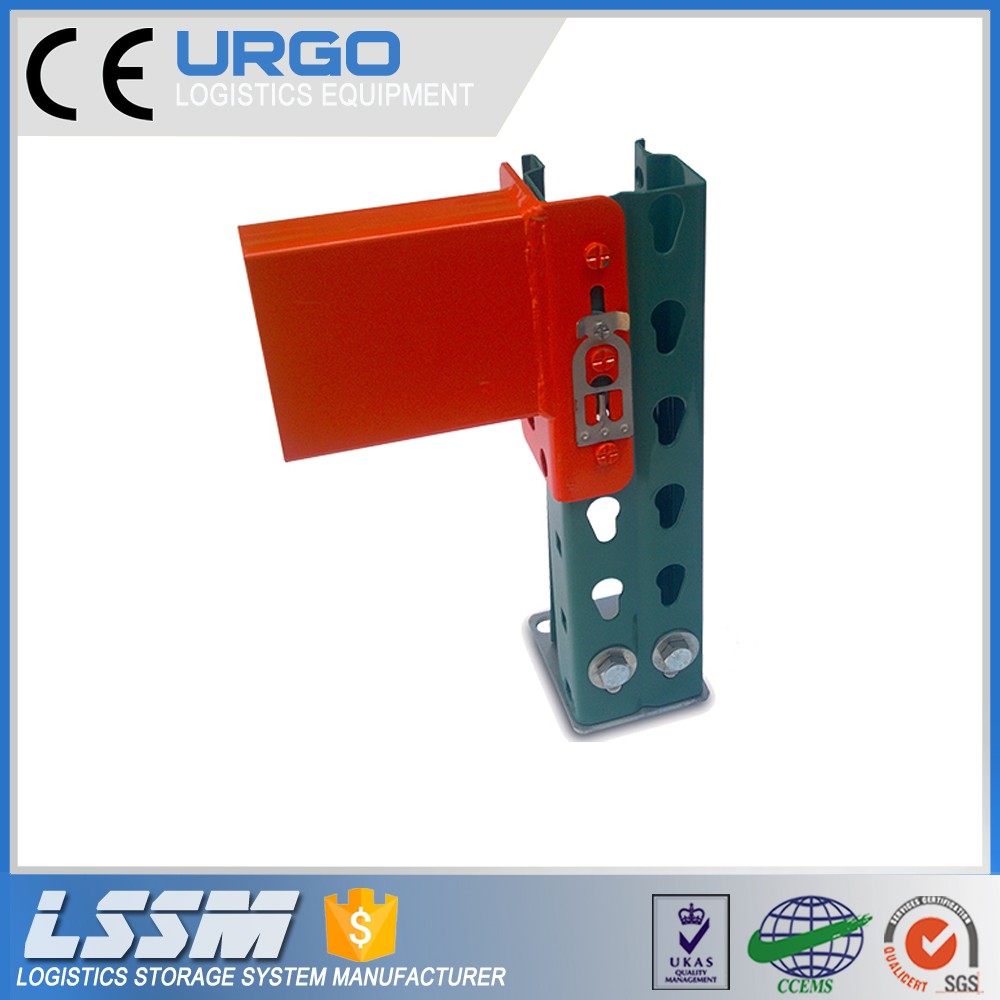

The structure of URGO heavy duty pallet rack includes uprights and beams. According to the customer's actual pallet load capacity and warehouse size, select the column and beam specifications, as well as increasing racking accessories.

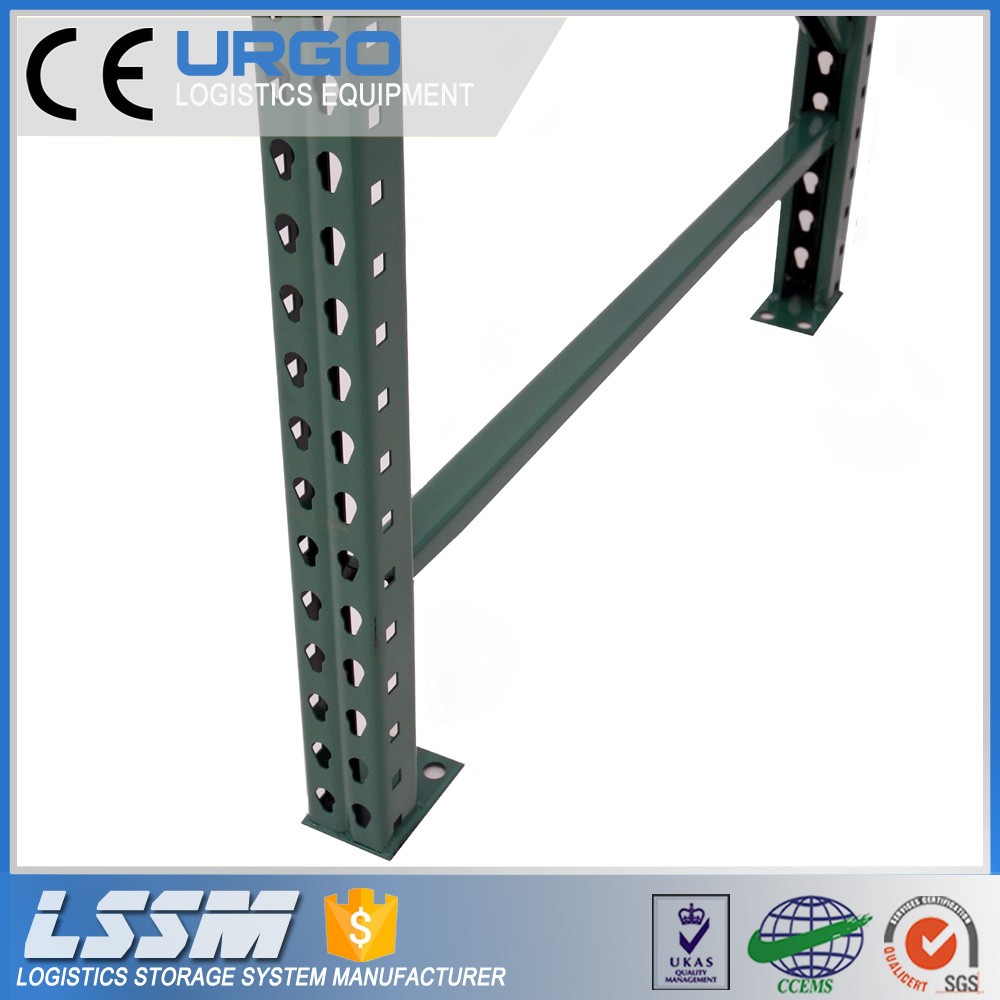

Column Profiles
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
|---|---|---|
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000 KG |
Beam Profiles (Box Beam)
| Specification (mm) | Loading (kg) by Length of Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | - | - | - | - |
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | - | - |
| 100 x 50 x 1.5 | - | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | - | - |
| 110 x 50 x 1.5 | - | - | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | - |
| 120 x 50 x 1.5 | - | - | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | - |
| 140 x 50 x 1.5 | - | - | - | 3868 | 3330 | 2720 | 2370 | 2020 | - |
| 160 x 50 x 1.5 | - | - | - | - | 4220 | 3690 | 2970 | 2600 | 2340 |
| 160 x 50 x 1.8 | - | - | - | - | - | 4400 | 3420 | 3020 | 2590 |
| 160 x 50 x 2.0 | - | - | - | - | - | 4130 | 4170 | 3320 | 2840 |
Beam Profiles (P Box Beam)
| Specification (mm) | Loading (kg) by Length of P Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | - | - |
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | - |
| 120 x 50 x 1.5 | - | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 |
| 140 x 50 x 1.5 | - | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 |

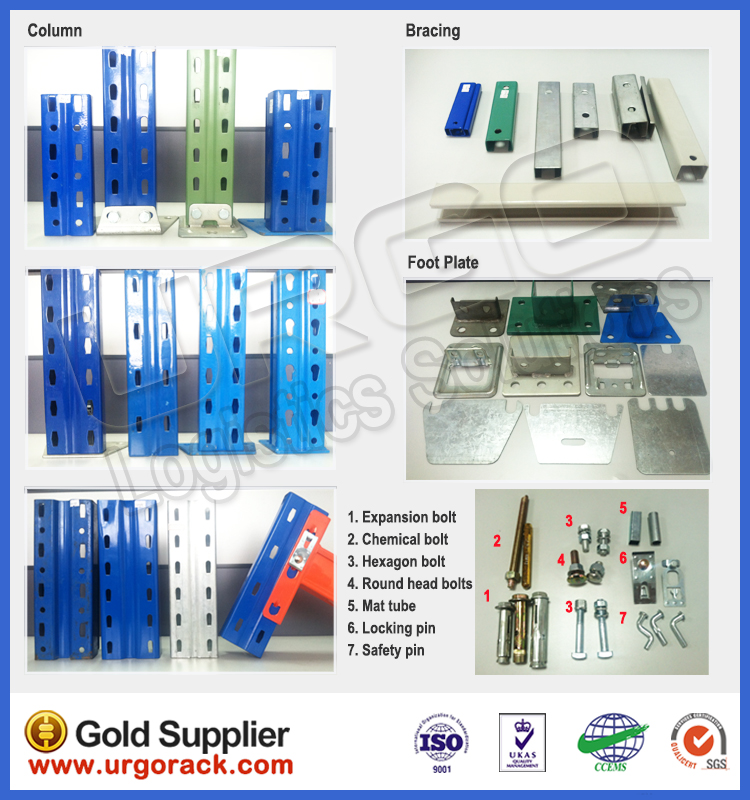

Main Spare Parts Profiles
Optional Accessories
Packaging & Shipping
URGO Packaging and Shipping Are Your Cargo’s Safeguard.
We owns a professional logistics team. First-class packaging technique meets your customized packing plan. Every step of logistics progress is thoroughly under our strictly control. We ensure your order received safely within the agreed duration. On-time delivery is our supreme promise.
Company Information
Company Honor

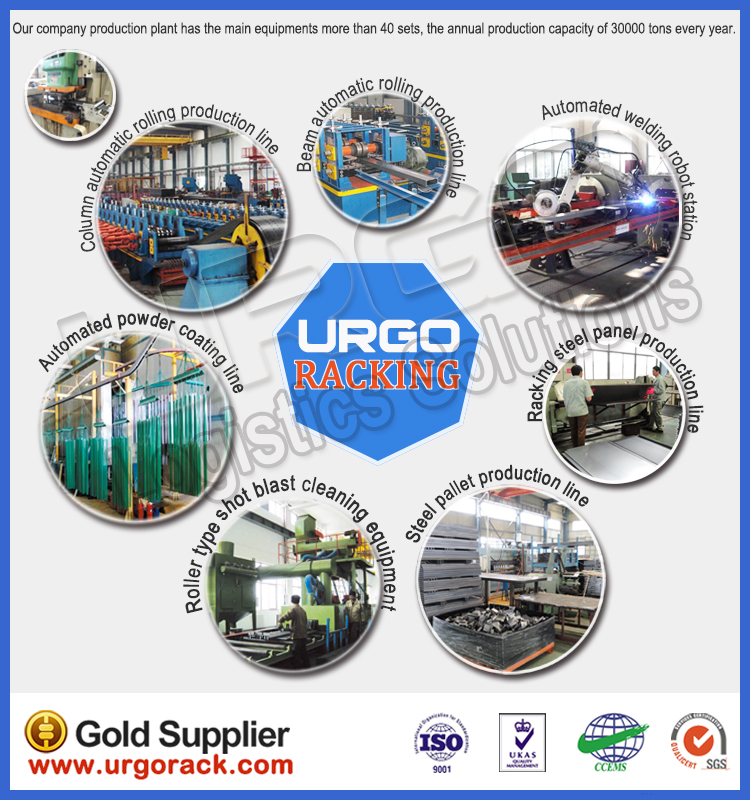

Production Capacity
FAQ & Our Services
Q1
What makes you different with other suppliers?
- Our Excellent Service: For a quick, no hassle quote just send email to us. We promise to reply with a price within 12 hours.
- Our Quick Manufacturing Time: For selective pallet racking orders, we promise to produce within 15 days. As a manufactory, we can ensure the delivery time according to the formal contract.
- Our Special Export Design: We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in transportation, and the whole uprights are wrapped with transparent plastic film.
- Our Warranty Time: High standards in design and manufacturing ensure us to support products with a 10 years warranty time for normal use – the longest manufacturer's warranty!
Q2
What is the term of payment?
- 1) 30% T/T down payment and balance before shipping.
- 2) 100% LC at sight.
Q3
May I know the status of my order?
Yes. We will send you information and photos at different production stages of your order. You will get the latest information in time.
Q4
How can I get a quick quotation on my pallet racking project?
As different clients and projects have different needs for racking dimensions and specifications, please provide the following information:
- 1) Required Pallet Racking Dimension: Height * Depth * Length?
- 2) Number of Levels?
- 3) Loading Capacity of each level?
- 4) Racking Quantity?
If you are not sure of the above details, please inform us of:
- 1) The weight capacity of your pallet goods
- 2) The dimension of your goods together with pallets (L/W/H)
- 3) The dimension of your warehouse (L/W/Clear Height, CAD drawing if available)
- 4) The path of transportation
Q5
What storage plan design and installation support do you provide?
Storage Plan Design: URGO has a professional warehousing logistics storage system design team to optimize existing client storage schemes. Co-operating with URGO ensures:
- Experienced professional staff providing technical guidance, competitive prices, and perfect service.
- Reduced production cycles and storage risk to provide maximum economic benefit.
Installation Support: URGO has a professional racking installation team to install or relocate storage rackings and logistics equipment based on customer needs.
Q6
What is URGO's service commitment and warranty policy?
Integrity and pragmatic, innovative and high quality. With up to 15 years of experience, high standards of design and production allow URGO company to guarantee product architecture and offer a complete ten years warranty. Choose URGO, Choose rest assured!
