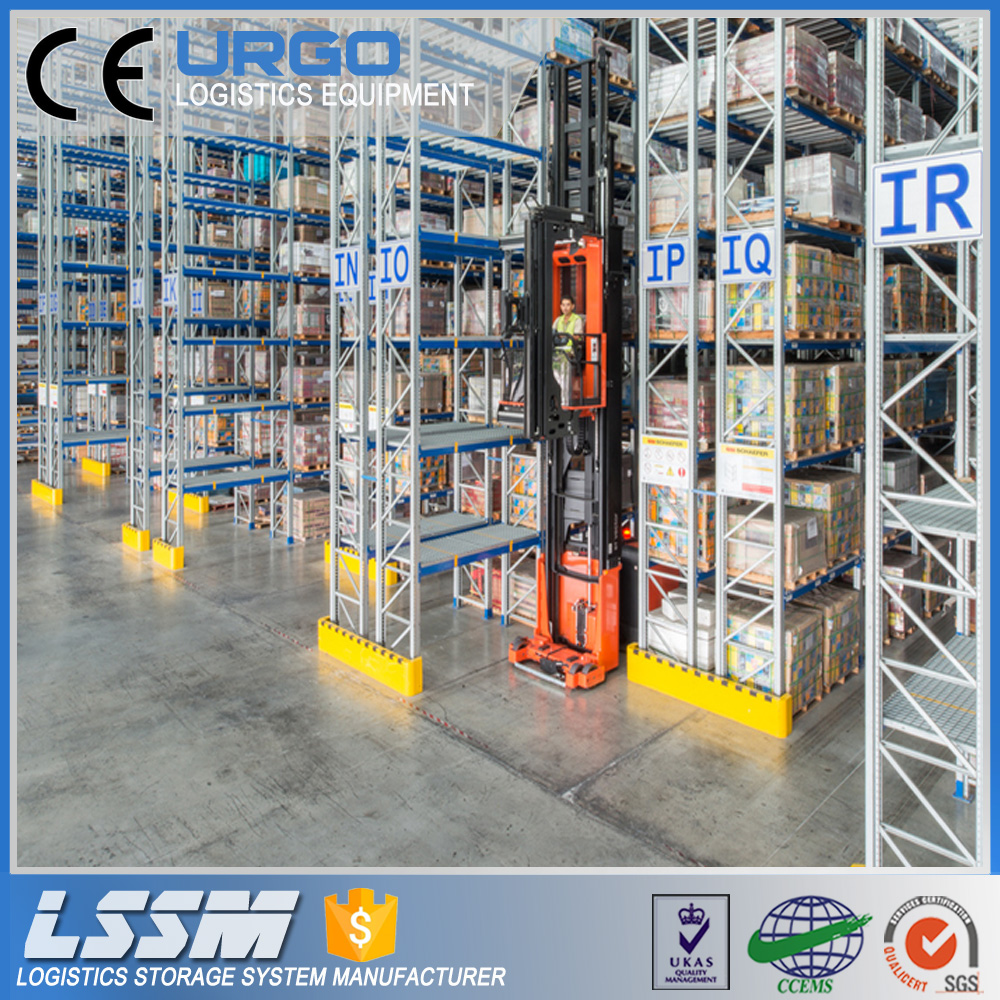

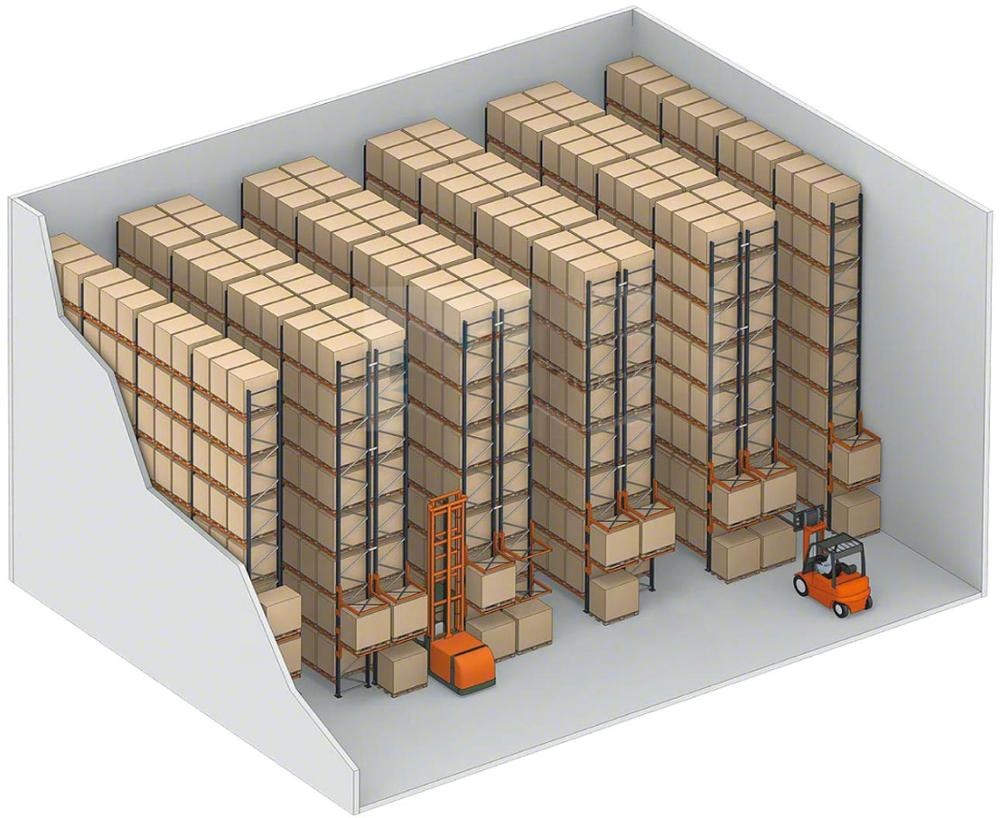

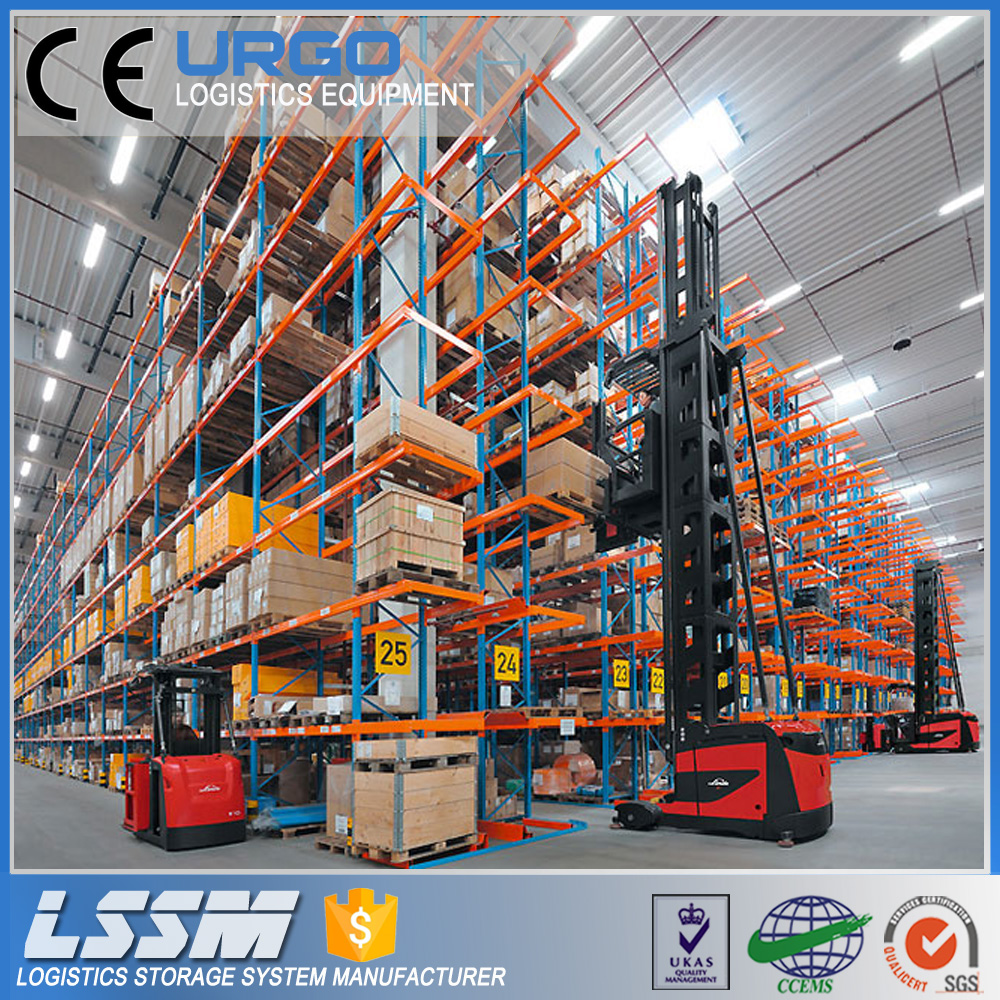

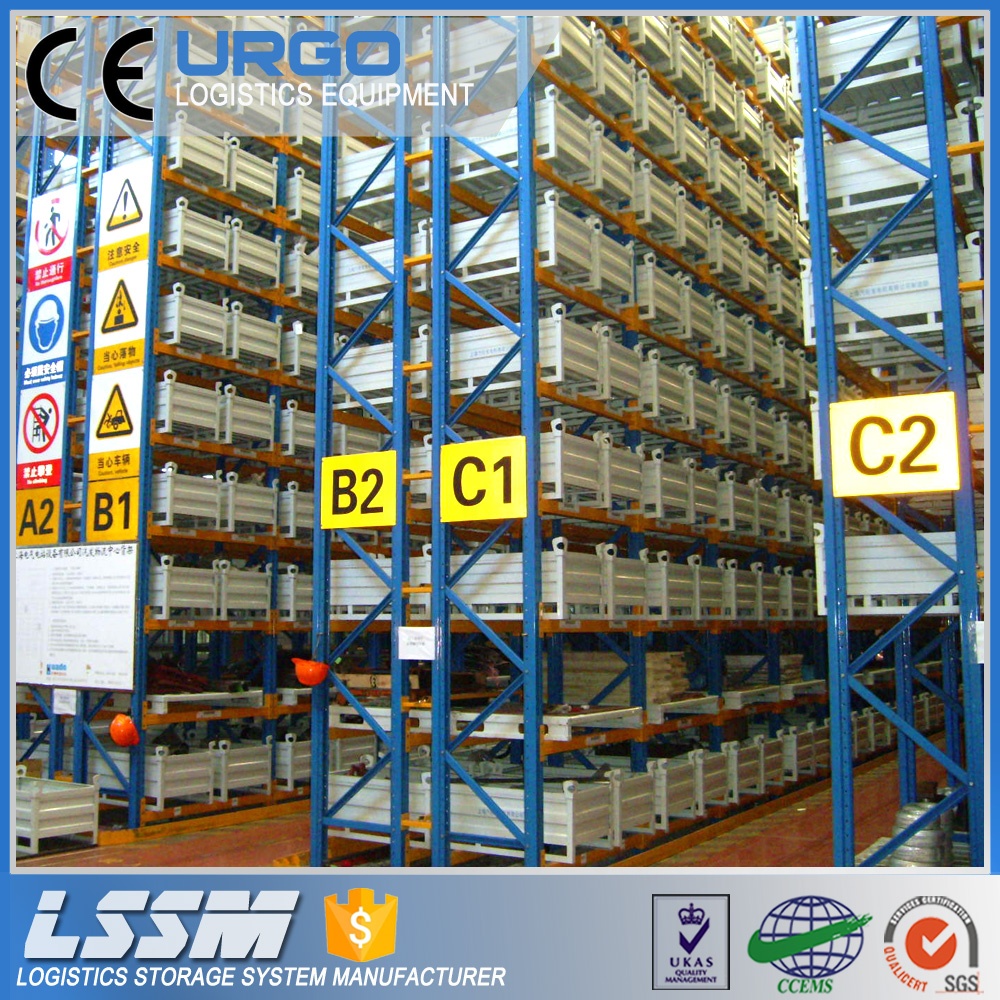

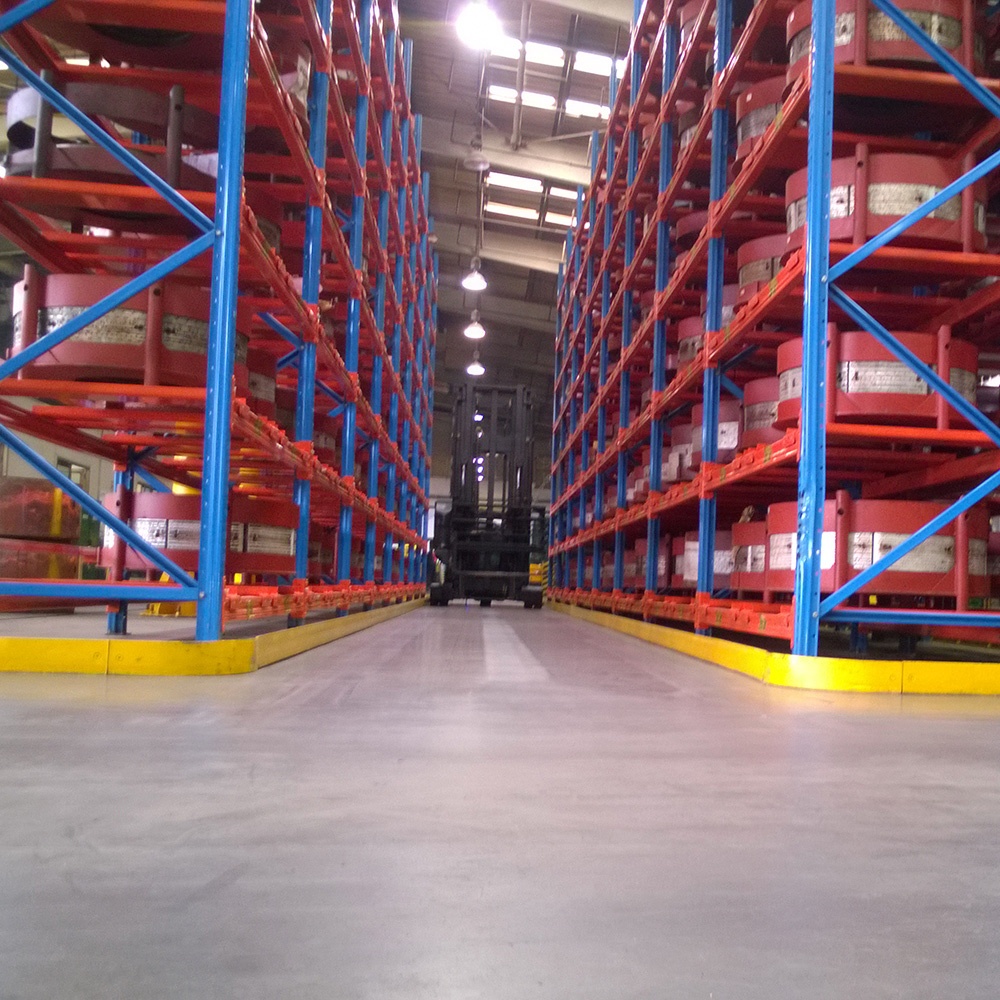

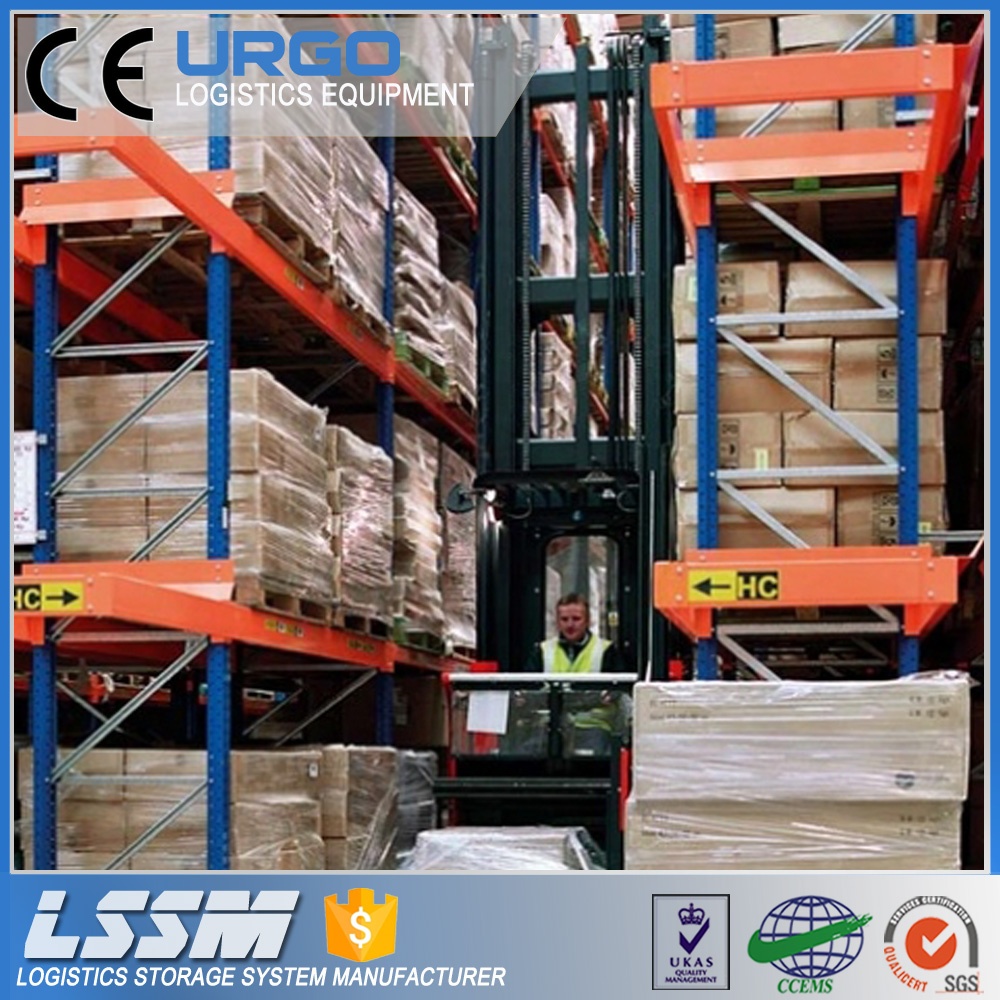

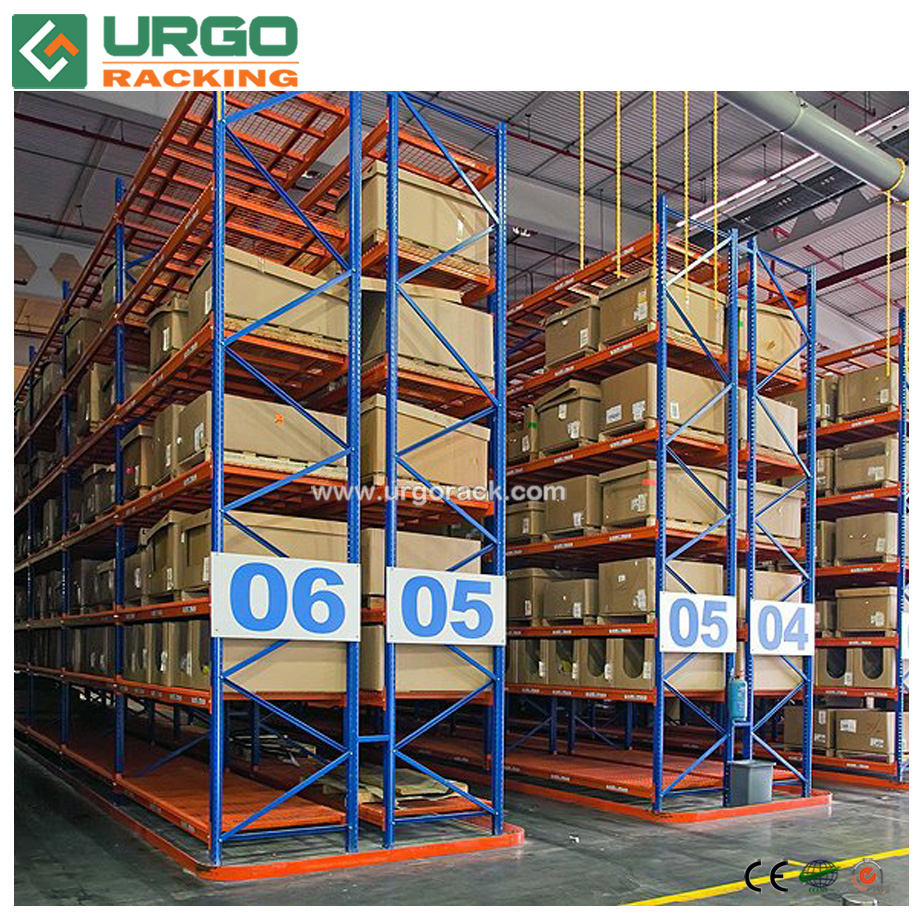

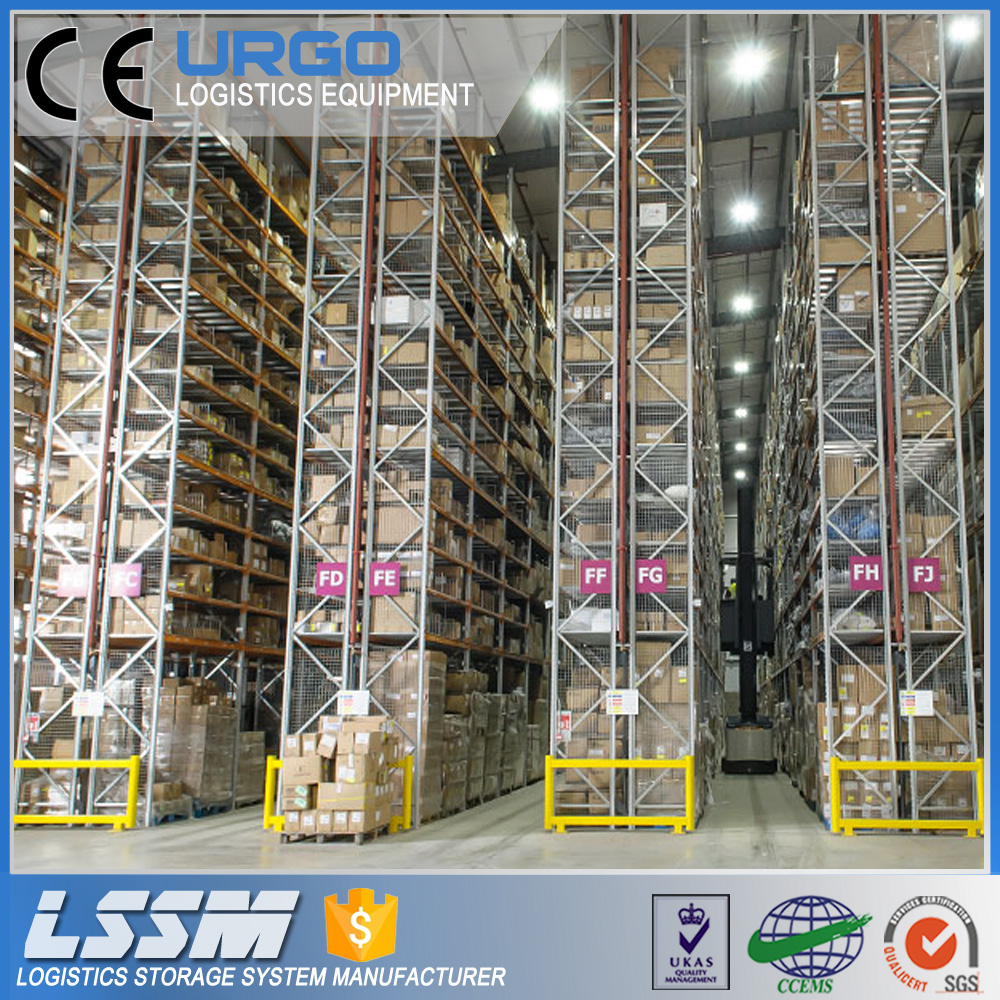

URGO Very Narrow Aisle Pallet Rack / VNA Racking System
Product Description

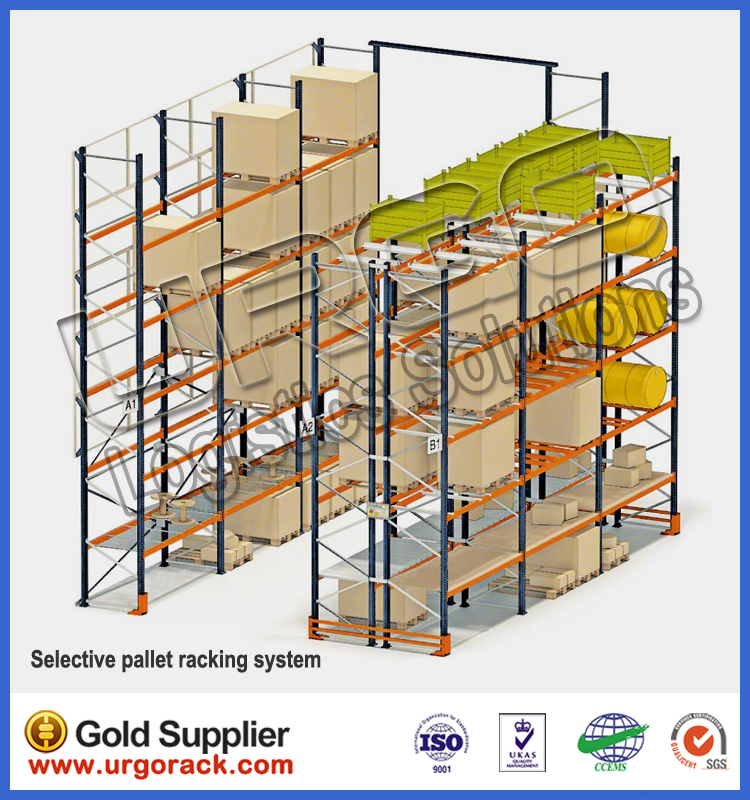

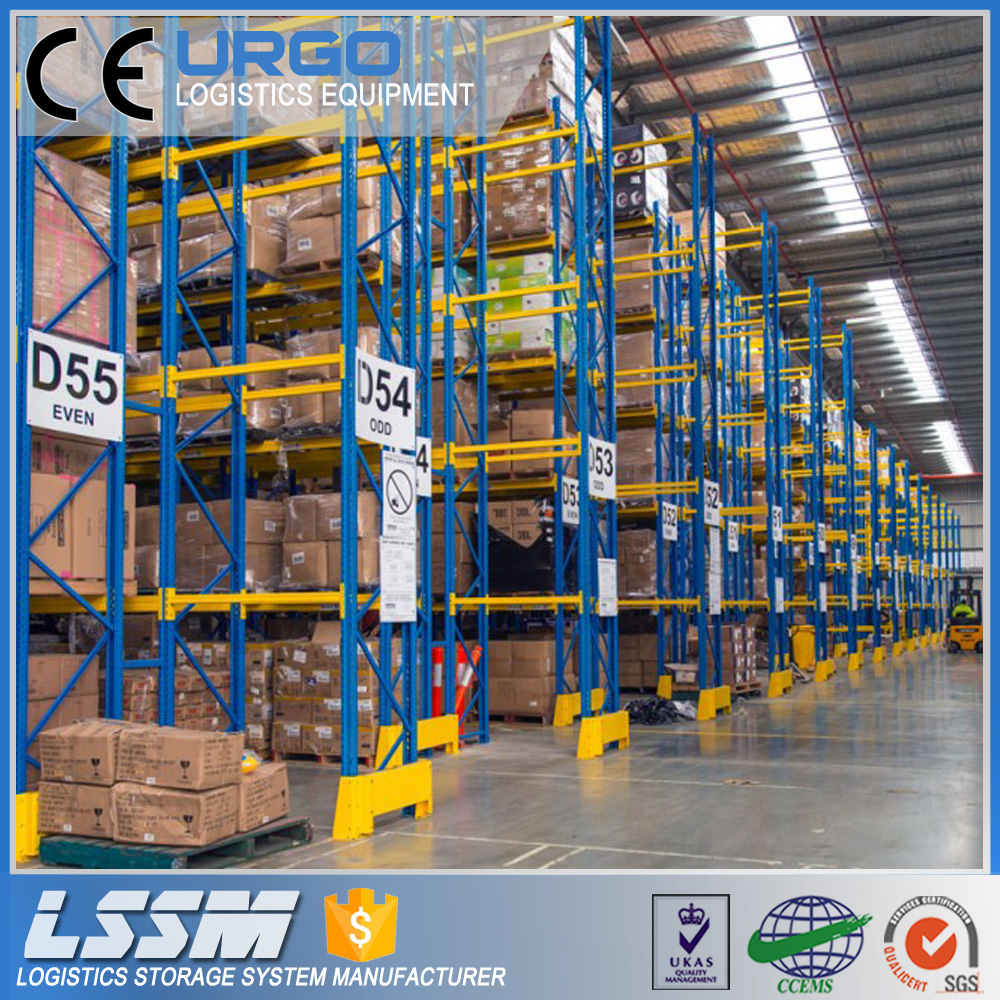

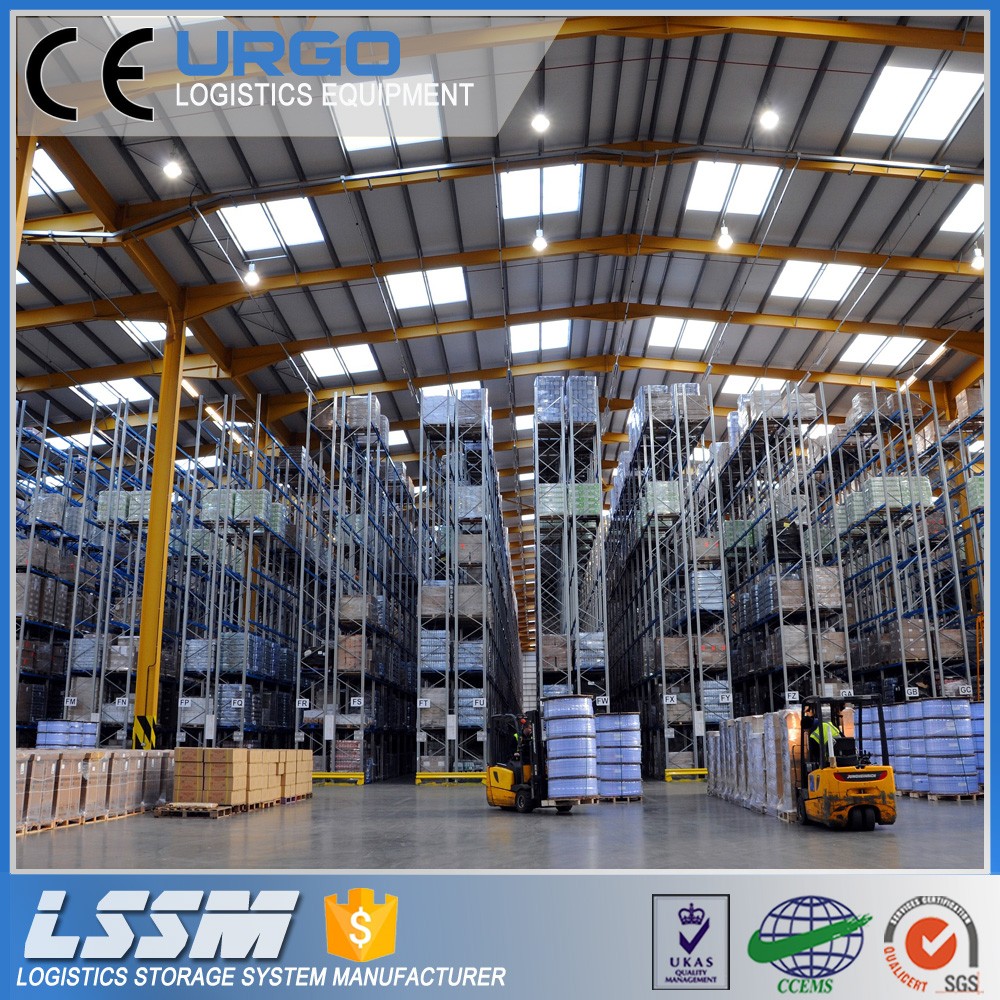

Product Structure
The structure of URGO heavy duty pallet rack includes uprights and beams. According to the customer's actual pallet load capacity and warehouse size, select the column and beam specifications, as well as increasing racking accessories.
Warehouse Rack Use and Customized Width Drive In Pallet Racking
Picking Efficiency: 90% picking efficiency, highly appropriate for picking heavy goods by pallet.
Surface Finishing: High-grade finish coated with araldite static powder coating.
Strength & Installation: High strength and durability, simple and rapid for complete installation.
Accessibility: Pallets can be individually located, accessed, and moved at any time.
Versatile Handling: Rapid handling of almost all types of palletised goods.
Cost-Saving Design: Bottom level pallets can be stored on the floor, reducing structure expenses.
Cargo Protection: Superior strength and rigidity prevents compression damage to goods.
Adjustability: Infinitely adjustable with extensive components to accommodate specialized needs.
Space Utilization: Maximizes warehouse space utilization while retaining optimum product accessibility.
Beam & Frame Parameters
- Frame Depth: Normally from 800-1000mm, height limited by handling equipment of approximate 11m.
- Beam Length: 1000-3300mm depending on requirement or custom design.
- Operation Aisle: 2200-3800mm based on specific operating lift trucks.
Load Capacity & Dimensions
- Loading Capacity: 500 - 4,000 kgs UDL / beam level.
- Height Range: 1,000 - 11,000 mm.
- Depth Range: 400 - 1,500 mm.
- Length Range: 1,500 - 3,300 mm (Special sizes available upon request).
Main Parts Specs
- Upright Section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc.
- Box Beams Section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.
- Full Hardware: Horizontal & diagonal braces, footplates, safety pins, bolts, nuts & anchors.
Delivery Time
Within 25 days for ordinary order quantities. Our large manufacturing capacity enables rapid fulfillment and dependable dispatch.
Upright & Beam Technical Specifications

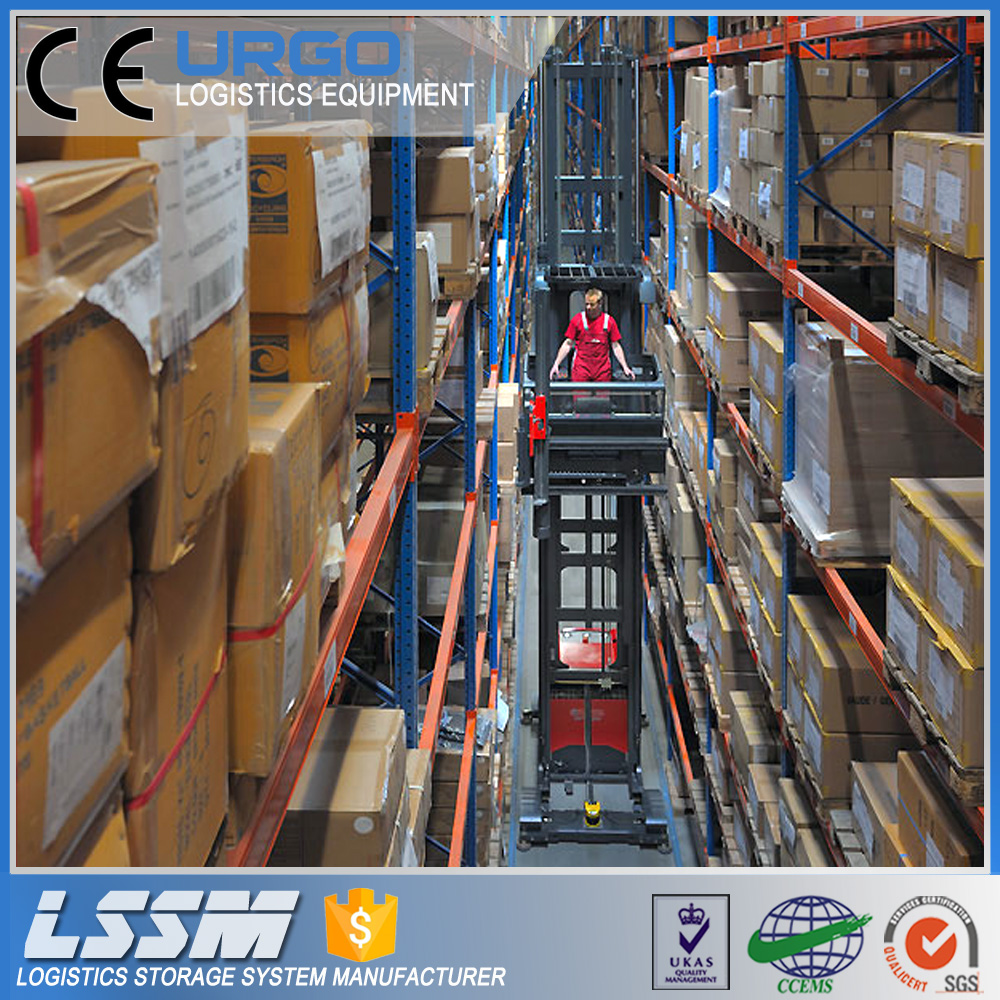

Upright Characteristics:
- Load Capacity: High load bearing capacity up to 21,000 kg.
- Integrated Elements: Frames include full assembly elements: bracing, feet, nuts, and bolts.
- Protective Coating: Blue epoxy coated (RAL 5012 / 5015 / 5017).
- Standard Heights: From 2m to 11.5m.
- Pitch Adjustability: Flexible pitch adjustment by 50mm / 75mm increments.
Column Profiles
| Column Specification (mm) | Thickness (mm) | Upright Loading Capacity (kg) |
|---|---|---|
| W80 x D60 | 1.8 - 2.0 | 4,000 - 6,000 KG |
| W85 x D67 | 1.8 - 2.3 | 7,500 - 12,500 KG |
| W90 x D60 | 1.8 - 2.5 | 8,000 - 10,000 KG |
| W90 x D70 | 1.8 - 2.5 | 10,000 - 12,000 KG |
| W100 x D70 | 2.0 - 2.5 | 11,000 - 14,000 KG |
| W120 x D95 | 2.3 - 3.0 | 17,000 - 21,000 KG |
Beam Characteristics:
- High Load Capacity: Up to 5,000 kg per level.
- Premium Material: Manufactured with top quality certified Q235 structural steel.
- Corrosion Protection: Durable orange epoxy coated (RAL 2004) with powder coating finish.
- Standard Lengths: 1500 / 2000 / 2300 / 2700 / 3000 / 3300 / 3600 / 3900 mm.
- Boltless Connection: Robust 3 / 4 / 5 connector hooks design.
- Safety Locking: Fitted with safety locking pins per beam to prevent accidental dislodgement.
Box Beam Profiles & Loading Data
| Loading (kg) Specification (mm) |
Length of Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | - | - | - | - |
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | - | - |
| 100 x 50 x 1.5 | - | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | - | - |
| 110 x 50 x 1.5 | - | - | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | - |
| 120 x 50 x 1.5 | - | - | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | - |
| 140 x 50 x 1.5 | - | - | - | 3868 | 3330 | 2720 | 2370 | 2020 | - |
| 160 x 50 x 1.5 | - | - | - | - | 4220 | 3690 | 2970 | 2600 | 2340 |
| 160 x 50 x 1.8 | - | - | - | - | - | 4400 | 3420 | 3020 | 2590 |
| 160 x 50 x 2.0 | - | - | - | - | - | 4130 | 4170 | 3320 | 2840 |
P Box Beam Profiles & Loading Data
| Loading (kg) Specification (mm) |
Length of P Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | - | - |
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | - |
| 120 x 50 x 1.5 | - | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 |
| 140 x 50 x 1.5 | - | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 |
Optional Accessories
URGO heavy weight pallet rack conventional accessories include: cross beam, back brake beam, back mesh, side mesh, steel plate, grid plate, wood plate, column protector, and guard bar.
Packaging & Shipping
URGO Packaging and Shipping Are Your Cargo's Safeguard
We own a professional logistics team. First-class packaging techniques meet your customized packing plan. Every step of the logistics progress is thoroughly under our strict control. We ensure your order is received safely within the agreed duration. On-time delivery is our supreme promise.
Company Honor & Facility

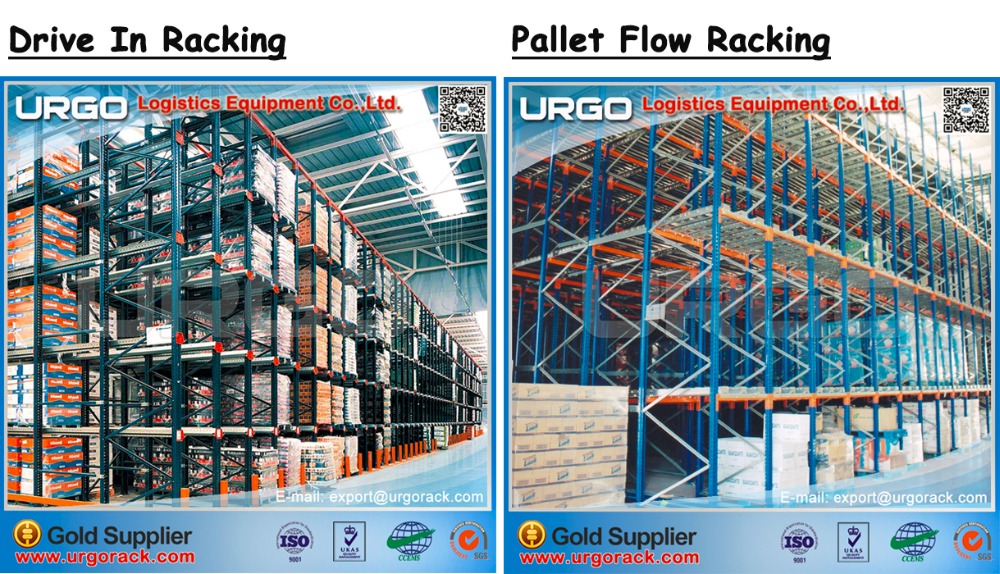

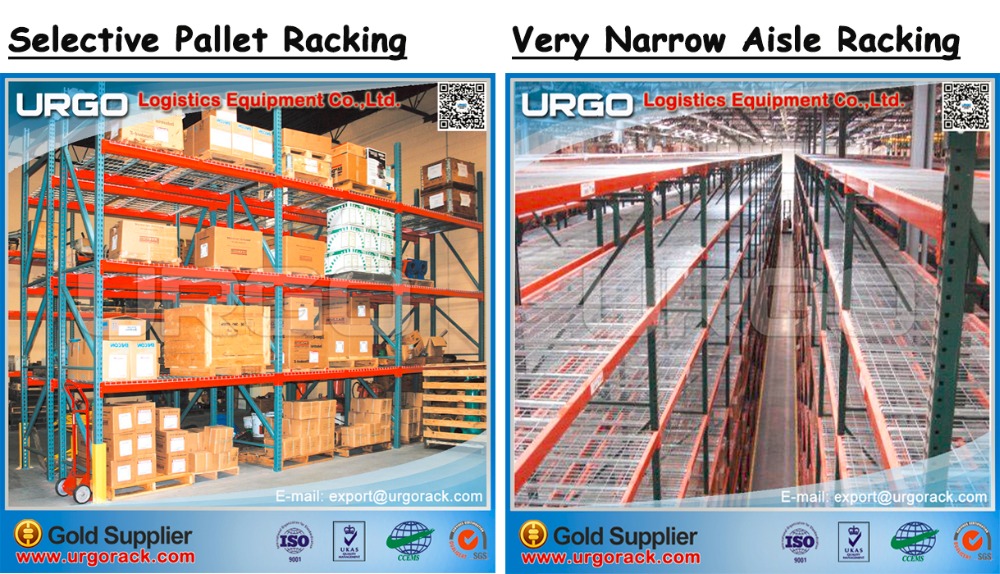

Other Main Products
Frequently Asked Questions (FAQ)
Q1
What makes URGO different from other racking suppliers?
1) Rapid Service: Hassle-free inquiries with guaranteed price responses within 12 hours.
2) Quick Manufacturing: Selective pallet racking orders delivered within 15 days, strictly assured by contract.
3) Protective Export Packaging: Specialized plastic clips on beam edges to prevent transit damage, with upright columns completely wrapped in transparent protective film.
4) Long Warranty: A comprehensive 10-year manufacturer warranty supporting standard operational usage.
Q2
What are the standard delivery lead times?
Delivery depends on the product type. Standard racking components are typically delivered within 15 to 25 days. The schedule for customized solutions is coordinated according to tooling setup requirements.
Q3
What payment terms do you accept?
As a standard practice, we accept 30% T/T down payment with the remaining balance due prior to shipment. We also accept 100% irrevocable L/C at sight.
Q4
Can I check and monitor the production status of my order?
Yes. We provide complete manufacturing transparency by sending regular updates, process notes, and status photos at different production stages of your order.
Q5
Are sample components and galvanized finishes available?
Yes. Sample sections of our beam and column profiles can be sent directly for inspection via express courier. In addition, galvanized finishes are readily available for pallet racking posts and bracings.
Q6
How can I get a fast and precise quotation for my pallet racking project?
To receive a quick and accurate quotation, please provide the following details: 1) Required pallet racking dimensions (Height × Depth × Length), 2) Number of beam levels, 3) Load capacity per beam level, and 4) Estimated racking quantity or warehouse floor drawings.
