Engineered Heavy-Duty Racking & Flow System Portfolio
Constructed from certified cold-rolled structural steel, treated via automatic phosphating and industrial electrostatic powder coating. Designed to optimize high-throughput multi-tier fulfillment warehouses across Europe, the Americas, and APAC.
CE Certified

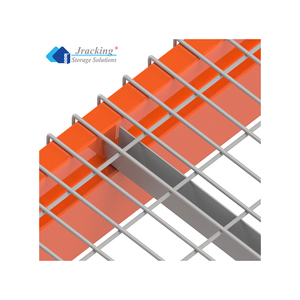

Wholesale Professional Wire Mesh Decking Selective Pallet Rack
- Reinforced waterfall edge safety deck
- Load ratings: Up to 1,500 kg/level UDL
- Fire-protection compliant open mesh grid
ISO 9001:2015

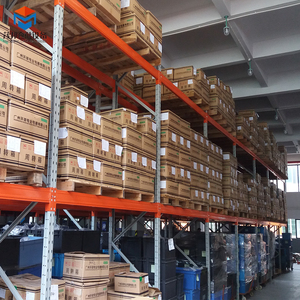

Large Capacity Warehouse Long Span Heavy Duty Racking
- 50mm pitch adjustable heavy box beams
- High-tensile Q235B cold-formed uprights
- Optimized for heavy-footprint pallet distribution
Automation Spec

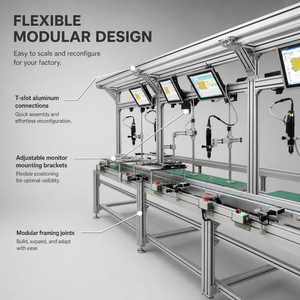

PTS2 Stainless Steel Double Speed Pallet Conveyor System
- High precision dynamic double-speed chain
- Integrated tooling plates for line-side feed
- Tailored for high-frequency industrial manufacturing
CE Certified
CE Certified Heavy Duty Cargo Shelving Industrial Steel Rack
- Complies with EN 15512 safety verification
- Multi-layer high-bay structural uprights
- Direct access configuration for diverse SKUs
FIFO Gravity

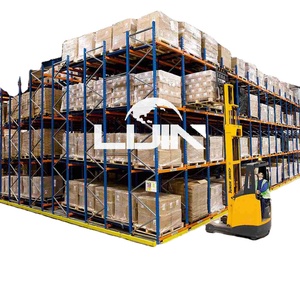

High Standard OEM Live Pallet Rack Gravity Flow System
- Precision centrifugal speed-brake rollers
- Automatic separating end-stops for safety
- True FIFO stock rotation for perishable cargo
Anti-Corrosive
Heavy-Duty 4-Layer Powder Coated Orange Beam Pallet Racks
- High-visibility RAL2004 electrostatic coat
- Heavy-duty interlocking safety locking pins
- High-torsion structural beam connections
OEM/ODM Ready

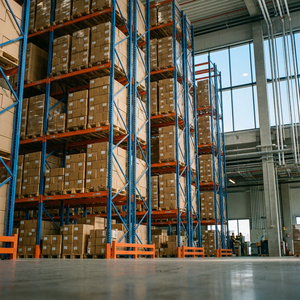

Customized Heavy Duty Pallet Racking System Direct Factory
- Bespoke column sizing up to 12+ meters
- Euro-pallet & industrial skid compatibility
- Calculated under customized seismic profiles
Carton Flow

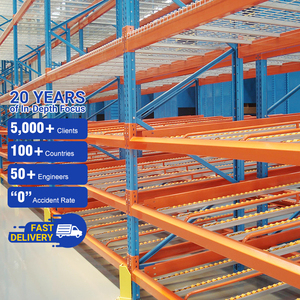

Warehouse Gravity Flow Sliding Roller Shelf Pick System
- Aluminum alloy roller tracks with nylon wheels
- Ergonomic presentation tilt shelf beds
- Integrated picking dividers for rapid splits
Engineering Architecture & Mechanics: Carton & Pallet Pick Flow Racking
Dynamic Pick Flow Racking leverages controlled gravitational kinetic energy to maintain seamless picking access across high-volume distribution lines, combining extreme volumetric density with automated inventory cycling.
A pick flow rack (incorporating both Carton Flow Shelving and Heavy-Duty Gravity Pallet Flow) operates on an inclined track system featuring low-friction, high-durability rollers or polycarbonate wheel beds. Goods—whether packaged cartons, plastic totes, or complete Euro pallets—are loaded from the higher replenishment face (rear aisle) and glide smoothly downward via controlled gravitational force to the active picking face (front aisle). This structural segregation completely decouples order-fulfillment personnel from replenishment forklift operations, systematically eliminating logistical bottlenecks, reducing interior transit miles, and elevating overall warehouse picking throughput by up to 40% compared to traditional static shelving configurations.
Automatic First-In, First-Out (FIFO)
Every lane guarantees chronological product cycling. Indispensable for pharmaceutical supply chains, cold-chain operations, and food and beverage distributors with strict product expiration windows.
Compact Floor-Footprint Densification
By eradicating intermediate operating aisles required by traditional selective racking, flow structures liberate up to 60% of dormant aisle floor space for productive vertical stock storage.
Ergonomic Line-Side Picking Feed
Integrated tilt trays, drop-down shelf fronts, and adjustable roller lanes align tote openings with operator picking angles, minimizing reach-fatigue, strain risks, and repetitive mispicks.
Global Procurement Trends: What B2B Logistics Engineers Demand (2025–2030)
Procurement directors and supply chain engineers are no longer evaluating industrial pick flow systems solely on steel tonnage. Modern intra-logistics investments are governed by complex system compatibility, lifecycle resilience, and regulatory validation:
| Procurement Metric | Legacy Procurement Standards | Next-Gen Engineering Specifications | Strategic Benefit |
|---|---|---|---|
| Regulatory Verification | Generic mill certificates, basic domestic approvals | CE Certification (No. 2435-CPR-8605159), EN 15512 static calculations, ISO 9001:2015 tracking | Seamless passing of municipal safety audits & European CE Machinery / Structural directives |
| Automation Readiness | Manual hand-pick layouts, isolated operations | Pick-to-Light integration brackets, AMR/AGV interface roller docks, RFID lane tagging | Rapid retrofit path to full automated fulfillment without tearing down base structural frames |
| Speed Regulation | Unregulated gravity slide, simple mechanical stops | Centrifugal magnetic brake rollers, self-dampening shock absorbers, separating backstops | Eliminates carton impact shock, prevents load crushing, protects operator safety during unload |
| Modularity & Reconfiguration | Fixed-pitch welded shelves, rigid bay depths | 50mm modular slotting, drop-in quick-lock roller tracks, tool-free track dividers | Instant adaptation to shifting seasonal SKU geometry and changing fulfillment demand curves |
Technology Evolutionary Roadmap: The Future of Dynamic Pick Flow
Driven by rapid increases in e-commerce fulfillment volume, SKU proliferation, and escalating labor expenses, dynamic pick flow racking is evolving from static gravity ironwork into highly engineered intelligent storage modules:
Hybrid AMR & Shuttle Interfacing
Modern pick flow banks are increasingly engineered with cantilevered take-away beds compatible with autonomous mobile robots (AMRs). Gravity routes items to front pick faces where robotic arms or collaborative AGVs retrieve items directly without human touch.
Micro-Sensor Integrated Smart Flow Beds
Emerging track assemblies embed low-voltage capacitive and photoelectric sensors right within the track profiles. As totes flow forward, real-time telemetry informs WMS software of current stock levels, lane blockage, and stock-out alerts automatically.
Eco-Friendly Coatings & Recycled Composites
Future-ready logistics facilities require low carbon footprints. Production shifts toward heavy-duty rollers molded from recycled ocean polymers and ultra-low VOC electrostatic powder coatings compliant with stringent EU RoHS environmental standards.
Guangzhou Heda Shelves: Enterprise Reliability & Manufacturing Superiority
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as an authoritative global manufacturer of high-density warehouse storage systems. Operating from our specialized 30,000 m² production facility with over 300 technical engineers, our facility delivers more than 30,000 tons of precision-engineered racking per month to multi-national operations in over 120 countries.
Certified Global Standards
Full CE certification (Certificate No. 2435-CPR-8605159) and ISO 9001:2015 registration (No. 18624Q00169R0M). Every project includes structural engineering load calculation sheets built upon EN 15512 and EN 15620 guidelines.
Free 3D & CAD Design
Our dedicated structural engineering division develops complete DWG building layouts, static finite element simulations, and photorealistic 3D structural previews before client purchase commitment.
End-to-End In-House Control
From prime cold-formed steel slit-coils, continuous automated upright punching, and robotic beam welding to pickling, phosphating, and powder coating, every stage undergoes internal QA inspections.
Global Logistics & OEM Support
Experienced export operations with seaworthy bundling to major sea ports (Rotterdam, Hamburg, Antwerp, Valencia, Felixstowe). Comprehensive OEM/ODM private labeling solutions available for distributors.
