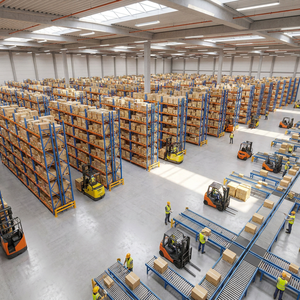

Heavy Duty Warehouse Metal Rack Steel Pallet Storage Equipment Factory
High-capacity structural steel design engineered for multi-tier bulk industrial warehouses.
Featured Inventory
Factory-Engineered Industrial Pallet & Storage Systems
Precision-rolled structural steel warehousing equipment manufactured under rigorous CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 specifications.

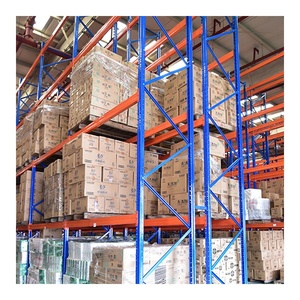

Adjustable Industrial Warehouse Storage Shelf System Heavy Duty Selective Steel Pallet Rack
100% immediate pallet access, compatible with EUR/EPAL and ISO industrial dimensions.

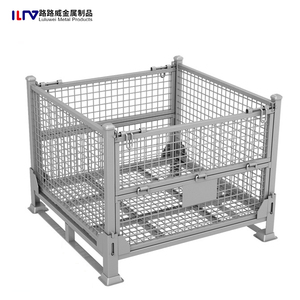

Powder Coating Galvanized Steel Pallet Box Cage Storage Welded Wire Mesh Cage
Collapsible, high-strength wire mesh containers for secure loose cargo handling and transit.
Heavy Duty Warehouse Mezzanine Platform Shelving Steel Structure Second-floor Racking System Customized Galvanized Panels
Expands usable square meters without structural modifications, 300–1000 kg/m² ratings.

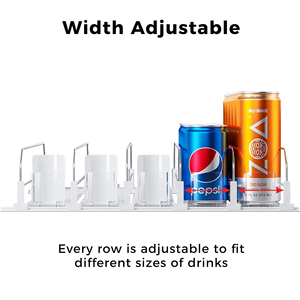

Hookei Plastic Gravity Roller Drink Shelf Pusher Spring Loaded Auto Push Track Soda Can Bottle Organizer For Retail Cooler Rack
High-turnover automated item facing systems designed for cold display and retail picking.

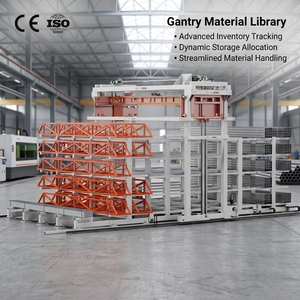

Gantry Type Material Warehouse | Heavy Duty Long Storage Rack for Steel Pipes Bars & Profiles | 8m Height
Cantilever-integrated gantry racking engineered for 8-meter steel profiles and extra-long structural stock.

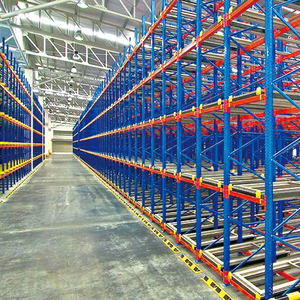

Reinforced Steel 5 Layer Push Back Pallet Racking Heavy Duty Efficient Goods Picking Warehouse Storage Shelving
High-density LIFO gravity trolley lanes preserving selective access across multiple SKU picking fronts.

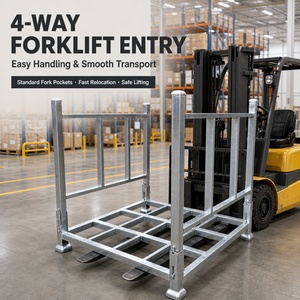

Stacking Rack Stackable Pallet Frame Warehouse Storage Rack Portable Pallet Racking Industrial Rack for Warehouse Storage
Dynamic post-pallet design enabling temporary high-cube stacking without permanent aisle installations.
2001
Established & Dedicated to Engineering Excellence
30,000m²
Advanced Manufacturing Facility Site Area
30,000t
Monthly Structural Steel Production Capacity
10,000+
Successful Storage Projects in Over 120 Countries
Technical Whitepaper
Engineering Architecture of High-Density Shuttle Pallet Racking
A comprehensive procurement and structural calculation guide for supply chain executives and logistics project managers.
In modern industrial logistics, static floor-loaded storage and legacy wide-aisle configurations fail to meet rising real estate expenditures and the operational pace demanded by fast-moving commercial goods (FMCG) and cold chain infrastructure. The CE Certified Shuttle Pallet Racking System serves as the benchmark for semi-automated, high-cube density. Combining deep lane configurations with high-speed automated shuttles running on specialized galvanized profiles, shuttle systems increase warehouse volumetric capacity by up to 80% compared to traditional selective pallet racking.
1. Mechanical Tolerances and EN Standards Compliance
Exporting structural racking to European Union member nations requires stringent adherence to harmonized legal and engineering directives. Our systems are verified under CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 specifications. Finite Element Analysis (FEA) is deployed in-house to simulate critical structural behaviors conforming to:
- EN 15512:2020: Steel static storage systems – Specification of beam-end connectors, upright frames, and allowable vertical deflection under combined seismic and live loads.
- EN 15620: Tolerances, deformations, and clearances for automated and semi-automated interface handling. In shuttle lanes, rail tolerances must remain within ±1.5 mm under maximum deflection to avoid cart derailment or sensor tripping.
- EN 15635: Steel static storage systems – Comprehensive operational guidelines for maintenance and validation of structural inspection-readiness.
The steel utilized across uprights and load-bearing beams consists of certified high-tensile structural cold-formed coil (such as Q235B and Q355B grades), designed with optimal yield strength to absorb dynamic shock without brittle shear, especially in sub-zero applications down to -30°C.
| System Type | Volumetric Space Utilization | Operating Strategy | Direct Pallet Accessibility | Equipment Damage Probability |
|---|---|---|---|---|
| Radio Shuttle Racking | 85% – 90% (Ultra High) | FIFO or LIFO Selectable | Lane-front automated dispatch | Extremely Low (Forklifts stay outside lanes) |
| Drive-In Racking | 65% – 75% (High) | Strict LIFO (FIFO requires drive-thru) | Last pallet loaded | High (Frequent mast & upright impacts) |
| Push Back Racking | 70% – 75% (Medium-High) | LIFO Gravity Carts | 2 to 5 pallets deep per lane | Low-Medium (Operates on aisle perimeter) |
| Selective Pallet Racking | 40% – 50% (Standard) | 100% Unrestricted | Complete 1-to-1 immediate access | Moderate (Depends on operator discipline) |
2. Cold Chain Optimization and Total Cost of Ownership (TCO)
In temperature-controlled facilities (-18°C to -25°C), cubic volume cooling represents the primary ongoing utility expense. Drive-in systems require forklifts to enter cold chambers, leading to significant battery degradation, extended door-opening cycles, and structural upright collisions that compromise rack integrity. A CE-certified radio shuttle platform neutralizes these operational bottlenecks:
- Thermal Efficiency: Narrow, deep storage tunnels limit unused dead air, requiring up to 35% less energy to maintain chilled parameters.
- Safety & Maintenance: Lift trucks remain in wide staging aisles. Component replacement cycles from forklift collisions are reduced by over 78%.
- Automated Battery Architecture: Modern lithium iron phosphate (LiFePO4) shuttle cells maintain full discharge performance in extreme freeze-thaw cycles, supported by automated return-to-dock safety protocols.
Market Forecasting
Future Procurement & Technological Trends (2025–2030)
How international supply chain leaders are structuring racking contracts and transitioning toward dark warehouses.
Decarbonization & Scope 3 CBAM Accountability
Procurement contracts entering the EU single market increasingly require environmental product declarations (EPD) and compliance with the Carbon Border Adjustment Mechanism (CBAM). Green steel sourcing and non-toxic powder coating lines ensure compliance with emerging European circularity thresholds.
Hybrid AGV/AMR Interfacing Integration
The boundary between semi-automated radio shuttle racking and full AS/RS is dissolving. Facilities are integrating autonomous mobile robots (AMRs) that pick up pallets directly from shuttle collection stations, establishing fully automated 24/7 dark-store throughput without manual forklift drivers.
IoT Telemetry & Dynamic Structural Monitoring
Racking columns are increasingly fitted with wireless strain gauges and 3-axis vibration sensors. These units stream structural impact logs directly to warehouse management systems (WMS), flagging micro-fractures, beam shifts, or dangerous floor settlement before safety incidents occur.
Factory Direct Capability
Why Global Supply Chains Trust Guangzhou HEDA Shelves
Since 2001, providing complete engineering accountability from single component fabrication to multi-million euro warehouse infrastructure.
Free CAD & 3D Engineering Layouts
Before production begins, our team of dedicated warehouse structural engineers provides end-to-end DWG layouts, dynamic load distribution tables, and 3D warehouse simulations, preventing bay interference with building columns, HVAC ducts, and fire sprinklers.
Verified CE & ISO 9001:2015 Production
We provide verified CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Certificate No. 18624Q00169R0M documentation. Our materials undergo automated cold-forming, continuous-seam robotic welding, and a 9-stage pre-treatment pickling line prior to electrostatic thermoset powder application.
Turnkey Ocean Freight & Packaging
Racking shipments are securely bundled using automated stretch-wrapping, corner angle protection, and numbered component packaging designed for rapid offloading. Regular container routes operate to Rotterdam, Hamburg, Antwerp, Valencia, Felixstowe, and Gdańsk.
OEM/ODM Distributor Program
We partner directly with storage system distributors, integrators, and racking contractors worldwide. Options include custom corporate RAL colors, client-branded column stamping, private-label manuals, and direct site container drop-shipping.
Procurement Knowledge Base
Frequently Asked Questions by Industrial Buyers
Critical answers to facilitate technical due diligence, import duties, and engineering compliance.
How does a CE-certified shuttle pallet racking system interface with Euro pallets (1200 x 800 mm)?
Our shuttle guide rails and base frames are designed around dual-entry dimensions, catering directly to standard EUR/EPAL 1 (1200 x 800 mm) as well as EUR 2/3 and ISO industrial pallets (1200 x 1000 mm). Precision-engineered lane clearances prevent bottom-board deflection and eliminate pallet-hangover interference during automated transitions.
What documents and calculation packages are supplied for European regulatory approval?
Every export project includes CE Factory Production Control (FPC) documentation, ISO 9001:2015 certificates, raw material mill test certificates (MTC), static load calculations under EN 15512, bay deflection matrices, and inspection-ready structural load notices (EN 15635) displaying allowable uniform distributed loads (UDL).
What is the production cycle and ocean transit time to European base ports?
Standard fabrication for custom structural uprights, shuttle channels, and beams typically spans 15 to 30 working days depending on tonnage. Ocean transit from the Port of Guangzhou or Shenzhen to major European gateway terminals (Rotterdam, Antwerp, Hamburg, Valencia) averages 30 to 40 days on regular container rotations.
Can radio shuttle carts operate reliably in deep-freeze cold storage facilities?
Yes. Our specialized cold-chain radio shuttles are engineered with sealed electronic enclosures, thermal-management heating elements, IP65-rated sensor suites, and low-temperature high-drain Lithium-ion or LiFePO4 batteries designed to operate reliably in continuous temperatures down to -30°C without condensation failure.
How do you support on-site installation and mechanical commissioning?
Each batch is shipped with color-coded, numbered component packing lists, exploded 3D assembly diagrams, anchor installation patterns, and comprehensive rail alignment tolerances. For mid-to-large capital investments, our international engineering division provides either dedicated on-site installation supervisors or real-time remote video engineering commissioning.
Optimize Your Warehouse Storage Density Today
Submit your building DWG layout, ceiling height clearances, and pallet specifications. Our senior project engineers will supply an engineered capacity plan and commercial proposal within 24 hours.
