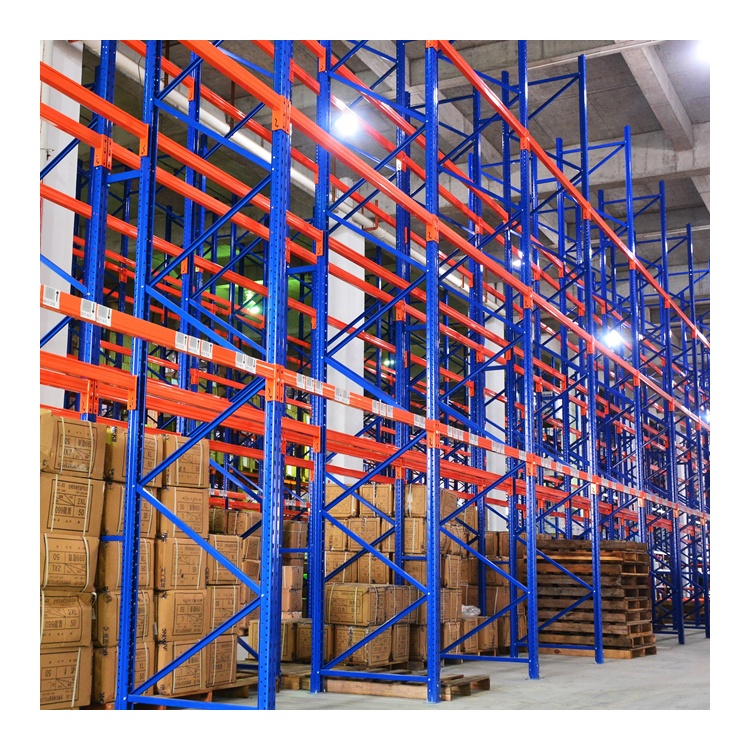

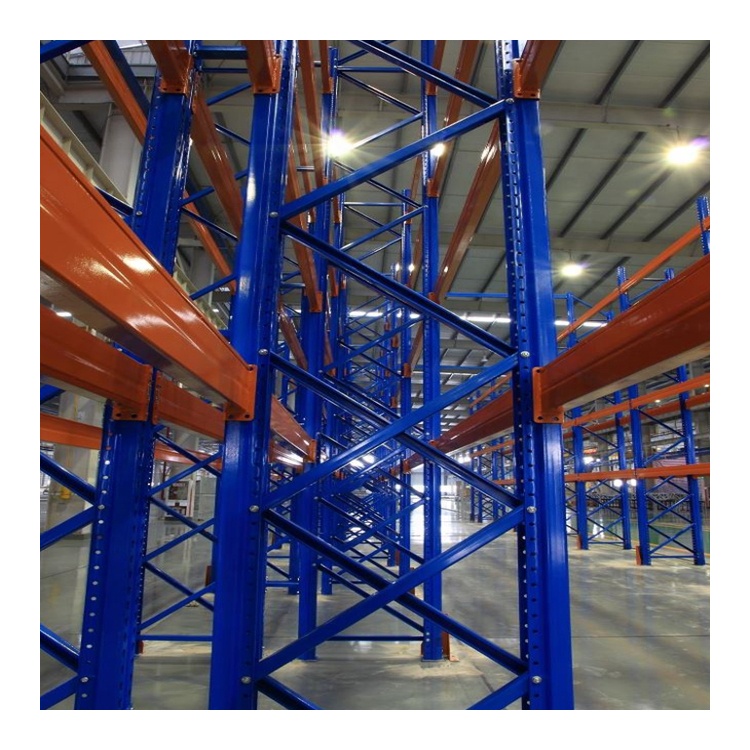

Adjustable Industrial Warehouse Storage Shelf System Heavy Duty Selective Steel Pallet Rack
Product Description
Products Description

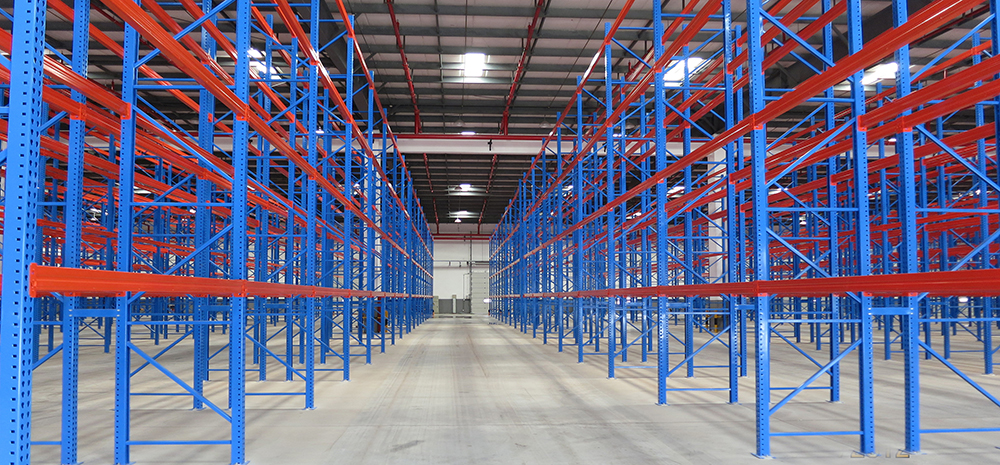

Heavy duty selective pallet racking
Selective pallet rack is very cost-effective providing high capacity storage and easy access to all pallets.
It can be adjusted by each 50mm pitch and can load 800-3000kg/layer.
Steel plate, wood plate, and MDF can be chose as the layer board.
Pallet rack suits to store various type of goods. It offers the best solutions for warehouses with palletized products.

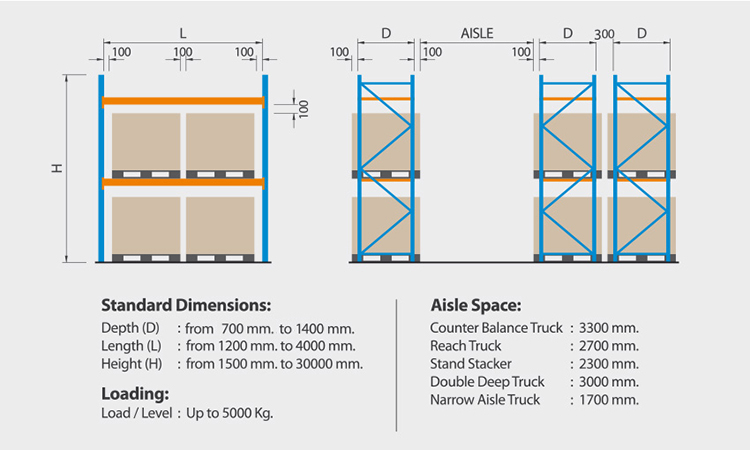

Specification
| Product Name | Heavy duty pallet racking system |
| Upright Section | 80x60, 90x67, 100x67, 120x95mm etc, thickness: 1.8-3.0mm |
| Beam Section | 100x50, 120x50, 130x50, 140x50, 160x50mm, thickness 1.5-2.0mm |
| Material | High-Quality Q235 Cold rolled steel |
| Standard Color | Blue(RAL5017), Orange(RAL2004), Green(RAL6000), Light Grey (RAL7035), Yellow(RAL1037) |
| Adjustable Pitch | 50mm, 50.8mm, 76.2mm |
| Access Style | High accessibility & selectivity |
| Surface Treatment | Powder Coated or Galvanized |
| Application Environment | Normal Temperature or Freezer |
| Design Service | Free CAD service available |
| Back-up Service | Installation Drawing / On Site Instruction |
| Lead time | 3 weeks for 2*40' container |
| Standard package | Palletized, Export-Purpose Packaging |
| Container Load | 15-18tons/1*20' container, 20-25tons/1*40' container |
| Trade Term | EXW / FOB / CNF / CIF |

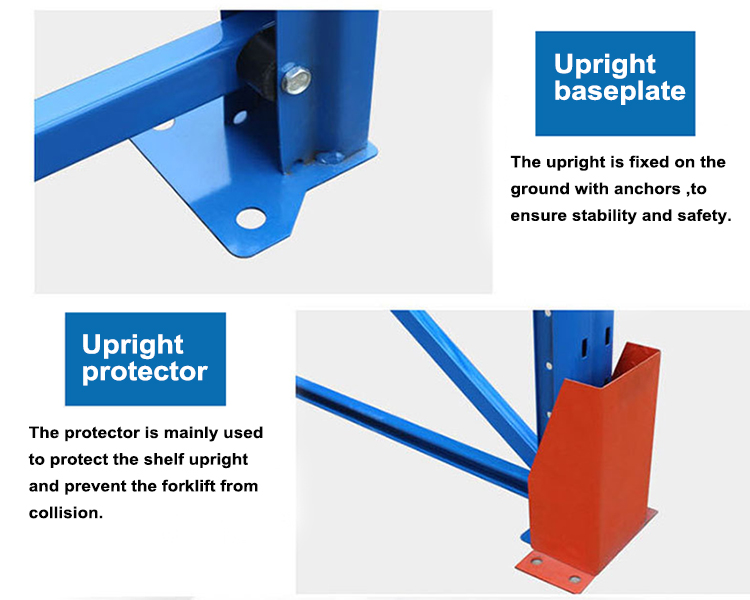

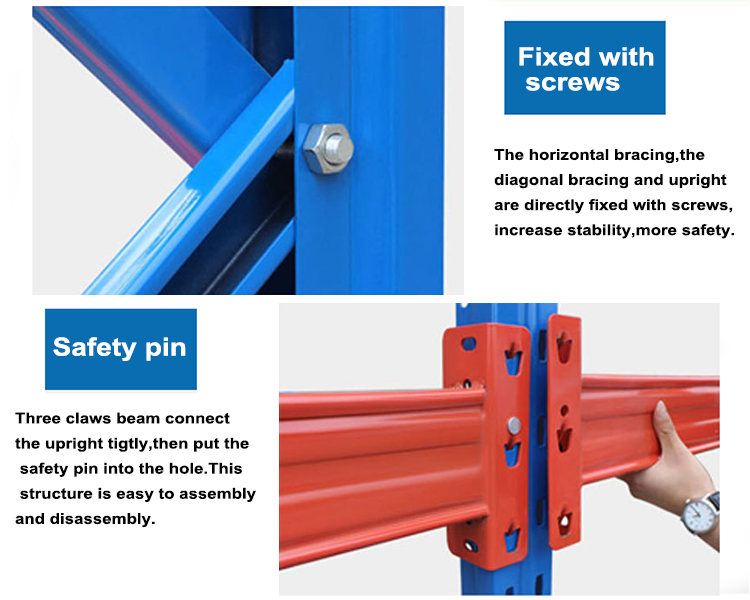

Details Images

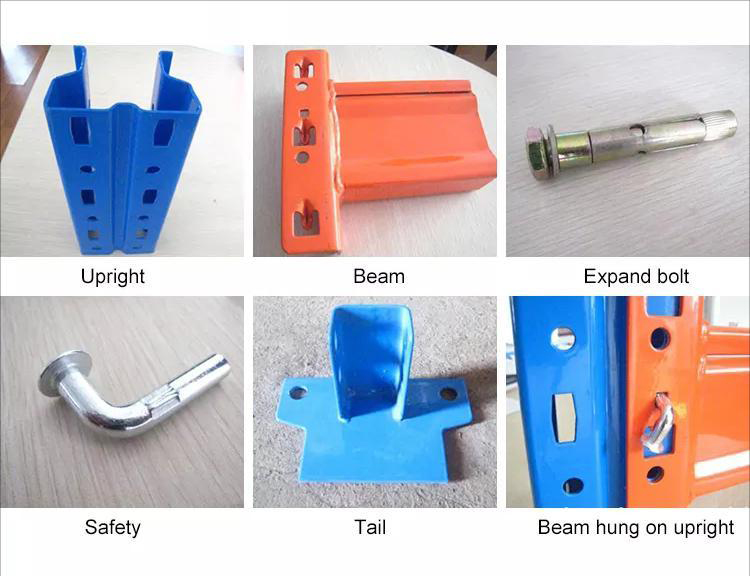

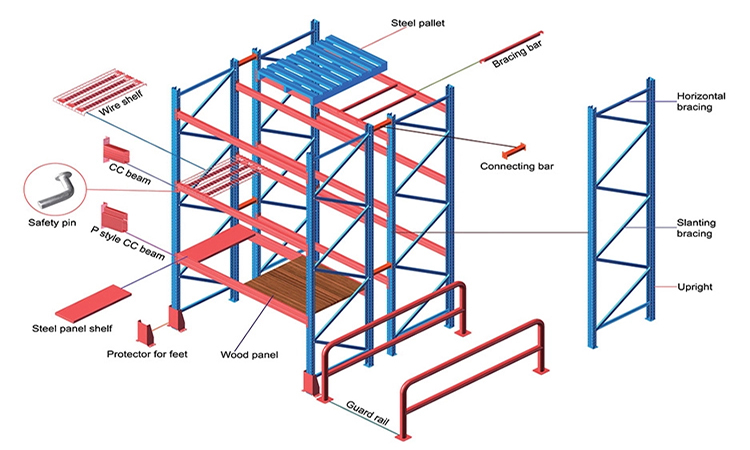

Product Components

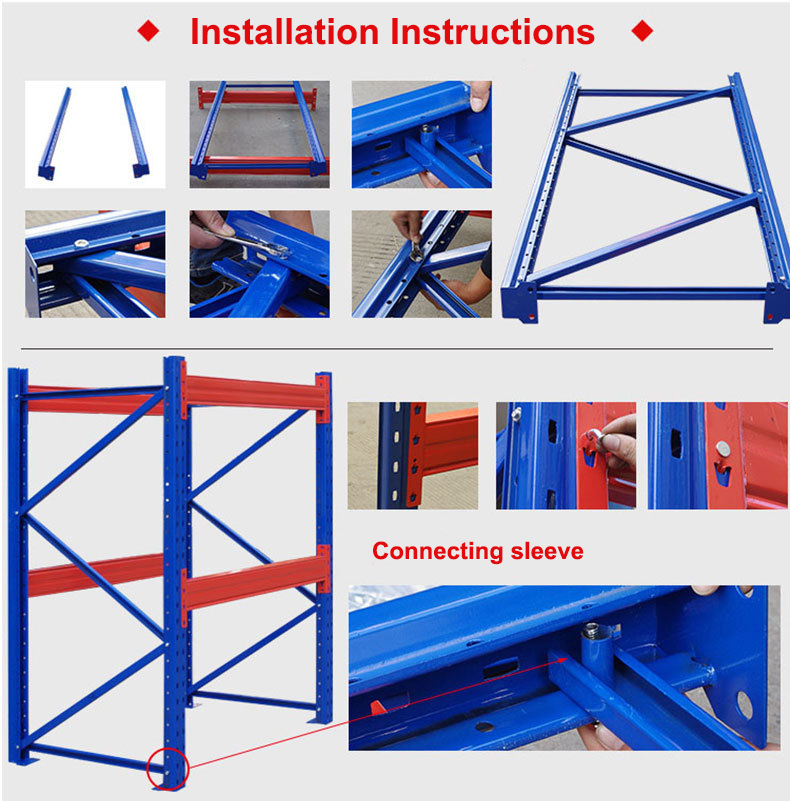

Installation Instructions

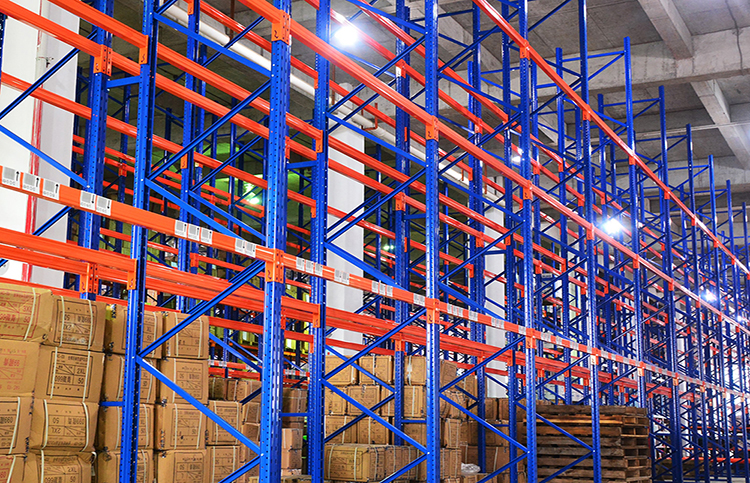

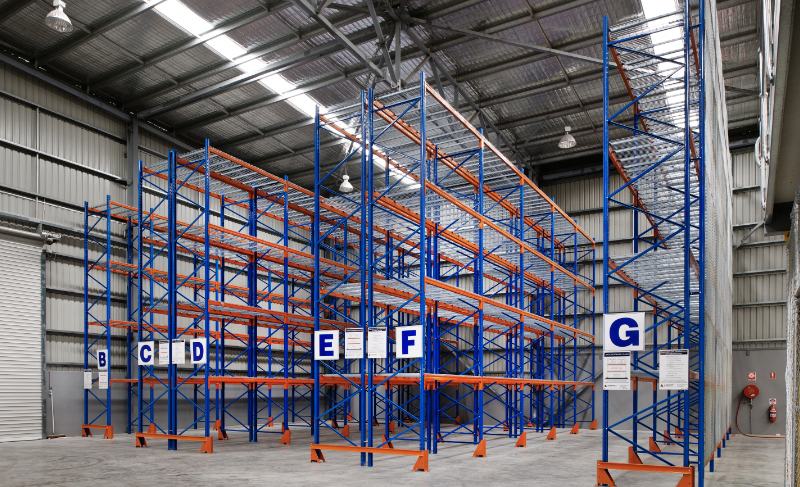

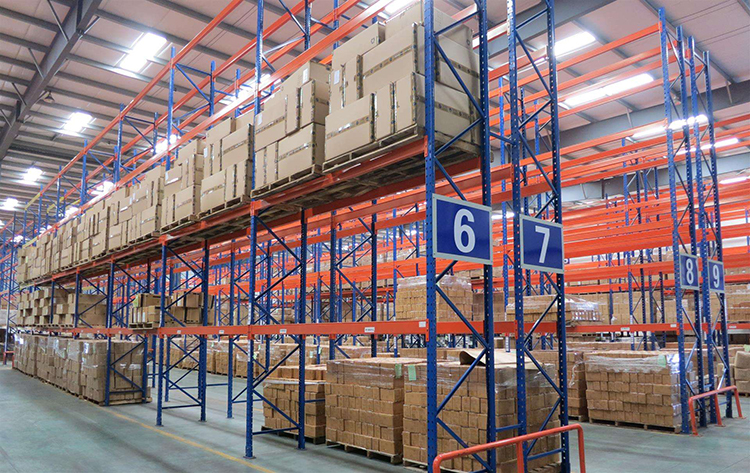

Project Case

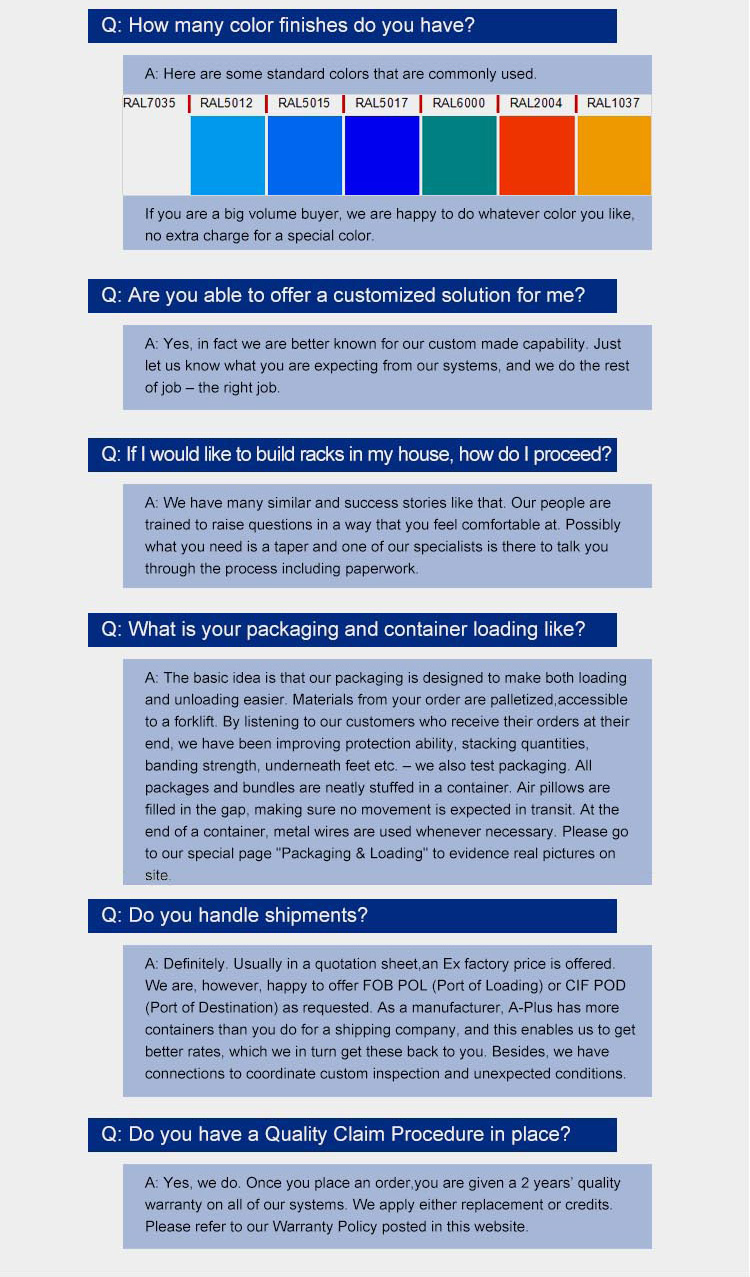

Frequently Asked Questions
Q What is the loading capacity of this heavy duty pallet rack?
The system supports a load capacity ranging from 800kg to 3000kg per layer, depending on your warehouse requirements and beam specifications.
Q Can the rack heights and beam levels be adjusted?
Yes, the beam levels can be adjusted easily with pitch options of 50mm, 50.8mm, or 76.2mm to accommodate various cargo heights.
Q What material and surface treatment are used for manufacturing?
The racks are manufactured from high-quality Q235 cold-rolled steel and treated with powder coating or galvanization for durability in normal or freezer environments.
Q Do you provide warehouse layout design services?
Yes, free CAD layout design service is available to ensure optimal warehouse space utilization and operational workflow.
Q What is the standard lead time for an order?
The typical production lead time is approximately 3 weeks for an order volume of two 40-foot containers (2*40' container).
Q How is installation support handled?
Comprehensive back-up service is provided, including step-by-step installation drawings and on-site instructions where required.
