VNA System
High-Efficiency Heavy-Duty & Modular Shelving Systems
Engineered for global warehouse operators, distribution hubs, and automated pick modules. Each configuration features parametric height-adjustability, verified deflection safety margins, and durable surface treatments.
Boltless Series
Industrial Heavy Duty Boltless Longspan Shelving
View Product Specs
Bulk Picking
800x600mm Corflute Stackable Picking Bins
View Product Specs
Security & Mesh
Galvanized Welded Wire Mesh Hardware Cloth Roll
View Product Specs
Selective Steel

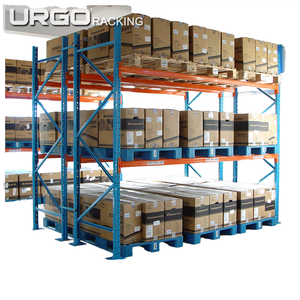

URGO Heavy-Duty Selective Pallet Rack Storage
View Product Specs
Fire Protection
Flanged Wire Mesh Decking for Structural Racks
View Product Specs
Teardrop OEM
Universal Teardrop Interchangeable Racking
View Product Specs
Commercial Chrome
5-Layer Chrome Electro-Plated Wire Shelving
View Product Specs2001
Established Year
30,000 m²
Modern Plant Facility
30,000 t
Monthly Output Capacity
10,000+
Global Projects Installed
Engineered Reliability Built on Rigorous Quality Controls
Guangzhou Heda Shelves Co., Ltd. operates state-of-the-art roll forming and finishing facilities to supply international distributors, system integrators, and Fortune 500 logistics warehouses.
Certified Structural Integrity
Parametric OEM/ODM Flexibility
10-Step Controlled Production
Future Procurement & Engineering Trends in Industrial Racking
Warehouse real estate inflation and high supply chain throughput demands have redefined racking from static metal furniture into a mission-critical structural integration hub.
1. Hybrid AS/RS & Autonomous Mobile Robot (AMR) Integration
Procurement teams are moving rapidly away from standalone manual shelving toward hybrid racks engineered with ultra-flat tolerance planes (EN 15620 Class 300). Shelving uprights must now withstand dynamic lateral forces induced by autonomous shuttle vehicles, high-speed automated storage and retrieval systems (AS/RS), and floor-running mobile sorting robots. Upright frames are increasingly designed with integrated continuous cable raceways, RFID locational beacons, and photoelectric safety stops.
2. High-Yield Strength Light-Gauge Metallurgical Advancements
The global steel market volatility requires modern factories to leverage high-yield micro-alloyed structural steels (such as Q235B, Q355B, and EN 10025 S355JR). By deploying cold-roll-forming machines equipped with up to 24 continuous forming stations, manufacturers can optimize profile cross-sections with complex secondary stiffening ribs. This achieves a 15–20% reduction in linear steel weight without sacrificing critical load-deflection ratios under full design capacity ($L/200$ deflection thresholds).
3. Environmental Product Declarations (EPD) & Circularity
European and American logistics developers increasingly require verified Environmental Product Declarations (EPD) documenting the carbon footprint across the Scope 1, 2, and 3 spectrum. Future-ready shelving procurement evaluates thermoset powder recovery rates (reaching 98% in our automated electrostatic booths), solvent-free pre-treatment washes, and modular structural platforms that can be fully disassembled, relocated, or recycled without down-cycling scrap value.
Technical Selection & Load Verification Matrix
| System Configuration | Typical Load Threshold | Structural Profile Spec | Handling Interface | Primary Industrial Sector |
|---|---|---|---|---|
| Selective Industrial Pallet Rack | 1,000 – 4,500 kg / level | 80–120mm Cold-Formed Upright / Box Beam | Counterbalanced / Reach Truck | 3PL hubs, Retail FMCG Distribution |
| Very Narrow Aisle (VNA) | 1,200 – 3,500 kg / level | Heavy Gauge Structural Upright + Floor Guides | Articulated / Turret Forklift | High-Density Pharmaceutical & Auto Spares |
| Boltless Industrial Longspan | 200 – 800 kg / shelf | Step Beam with Steel / Timber Decking | Manual Picking / Flow Carts | E-commerce Fulfilment, Assembly Plants |
| Drive-In / Drive-Through | 1,000 – 2,000 kg / pallet | Continuous Rail Channels & Top Tie Beams | Reach Forklift (In-Lane) | Cold Storage Logistics & Beverage Hubs |
| Rack-Supported Multi-Tier Mezzanine | 300 – 1,000 kg / m² Floor | Integrated Racking Uprights + Cold C-Section Joists | Pallet Gate, Stairwell, Goods Lift | High-SKU Garment & Small Parts Centers |
Frequently Asked Technical & Logistics Questions
Critical structural, regulatory, and purchasing answers for supply chain managers, commercial architects, and procurement officers.
How do you ensure cold-formed adjustable shelving complies with European EN 15512 standards?
Our engineering team tests all profile assemblies under rigorous stub column, compression, and shear load conditions. Frame stability, beam-end connector locking resistances, and upright torsional buckling factors are calculated according to EN 15512 limit state design rules. Each order includes signed load notices indicating working load limits ($WLL$), permissible deflection tolerances ($1/200$ for beams), and baseplate anchor shear verification against localized concrete slab specs.
Can your factory accommodate private-label OEM tooling for local European or American distributors?
Yes. Over 40% of our production volume is delivered under OEM/private label contracts. We offer customized roll-forming profile design, proprietary connector punch geometries (including teardrop, hex-slot, and keyhole designs), custom powder coat colors based on exact RAL specs, embossed client branding on beam end-connectors, and retail-ready pallet packaging with branded load capacity placards.
What are the sea freight logistics and packing parameters to prevent transit corrosion?
Components are packaged using automated strapping, protective corrugated edge protectors, and vapor-corrosion-inhibiting (VCI) shrink wrap to survive 30 to 45-day ocean transit cycles across differing humidity zones. We calculate maximum shipping container cube-utilization in 40ft High Cube (40HQ) containers, organizing bundles with numbered steel dunnage to enable rapid unloading by forklift at destination ports including Rotterdam, Hamburg, Antwerp, and Long Beach.
How are seismic hazard ratings and soil load criteria integrated into the custom design?
Upon submission of your project floor plan, our CAD structural engineers cross-reference the local seismic zone parameters (e.g., Eurocode 8 or IBC/RMI criteria). We dynamically scale the baseplate thickness, adjust anchor bolt embedment depths (employing chemical or mechanical wedge anchors), and incorporate vertical spine and horizontal plan bracing arrays to control inter-story drift under dynamic earthquake load conditions.
What structural documentation is required before receiving an engineered quotation?
To generate an accurate free 3D CAD design and structural load calculation, our engineers require: (1) Warehouse building CAD drawings indicating clear eave height, column locations, and fire exit doors; (2) Concrete slab specification (thickness, compressive strength, rebar mesh configuration); (3) Pallet or load dimensions ($W \times D \times H$) including product overhang; (4) Maximum gross unit load weight; and (5) Turning radius and mast lift characteristics of your forklift fleet.
