Boltless Industrial Steel Shelving Unit
60" H × 28" W × 12" D 5-shelf adjustable tall system engineered for rapid assembly, workshop picking, and small-parts density.
Industrial Storage Solutions
High-Performance Storage & Material Handling Equipment
Engineered for structural resilience, dynamic distribution handling, and footprint maximization. Select a standard platform below or request a turnkey OEM/ODM bespoke configuration.
Carton Flow & Gravity Roller FIFO System
Self-propelled dynamic steel roller beds designed for rapid order fulfillment, strict First-In-First-Out rotation, and cold storage lanes.
Heavy Duty Double Deep Pallet Racking
Corrosion-protected high-density configuration reducing access aisles by 50% while supporting reach-truck multi-tier logistics.
Foshan Light Duty 200kg Factory Shelves
Sturdy cold-formed metal shelves featuring versatile hook-in connections for light retail, archive storage, and e-commerce picking.
Heavy-Duty 5-Layer Industrial Steel Racks
Customizable bolted warehouse storage systems fabricated with certified Q235B structural steel for bulky industrial goods.
Heavy-Duty Adjustable Cantilever System
Front-open structural column design supporting up to 3,000 kg per level for structural steel pipes, timber packs, and bars.

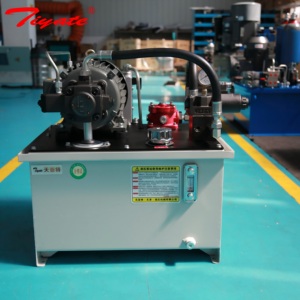

Industrial Hydraulic Variable Power Unit
Integrated air-cooled heat dissipation power stations for dock levelers, hydraulic lifts, and automated warehouse material actuators.
Multi-Functional Structural Steel Frame Racks
Precision-welded heavy structural I-beam design optimized for modular deployment, site logistics integration, and multi-tier platforms.
Engineering Whitepaper: Structural Mechanics & Steel Intralogistics Optimization
Modern pallet racking infrastructures operate at the intersection of civil structural engineering and rapid operational logistics. As warehouse clear heights expand from traditional 6-meter basements to 14-meter and 30-meter automated high-bay warehouses, static calculation requirements become non-negotiable. Industrial storage failures carry catastrophic financial, human, and supply chain ramifications. To mitigate dynamic deflection and second-order structural deformations (P-Delta effects), our production pipelines rely strictly on cold-formed high-tensile carbon steel profiles conforming to EN 10025 specifications (primarily S235JR and S355JR equivalents, alongside hot-rolled Q235B/Q345B grades).
Seismic Analysis, Buckling Modes, and Structural Framing (EN 15512 Compliance)
Pallet racking arrays represent upright slender framing structures subjected to significant gravity loads combined with operational fork impacts and horizontal seismic base shear. Under European Standard EN 15512 (Steel Static Storage Systems: Adjustable Pallet Racking Systems - Principles for Structural Design), beam-to-column connector rigidity is quantified via rotational stiffness tests ($C_d$) rather than assumed rigid or pinned joints.
Our upright columns feature an optimized 12-fold roll-formed profile cross-section. This unique geometry shifts the shear center and amplifies the torsional-flexural buckling resistance under axial compression. By distributing mass toward the perimeter flanges, the gyration radius increases without introducing dead steel weight, yielding a weight-to-load-bearing ratio unmatched by conventional open-channel fabrications.
| System Architecture | Material Specification | Typical Payload / Level | Floor Footprint Utilization | Compliance Standards |
|---|---|---|---|---|
| Selective Pallet Racking | Q235B / S235 Cold-Rolled | 1,000 – 4,500 kg | 35% – 42% (Direct Access) | EN 15512, FEM 10.2.02, ISO 9001 |
| Double Deep Racking | Q235B / High-Yield Strip | 1,200 – 3,000 kg | 50% – 58% (Reach-Truck FIFO) | EN 15620, AS 4084, CE Class III |
| Radio Shuttle Automation | Q345B / S355 Low-Alloy | 500 – 2,000 kg / pallet | 75% – 85% (High Density) | EN 15635, CE Machine Directive |
| Drive-In / Drive-Through | Heavy Gauge Q235B | 1,000 – 2,500 kg | 65% – 75% (Batch LIFO) | SEMA Guidelines, EN 15512 |
| Heavy Duty Cantilever | Hot-Rolled Structural H-Beam | 1,000 – 6,000 kg / arm | N/A (Linear Extrusion) | EN 1993-1-1 Eurocode 3 |
Pre-Treatment, Chemistry, and Electrostatic Surface Protection
Longevity within harsh logistic environments—including cold chain freezers down to -30°C and humid marine distribution centers—mandates rigorous corrosion mitigation. Our automated finishing lines deploy an 8-stage pickling, zinc phosphating, and nano-ceramic passivation sequence. This chemical conditioning de-oxidizes hot-rolled mill scale and creates a micro-crystalline anchoring profile for thermosetting epoxy-polyester powder matrices. Cured at 190°C to 210°C, the resultant 60–90 micron dry film coating delivers cross-hatch adhesion tested to ISO 2409 Class 0 and salt spray endurance exceeding ASTM B117 standards for 500+ hours without underfilm corrosion creep.
Future Sourcing Trends: The Shift toward Modular Intralogistics & ESG Procurement
Global procurement directors within third-party logistics (3PL), automotive assembly plants, and fast-moving consumer goods (FMCG) distribution are fundamentally revising their warehouse equipment procurement strategies. Traditional off-the-shelf catalog sourcing has yielded to predictive life-cycle cost analysis, spatial agility, and rapid regulatory deployment.
1. Automated Micro-Fulfillment & Shuttle-Ready Engineering
Urban real estate inflation has pushed distribution hubs vertical. The upcoming generation of warehouse storage places priority on hybrid shuttle bays. Rather than maintaining manual forklift aisles of 3.2 meters, enterprises are pivoting to Semi-Automated Radio Shuttle Racking and Autonomous Mobile Robot (AMR) interfacing platforms. Structural racks must now be fabricated with tighter tolerances (compliant with EN 15620 Class 400 clearances) to eliminate mechanical track jamming, uneven rail friction, or sensor misalignments.
2. Decarbonization and Scope 3 Emissions Transparency
European and North American supply chains increasingly demand Environmental Product Declarations (EPD) and Carbon Border Adjustment Mechanism (CBAM) alignment. Sourcing directly from an OEM/ODM manufacturer utilizing electric arc furnace (EAF) recycling, solvent-free electrostatic powder, and scrap minimization allows international distributors to demonstrably reduce their Scope 3 embodied carbon footprint.
3. Rapid Modular Mezzanine Scalability
Rather than committing massive capital expenditures to greenfield facility construction, enterprises leverage high-bay rack-supported mezzanines and multi-tier structural steel platforms. By multiplying square footage vertically (adding up to three operational floor levels within an existing envelope), logistics operators achieve high density while preserving agility for future robotic picking retrofits.
Manufacturing Authority
Why Tier-1 Distributors & EPC Contractors Partner With Us
Combining 25 years of engineering heritage with 30,000 square meters of high-capacity production, we deliver structural precision directly from the foundry to global delivery ports.
2001
Founding Year
30,000 m²
Industrial Plant
30,000 t
Monthly Output
120+
Countries Served
Certified Compliance
Full project structural documentation backing CE Certificate No. 2435-CPR-8605159, ISO 9001:2015, and European EN 15512 safety load designs.
Free 3D & CAD Design
Complete structural layouts, bay clearance models, 3D renderings, and pallet displacement calculations delivered prior to manufacturing commitment.
Custom OEM/ODM R&D
Bespoke column roll-forming, non-standard beam connectors, specific RAL color powder coats, and distributor private-label packaging.
Export & Seaworthy Logistics
Exporting to Rotterdam, Hamburg, Antwerp, Valencia, and globally. Secure nested component bundling prevents transit impact and finish abrasion.
Procurement Advisory
Frequently Asked Questions: Industrial Racking Procurement
Key technical, regulatory, and logistic inquiries resolved by our senior structural project engineers.
How do you adapt rack engineering for Euro Pallets (1200 × 800 mm) versus US Standard Pallets (48 × 40 in)?
Pallet footprint dictating frame depth and beam clear spans is the initial engineering step. Standard Euro pallets (EUR 1, 1200 mm depth × 800 mm width) typically require a frame depth of 1,100 mm to ensure the recommended 50 mm front and rear overhang per EN 15620 guidelines. For US 48 × 40 in (1219 × 1016 mm) pallets, frame depth is configured to 42 in (1067 mm) or 44 in (1118 mm). Beam span calculations include internal clearance allowances (typically 75 mm to 100 mm between pallets and upright columns) to protect against forklift entry collisions.
What engineering documentation accompanies OEM/ODM export shipments?
Every commercial order is accompanied by comprehensive engineering packs: General Arrangement (GA) layout drawings, beam connection load-deflection test certificates, steel raw material Mill Test Certificates (MTC conforming to EN 10204 Type 3.1), maximum safe working load (SWL) notice signage, and assembly torque specifications. Third-party structural calculations can be supplied for municipal building permits and insurance audits.
What is your manufacturing lead time and sea freight schedule for international projects?
Factory fabrication lead time generally ranges from 15 to 30 operational days depending on tonnage and custom tooling requirements (such as non-standard column punching or specific RAL coatings). Transit time via ocean freight from Guangzhou or Shenzhen ports ranges between 28 and 35 days to Western European core gateways (Rotterdam, Hamburg, Valencia) and 18 to 22 days to US West Coast ports (Long Beach, Oakland). We manage FOB, CIF, and full DDP door-to-jobsite logistics handling customs clearance.
How do you verify deflection limits and beam safety coefficients?
All load-bearing beams are engineered to an elastic deflection limit of L/200 under uniformly distributed loads (UDL) as stipulated by European code EN 15512 (or L/180 under specific international guidelines), preventing visual sag and dynamic instability. Furthermore, upright frame capacity is rated with a minimum safety factor of 1.5 to 1.65 against ultimate yield stress, considering localized buckling and second-order structural deformations.
Can you manufacture replacement uprights and beams compatible with existing European rack profiles?
Yes. Our tooling facility supports customized profile roll-forming and CNC punching patterns compatible with teardrop styles, 50 mm pitch European multi-hook systems, 75 mm pitch profiles, and custom heavy-duty hook connectors. Providing physical samples or precise mechanical DWG cross-sections enables exact tooling replication for seamless warehouse expansions.
