Explore our industrial-grade pallet flow beds, carton live storage roller tracks, and gravity feeding racks configured to compress floor space while maximizing picking velocity.

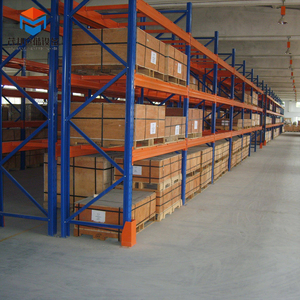

Certified high-grade Q235 structural steel pallet racking framework configured with electrostatic powder coating for optimal resistance and structural integrity.

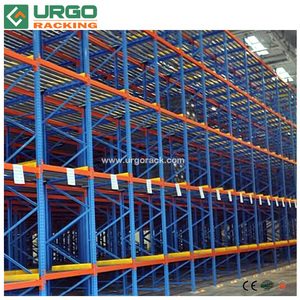

Engineered stainless steel roller lanes with high-grade aluminum track frames designed specifically for sanitary order assembly and cleanroom logistics.

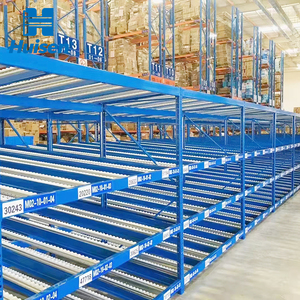

5-tier dynamic gravity roller system incorporating variable gradient lane dividers, providing uninterrupted ergonomic pick faces for fast-turn distribution hubs.
High-density roller beds fitted with dual-bearing rollers and speed controllers engineered to support continuous piece and tote replenishment lines.
Versatile, modular 4-tier steel framework accommodating Euro, GMA, and Australian industrial pallets with integrated impact column protectors.
Corrosion-resistant galvanized roller tracks engineered for strict First-In-First-Out (FIFO) material rotation in cold storage and pharmaceutical fulfillment.
Optimized for manual assembly cells and distribution order-picking tunnels, reducing replenishment travel distance by up to 60%.
North American standard teardrop punch configuration facilitating boltless, rapid beam adjustments with universal beam-to-frame connector locks.
Dynamic flow racking replaces static storage aisles with inclined roller channels. Discover how our engineering controls gravity, brake dynamics, and structural stability under high loading cycles.
Kinetic acceleration in flow beds is regulated by calculated deck slopes. Pallet flow channels maintain a 3.0% to 3.5% decline slope, while carton flow lanes operate at 3.5% to 5.0% depending on bottom deflection characteristics.
Our production utilizes Q235B and Q355B cold-rolled structural steel with continuous yield strength testing. Uprights and beam connectors undergo automated continuous punch profiling to ensure absolute pitch precision.
All structural load limits, deflection bounds (L/200, L/300), and seismic dampening factors are certified under European Norms (EN 15512, EN 15620, EN 15635) and RMI (Rack Manufacturers Institute) standards.
| System Classification | Typical Load Unit | Standard Decline Slope | Throughput Rotation | Brake Mechanism | Recommended Application |
|---|---|---|---|---|---|
| Pallet Live Flow Rack | 500 – 1,500 kg / Pallet | 3.0% – 3.5% | Strict FIFO | Centrifugal magnetic / Friction rollers | Cold storage, Food, FMCG buffer zones |
| Carton Gravity Flow Rack | 5 – 50 kg / Carton or Tote | 3.5% – 5.0% | Strict FIFO | Gravity drag / Mechanical end stops | E-commerce pick faces, Assembly kitting |
| Push-Back Cart Racks | 500 – 1,200 kg / Pallet | 2.0% – 2.5% | LIFO Lane Access | Nested heavy-gauge gravity carts | Medium-turnover multi-lane staging |
| Radio Shuttle High-Density | Up to 2,000 kg / Pallet | 0.0% (Level rails) | FIFO or LIFO | Automated self-braking shuttle carrier | Ultra-dense freezer rooms, Raw beverage banks |
Warehouse economics are evolving toward micro-fulfillment, automation hybridization, and stringent ESG compliance. Learn what leading logistics directors specify for 2026 and beyond.
Modern gravity flow beds are now engineered with automated optical stops and magnetic sensor arrays, enabling Autonomous Mobile Robots to seamlessly dock at discharge faces without human handling.
Dynamic gravity systems consume zero kilowatts per cycle. Enterprise distribution hubs are prioritizing gravity-fed FIFO channels over motorized conveyors to meet Scope 1 and Scope 2 net-zero sustainability audits.
With SKU lifecycles shrinking rapidly, warehouse operators are moving away from fixed roller tracks. Universal clip-on plastic wheels and snap-in magnetic lane dividers allow re-profiling in minutes without tools.
Modern flow racks come pre-machined with wiring raceways and mounting brackets designed specifically for electronic shelf labels (ESL), Pick-to-Light LED nodes, and wireless inventory pressure sensors.
Operating a modernized 30,000 m² factory with over 300 experienced technical staff, Guangzhou Heda Shelves guarantees zero-defect manufacturing from raw steel coil to finished export shipping.
Equipped with 12 automated high-speed cold profile roll-forming lines. Computer-controlled punch tooling ensures that upright hole centers maintain tolerances within ±0.15 mm over a 12-meter span for effortless field installation.
Profiles pass through an 8-stage automated pre-treatment bath including alkaline degreasing, ultrasonic water rinsing, zinc phosphating, and deionized passivating. Electrostatic powder coating delivers a durable 70–90 micron finish resistant to chemical wear.
Every beam, upright frame, and roller cassette is labeled with unique QR codes for batch tracking. Packed with industrial steel strapping, edge protectors, and waterproof vapor-barrier film to ensure zero transit damage across ocean freight voyages.
Critical engineering considerations, international logistics, and configuration parameters compiled by our structural design engineers for project procurement managers.
Yes. While standard wooden pallets run best on full-width steel rollers, plastic runners or bottom-deflected pallets can cause friction stalls. We configure customized three-track roller channels or split-roller beds equipped with auxiliary speed brakes to ensure smooth transit regardless of pallet surface variation.
For lanes deeper than four pallets, we install self-energizing centrifugal speed controllers every two pallet positions. These internal magnetic or friction brakes adjust resistance based on pallet velocity, safely capping speed at a maximum of 0.3 meters per second along the entire lane run.
Standard fabrication requires 15 to 25 days depending on tonnage and custom roller accessories. Ocean freight directly from Guangzhou or Shenzhen ports to core international hubs (such as Rotterdam, Hamburg, Los Angeles, and Felixstowe) typically runs 20 to 35 days under FOB, CIF, or DDP terms.
Yes. Upon contract sign-off or layout approval, our engineering department provides complete structural calculation documentation in accordance with EN 15512, EN 15620, or local seismic standards, signed off for review by your municipal building authority or insurance inspector.
Absolutely. Our universal drop-in carton flow beds and roller track assemblies feature adjustable hanger brackets that attach directly to any step beam, structural box beam, or roll-formed beam regardless of the original racking brand or column profile.
Please provide an architectural floor plan (DWG or PDF) showing building column spacing and clear ceiling height, pallet dimensions (width, depth, full load height, and gross weight), your forklift model and turning radius, and required SKU throughput velocity.
Partner directly with Guangzhou Heda Shelves Co., Ltd. Eliminate middleman markups, obtain verified structural load calculations, and receive a customized warehouse design within 24 hours.
