High-Efficiency Warehouse Racking & Industrial Storage Portfolio
Engineered cold-formed steel racking systems tailored for diverse load tolerances, rapid assembly, and stringent seismic stability.
Factory Storage Shelves Garage 4 Layer Long Span Rack System Shelving Medium Duty Longspan Shelving
Manufacture Factory 4 Layers Metal Materials Light Duty Racks Warehouse Storage Racks
Supermarket Wooden Retail Shelving Display Shop Shelves Cosmetic Grocery Display Convenience Store Rack Shelves for Retail Store

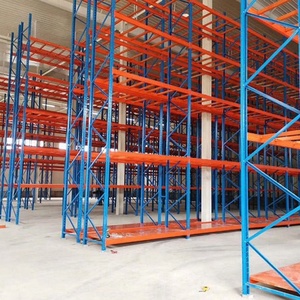

OEM ODM Good Quality Heavy Duty Pallet Racking Warehouse Selective Steel Q235 Rack Shelves Industrial Storage Racks
Storage Unit Multi-Layer Metal Customizable Colour Industrial Rack Corrosion Protection Pantry Factory

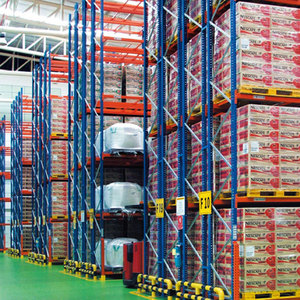

Heavy Duty Double Deep Steel Pallet Racking System with Corrosion Protection Adjustable Beam Industrial Warehouse Storage Racks
Space Saving Pallet Flow Rack Dynamic Gravity Fed Storage Racking System

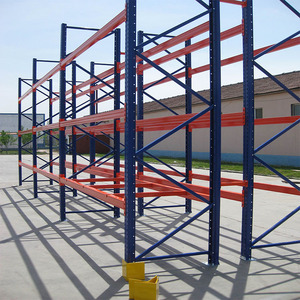

Warehouse Heavy Duty 5 Layer Stainless Steel Boltless Pallet Rack Shelving System with Corrosion Protection
Why Tier-1 Global Distributors Partner With Our Factory
Direct from Guangzhou, China: Enterprise-grade fabrication, verified structural compliance, and bespoke OEM/ODM manufacturing capability.
Verified CE & ISO Quality Control
Certified under CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 No. 18624Q00169R0M. All structural calculations align precisely with EN 15512, EN 15620, and RMI standards, delivering seamless approvals from European and North American building inspectors.
End-to-End 10-Step Automated Production
Our 30,000 m² smart facility utilizes automated continuous roll-forming lines, 50-ton multi-station punching presses, robotic seam welding, 9-stage acid pickling/phosphating pre-treatment, and computerized Swiss Gema electrostatic powder coat lines.
Complimentary 3D CAD & Structural Design
Avoid costly layout revisions. Our in-house structural logistics engineers formulate complete CAD layout blueprints, seismic moment deflection calculations, and photorealistic 3D warehouse simulations before raw materials are cut.
Consolidated Seaworthy Global Logistics
Component-coded nesting, steel strapping, and moisture-barrier shrink wrap maximize container volume usage up to 98.5%. Direct intermodal shipping from Guangzhou/Shenzhen ports connects seamlessly with Rotterdam, Hamburg, Long Beach, and Felixstowe.
Strict European Standard EPAL/EUR Bay Geometry
Bays and clear beam depths are designed to eliminate pallet deflection risks for both EUR 1 (1200×800mm) and EUR 2/3 (1200×1000mm) pallet footprints, ensuring correct 75mm/100mm fire sprinkler and forklift operator safety clearances.
OEM & ODM Private Label Capabilities
Equipping European and American racking distributors with custom upright column punching geometry (50mm/75mm/76.2mm teardrop pitch), custom corporate color coating matching RAL specs, and buyer-branded load notices.
Future Procurement Trends in Industrial Pallet Racking (2025–2030)
The global intralogistics landscape is experiencing structural transformation driven by e-commerce SKUs diversification, supply chain reshoring, and cold chain expansions. As procurement directors evaluate Chinese rack manufacturing partners, procurement focus has transitioned from nominal price-per-ton metrics to Total Cost of Ownership (TCO), Material Metallurgy Quality, and Automated System Interoperability.
1. Transition Toward High-Strength Micro-Alloyed Steels (Q355B & S355JR)
Traditional racking fabrication primarily leveraged hot-rolled Q235B mild steel. However, next-generation high-bay racking systems (reaching 12 to 30 meters) demand thinner profiles capable of carrying identical or higher dynamic payloads to reduce freight weights. Leading Chinese factories have shifted toward high-strength cold-formed micro-alloyed steel (such as Q355B, equivalent to European S355JR). This metallurgy improves yield strength by over 50%, enabling higher load ratings per upright frame while mitigating raw material mass by 12–18%, resulting in major oceanic freight savings.
2. Interoperability with AMR, AGV, and High-Speed ASRS Shuttles
Manual forklift operations are increasingly augmented by Autonomous Mobile Robots (AMRs) and automated radio shuttles. Automated storage creates exceptionally stringent mechanical tolerances:
- Deflection Tolerances: Beam deflection limits are tightening from standard L/200 down to L/300 or L/400 to prevent automated optical sensor tripping.
- Plumbness & Floor Anchor Precision: Vertical upright plumbness under loaded states must satisfy strict EN 15620 Class 300 tolerances (deviation < 1.5mm per vertical meter).
- Pallet Centering Tracks: Pallet runner lanes increasingly incorporate laser-cut guide funnels and electro-galvanized shuttle rails to handle battery-powered 4-way carriers.
3. Structural Comparison: Industrial Storage Architectures
Selecting the optimal storage layout requires aligning throughput velocity, inventory diversity, and real estate footprint. The table below illustrates the mechanical and operational trade-offs engineered across our primary product classifications:
| Racking Topology | Storage Density | Access Speed | Pallet Selectivity | Handling Machinery | Typical Industry Vertical |
|---|---|---|---|---|---|
| Selective Pallet Rack | Baseline (1.0x) | Rapid (100% direct access) | 100% Direct (Every SKU accessible) | Counterbalance / Reach Truck | 3PL Logistics, Retail DCs, Machinery Parts |
| Double Deep Rack | High (+35–40%) | Moderate (Last-In, First-Out) | 50% Immediate Access | Pantograph Double-Reach Truck | Wholesale Distribution, Cold Chain Storage |
| Drive-In Racking | Very High (+60–75%) | Slow (LIFO Accumulation) | Single SKU per Lane | Drive-in Forklift with Overhead Guard | Beverage Production, Raw Material Buffers |
| Pallet Flow (Gravity) | Ultra-High (+80%) | High Velocity (Strict FIFO) | Lane Level Access | Standard Forklift (Split load/pick aisles) | Pharmaceuticals, Perishable Foods, Dairy |
| Radio Shuttle System | Maximum (+100%) | Very Fast (Automated Shuttle) | Flexible FIFO / LIFO by Lane | Radio Pallet Shuttle + Standard Forklift | Automated Cold Storage (-25°C), High-volume FMCG |
4. Environmental & Surface Finish Durability: Advancements in Powder Metallurgy
Warehouse installations in coastal regions or chemical processing hubs experience rapid rust corrosion if surface pre-treatments are sub-standard. Leading manufacturing methodologies replace manual degreasing with fully enclosed automated 9-stage shower tunnel pre-treatments (including acid pickling, zinc phosphating, and deionized water rinsing). When coupled with thermosetting polyester powder electrostatically sprayed at 60–80 microns thickness, salt spray corrosion resistance is upgraded beyond 500 hours (ASTM B117 standards), doubling service longevity in demanding working environments.
Frequently Asked Questions by Industrial Sourcing Directors
In-depth technical answers addressing steel certifications, safety compliance, freight optimization, and project engineering.
Q1: How does your factory certify rack compliance with European EN standards?
Our structures are designed and tested strictly according to EN 15512:2020 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) and EN 15620 for system tolerances. We hold factory production control certification CE Certificate No. 2435-CPR-8605159. Detailed finite element analysis (FEA) reports and calculation dossiers verified by third-party certifiers are provided for local authority building permits.
Q2: What specific steel grade is utilized, and do you furnish Mill Test Certificates?
We source primary hot-rolled and cold-rolled coil steel directly from Tier-1 state-owned mills (such as Baosteel and Shougang). Our heavy-duty uprights and box-beams are manufactured from high-yield Q235B and Q355B structural steel. Every shipment is accompanied by original EN 10204 Type 3.1 Mill Test Certificates (MTC) documenting chemical composition, tensile strength, yield limits, and Charpy impact values.
Q3: Can beam profiles and connectors be customized for existing European rack systems?
Yes. We have precision tooling to manufacture customized upright teardrop or diamond slot patterns (such as 50mm pitch, 75mm pitch, or 76.2mm American teardrop pattern). We can custom-cast 3-hook, 4-hook, or 5-hook connector brackets engineered to securely dock into existing upright columns for seamless warehouse expansion projects.
Q4: What is the standard manufacturing lead time and sea freight handling process?
Standard fabrication cycle for 2 to 10 full container loads (40ft HQ) ranges from 15 to 25 working days. Our engineering pack-list assigns numerical IDs corresponding with assembly drawings. Components are strapped on steel dunnage with protective corner guards to allow rapid unstuffing at destination docks via forklift extensions without coating abrasion.
Q5: What safety accessories are included to satisfy periodic EN 15635 inspections?
We engineer a full array of warehouse safety accessories including wrap-around column protectors, heavy-duty floor-mounted omega corner guards, double-sided pallet backstop beams, electro-galvanized wire mesh decking with under-beam waterfall edges, and standardized multilingual aluminum/PVC load rating capacity warning plaques.
Q6: How do you guarantee stability and performance in sub-zero cold chain environments?
For temperatures between -25°C and -35°C, standard steel can experience low-temperature brittleness. We supply specialized impact-tested steel grades (such as Q355D/E) combined with cold-resistant TGIC-free polyester powder coatings. In shuttle racking systems, internal electronics, sensor seals, and low-temperature lithium iron phosphate battery packs are IP65 hermetically sealed to prevent moisture condensation.
Request Engineering Layout & Factory Price Matrix
Send your warehouse DWG floor plan, ceiling clear heights, and pallet payload parameters. Our engineering department will furnish a comprehensive 3D layout, static calculation table, and factory-direct quotation within 24 hours.
