Featured Industrial Bulk Storage Racking & Shelving Systems
Manufactured using high-tensile cold-rolled structural steel, robotic multi-point welding, and certified under CE No. 2435-CPR-8605159 and ISO 9001:2015. Explore eight core engineering architectures engineered for global logistics hubs and distribution centers.
Intelligent Pallet Rack System 4 Way Shuttle Pallet Rack Automated Storage System Shuttle Rack
High-throughput bidirectional and omnidirectional carrier integration. Reduces aisle space up to 80% while enabling dynamic pallet routing and full PLC warehouse management integration.
Mracking Durable Warehouse Supermarket Heavy-duty Shelving Equipment Retail Store Display Racks Customized 1000-5000kg Per Layer
Hybrid cash-and-carry design combining consumer-facing lower display decks with commercial bulk pallet reserves overhead. Fully bolted frame structure with safety clip engagement.
AOCHEN Industrial Collapsible Adjustable Gravity Roller Shelves Steel Flow Rack Shelving System High-Strength
Continuous gravity-fed roller lane shelving ideal for perishable goods, pharmaceutical compliance, and fast-moving consumer carton or pallet sorting lines. Zero energy operating cost.
Industrial Heavy Duty Push-Back Pallet Racking System Anti-Collision Corrosion Protection 30000kg Capacity Steel Wire Mesh Deck
Telescopic nested cart tracks mounted on structural slope channels. Offers selective aisle picking combined with dense storage geometry for batch manufacturing warehouses.
Metal Frame Structure Prefabricated Warehouse/ Workshop/ Hangar/ Steel Structure Building
Turnkey structural steel portals engineered with integrated anchor profiles for high-bay racking loads, overhead bridge cranes, and heavy thermal insulation envelope systems.

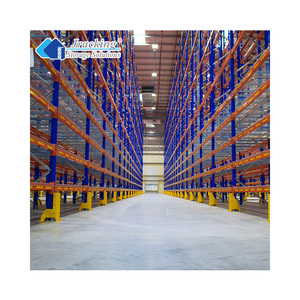

Jracking Dexion Pitch 76.2 mm Style Warehouse Beam Pallet Rack System
Fully compliant with traditional European and Commonwealth warehouse configurations. Features cold-formed upright profiles compatible with existing Dexion structural racking installations.
Customizable Industrial Storage Rack Adjustable Metal Pallet Racking Corrosion Protection Steel Warehouse Rack Stacking Shelves
All-purpose industrial shelving and beam racking with precision stamped connectors. Rapid assembly without specialized welding, perfect for dynamic 3PL regional distribution operations.
Wholesale Custom Heavy Duty Industrial Rack for High Load 2000 Kilos Per Level Warehouse Storage Tear Drop Pallet Racking System
Precision-punched standard North American teardrop pattern. Tool-less pin engagement, high torsional rigidity box beams, and integrated wire decking support for wholesale distribution.
Guangzhou HEDA Shelves: 25 Years of Precision Manufacturing
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates state-of-the-art heavy engineering facilities dedicated to the design, FEA structural calculation, roll-forming, and automated coating of bulk storage racking systems.
The 10-Stage Industrial Production & Quality Control Framework
Every batch conforms to rigorous metallurgic yield tolerances and international structural standards (EN 15512, FEM 10.2.02, and RMI MH16.1).
Engineering Comparative Matrix: Selecting Industrial Shelving Systems
Operational efficiency in large fulfillment centers depends on selecting the structural typology that matches SKU diversity, inventory turnover frequency, and clear building ceiling heights. Use this engineering comparison to guide system specification.
| Racking Architecture | Volumetric Space Utilization | Pallet Selectivity | Inventory Rotation | Handling Equipment Required | Initial Capex Level |
|---|---|---|---|---|---|
| Standard Selective Racking | 40% - 50% | 100% Immediate Direct Access | FIFO or LIFO | Standard Counterbalance / Reach Truck | Economic (Baseline) |
| 4-Way Automated Shuttle | 85% - 95% | Lane Dependent (Computerized) | Configurable FIFO/LIFO | Automated Carrier + Vertical Hoist | High (Fast ROI) |
| Drive-In / Drive-Through | 70% - 80% | Low (Per Lane Batch Access) | Strict LIFO (FIFO in Drive-Through) | Reach Truck / Specialized Cab Guard | Moderate |
| Cart Push-Back Racking | 65% - 75% | Medium (1 Face Per SKU Lane) | LIFO (Gravity Cart Reset) | Standard Forklift | Intermediate |
| Gravity Roller Flow Racks | 75% - 85% | Picking Face Accessible | Strict Dynamic FIFO | Dual-Aisle Loader and Picker | Intermediate-High |
| Very Narrow Aisle (VNA) | 60% - 70% | 100% Direct Selective | FIFO or LIFO | Specialized Turret Truck / Wire Guide | Moderate-High |
| Rack-Supported Mezzanines | 100% Floor Gain | Manual Shelving Access | Batch / E-Commerce Picking | Pedestrian Picking / Belt Conveyors | Medium (Structural) |
Cold-Formed Section Modulus
Uprights engineered from premium Q355B low-alloy carbon steel yield minimum tensile strengths exceeding 470–630 MPa. Multi-rib omega and dual-flange channel profiles resist torsional twisting under high vertical point loading and asymmetric live impacts.
- Calculated per EN 15512 Limit State Design
- Elastic deflection ratios maintained below L/200
- Yield strength safety factor ≥ 1.5
Interlocking Connector Physics
Standard friction pins frequently shear under dynamic pallet drop. HEDA utilizes heavy-duty cold-stamped 3-claw, 4-claw, and 5-claw beam end connectors with integral high-tensile auto-locking spring safety pins that lock tighter under beam rotation moments.
- High rotational stiffness (C_j parameter)
- Independent shear resistance over 10 kN per pin
- Fail-safe visual engagement confirmation
Corrosion Barrier Electrochemistry
Warehouse humidity and aggressive chemical emissions in logistics hubs degrade standard liquid paints. HEDA applies strict 7-stage pre-treatment followed by electrostatic powder deposition cured at 200°C, producing exceptional mechanical wear resistance.
- Salt spray resistance: > 500 hours (ASTM B117)
- Pencil hardness rating ≥ 2H
- RoHS compliant, non-toxic VOC-free cure
Future Procurement Trends in Industrial Storage (2025–2030)
The global warehousing landscape is evolving rapidly under pressures of land scarcity, real estate inflation, and labor shortages. Smart buyers are re-aligning their capital budgets around these four structural supply trends.
1. Vertical Cube Saturation
Rising industrial rents across major trade corridors make expanding building footprints cost-prohibitive. Warehouses are shifting from horizontal sprawl to vertical utilization heights exceeding 18 to 24 meters, using specialized VNA racking and automated stacker cranes to maximize volumetric density.
- Elimination of wasted overhead air rights
- Floor capacity load ratings up to 10,000 kg/m²
- Direct integration with automated cranes
2. Cold-Chain Racking Densification
Refrigerated storage incurs 4x to 6x the energy cost of ambient distribution space. Global cold-chain buyers are phasing out standard selective aisles in favor of high-density 4-way radio shuttle lanes and automated gravity beds that compress refrigerated cubic air volume and trim energy use.
- Steels formulated for brittle fracture resistance
- Special low-temperature powder resins
- Thermal-stable lubricants on mobile shuttles
3. Factory-Direct Disintermediation
Procurement leaders are bypassing third-party trading intermediaries to partner directly with source equipment manufacturers. Direct factory sourcing provides custom CAD configuration, verified mill test certifications, transparent lead-time tracking, and significant margin savings.
- Full engineering transparency & FEA models
- Private-label OEM branding for distributors
- Substantial direct container savings
4. Modular Mezzanine Conversion
Rather than acquiring greenfield plots, logistics operators are converting existing industrial real estate into multi-tier picking structures. Heavy structural steel and rack-supported mezzanine floors quickly double or triple usable floor space without civil permitting delays.
- Clear span flooring supporting 300–1,200 kg/m²
- Fast bolt-together erection schedules
- Classified as capital equipment for taxation
Technical Buyer Frequently Asked Questions
Answers to critical engineering, loading, compliance, and logistics questions commonly evaluated by warehouse directors, corporate supply managers, and logistics consultants.
How does HEDA determine seismic engineering calculations?
Seismic load validation follows Eurocode 8 (EN 1998) or RMI / ANSI MH16.1 specifications, factoring your warehouse location's peak ground acceleration (PGA), soil structural category, and operating building height. Frame bracing geometry, footplate anchorage diameters, and upright section thicknesses are adjusted to ensure the system withstands dynamic horizontal acceleration without structural unseating.
What structural differences exist between 76.2mm Dexion, 50mm pitch, and Teardrop?
The difference lies in connection geometry and punching patterns. Teardrop (common in North America) uses a tapered slot that relies on gravity and wedging action. The 76.2mm (3-inch) Dexion system is the historical standard across the UK and Commonwealth regions, providing high moment resistance. The 50mm pitch is the European standard, maximizing vertical beam adjustability and pallet height clearance. HEDA operates tooling lines for all three.
Can your pallet racking support EUR/EPAL (1200 x 800mm) and ISO (1200 x 1000mm) pallets?
Yes. Bay beam lengths (e.g., 2,700mm for three Euro pallets or 2,300mm for two ISO industrial pallets) and upright frame depths (typically 1,000mm or 1,100mm) are configured around specified pallet dimensions, standard overhangs (50–75mm), and safety clearances mandated by EN 15620 guidelines.
How are overseas containers loaded to prevent damage during ocean transit?
Upright frames and long horizontal beams are bundled using heavy steel banding, fitted with protective dunnage timber blocks, and wrapped in vapor-inhibiting polyethylene foil. Components are sequenced according to site installation order and rigged with lifting loops for safe, damage-free unloading via counterbalance forklifts at the destination port or facility.
What factory documentation and test certs are supplied with each export batch?
Every export shipment includes mill test certificates (MTC) verifying raw coil chemistry and tensile yield, third-party CE structural conformity certificates (No. 2435-CPR-8605159), ISO 9001:2015 traceability audits, dry film thickness (DFT) paint test logs, certified bay loading safety plaques, and comprehensive CAD layout assembly blueprints.
What is the typical production and delivery cycle for custom factory racking?
Standard custom project fabrication runs between 15 and 30 business days depending on tonnage and coating requirements. Ocean transit to European base ports (Rotterdam, Hamburg, Antwerp) typically ranges from 28 to 35 days, while direct ocean routes to US/Canada West Coast ports take approximately 18 to 22 days.
Request an Engineered Warehouse Storage Layout & Factory Quote
Collaborate directly with HEDA's senior structural engineers. Submit your warehouse floor plan (CAD or PDF), clear ceiling height, pallet specifications, and handling equipment parameters to receive a complimentary 3D layout, static calculation, and competitive factory-direct proposal.
