25+
Years Engineering Experience
30,000t
Monthly Cold-Rolled Capacity
10,000+
Global Warehouse Turnkeys
100%
FEM / EN 15512 Compliance
Production Portfolio

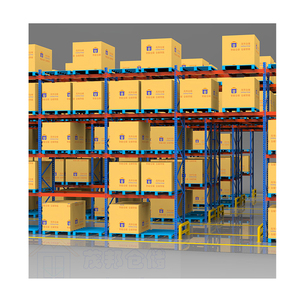

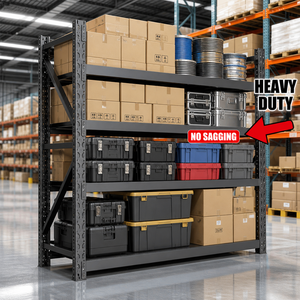

High Bay Racking & Industrial Storage Equipment Systems
From heavy-duty selective frameworks engineered for Euro pallets to cutting-edge AS/RS multi-tier rack structures, explore our certified supply solutions designed to maximize volumetric capacity.
Enterprise Credentials
Why Tier-1 3PLs and General Contractors Choose HEDA Shelves
Combining heavy-industry manufacturing muscle with turnkey logistics engineering, our certified Guangzhou plant ensures structural longevity and complete compliance with European safety standards.
Full-Scale Direct Manufacturing Since 2001
Unlike trading intermediaries, HEDA operates a continuous 30,000 square meter modernized manufacturing complex backed by over 300 skilled technical staff. Our monthly processing output exceeds 30,000 tonnes of cold-rolled structural steel, ensuring guaranteed supply chain resilience and predictable lead times across large capital infrastructure projects.
- CE Marking & Structural Safety: Fully certified under CE Certificate No. 2435-CPR-8605159, adhering to EN 15512, EN 15620, and EN 15635 structural design and tolerance standards.
- Total Quality Control (ISO 9001:2015): Stringent 10-phase internal fabrication protocol spanning automated column punch presses, specialized roll-forming lines, shot blasting, pickling/phosphating, and electrostatic powder coating.
- End-to-End Engineering Verification: In-house structural calculation calculations, finite element analysis (FEA), and complimentary 3D CAD layout schemes delivered before commercial commitment.
Material Integrity & Steel Grade
We source certified high-tensile Q235B and Q355B cold-rolled steel coils directly from domestic tier-1 mills. Mill test certificates (MTC) confirm uniform yield points, zero micro-fracturing during cold bending, and high ductility under seismic or unexpected impact loadings.
Surface Treatment & Anticorrosion
Every frame and load beam undergoes a continuous 8-stage automated pre-treatment line, including acid pickling, ultrasonic degreasing, and zinc phosphating before electrostatic polyester powder application. This yields a 60–80 µm finish offering superior abrasion resistance and C3/C4 atmospheric durability.
Turnkey Export Packaging & Logistics
All upright columns, boxed step-beams, and bracings are bundled using custom timber skids, steel-strapped protective corner collars, and vapor-corrosion-inhibiting (VCI) shrink wrap. Complete component marking codes align seamlessly with your local DWG assembly blueprints for rapid installation.
Industry Whitepaper & Intelligence
High Bay Racking Procurement & Engineering Evolution: 2026–2030
A comprehensive technical analysis of how skyrocketing urban land costs, autonomous handling vehicles, and strict structural safety guidelines are radically reshaping high-bay warehouse procurement worldwide.
1. Convergence of AS/RS & Clad-Rack Buildings
Modern distribution complexes are pivoting away from traditional concrete tilt-up halls toward rack-supported clad buildings exceeding 30 to 45 meters in clear height. In these setups, the high-bay racking system acts as the primary structural frame supporting the roof and side cladding panels, reducing overall civil expenditure by 22% to 35% while eliminating interior structural columns.
2. Autonomous Mobile Robot (AMR) & VNA Integration
While traditional Very Narrow Aisle (VNA) systems rely on man-up turret trucks, current procurement strategies focus heavily on 3D laser-guided shuttles and autonomous reach trucks. Racking specifications now necessitate ultra-tight tolerance thresholds—meeting EN 15620 Class 100/200 requirements—with sub-millimeter deflection tolerances across both loaded and unloaded operational states.
3. Digital Twin Modeling & Sensorized Racks
Procurement teams increasingly mandate real-time structural health monitoring (SHM). By integrating strain gauges, wireless tilt sensors, and LiDAR collision-detection beacons into upright columns, modern operators detect forklift micro-impacts and uneven overloading conditions before structural integrity is compromised, lowering lifelong maintenance costs.
Comparative Structural Selection Matrix for High Bay Systems
Selecting the optimal racking typology requires balancing operational throughput, SKU variance, forklift aisle widths, and volumetric utilization.
| Racking Architecture | Max Clear Height | Aisle Width (AST) | Pallet Selectivity | Floor Space Utilization | Applicable Handling Fleet |
|---|---|---|---|---|---|

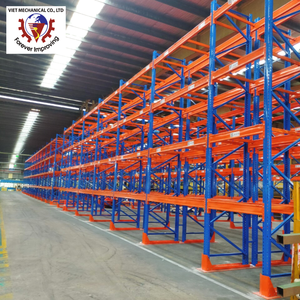

| Standard Selective High Bay | Up to 12.5 meters | 3.0 m – 3.5 m | 100% (Direct Access) | 40% – 50% | Counterbalance & Reach Trucks |
| Very Narrow Aisle (VNA) | Up to 18.0 meters | 1.6 m – 1.9 m | 100% (Direct Access) | 65% – 75% | Turret Trucks / Wire-Guided AGVs |
| Radio Shuttle High Density | Up to 24.0 meters | 2.6 m – 3.0 m (Transfer) | Lane Dependent (FIFO/LIFO) | 80% – 88% | Semi-Auto Shuttles + Reach Trucks |
| Automated AS/RS Crane System | Up to 45.0 meters | 1.4 m – 1.6 m | Automated Dynamic | 90% – 95% | Dual-Mast Stacker Cranes & WCS |
Procurement Knowledge Base
Frequently Asked Questions on High Bay Racking Engineering & Sourcing
Direct technical answers addressing structural calculations, slab load requirements, fire safety integration, and international customs clearance.
What warehouse slab specifications are necessary before installing high bay racking systems?
High-bay installations (exceeding 8–10 meters) exert massive concentrated point loads through baseplates to the concrete sub-slab. Slabs generally require a compressive strength of C25/30 or C30/37 reinforced with rebar meshes or synthetic steel fibers to prevent punch-through shear failure. For VNA and automated stacker crane aisles, floor flatness must rigorously comply with DIN 18202 Table 3 (Group 4) or EN 15620 classifications to eliminate mast sway, excessive vibrational resonance, and mechanical fatigue at elevated levels.
How do high bay racking layouts satisfy NFPA 13 and EN 12845 in-rack sprinkler standards?
When racking height surpasses standard ceiling sprinkler suppression limits (typically 7.6 to 9.1 meters depending on commodity class), in-rack sprinkler arrays are legally mandated. Our engineering team incorporates designated longitudinal and transverse vertical flue spaces (typically 75 mm to 150 mm) into the CAD model. Beam configurations and wire mesh deck structures are engineered to prevent horizontal fire spreading, ensure unhindered water penetration, and house sprinkler pipe runs within protective structural frame contours.
What engineering documents are provided to support third-party building permits and safety sign-offs?
Every project comes with a comprehensive structural calculation dossier prepared by certified structural engineers. This covers dead weight, live storage loads, dynamic impact coefficients, wind/seismic actions according to Eurocode 1 & 3 (or local IBC/UBC equivalents), and floor anchor pull-out test data. Additionally, we provide official CE Declarations of Performance (DoP), ISO 9001 factory inspection certificates, mill test reports for raw steel, and load warning plaques (EN 15635 compliant) ready for permanent display on the rack frames.
How does HEDA handle international shipping, customs documentation, and on-site assembly supervision?
We provide comprehensive global logistical arrangements on Incoterms ranging from FOB and CIF to complete DDP delivery. Cargo is optimized via 3D container stuffing algorithms to maximize weight and cube boundaries across 40HQ open-top or standard containers, minimizing ocean freight rates per pallet position. Along with detailed component tagging and 3D step-by-step erection manuals, we can dispatch bilingual on-site site installation directors or provide real-time remote engineering audits throughout your erection and commissioning phases.
Can customized RAL colors and galvanization options be specified for cold room and corrosive facilities?
Yes. While standard uprights are finished in Signal Blue (RAL 5005) or Traffic Orange (RAL 2004), our in-house powder coating lines accommodate any specific RAL identity specified by warehouse operators. For walk-in cold rooms, sub-zero freezers down to -30°C, or outdoor raw lumber yards, we supply pre-galvanized or hot-dip galvanized steel components with zinc weights exceeding 450 g/m² to prevent blistering, oxidation, and brittle failure at cryogenic temperatures.
Accelerate Your High Bay Storage Facility Planning
Send our structural logistics engineering team your architectural building CAD file (DWG / PDF), pallet handling dimensions, and loading requirements to receive a complete, optimized warehouse storage proposal and structural engineering quote within 24 hours.
