Certified Heavy-Duty Metal Pallet Racking Systems
Engineered from premium Q235B/Q355B cold-rolled structural steel, optimized for standard EUR/EPAL pallets (1200 × 800 mm) and ISO Iberian industrial pallets (1200 × 1000 mm). Direct ex-factory supply with verified load deflection certificates.
Competitive Price Industrial Medium Duty Longspan Rack Wholesale
Versatile step-beam shelving engineered for non-palletized picking, parcel distribution hubs, and intermediate manual loading.
- Shelf Payload: 300 – 800 kg/tier
- Pitch Adjustability: 50 mm increments
- Surface Finish: Electrostatic Epoxy Powder
Heavy Duty URGO Available Slotted Angle Pallet Racking System
High-torsion slotted uprights designed for rapid boltless assembly and re-configuration across rapid-turnover logistics bays.
- Bay Capacity: Up to 15,000 kg
- Steel Specification: Q235B / S235JR equivalent
- Safety Factor: 1.5 structural coefficient
Factory Supply Heavy-Duty Drive-Through Pallet Storage Shelf
Maximizes volumetric utility by eliminating standard operational aisles. Designed for homogenous SKU batches and cold storage.
- Space Utilization: Up to 85% volumetric
- Rotation Format: FIFO / LIFO configurable
- Guide Rails: Reinforced floor channels
Custom Small & Medium Industrial Steel Shelf Pallet Track
Tailored multi-tier shelving systems featuring integrated pallet flow tracks for lean manufacturing and automotive workshop inventory.
- Beam Section: Box beam 80×50 to 140×50
- Level Load: 1,000 – 3,000 kg/tier
- Connector: 3 & 4-claw safety hook
Customized Anti-Corrosion Heavy-Duty Folding Pallet Racking
Pre-treated with automated pickling and phosphating for superior humidity and anti-corrosion resistance in coastal Spanish regions.
- Coating: 60-80μm electrostatic epoxy
- Corrosion Proof: Saline-tested ISO 9227
- Custom Colors: RAL 5015 / RAL 2004 standard

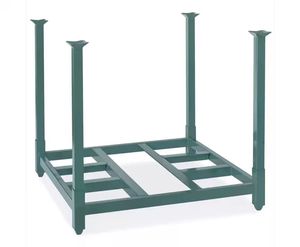

Heavy Duty Steel Stackable Post Racks for Dynamic Logistics
Movable, stackable modular steel cradles enabling flexible buffer storage for seasonal surges without drilling warehouse slab anchors.
- Stacking Rating: Up to 4–5 tiers dynamic
- Load per Post: 1,000 – 1,500 kg unit
- Portability: Foldable when demounted
Adjustable 4-Layer Powder Coated Metal Storage Warehouse Shelf
Compact footprint, precision cold-formed uprights suited for fulfillment centers, spare part retail racks, and mezzanine floor decks.
- Unit Weight Cap: 300 – 500 kg/tier
- Decking Medium: Steel panel or wire deck
- Assembly: 100% Interlocking, pin-locked
Factory Direct Heavy Duty Storage Industrial Steel Pallet Racking
Our primary selective pallet racking configuration utilized widely in distribution hubs across Zaragoza (PLAZA) and Madrid's Corredor del Henares.
- Load per Pair: 1,000 – 4,500 kg (per level)
- Height Profile: Up to 15 meters seamless
- Compliance: UNE-EN 15512 / CE certified
Engineering Metal Pallet Racking for the Iberian Logistics Infrastructure
Modern distribution facilities across the Kingdom of Spain operate under rigorous mechanical directives. Sourcing directly from an established overseas manufacturer requires strict compliance with European structural racking norms, verification of raw materials, and seismic load engineering.
| Racking Architecture | Pallet Accommodation | Structural Norm | Volumetric Efficiency | Access Factor | Ideal Spain Regional Sector |
|---|---|---|---|---|---|
| Selective Pallet Racking | 1200×800 EUR / 1200×1000 | UNE-EN 15512 | Baseline (40% - 50%) | 100% Direct Immediate | 3PL & Retail Fulfillment (Corredor del Henares, Madrid) |
| Drive-In / Drive-Through | Homogenous Pallet Loads | UNE-EN 15620 | High (Up to 80%) | Lane Dependent (LIFO/FIFO) | Cold Storage & Citrus Distribution (Valencia & Murcia) |
| Radio Shuttle Automation | Deep-lane Palletized Units | FEM 10.2.07 | Maximum (85% - 90%) | Semi-Automated Indexing | Food Manufacturing & Frozen Logistics (Andalusia & Navarre) |
| Heavy-Duty Cantilever | Long Profiles, Tubing, Timber | UNE-EN 15635 | Variable Longitudinal | Continuous Front Access | Ceramic Slab & Marble Storage (Castellón & Novelda) |
| Narrow Aisle (VNA) | High-Bay Pallet Storage | UNE 58014 | High (65% - 75%) | 100% Direct via Turret | Automotive Tier-1 & Tier-2 (Martorell & Almussafes) |
Structural Steel Metallurgy & Safety Factors: Guangzhou Heda Shelves utilizes certified Q235B and Q355B high-tensile cold-rolled steel coils, exhibiting chemical and mechanical equivalency to European grades S235JR and S355JR as per EN 10025. Upright column uprights undergo precision CNC punching and continuous multi-stage roll-forming to ensure uniform profile thickness, eliminating internal micro-stresses that trigger structural buckling under lateral deflection.
Surface Treatment & Environmental Resilience: Spain's coastal logistics clusters—including the Port of Barcelona, the Port of Valencia, and Algeciras—face severe maritime atmospheric salinity (C3 to C4 corrosion categories as per ISO 12944). Our factory enforces a comprehensive 10-step surface preparation line, encompassing chemical degreasing, zinc-phosphate conversion dipping, and high-voltage electrostatic curing with epoxy-polyester powder (dry film thickness 60–80 µm). This process guarantees high mechanical impact resistance against forklift guide rollers and prolonged resistance to saline fog oxidation.
Localized Application Scenarios Across Spain's Key Industrial Hubs
The Iberian Peninsula functions as the primary southern logistical gateway to Europe. We tailor warehouse layout designs to address local land costs, slab limitations, and material handling workflows across Spain's regional economies.
Central 3PL & E-Commerce: Madrid & Corredor del Henares
Logistics hubs in Coslada, San Fernando de Henares, and Illescas handle staggering parcel volumes. We deploy high-bay selective pallet racking paired with wire mesh deck infills and rack-supported picking mezzanines to maximize vertical cubic meterage under tight lease terms.
Cold Chain Agro-Food: Andalusia & Levant (Valencia/Murcia)
The export of citrus, fresh produce, and olive oil requires deep-lane temperature-controlled storage (-25°C to +4°C). Our semi-automated Radio Shuttle racks and heavy-duty Drive-in channels minimize refrigerated air dissipation while ensuring strict FIFO lot control for perishables.
Automotive Clusters: Catalonia (Martorell) & Valencia (Almussafes)
Tier-1 automotive suppliers operate under strict JIT (Just-In-Time) and JIS (Just-In-Sequence) manufacturing rules. We engineer heavy-duty slotted angle pallet systems with drop-in dividers, heavy coil cradles, and dynamic gravity roller tracks for metal stamping and components.
Ceramic & Construction Logistics: Castellón & Novelda
Porcelain tiles, heavy stone slabs, and extruded aluminum profiles present extreme point loads. We provide structural-grade cantilever racking and reinforced double-box beams engineered with concentrated load deflection ratios well within UNE-EN limits (< L/200).
Intermodal Port Terminals: Barcelona ZAL, Valencia, Algeciras
Port bonded warehouses face high inventory turnover and mixed maritime cargo container stuffing. Our versatile adjustable steel racks feature boltless upright-to-beam connectors for rapid lane width reconfiguration to adapt to diverse sea-freight packaging formats.
Cross-Border Iberian Distribution: Zaragoza (PLAZA Hub)
Zaragoza's PLAZA logistics platform coordinates freight between Madrid, Barcelona, the Basque Country, and southwest France. We supply turn-key high-bay installations supporting automated guided vehicles (AGVs) and narrow-aisle turret trucks.
Future-Proofing Warehousing Infrastructure in Spain
The Spanish warehousing sector is undergoing profound modernization driven by rising urban land acquisition costs, stringent seismic safety enforcement, and net-zero sustainability mandates.
1. Mandatory Seismic Engineering (NCSE-02 & Eurocode 8)
While northern Spain is seismically quiet, southern and southeastern provinces—notably Granada, Almería, Murcia, and Alicante—are categorized as active seismic zones under Spain's Norma de Construcción Sismorresistente (NCSE-02). Racking systems are classified as structural equipment that must withstand lateral seismic accelerations ($a_b$). Our technical engineering office conducts finite element analysis (FEA) to calculate base plate dimensions, seismic anchoring depth (M12/M16 chemical anchors), and bracing cross-sections to ensure full local building inspection clearance.
2. Vertical Cubic Optimization vs. Skyrocketing Land Rents
Prime logistics rents in Madrid's first ring and Barcelona's ZAL have surged, compelling warehouse operators to shift focus from horizontal footprint expansion to vertical cubic optimization. Warehouses are routinely specifying rack upright heights of 12m to 15m. This transition mandates tighter manufacturing tolerances (±1.5mm straightness over total length) and beam deflection limitations under UNE-EN 15620 Class 300 to guarantee safe clearance for high-reach reach trucks and wire-guided VNA turrets.
3. BREEAM & LEED Green Building Environmental Compliance
Institutional real estate developers in Spain (e.g., Merlin Properties, Prologis, Montepino) require their logistics assets to achieve BREEAM 'Very Good' or LEED Gold certifications. Guangzhou Heda Shelves supports sustainability compliance through non-toxic, TGIC-free thermoset powder coatings conforming strictly to EU RoHS directives (2011/65/EU), zero volatile organic compound (VOC) emissions, and 100% recyclable structural steel traceability.
Why European & Spanish Contractors Source From Guangzhou Heda Shelves
Operating since 2001, Guangzhou Heda Shelves Co., Ltd. eliminates middlemen markups by coupling direct factory manufacturing muscle with European engineering discipline.
Verified EU Accreditations
Our production plant holds fully verifiable European credentials: CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Certificate No. 18624Q00169R0M. Load tables, mill test certificates (MTC 3.1), and raw material certificates are provided transparently for municipal safety audits.
Free CAD, 3D & Static Calculations
Before steel is cut, our structural engineering team generates complete 2D AutoCAD layout proposals, 3D photorealistic warehouse renderings, and stress-deflection calculations tailored to your forklift turning radius (AST) and specific building slab capacities.
Seamless Shipping to Spanish Ports
Direct export routings from Guangzhou or Shenzhen ports to Valencia, Barcelona, Bilbao, and Algeciras within 28–35 days sea transit. We offer flexible Incoterms (FOB, CIF, or full DDP delivered directly to your job site including EU customs clearance assistance).
Wholesale, OEM & Distributor Supply
We support Spanish material handling distributors, racking installers, and warehouse contractors with private-label OEM fabrication, custom RAL paint color matching (e.g., standard Iberian blue and orange hues), custom punching patterns, and bundled shipping bundles.
Frequently Asked Questions by Spanish Logistics Directors
Clear, engineering-backed answers addressing structural standards, customs importation into the European Union, site installation, and inspection protocols.
1. Do your pallet racks comply with Spanish UNE and European EN standards?
2. How do you accommodate standard European EUR/EPAL pallets versus Spanish industrial pallets?
3. What is the typical shipping lead time and customs procedure to Spanish ports?
4. How is seismic activity in southern Spain (Granada, Alicante, Murcia) calculated?
5. Who handles site installation in Spain, and what assembly documentation is provided?
6. How do your racking systems support mandatory periodic safety inspections under UNE-EN 15635?
Request an Engineered Layout & Factory-Direct Quotation
Send your warehouse floor plan (DWG or PDF), clear ceiling height, pallet dimensions, and forklift specifications. Our engineering department will deliver a preliminary 2D CAD layout and quotation within 24 hours.
