Double Deep Racking System For Flexible Warehouse Storage Distribution And Logistics Operations
Product Description
Overview
WHY CHOOSE VIET LONG AN MECHANICAL?
Direct factory pricing without trading-company intermediaries
Custom engineering based on pallet size, load and warehouse layout
CNC production and robotic welding for consistent dimensions
In-house quality control from raw material to powder coating
Export-standard packaging and optimized container loading
Experience supplying racking and custom metal fabrication to 20+ countries
Suitable for distributors, system integrators and medium-to-large warehouse projects
Products Description

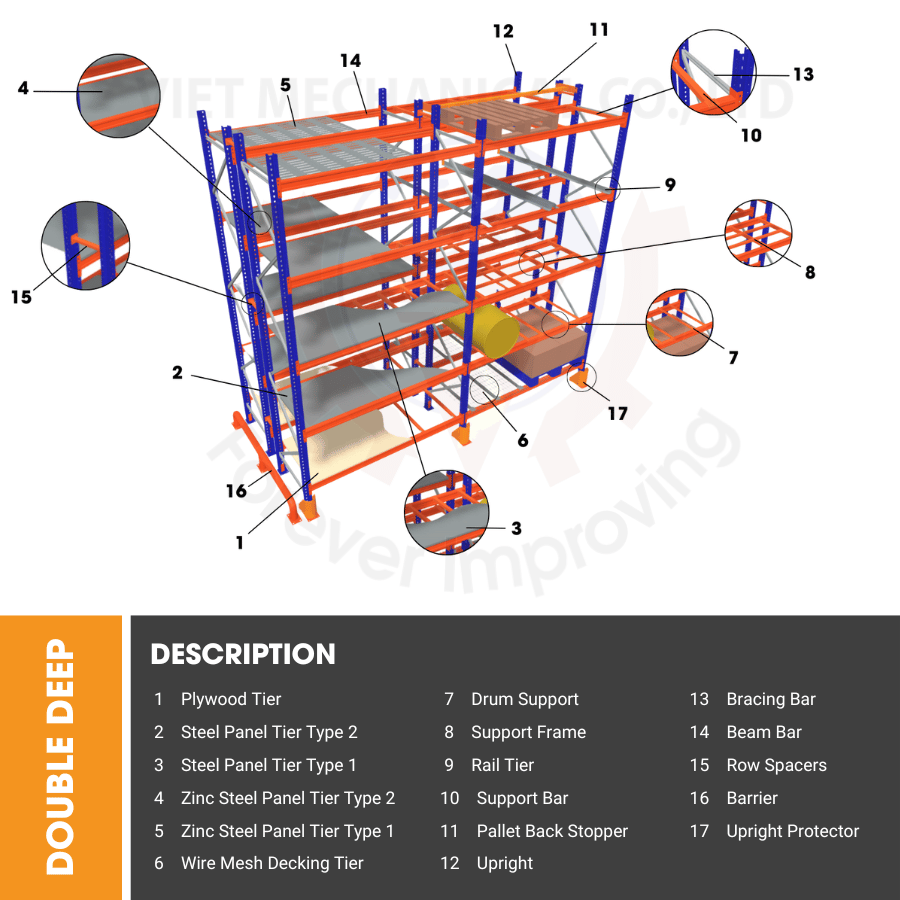

Double Deep Pallet Racking

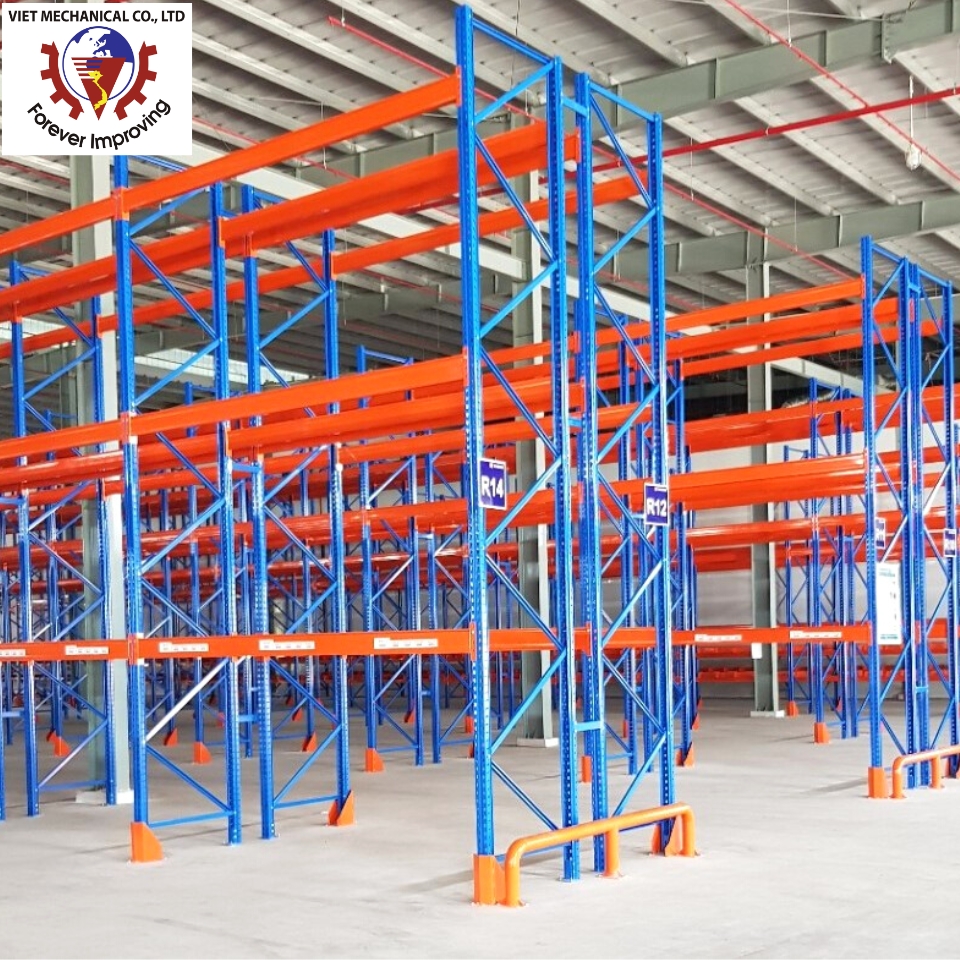

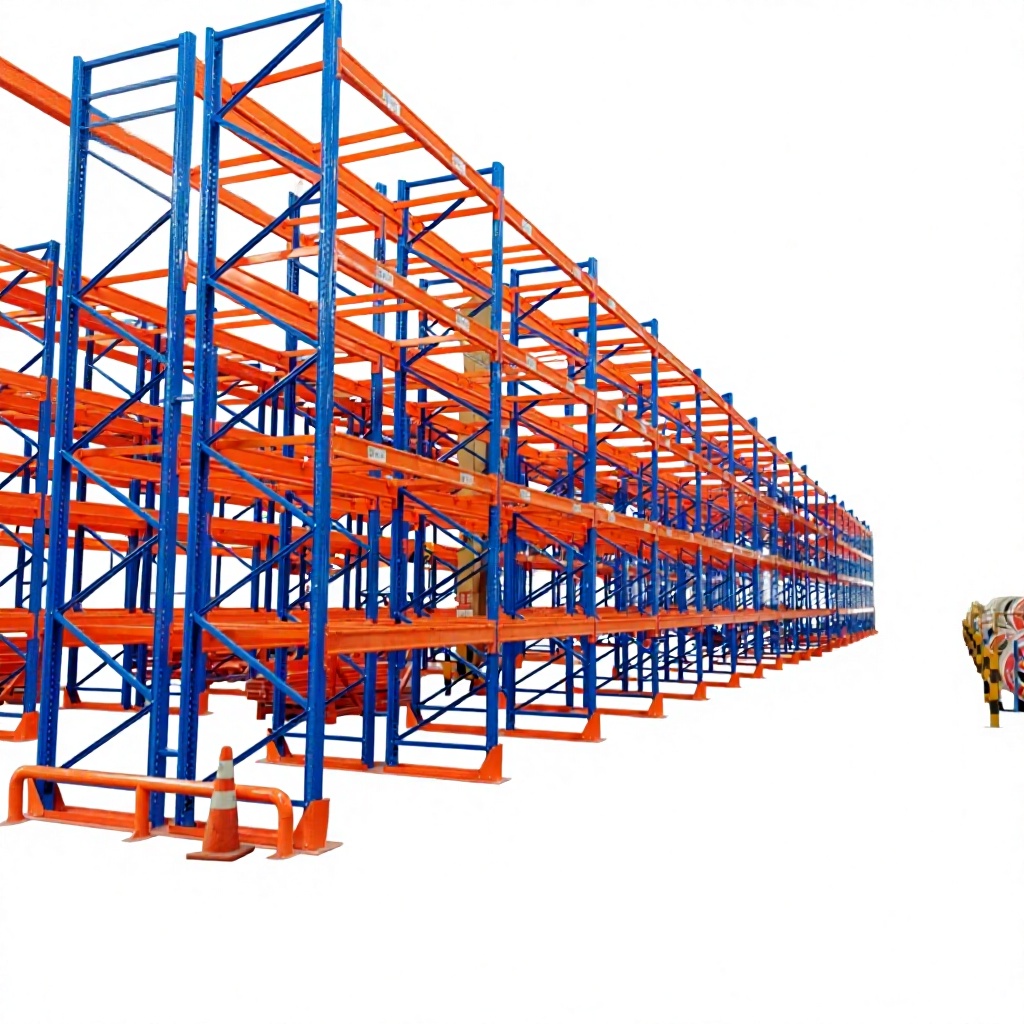

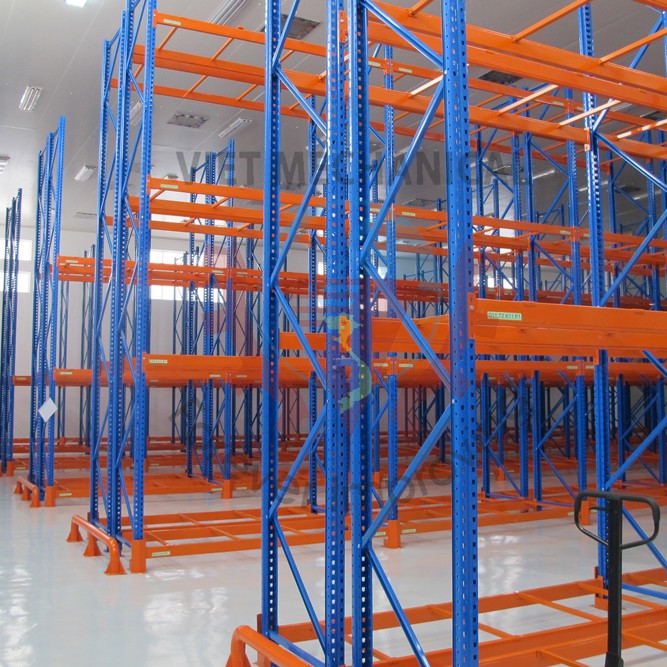

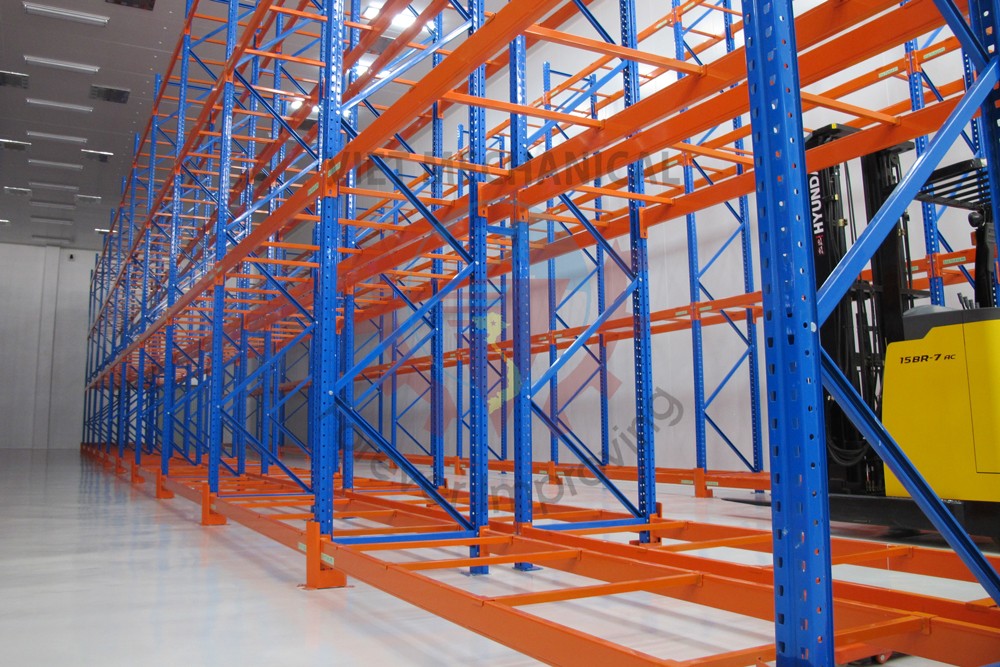

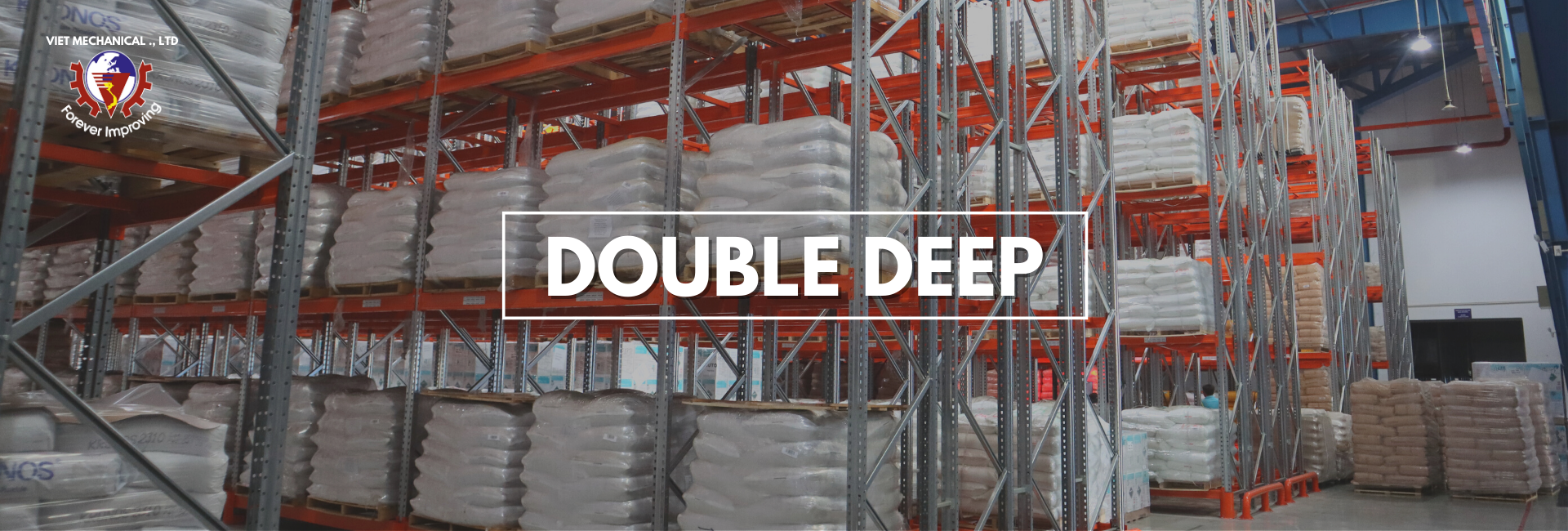

Double Deep Pallet Racking stores pallets two positions deep to increase warehouse storage density. It is ideal for logistics centers, FMCG factories and industrial warehouses requiring higher pallet capacity with efficient forklift operation.
Tradition Pallet Racking
Elevate your warehouse storage efficiency with our Tradition Pallet Racking system, meticulously crafted to meet the demands of modern industrial logistics. Engineered with precision and adhering to rigorous quality standards, our pallet racking solution ensures seamless organization and optimal space utilization.
| Model Number | PALLET RACK | Frame Structure Type | 90*70mm (3.54" * 2.76"), 110*70mm (4.33" * 2.76"), 120*70 mm (4.72" * 2.76") Bolted Upright frame with Baseplate |
| Depth | 1.5 - 2.6mm - Customized 0.059" - 0.102" - Customized |
Beam Type | 100-110-120-130 ... 180mm Box beam (3.94" - 4.33" - 4.72" - 5.12" ... 7.09" Box beam) |
| Weight Capacity | 5.000 - 25.000kg (11023 - 11339lb) | Beam Connector Type | Safety PIN |
| Width | 800 mm-1m2 (31" - 47") | Surface finish | Powder coating & Galvanized |
| Height | 2 - 12m (78" - 472") | Frame Punch Whole Type | Pitch 2" (50.8mm) |
Feature:
- Easy beam installation with no special tools or training required.
- Durable powder coating and baked enamel finishes ensure long life even under the most demanding conditions.
- Beam and column locking system provides exceptional protection against damage, tampering, and accidental disengagement.
- Available in bolted and welded types for added versatility and customization.
Certification
CERTIFICATIONS & BUSINESS VERIFICATION
ISO 9001:2015 and ISO 14001:2015 certified pallet racking manufacturer in Vietnam.
Viet Long An Mechanical is also registered and verified with Dun & Bradstreet (D-U-N-S®).
Production Standards
Human Resource
OUR TEAM
Experienced engineers, skilled production staff and quality-control teams support pallet racking and OEM, ODM, and custom metal fabrication products from design to delivery.
GLOBAL EXHIBITIONS
Viet Long An Mechanical showcases pallet racking, warehouse automation and OEM/ODM custom metal fabrication products at international trade shows, connecting with distributors and B2B buyers worldwide.
Packing & Delivery
FACTORY CAPACITY
Viet-Long An Mechanical delivers 10-20 containers per month. After receiving the order, production can be completed in 20 days.
PACKAGING & GLOBAL SHIPPING
- Export-standard packaging for safe transportation
- Palletized, bundled or wooden-case packing
- Efficient container loading
- 10–20 containers supplied per month
- Production lead time from 20-40 days
- Shipping from Cat Lai Port, Long An International Port (LAIP) Vietnam
- OEM/ODM and bulk B2B orders supported
Contact Us
24/7 CUSTOMER SUPPORT
Send us your warehouse layout, pallet dimensions, load per pallet, required storage capacity and destination port. Our engineering team will recommend a suitable racking configuration and prepare a technical quotation.
FAQ
Q1. Are you a manufacturer?
Yes. Viet Long An Mechanical Co., Ltd. is a direct manufacturer of pallet racking systems and custom-fabricated steel products in Vietnam, with 18 years of experience.
Q2. What is your production capacity?
Our production capacity supports approximately 10–20 export containers per month, depending on product specifications.
Q3. Can you customize products?
Yes. We manufacture according to required dimensions, load capacity, drawings and project specifications.
Q4. How do you ensure product quality?
We control production in-house and inspect materials, dimensions, welding, coating and finished products.
Q5. What is your lead time?
Typically 25–45 days, depending on product specifications, quantity and order complexity.
Q6. Can buyers visit your factory?
Yes. Buyers are welcome to visit our 11,000 m² factory in Tay Ninh, Vietnam.
