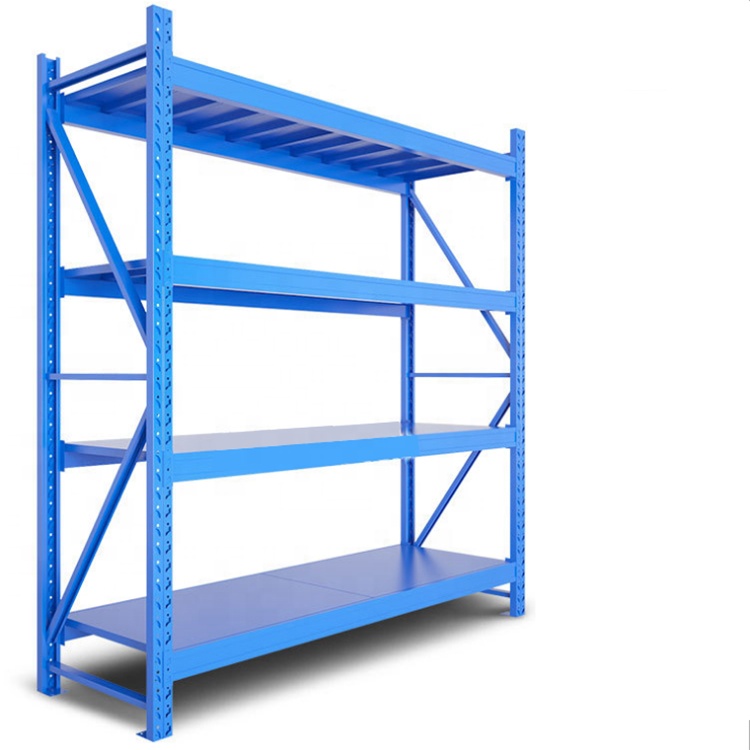

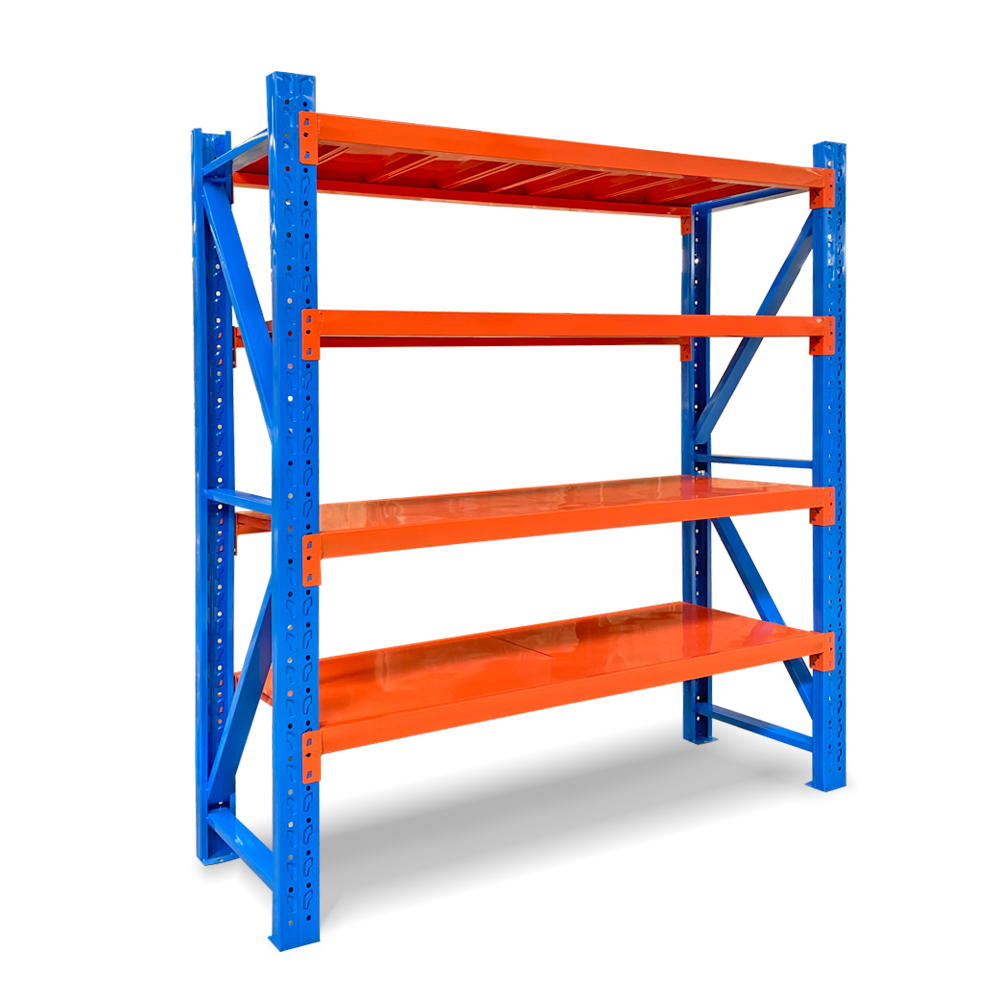

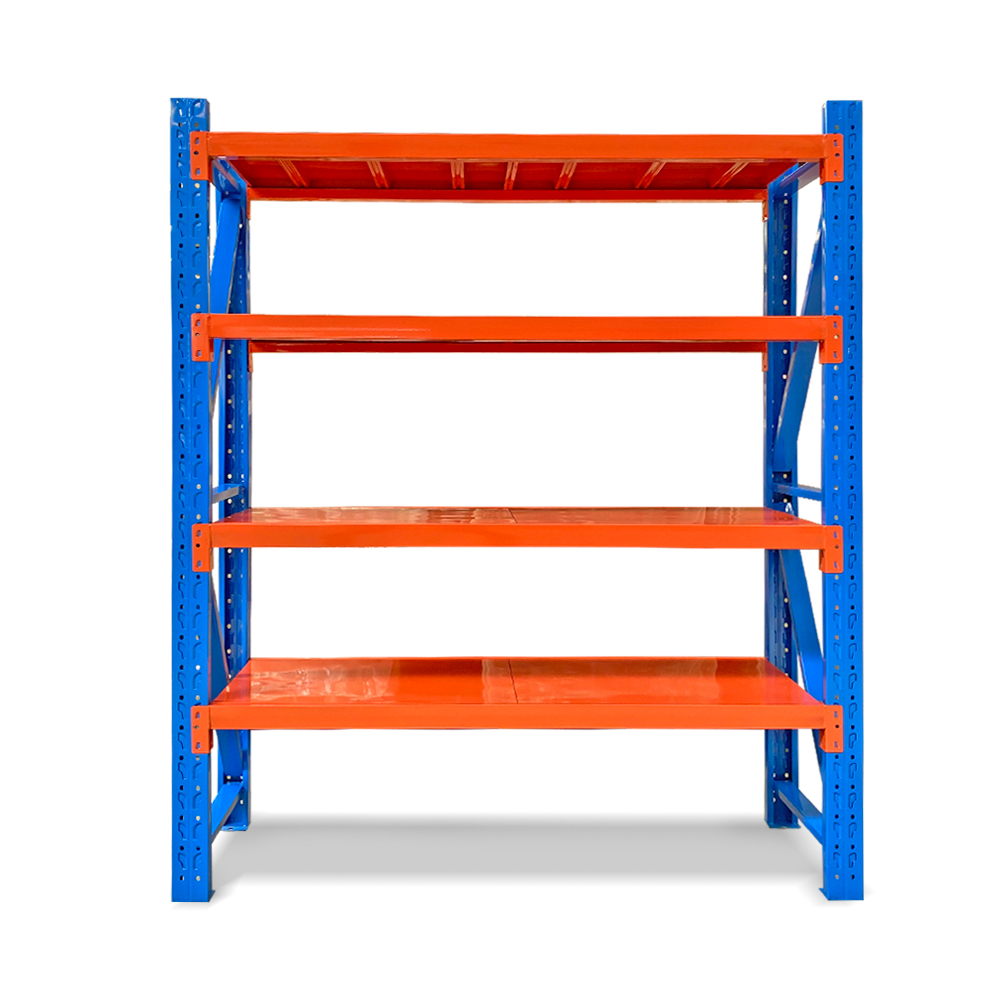

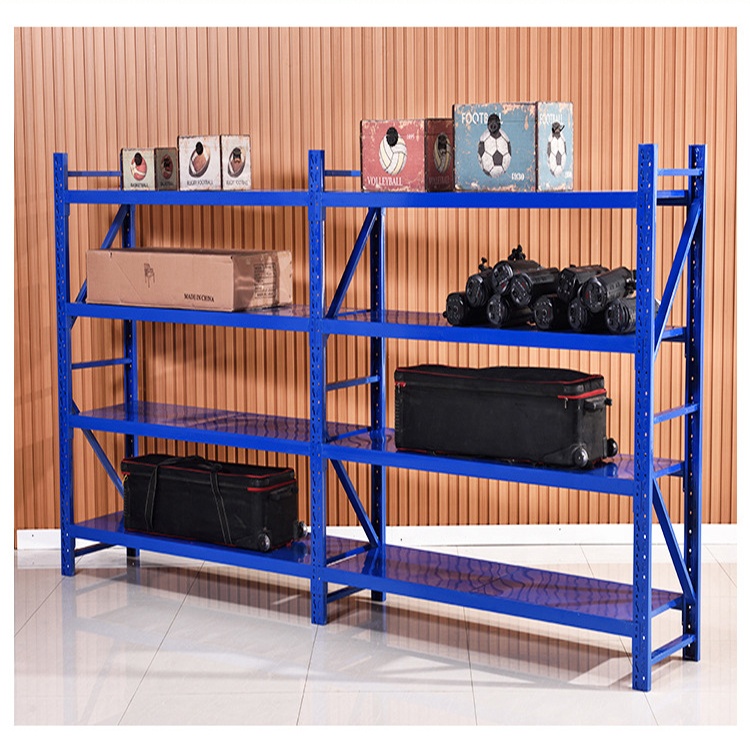

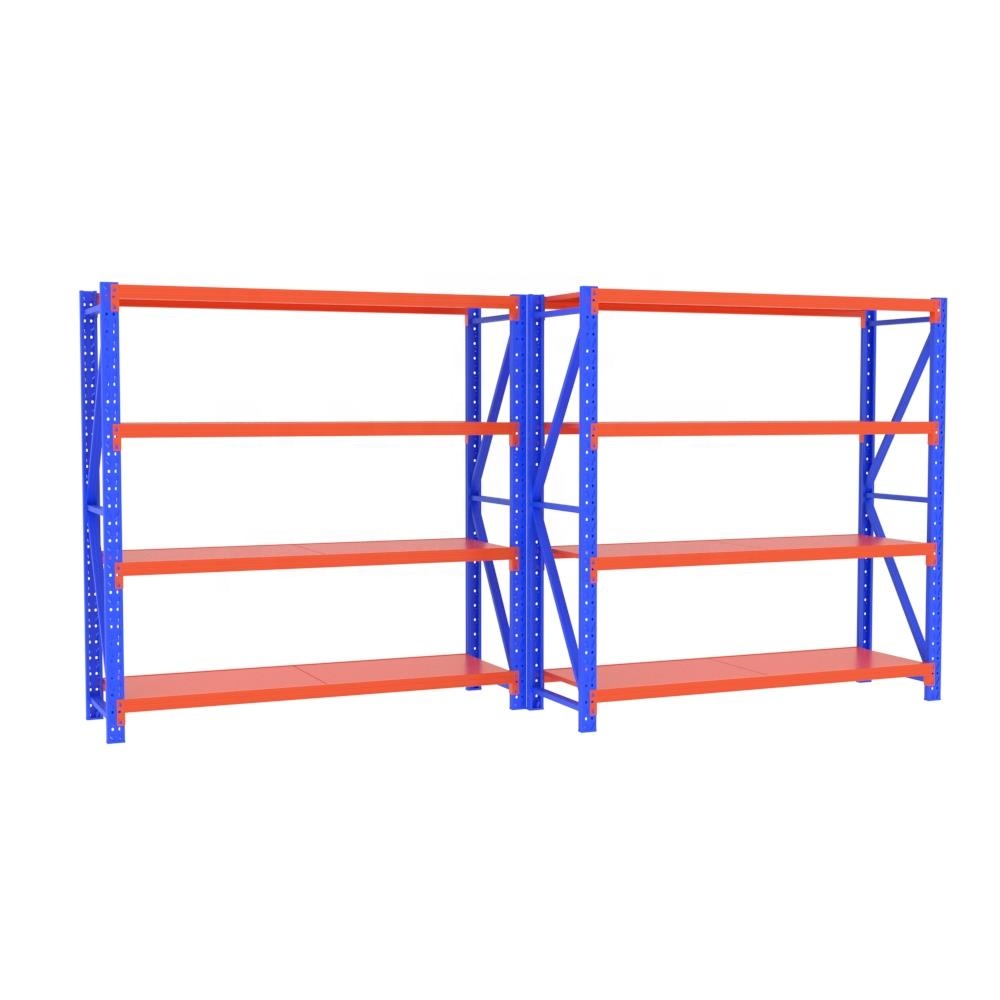

High Quality 500kg Steel Storage Racks Adjustable Pallet Racking Heavy Duty Warehouse Shelf System Stacking Racks
Product Description
📋 Technical Details
🔹 Details 1

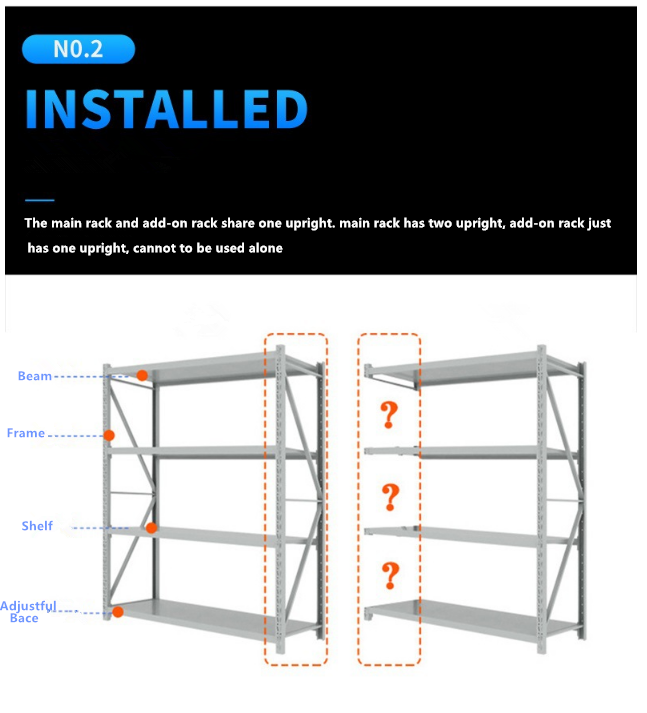

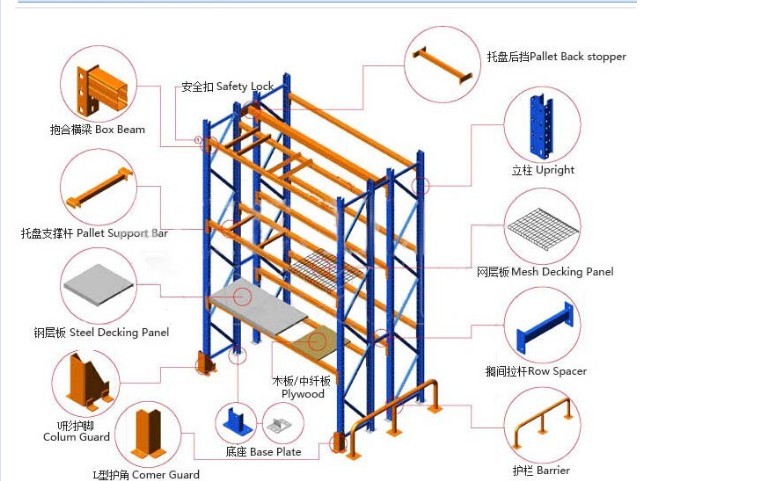

Upright: Upright is combined with horizontal bracinig ,diagonal bracking and baynet.This structure is convenient to install and have more stronger supporting power.
Beam: Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics of simplicity, reliability, light weight, strong bearing capacity and low cost.
🔹 Details 2

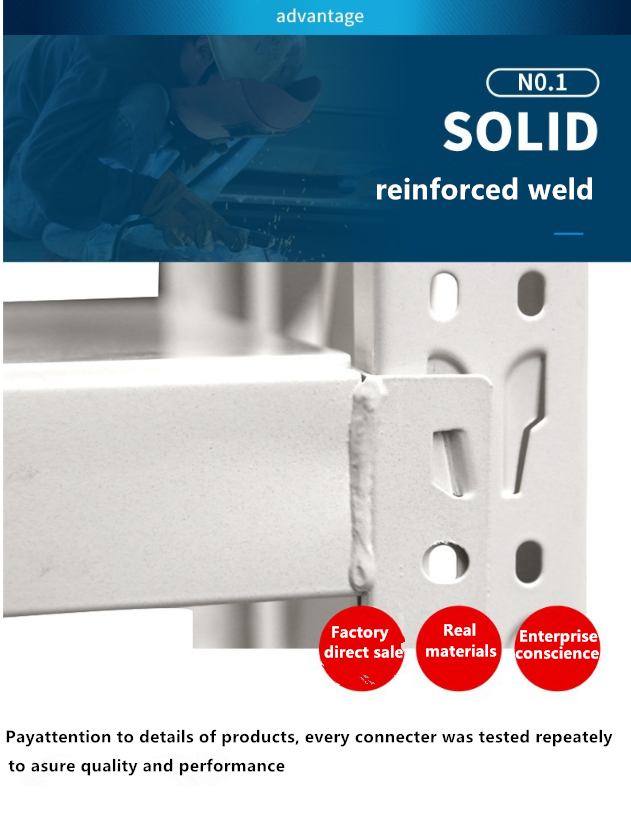

Connector: Special design safety pin is equipped when the column clamp is connected with the column to ensure that the beam will not fall off under the impact of external force.
Shelf: Laminates adopt strip laminates made in the world, which have the characteristics of strongbearing capacity, wear resistance, simple replacement and low maintenance cost.
✨ Key Features
1
Affordable and modular manual storage system for small goods
2
Quick and easy to assemble, extend and adjust—virtually no tools required
3
Available in standard frame widths of 1200mm, 1500mm and 2000 mm, and depths varying from 400 to 600 mm
4
Wide range of accessories for various storage methods
5
Safe for employees and your products
6
Available in all blue, orange and other colors
7
Available from 200 to 500 Kg/layer
8
Number of layers: 4
9
Maintenance: Less
📊 Specification Parameters
| Description | Upright Specification | Beam Specification | Thickness of the shelf | Load capacity/layer |
|---|---|---|---|---|
| 1500*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 2000*500*2000 | 30*50*0.4mm | 30*50*0.4mm | 0.25mm | 100kgs |
| 1500*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 2000*600*2000 | 40*80*0.7mm | 40*60*0.7mm | 0.3mm | 200kgs |
| 1500*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 2000*600*2000 | 40*80*0.8mm | 40*60*0.7mm | 0.35mm | 300kgs |
| 1500*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.0mm | 40*60*1.0mm | 0.5mm | 400kgs |
| 2000*600*2000 | 40*80*1.1mm | 50*80.1.5mm | 0.6mm | 500kgs |
| More racking sizes and specification please contact with me directly, thank you ! | ||||
📦 Packaging & Delivery
📦 Packaging Details
1. KD structure, polyfoam between every part, packed in order and reasonable, not easy to shake.
2. Outside with five layers strong carton, tape sealing and packing belt to reinforce.
3. Can print LOGO or shipping mark as the customer want.
4. Each product has a detailed installation instruction.
🚚 Shipping Information
Shipping Methods: By Sea, By Air, By international Express
Delivery Time: Delivery Date within 10 days or according to your order quantity.
❓ Frequently Asked Questions
1. Can the shelving dimensions and loading capacity be customized?
Yes, our systems can be fully customized according to your drawings, room layouts, and specific storage requirements.
2. What tools are needed for assembly?
The shelving features an intuitive modular knock-down (KD) structure. It is quick and easy to assemble or adjust with virtually no specialized tools required.
3. What is the standard load capacity per layer?
Depending on the upright and beam specifications selected, the load capacity ranges from 100 kg up to 500 kg per layer.
4. How are the products packaged for long-distance transport?
Units are packed in a knock-down (KD) structure with polyfoam protection between parts, wrapped in reinforced 5-layer cartons with heavy-duty packing straps.
5. What shipping methods and delivery timelines are available?
We support shipping by Sea, Air, and International Express. Delivery usually occurs within 10 days, depending on final order quantity.
6. Can custom colors or custom logos be applied?
Yes, standard colors include blue and orange, but customized colors, custom logos, and specific shipping marks are fully supported upon request.
