URGO 2023 New Push Back Racking Heavy Duty Pallet Rack For Intensive Storage Rack System
Product Description
Product Description

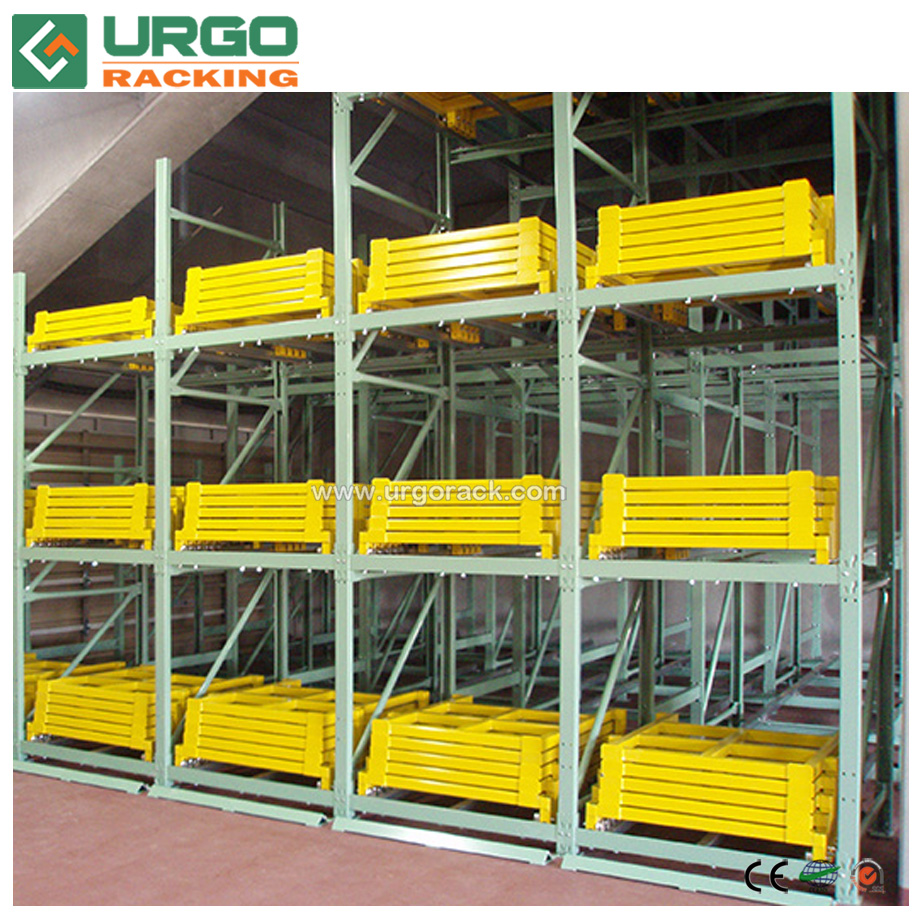

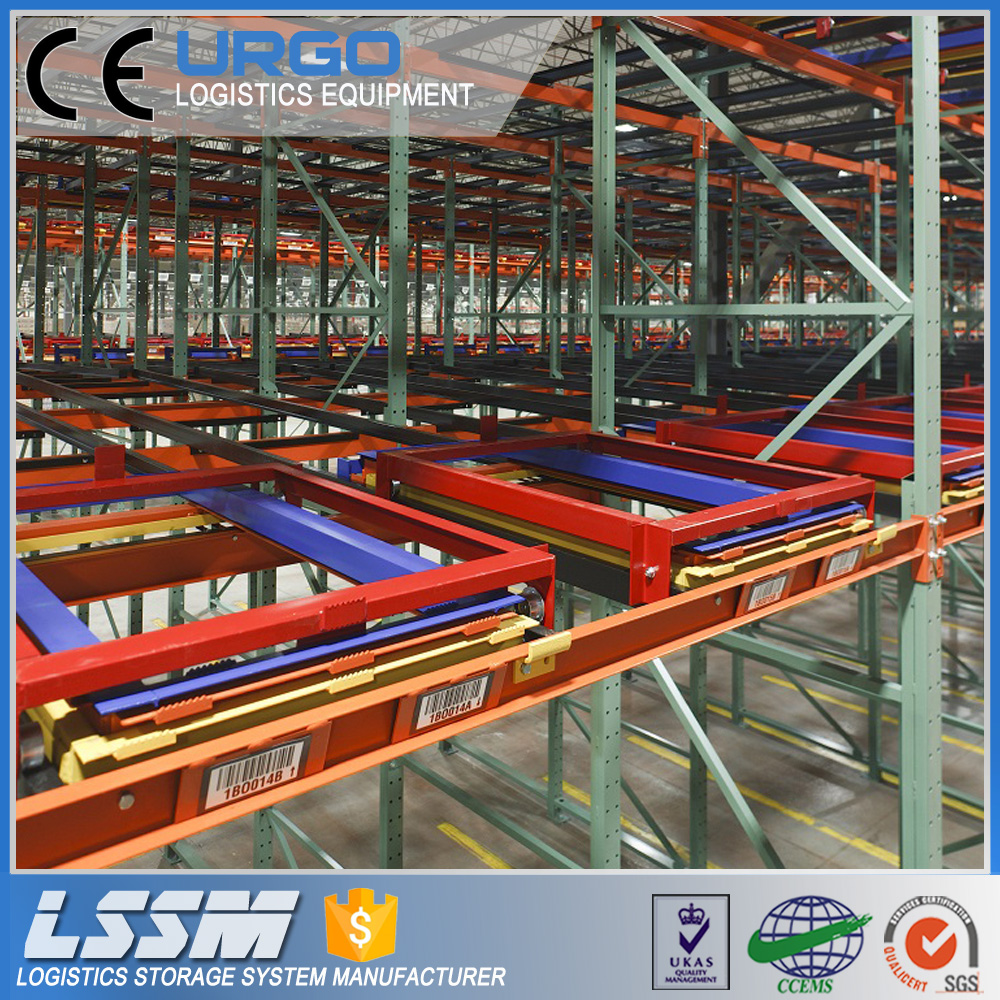

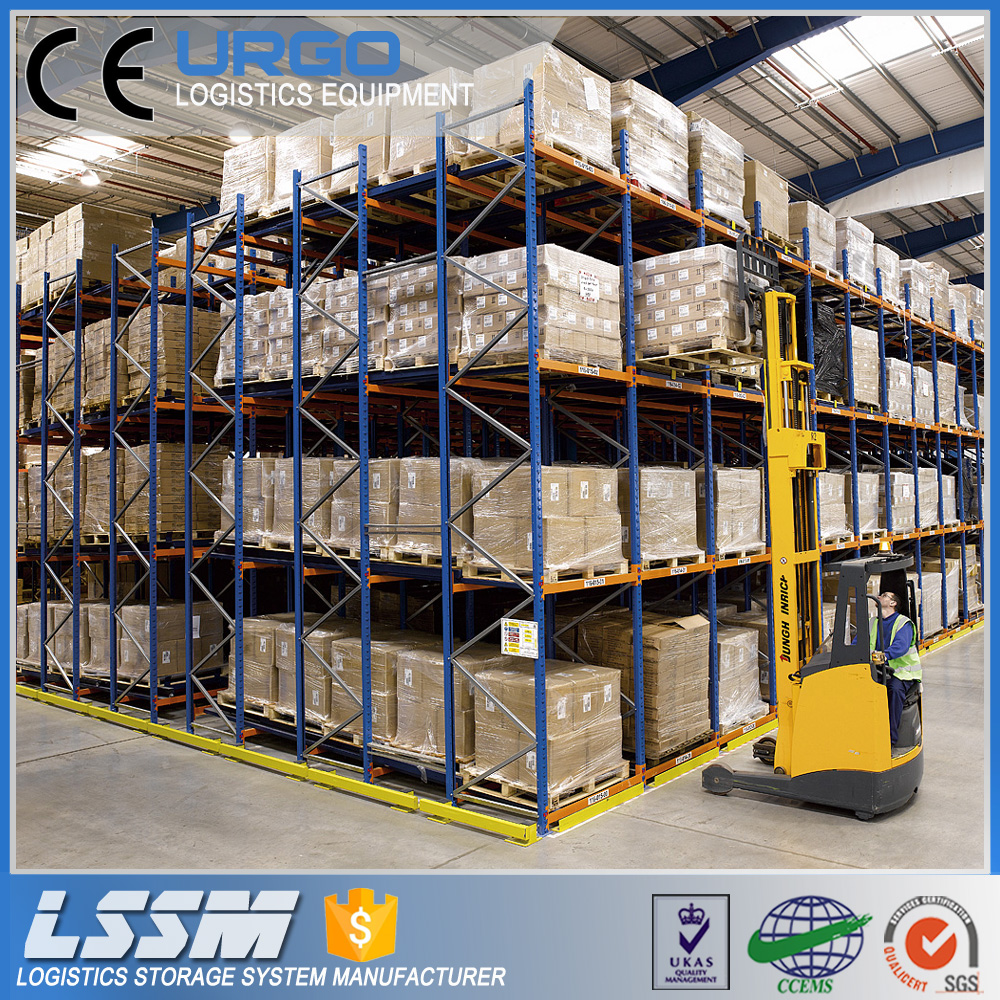

Urgo Push Back Pallet Racking combines high-density storage with high-speed access by conventional forklift trucks, ideal for businesses that need to store large batches of the same SKU. Urgo Push Back Rack systems are available in structural or roll-formed frames. Urgo Push Back Rack systems work by placing pallet loads on a series of nesting carts fed forward by gravity on rigid structural steel rails.

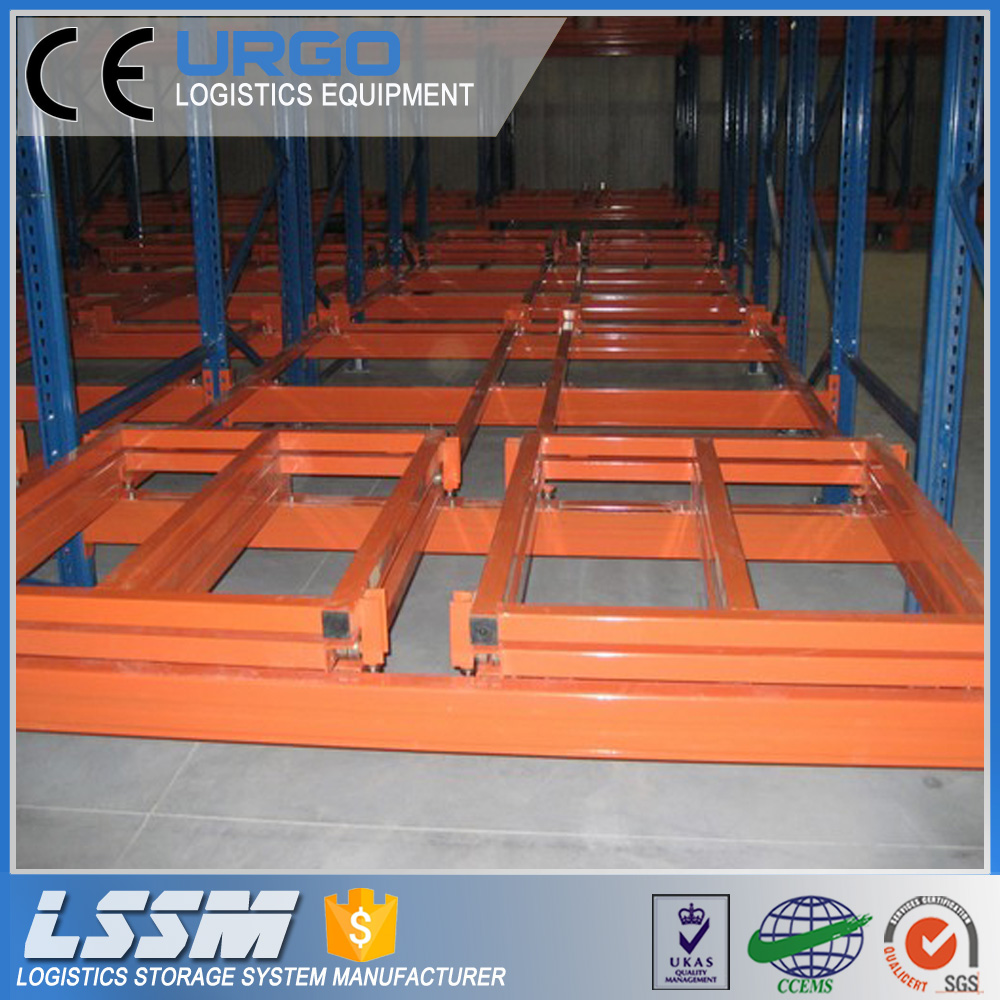

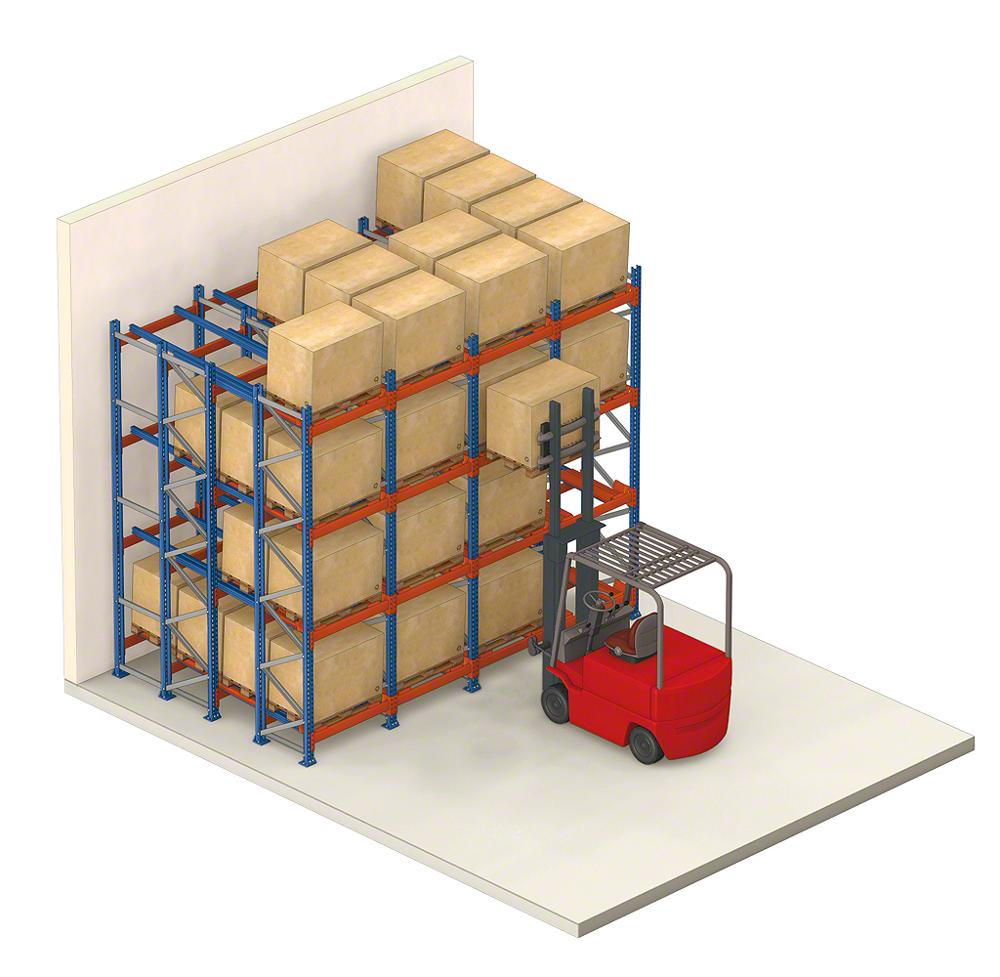

Urgo Push Back Pallet Racking carts nest together with a low profile to help save vertical space. As a pallet is loaded from the front, it pushes the pallet behind it back one position. The front pallet is removed when unloading and the rear pallets automatically come forward to the front picking position. This allows for easily accessible Last-In-First-Out (LIFO) inventory management. Operators can store product from 2-5 pallets deep, with front-only loading from a single aisle.
This kind of rack offers more versatile storage than Drive-In rack because each lane flows independently and vertical storage operates separately from lanes below. Multiple pick facings for a variety of SKUs can be stored and retrieved without disturbing other product above or below in a single-lane or double-lane format.
URGO Push back pallet racking features:
- 1. Pick face remains constantly full.
- 2. A low damage environment, with truck outside racking always.
- 3. High storage density with speedy accessibility, but FILO.
- 4. Conventional handling equipment can be used.
- 5. Pallet quality may not be so critical as carts or cradles are always used.
The Following Related Products Show:

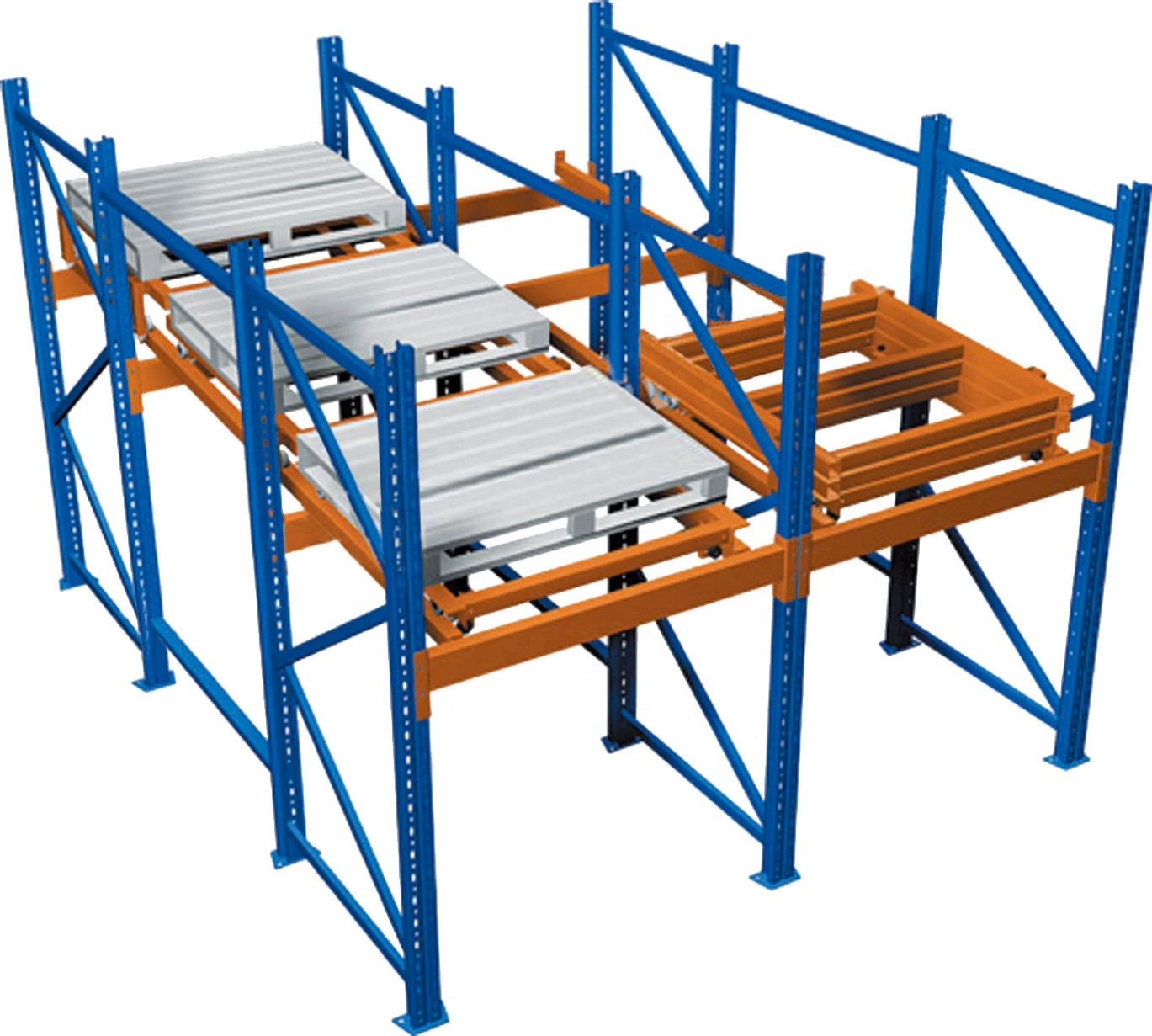

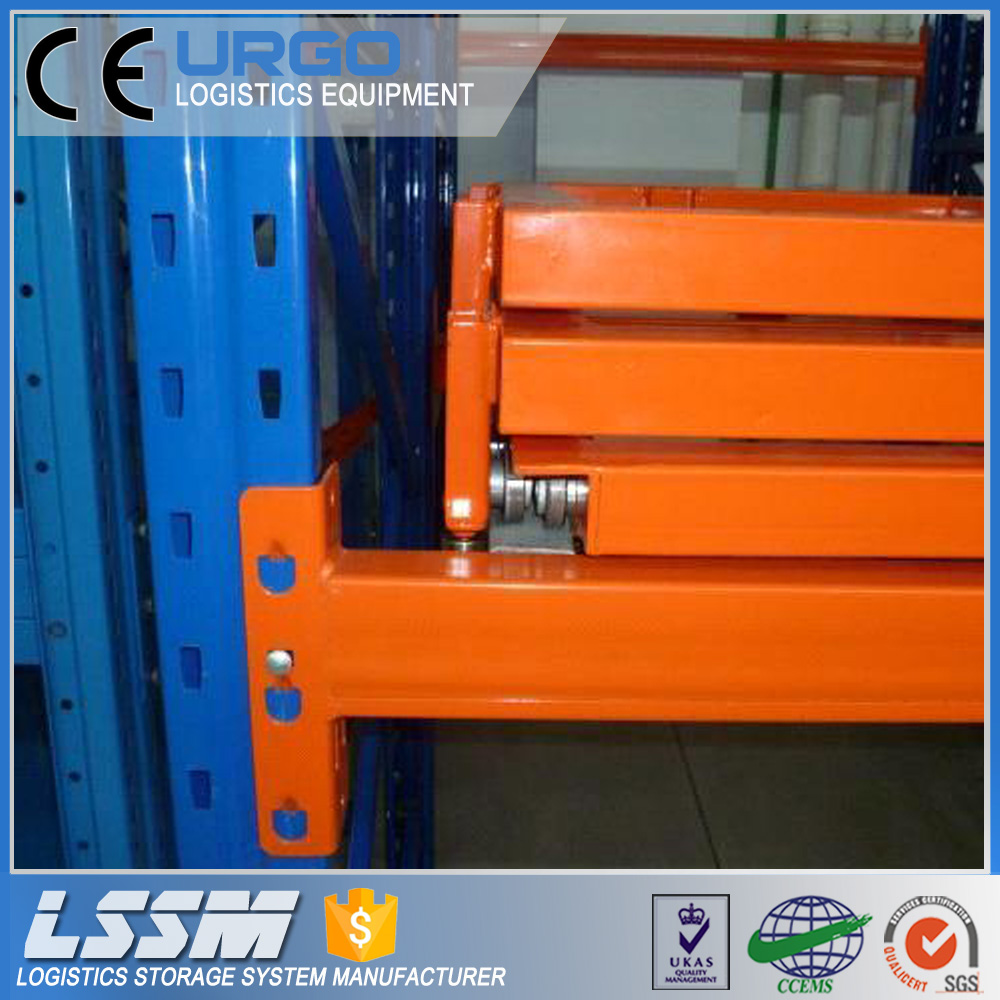

The structure of URGO push back pallet rack includes uprights and beams, support rail and carts so on. According to the customer's actual pallet load capacity and warehouse size, select the column and beam specifications, as well as increasing racking accessories.

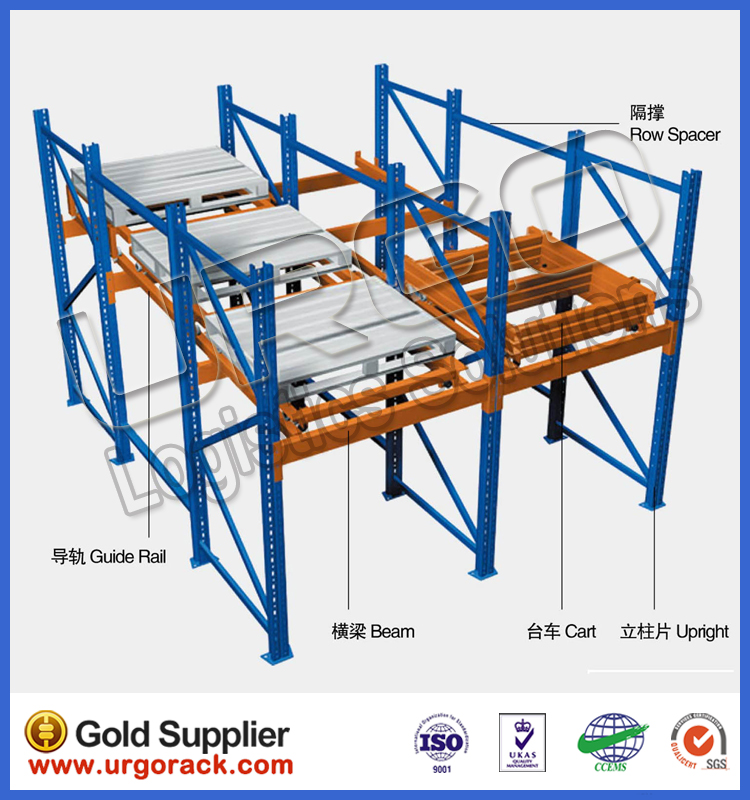

Product Structure
Beam Profiles:
Optional Accessories
Urgo heavy weight pallet rack conventional accessories include: cross beam, back brake beam, back mesh, side mesh, steel plate, grid plate, wood plate, column protector, guard bar etc.
Packaging & Shipping
URGO Packaging and Shipping Are Your Cargo’s Safeguard.
We owns a professional logistics team. First-class packaging technique meets your customized packing plan. Every step of logistics progress is thoroughly under our strictly control. We ensure your order received safely within the agreed duration. On-time delivery is our supreme promise.
Company Information
Company Honor
Production Capacity
Our Company production plant the main production equipment more than 40 sets, the annual production capacity of 30000 tons per year.
Main equipments:
- 1. Steel pannel production line
- 2. Column automatic rolling production line
- 3. Beam automatic rolling production line
- 4. Roller type shot blast cleaning equipment
- 5. Automated powder coating line
- 6. Automated welding robot station
- 7. Steel pallet production line
- 8. Workposition production line etc.
Design & Service Support
Storage Plan Design:
URGO company has a professional warehousing logistics storage system design team, can be further optimized based on existing client storage scheme.
Choose to cooperate with URGO company can meet all your design needs, and ensure you that:
- 1. Experienced professional staff at any time to provide you with the relevant technical guidance, price and perfect service!
- 2. The production cycle and storage risk is reduced to a minimum, to provide customers more efficient investment.
- 3. We a full range of design of logistics warehouse racks can provide maximum economic benefit for our customers.
Our requirements in the development of warehousing project to cooperate with you, to achieve "the most competitive logistics solutions, to provide the best quality service"
Installation Support
URGO company has a professional racking installation team, they can install or relocate of the corresponding position of the storage rackings or other related logistics equipment according to the different needs of customers.
Service Commitment
Integrity and pragmatic, innovative and high quality. Excellent quality to ensure a lifetime warranty.
High standards of design and production of Urgo company racking system makes its products can reach ten years warranty, which is the industry's most long warranty period. This is our a lifelong commitment!
For each kind of products up to 15 years of experience, URGO can guarantee the product architecture and complete ten years warranty. This means that the URGO company has become the storage racks and logistics industry leader. We are here: Choose URGO, Choose rest assured!
Frequently Asked Questions
What makes you different with other suppliers?
1) Our excellent service: For a quick, no hassle quote just send email to us. We promise to reply with a price within 12 hours.
2) Our quick manufacturing time: For selective pallet racking orders, we will promise to produce within 15 days. As a manufactory we can essure the delivery time according to the formal contract.
3) Our special export design: We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
4) Our warranty time: The high standards in the design and manufacturing ensure us to support the products with a 10 years warranty time for your normal use, it is the longest manufacturer's warranty!
2) Our quick manufacturing time: For selective pallet racking orders, we will promise to produce within 15 days. As a manufactory we can essure the delivery time according to the formal contract.
3) Our special export design: We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
4) Our warranty time: The high standards in the design and manufacturing ensure us to support the products with a 10 years warranty time for your normal use, it is the longest manufacturer's warranty!
What is delivery times?
This depends on the product type. Typically standard products are delivered within 15days. The delivery time of the special products is according to the time of setting up of the tooling.
What is the term of payment?
1) As general, 30% T/T down payment and balance before shipping.
2) 100% LC at sight.
2) 100% LC at sight.
May I know the status of my order?
Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
Are samples available?
Yes, we can send some sections of samples for your reference by express.
Which port will be used as loading port?
Nanjing port is the closest port to us, is recommended strongly as loading port. Shanghai port is also available, but not recommended because of much higher in-land trucking transportation costs from our factory.
