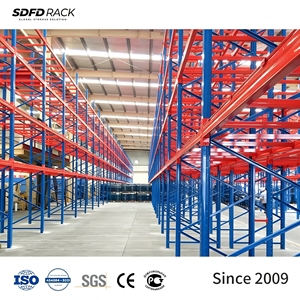

Heavy Duty Selective Pallet Racking System
Durable, adjustable steel rack engineered with 50mm/75mm hole pitch for flexible multi-SKU vertical pallet management.
Heavy-Duty Storage Systems
Engineered Warehouse Storage & Automation Portfolio
Explore our flagship industrial racking lines fabricated under ISO 9001:2015 and CE standards. Every system is built to client-specified structural tolerances, loading capacities, and pallet footprint profiles.
Selective Racking
VNA System
URGO Very Narrow Aisle (VNA) Pallet Rack System
High-bay space optimizer utilizing guide-rail guided turret trucks to shrink aisles down to 1.6 meters, maximizing cubic storage.
CE Certified
Industrial EU Blue & Orange Selective Pallet Racking
Fully compliant with European standard EN 15512, featuring reinforced upright frames and high-visibility epoxy coatings.
Automated Drawer

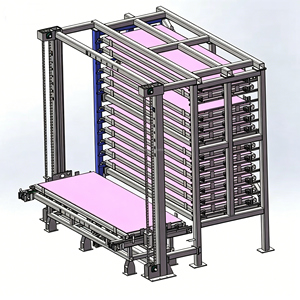

Automated Electric Sheet Metal Drawer Storage System
Motorized 100% pull-out drawer mechanism engineered for laser plate, heavy metal sheets, and steel tooling retrieval.
Mobile Wire Shelf

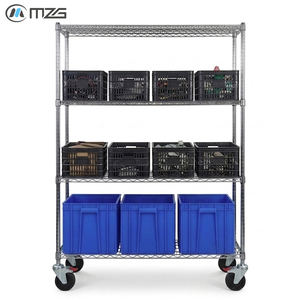

MZG Industrial Heavy Duty Mobile Wire Shelving Rack
Chrome/zinc-plated ventilated wire decks equipped with industrial swivel castors for parts picking, cleanrooms, and maintenance.
Robotic Automation

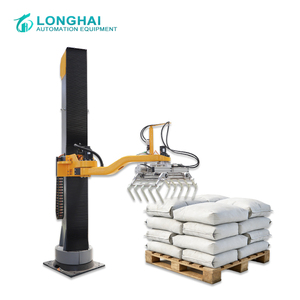

Single-Column Robotic Rotary Bag Palletizing Machine
End-of-line palletizing automation handling 25kg/50kg bagged goods with precise Cartesian placement for high-speed continuous stacking.
Mezzanine Platform
Pallet Racking Supported Mezzanine Platform System
Multi-tier loft storage platform turning vertical warehouse clearance into multi-level picking areas without expanding building footprints.
Portable Stacking
Mracking Customizable Portable Post Stacking Rack
Removable corner posts allow quick 4-tier vertical stacking for seasonal stock, cold store buffering, and non-standard bulk cargo.
Industry Whitepaper & Technical Analysis
Engineering Gravity Flow Racking: The Physics of Flawless FIFO Live Storage
When global supply chains face inventory perishability, pharmaceutical batch recalls, or e-commerce high-throughput dispatch demands, selective racking creates traffic jams. Pallet flow racking (gravity live storage) eliminates aisle congestion by decoupling loading from picking.
Slope Dynamics & Track Pitch
Proper pallet travel depends on precise gravity slope angles. Factory engineers calculate track inclination between 3.0% and 4.0% based on bottom pallet runner profiles, moisture exposure, and unit weights from 500kg to 1,500kg.
- Standard Slope Angle: 3.2% - 3.8% (1.8° - 2.2°)
- Roller Pitch: 50mm / 75mm / 100mm Centered
- Pallet Runner Alignment: Perpendicular or Twin-Track
Centrifugal Speed Braking
Uncontrolled gravity acceleration threatens pallet structural integrity. Chinese heavy-duty flow racking integrates internal centrifugal brake rollers that automatically engage when rolling speeds exceed 0.25 to 0.3 meters per second.
- Brake Roller Interval: Every 1 Pallet Position
- Speed Threshold: ≤ 0.30 m/sec Controlled
- Mechanical Design: No Wiring, Kinetic Centrifugal Clutch
Automatic Pallet Separation Locks
Line pressure from 10 or 20 accumulated pallets can crush the leading unit or make forklift extraction dangerous. Mechanical separators lock backpressure away from the discharge face until the front pallet is completely lifted.
- Pressure Relief: 100% Backpressure Decoupling
- Reset Mechanism: Foot-Pedal or Auto-Tripper Lever
- Safety Standard: FEM 10.2.02 / EN 15620 Tolerances
| Storage Topology | Rotation Principle | Storage Volume Density | Forklift Aisle Ratio | Throughput Velocity | Typical Industry Deployment |
|---|---|---|---|---|---|
| Pallet Flow (Gravity Racking) | Strict FIFO | Extreme (85% Cube Utilization) | 2 Aisles Only (Load / Pick) | Ultra-Rapid Continuous | Cold Storage, Dairy, FMCG, Pharmaceuticals |
| Radio Shuttle System | Flexible FIFO / LIFO | Ultra-High (88% Cube Utilization) | 1-2 Dedicated Transfer Aisles | Semi-Automated Machine Driven | Raw Materials, Bulk Seasonal Warehousing |
| Selective Pallet Racking | Any (Unrestricted) | Moderate (40-50% Floor Utilization) | Requires Aisle per Double Row | Moderate (1 Forklift per Aisle) | Multi-SKU 3PL Logistics, Spare Parts Depot |
| Drive-In / Drive-Through | Strict LIFO (FIFO if Drive-Thru) | High (75% Cube Utilization) | Drive-In Channels (Slow Entry) | Low-Medium (High Impact Risk) | Beverage Case Stacking, Paper Rolls |
| Push-Back Cart Racking | Strict LIFO | High (70% Cube Utilization) | Single Front Aisle Only | Medium (Spring/Cart Resistance) | Buffer Storage, 2 to 5 Pallets per Lane |
Market Forecast 2025-2030
Strategic Sourcing & Engineering Trends in Pallet Flow Racking
International logistics procurement is pivoting toward automated gravity interfaces, cryogenic resilience, and certified sustainable steel manufacturing. Anticipate these 4 transformative engineering trends.
01
AGV & AMR Picking Cell Synergy
Traditional flow lanes terminated at human forklift bays. Modern smart factories pair pallet flow output faces directly with Autonomous Mobile Robots (AMRs) using optical pallet alignment guides and automated load release sensors to create continuous lights-out distribution lanes.
02
Cryogenic Metallurgy for Frozen Chains
With global cold chain demands exploding in food preservation and biologics, Chinese flow rack factories specify specialized steel formulations (Q355D/E) and cold-rated synthetic polyurethane roller bearings capable of continuous 24/7 cycling at -30°C without grease embrittlement.
03
Non-Contact Magnetic Eddy-Current Braking
Mechanical centrifugal brakes encounter wear after millions of rotations. The transition toward permanent-magnet eddy-current braking cylinders ensures wear-free kinetic energy absorption, eliminating mechanical brake friction pads and dramatically reducing maintenance downtime.
04
Green Steel & Eco Powder Coating Verification
Western procurement mandates rigorous ESG lifecycle transparency. Leading Chinese manufacturers now document electric arc furnace (EAF) lower-carbon steel sourcing and 100% TGIC-free electrostatic powder coatings that emit zero VOCs during curing and meet European RoHS directives.
Manufacturing Rigor
10-Stage Precision Heavy Industrial Manufacturing Process
At Guangzhou Heda Shelves Co., Ltd., heavy-duty pallet flow and high-density racking undergo automated metallurgical testing, CNC roll-forming, continuous punching, and multi-stage anti-corrosion pre-treatments.
Raw Steel Inspection
Precision Slitting & Cut
CNC Column Punching
Cold Bending Forming
Profile Roll Forming
Surface Polishing
Robotic Fixture Welding
Pickling & Phosphating
Electrostatic Coating
QC & Seaworthy Packing
Why Partner With Us
Direct Factory Capabilities for Global EPC & Logistics Integrators
Over 25 years of engineering authority ensures your intralogistics infrastructure is delivered on schedule, compliant with local codes, and constructed from prime mill-certified structural steel.
25+ Years Industrial Heritage
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has executed over 10,000 industrial racking installations across Europe, North America, Oceania, and Southeast Asia. Our technical pedigree anticipates seismic calculations and floor deflection challenges before components arrive on-site.
Bespoke CAD & 3D Dynamic Modeling
Every warehouse facility presents unique column grid obstacles, clear ceiling constraints, and material handling vehicle profiles. Our engineering office delivers comprehensive AutoCAD layouts, 3D dynamic simulations, and beam loading calculation tables prior to contract authorization.
Accredited CE & ISO 9001:2015 Quality
Backed by official CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Registration No. 18624Q00169R0M. All beam profiles, upright roll formulations, roller conveyors, and connector clips comply with strict EN 15512, FEM 10.2.02, and RMI safety standards.
Procurement Due Diligence
Frequently Asked Questions: Pallet Flow Racking Engineering
Clear technical answers to help supply chain directors, warehouse architects, and industrial procurement agents evaluate gravity dynamic live storage.
What pallet types are compatible with gravity flow roller beds?
Pallet bottom construction is critical. Solid wood Euro pallets (1200 × 800 mm) with bottom runners running parallel to direction of travel, standard GMA 48 × 40-inch pallets, and smooth-runner plastic pallets operate reliably. Pallets with missing boards, protruding nails, or severe bottom deflection (> 1/200th span) will stall or skew on roller beds. We test sample pallets in our Guangzhou factory before finalizing roller track pitch.
How is runaway acceleration prevented in deep-lane pallet flow systems?
For flow lanes deeper than 3 pallets, gravity acceleration is regulated by mechanical centrifugal speed controllers installed at every pallet position along the bed. These internally geared rollers remain passive at creeping speeds but exert dynamic resistive braking proportional to velocity once travel exceeds 0.3 m/s, ensuring heavy 1,200kg pallets glide at identical safe speeds as 400kg loads.
How does the system eliminate dangerous lane line pressure at the pick face?
In a 15-pallet-deep lane, cumulative gravity generates thousands of kilograms of line force against the discharge pallet, creating severe forklift extraction friction or tip-over hazards. Our engineering incorporates heavy-duty separator locks. The lead pallet triggers a mechanical gate that latches the second pallet 300mm behind it, isolating the discharge unit from all upstream weight until it is cleanly lifted.
What engineering documentation is supplied for European and US building permits?
Each factory direct shipment includes complete AutoCAD installation drawings, component piece-mark listings, static calculation sheets referencing EN 15512 / EN 15620 or ANSI MH16.1 specifications, mill test certificates verifying Q235B / Q355B steel chemistry, and official CE Declaration of Performance (Certificate No. 2435-CPR-8605159) for local civil engineer certification.
What is the typical production timeline and maritime shipping window?
Standard fabrication for full container load (FCL) orders of 5 to 20 containers spans 15 to 25 business days. Direct sea freight from Guangzhou / Nansha / Shenzhen ports requires approximately 22-30 days to Mediterranean ports, 28-35 days to North European ports (Rotterdam, Hamburg, Antwerp), and 14-20 days to US West Coast terminals (Los Angeles, Long Beach).
Can HEDA Shelves manufacture private label OEM racking for overseas distributors?
Yes. Approximately 45% of our export volume serves international storage distributors, system integrators, and racking contractors. We offer complete OEM and ODM customization, including client-branded nameplates, custom upright punching hole patterns, custom RAL architectural powder coat matching, and barcoded bundled seaworthy packaging.
