Commercial Duty
Engineered Warehouse Inventory

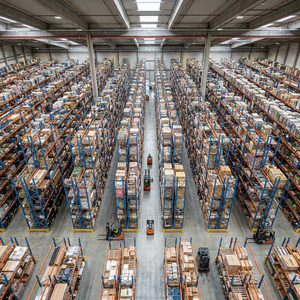

Precision-Manufactured Heavy Duty Racking Solutions
Explore our flagship certified industrial storage systems, tested for extreme payload thresholds, long-span structural rigidity, and seamless integration with standard Euro (EUR/EPAL) and ISO industrial pallets.
Multi-Layer Heavy
100% Pallet Access
Anti-Corrosion
DC Grade System
4000KG Payload
3000KG High Spec
Vertical Elevation
25+
Years Manufacturing Experience (Since 2001)
30,000m²
State-of-the-Art Factory Site Area
30,000t
Monthly Structural Steel Throughput
120+
Export Countries Across EU, Americas & APAC
Structural Integrity & Compliance
Engineering Excellence: Standards, Finite Element Analysis & Metallurgy
Industrial heavy-duty pallet racking is a life-safety structural investment. Our design methodologies strictly reference international engineering mandates to ensure fail-safe performance under cyclic, dynamic, and seismic operational loads.
Certified Structural Steel (Q235B & Q355B)
We source prime hot-rolled and cold-rolled coil stock exclusively from tier-one steel conglomerates. Mill test certificates confirm yield strengths of ≥235 MPa (Q235B) up to ≥355 MPa (Q355B), engineered to eliminate sudden ductile failure under rated live loads and localized impact shocks.
EN 15512 & CE Harmonized Norms
Fabricated strictly under CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 registration. Structural calculations govern deflection limits to a stringent L/200 across beam spans, ensuring zero hazardous deflection and compliant clearance under European workplace safety directives.
Finite Element Analysis (FEA) Modeling
Every customized installation undergoes computerized simulation verifying upright frame buckling capacity, beam end connector shear limits, and dynamic seismic acceleration damping. This proprietary stress-testing prevents progressive collapses and structural fatigue.
| Racking Topology | Pallet Selectivity | Space Utilization | Payload Per Level | Stock Rotation | Optimal Industry Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct Access | 40% - 50% | 1,000 - 4,500 kg | FIFO / LIFO | General 3PL Warehouses, FMCG, Retail Hubs |
| Double Deep Racking | 50% Immediate Access | 55% - 65% | 1,000 - 3,000 kg | LIFO | Bulk Cold Storage, Homogeneous SKU Staging |
| Drive-In / Drive-Through | Lane Dependent (Low) | 70% - 85% | 1,000 - 2,000 kg | LIFO / FIFO | Seasonal Harvest, Beverage Logistics, Freezers |
| Radio Shuttle System | High Density Semi-Auto | 85% - 92% | 500 - 2,500 kg | Automated FIFO/LIFO | Cold Chain Logistics, High-Throughput Hubs |
| Interlocking Mezzanine | Floor/Area Doubled | 100% Vertical Cube | 300 - 1,000 kg/m² | Continuous Picking | E-commerce Fulfillment, Multi-SKU Spare Parts |
Enterprise Reliability
Why Global Supply Chains Trust Guangzhou Heda Shelves
Operating continuously since 2001, Guangzhou Heda Shelves Co., Ltd. has established itself as an elite manufacturing partner for warehouse designers, regional distributors, and turn-key EPC contractors across the globe.
30,000 m² Integrated Facility
Equipped with computerized multi-roll-forming lines, automated laser profiling cutters, robotic welders, and Swiss Gema electrostatic powder coat cabins yielding up to 30,000 tonnes per month.
Free 2D CAD & 3D Modeling
Our senior in-house application engineering team delivers detailed DWG layouts, clearance simulations, and 3D architectural renders within 24 to 48 hours, free of charge for prospective projects.
Optimized Export Packing
Seaworthy bundle engineering eliminates shipping deformities. Steel items are wrapped with protective edge-guards, bubble-wrap, and heavy strapping to fit 40HQ containers with maximum volumetric efficiency.
Certified Traceability
From raw chemical analysis of coil steel through pickling, phosphating, curing, and final packaging, every batch includes full quality inspection reports matching CE and ISO audit protocols.
The 10-Step Quality-Controlled Production Flow
How raw coil stock is transformed into heavy-duty load-bearing racking systems within our factory:
STEP 01
Steel Coil Inspection
Tensile yield testing & ultrasonic flaw analysis.
STEP 02
Precision CNC Slitting
High-speed laser & rotary shears to width.
STEP 03
Auto Column Punching
Precision 50mm/75mm pitch tear-drop perforations.
STEP 04
Cold Continuous Bending
Multi-roller forming for complex omega uprights.
STEP 05
Box Beam Roll Forming
Interlocking double C-profile seams.
STEP 06
Surface Grinding
De-burring, robotic trimming & seam leveling.
STEP 07
Robotic MIG Welding
Connector claw integration with continuous weld bead.
STEP 08
Pickling & Phosphating
Multi-stage immersion cleaning & rust passivation.
STEP 09
Powder Coating & Cure
Electrostatic 180°C–200°C thermal polymerization.
STEP 10
QC & Seaworthy Packing
Micrometer film check, load test & steel banding.
Industry Strategic Insights
Future Procurement & Technological Trends in Warehouse Racking
Global supply chains are navigating higher land costs, automation integration, carbon footprint scrutiny, and volatile raw materials. Here are the macro procurement trends shaping procurement directors' decisions over the next five years.
Convergence of Racking with ASRS & AMR Fleets
Traditional static racking is increasingly designed "automation-ready". Even where manual forklifts are used today, global buyers demand rack tolerances, rail straightness, and ground anchorage clearances that support retrofitting AGVs, autonomous mobile robots (AMRs), and crane-guided shuttle systems without replacing structural frames.
Hedging Volatility via Direct Mill Sourcing
Fluctuating hot-rolled coil prices and maritime shipping rates incentivize long-term procurement partnerships. By contracting directly with large Chinese manufacturing facilities possessing 30,000-tonne rolling capacity, global buyers lock in quarterly raw material indexes and avoid compounding markups from intermediaries.
Green Warehousing & Decarbonized Coatings
Environmental Product Declarations (EPDs) and Scope 3 reporting now influence large corporate tenders. Modern procurement favors factories deploying non-toxic, heavy-metal-free, low-VOC TGIC-free polyester powder coatings, alongside closed-loop water recirculation within phosphating and pickling rinse bays.
Advanced High-Yield Omega Profile Sections
Cold-forming technology now yields multi-faceted omega uprights with up to 13 structural bends. This cross-sectional geometry redistributes compressive axial stresses, substantially increasing torsional and flexural resistance while reducing total dead steel weight by 10-15% compared to basic C-sections.
IoT Structural Health Monitoring & Smart Racking
Next-generation high-bay warehouses are integrating strain gauge micro-sensors and impact telemetry modules onto critical upright baseplates. These nodes detect forklift impacts and real-time load displacement, feeding alerts into warehouse management systems (WMS) prior to safety failures.
Ductile Seismic Base Isolators & Dissipators
For installations in high-seismicity regions across Southern Europe, the Pacific Rim, and the Americas, modern racking incorporates progressive energy-dissipation baseplates and slotted splice joints. These mechanisms absorb lateral ground acceleration without catastrophic column buckling.
Procurement Knowledge Base
Frequently Asked Questions by International Buyers
Direct, technically transparent answers regarding international standards, lead times, customs documentation, structural engineering, and freight consolidation.
Can HEDA heavy-duty racking accommodate both Euro pallets (1200×800mm) and standard industrial pallets (1200×1000mm)?
Yes. Every racking system is engineered to order. For Euro pallets (EUR/EPAL 1, 2, 3), frame depths are standardized at 1,100 mm to ensure the code-mandated 50 mm front and rear overhang. For 1200×1000 mm ISO/UK pallets or US GMA 48×40 in pallets, frame depths of 900 mm or 1,000 mm are deployed, with bay lengths calculated to deliver clear 75–100 mm side clearances between pallets and upright columns.
What engineering documentation and certificates are provided for local council or building inspector approvals?
We provide comprehensive engineering submission packages. These include CE Declaration of Performance (Certificate No. 2435-CPR-8605159), ISO 9001:2015 factory certification, certified raw material mill test certificates (Q235B/Q355B), finite element analysis (FEA) calculation models, structural load calculation sheets referencing EN 15512 / EN 15620, seismic zone calculations, and PE/statiker-ready CAD layout drawings with anchor bolt load ratings.
What is the realistic factory production lead time and sea freight schedule to Europe, the Americas, and the Middle East?
Factory production typically requires 15 to 25 days depending on total project tonnage and customized RAL powder coating requirements. Transit times from our Guangzhou/Shenzhen sea ports are typically:
- Europe (Rotterdam, Hamburg, Antwerp, Valencia): 28 to 35 days.
- North America (Long Beach, Los Angeles, Savannah): 18 to 28 days.
- Middle East (Jebel Ali, Dammam): 14 to 20 days.
What specific initial parameters do your engineers need to prepare a free customized 2D/3D proposal?
To generate an optimized layout and quotation within 24–48 hours, share:
- Warehouse floor plan in DWG or PDF showing building columns, dock doors, and clear internal height to lowest obstruction (sprinklers/trusses).
- Pallet dimensions (Length × Width × Total Loaded Height including pallet base).
- Maximum payload weight per loaded pallet.
- Forklift make, model, turning radius, and maximum mast lifting height.
- Target inventory capacity (total pallet locations required) and stock rotation protocol (FIFO vs. LIFO).
How are components packaged to prevent maritime salt spray corrosion and container shipping damage?
Upright frames and beams are strapped in rigid structural bundles using high-tensile steel bands with specialized corner protectors to prevent surface abrasion. Bundles are enclosed in thick moisture-barrier polyethylene wrap and desiccated to mitigate condensation during transoceanic shipping. Beams and accessories are nested in custom-dimensioned wooden crates or skid collars for direct unloading via standard counterbalanced forklifts.
Do you offer installation supervision and OEM private-label branding for regional racking distributors?
Yes. For regional racking dealers, material handling equipment (MHE) distributors, and system integrators, we provide complete OEM/ODM production. This includes customized beam connector punching styles, custom brand labeling/stamping, bespoke RAL paint formulations, and white-label installation manuals. For large end-user projects, we provide complete on-site engineer installation supervision or comprehensive step-by-step 3D assembly guides and video walk-throughs.
Ready to Optimize Your Warehouse Cubic Storage Density?
Connect directly with our senior logistics application engineers today. Receive a comprehensive CAD floor layout, structural load distribution matrix, and transparent factory-direct pricing for your project within 24 hours.
