The Global Landscape of High-Capacity Industrial Pallet Racking
Modern industrial supply chains require resilient, precision-engineered warehouse storage infrastructure that balances volumetric density with rapid SKU accessibility. Sourcing heavy-duty storage racks directly from tier-one Chinese manufacturers offers a strategic balance between advanced structural steel metallurgy (such as certified Q235B and Q355B alloys) and high-volume cost efficiency. This analysis breaks down manufacturing standards, structural load limits, automated material handling interoperability, and lifecycle risk mitigation for enterprise supply chain executives and intralogistics procurement engineers.
GM Heavy Duty Teardrop Pallet Rack Boltless Adjustable Steel Frame

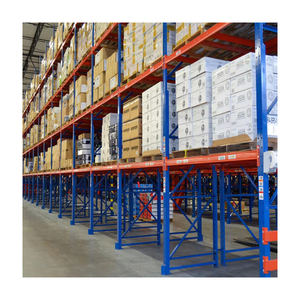

Wholesale Heavy Duty Storage Racks Selective Steel Pallet Rack

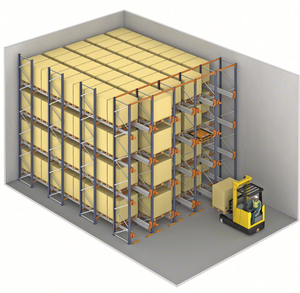

Intelligent Pallet Rack System 4 Way Shuttle Automated Storage
Adjustable Boltless Heavy Duty Shelf 6 Layers 500kg Rack

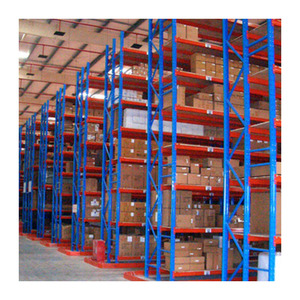

Customized Automatic Heavy Duty Warehouse Vertical Cargo Rack
Industrial Office Platforms Steel Mezzanine Shelving & Racks
Electric Sheet Metal Rack Drawer Type Storage System
Heavy Duty Industrial Rack 2000kg/Level Tear Drop System
Standard Industrial Racking Engineering Comparison
A benchmark of structural specifications across primary warehouse rack architectures manufactured in China.
| System Architecture | Typical Steel Grade | Max Load per Pair (kg) | Deflection Limit | Standards Conformity | Optimal Use Case |
|---|---|---|---|---|---|
| Standard Selective Rack | Q235B / Cold-Rolled | 1,000 – 4,500 kg | L / 200 (EN 15512) | EN 15512 / ISO 9001 | High SKU variety, fast pallet rotation, 3PL logistics |
| Heavy-Duty Teardrop Rack | High Tensile 50ksi / Q355B | 1,500 – 4,000 kg | L / 180 (ANSI MH16.1) | RMI / ANSI MH16.1 | North American distribution, boltless adjustable configurations |
| 4-Way Radio Shuttle Rack | Q355B High-Precision | 1,500 kg / pallet | L / 300 (Automated) | CE / EN 15620 / FEM | Cold storage, food & beverage, high-density bulk storage |
| Rack-Supported Mezzanine | Q235B & Hot-Rolled I-Beam | 300 – 1,000 kg / m² | L / 250 | CE / EN 1993 Eurocode | Multi-level order picking, parts distribution, sorting platforms |
| Sheet Metal Drawer Rack | Structural Carbon Steel | 2,000 – 5,000 kg / drawer | Rigid Mechanical | ISO 9001 Factory Std | Tooling dies, steel sheets, high-density heavy mold management |
Guangzhou Heda Shelves Co., Ltd. – Factory Capabilities & Engineering Prowess
Established in 2001, Guangzhou Heda Shelves has grown into one of China's most trusted manufacturers and exporters of heavy-duty pallet racking, multi-tier mezzanine floors, and automated storage systems. Backed by state-of-the-art continuous roll-forming lines, automated punching centers, and fully enclosed electrostatic powder-coating systems, we engineer logistics structural solutions that strictly comply with international safety and durability codes.
Third-Party Quality & Safety Compliance Verification
HEDA holds official CE Certificate No. 2435-CPR-8605159, certified under European Construction Products Regulation (CPR), and operates under ISO 9001:2015 Quality Management System (No. 18624Q00169R0M). Complete mill test certificates (MTC), ultrasonic weld inspections, and electrostatic coating thickness test reports accompany every ocean container consignment.
10-Step Engineering & Surface Treatment Protocol
Every beam, upright column, and bracing brace undergoes rigorous metallurgical handling to guarantee lifelong structural integrity.
Raw Material QC
Spectrometer analysis of Q235B/Q355B coils for chemical and yield composition.
Precision Slitting
High-tolerance coil decoiling and slitting to exact section strip widths.
CNC Punching
Automated hole-punching for pitch accuracy within ±0.1mm tolerance.
Cold Roll Forming
Multi-stage cold bending guaranteeing high torsional stiffness and zero stress cracks.
Profile Sizing
High-speed flying cut-off systems tailoring columns to millimeter-exact lengths.
Surface Grinding
Mechanical de-burring and polishing of connector clips and weld points.
Robotic Welding
CO₂ gas-shielded robotic weld arms guaranteeing deep penetration without cold joints.
Pickling/Phosphating
9-stage chemical immersion pre-treatment removing all oil, rust, and scale.
Powder Coating
Automated electrostatic powder coat cured at 200°C for 60-90µm durable finish.
Export Packing
Heavy steel strapping, corner protectors, and moisture-barrier air freight wrapping.
Emerging Procurement Trends in Global Warehouse Storage (2025–2030)
Enterprise buyers are transitioning from pure upfront capex calculations to holistic Total Cost of Ownership (TCO) models. The intersection of geopolitical supply chains, warehouse automation, and decarbonization is reshaping how procurement directors source pallet racking from China.
1. Nearshoring vs Direct Manufacturer Integration
Rather than purchasing through regional resellers with 30-50% markups, enterprise logistics operators are forging direct engineering partnerships with Chinese manufacturing plants. With advanced 3D building information modeling (BIM) data interchange, custom layout adjustments occur in real time, eliminating intermediary translation errors and optimizing container payload density up to 94% volumetric fill rate.
2. Steel Indexation & Hedged Contracts
Volatility in hot-rolled steel coil prices has led procurement teams to implement dynamic formulaic pricing indexed against the Shanghai Metal Market (SMM) and London Metal Exchange (LME). Leading China standard pallet racking manufacturers now support indexed procurement schedules with capped price-variance bands, protecting buyers during protracted warehouse construction cycles spanning 6 to 18 months.
3. Scope 3 ESG & Low-Carbon Steel
European and American multinationals must report Scope 3 upstream emissions. Procurement requests now evaluate electric arc furnace (EAF) steel production versus blast furnace-basic oxygen furnace (BF-BOF) pathways. Progressive Chinese mills are deploying recycled scrap feedstocks and solar-powered finishing lines, drastically lowering the embodied carbon footprint per metric ton of fabricated storage racking.
4. Factory-Integrated Pre-Assembly & Labeling
Skilled warehouse installation labor costs in Europe and North America have surged by over 40%. Savvy procurement contracts now mandate pre-assembled bracing, pre-bolted baseplates, and robotic QR/barcoded column tagging at the factory floor in Guangzhou. This shifts high-cost field assembly time into a streamlined, high-speed erector setup, trimming field deployment timelines by up to 35%.
Engineering Advances in Racking Structural Integrity & Automation Integration
The convergence of Automated Storage and Retrieval Systems (ASRS), seismic design standards, and smart sensors is transforming passive steel racking into intelligent logistical infrastructure.
1. High-Tensile Micro-Alloy Thin-Wall Cold Forming
Using advanced non-linear Finite Element Analysis (FEA) through ANSYS software, engineers now optimize profile geometry with multi-flange stiffeners. Uprights fabricated from micro-alloyed Q355B achieve equivalent buckling resistance with a 12% reduction in deadweight. This innovation enhances structural efficiency while dampening freight transit expenses.
2. Dynamic 4-Way Radio Shuttle Interfacing
Traditional static drive-in racking is giving way to high-density semi-automated 4-way shuttle systems. Upright guide rails must now be roll-formed with millimeter-level directional tolerances to guarantee flawless robotic vehicle transit across both longitudinal and transverse axes, integrated seamlessly with warehouse fleet control layers.
3. Seismic Ductility & Base Isolation Integration
Conforming to Eurocode 8 (EN 1998) and IBC 2024 seismic requirements, racking columns in high-risk zones now feature ductile hysteretic beam-to-column connector clips and energy-dissipating base plates. These components absorb horizontal seismic shear forces, preventing progressive rack collapse during severe seismic events.
4. IoT Strain & Impact Sensor Networks
Smart rack telemetry involves factory-embedding wireless tri-axial accelerometers and strain gauges onto critical upright portals. Real-time telemetry instantly flags localized forklift impacts exceeding structural thresholds, monitoring beam deflection under variable live loads to avert dangerous structural fatigue.
Frequently Asked Questions on Sourcing Pallet Racking from China
In-depth engineering answers addressing quality compliance, metallurgical specs, shipping logistics, and safety verifications.
How do Chinese steel grades Q235B and Q355B compare to European and American structural standards?
In heavy-duty warehouse storage rack manufacturing, steel chemical composition and tensile strength are the foundations of structural safety. Q235B is a standard carbon structural steel with a minimum yield strength of 235 MPa and tensile strength of 370–500 MPa, directly comparable to European S235JR (EN 10025) and American ASTM A36. It provides exceptional ductility, formability, and weldability, making it ideal for roll-formed step beams, bracing, and general selective racking applications.
Q355B is a low-alloy high-strength steel with a minimum yield strength of 355 MPa, equivalent to European S355JR and American ASTM A572 Grade 50. Q355B is utilized for high-bay upright columns, heavy-duty mezzanine primary support posts, and high-density drive-in systems requiring elevated torsional rigidity and high resistance to buckling without disproportionately increasing column wall thickness.
What engineering standards must be verified when purchasing pallet racks for the EU, USA, or Australia?
Reputable China pallet racking factories must design, engineer, and test components in strict accordance with the destination market's statutory structural building codes:
- European Union: Must comply with EN 15512 (Principles for structural design of adjustable pallet racking), EN 15620 (Tolerances, deformations, and clearances), EN 15629 (Specification of storage equipment), and EN 15635 (Application and maintenance of storage equipment). CE marking under CPR 305/2011 is mandatory.
- United States: Must adhere to ANSI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks), established by the Rack Manufacturers Institute (RMI), and conform to IBC (International Building Code) seismic provisions.
- Australia / New Zealand: Must strictly satisfy AS 4084-2023 (Steel storage racking), which outlines limit state structural design methods, allowable beam deflections under full serviceability live loads, and mandatory baseplate anchor safety margins.
How does HEDA Shelves prevent beam deflection and catastrophic structural failure?
Beam deflection is governed by strict international limit states: under full operational capacity, beam deflection must never exceed L/200 under European EN 15512 or L/180 under American RMI standards (where L is the clear span distance between upright columns). For example, a 2700mm beam carrying two 1000kg Euro pallets has a maximum allowable deflection of 13.5mm.
HEDA utilizes custom roll-formed box beams and interlocking twin-C profile step beams coupled with robotic-welded multi-claw connectors (typically 3 to 4 heavy-duty cold-stamped claws). Furthermore, every connector hook engages a high-visibility, spring-loaded safety locking pin that prevents accidental beam dislodgement from upward forklift impact forces exceeding 5 kN.
What surface treatment and anti-corrosion processes are applied to protect against rust?
Substandard surface finishing results in surface flaking, oxidation, and accelerated structural failure. HEDA operates a continuous 9-stage automated chemical immersion and pre-treatment tunnel comprising: alkaline degreasing, hot water rinsing, surface conditioning, zinc-phosphate conversion coating, and dual de-ionized rinses. This converts the raw steel surface into an inert micro-crystalline zinc-phosphate matrix that halts under-film corrosion.
Following drying, components undergo automated electrostatic powder coating using lead-free, TGIC-free thermoset epoxy-polyester hybrid resins. The powder is cured in a precision temperature-regulated convection oven at 180°C to 200°C for 20 minutes, yielding a dry film thickness of 60 to 90 microns. This finish easily passes 500-hour neutral salt spray tests (ASTM B117) and cross-hatch adhesion tests (ISO 2409 Class 0).
What is the realistic factory production lead time and shipping duration to global ports?
For standard selective pallet racks and teardrop configurations, our production lead time is typically 15 to 25 business days from technical CAD/BIM drawing sign-off and deposit receipt. For complex engineered systems involving automated shuttle tracks or structural mezzanine floor platforms, fabrication cycles range from 25 to 35 days.
Transit times via ocean container freight from our strategic export port in Guangzhou (Nansha/Huangpu) are typically:
- Southeast Asian Hubs (Singapore, Port Klang, Manila): 5 to 10 days
- European Gateway Ports (Rotterdam, Hamburg, Antwerp, Valencia): 28 to 36 days
- North American West Coast (Los Angeles, Long Beach, Vancouver): 16 to 22 days
- North American East Coast (New York, Savannah): 30 to 38 days
- Australian Main Ports (Sydney, Melbourne, Brisbane): 14 to 20 days
What engineering documentation is supplied to satisfy local warehouse safety inspectors?
Every commercial order ships with an engineering documentation packet ready for local building authority approval, fire safety inspection, and insurance sign-off. This includes:
- As-Built CAD Architectural Layout Drawings and Elevation Profiles
- Finite Element Analysis (FEA) Structural Calculation Booklets referencing EN 15512 or ANSI MH16.1
- Mill Test Certificates (EN 10204 Type 3.1) confirming steel chemical and mechanical properties
- CE Declaration of Conformity (DoC) and ISO 9001:2015 Quality Registration Certifications
- Full-Color Heavy-Duty Steel Load Warning Capacity Plaques for installation at the ends of all racking aisles
- Component Assembly Manuals with exact fastener torque specifications and safety inspection schedules
Plan Your Warehouse Project with Factory Engineers
Send us your warehouse floor plan (DWG or PDF), ceiling clear height, pallet dimensions, and forklift specifications. Our licensed storage structural engineers will deliver a free 2D/3D CAD layout, load capacity calculation, and transparent factory-direct commercial quotation within 24 hours.
