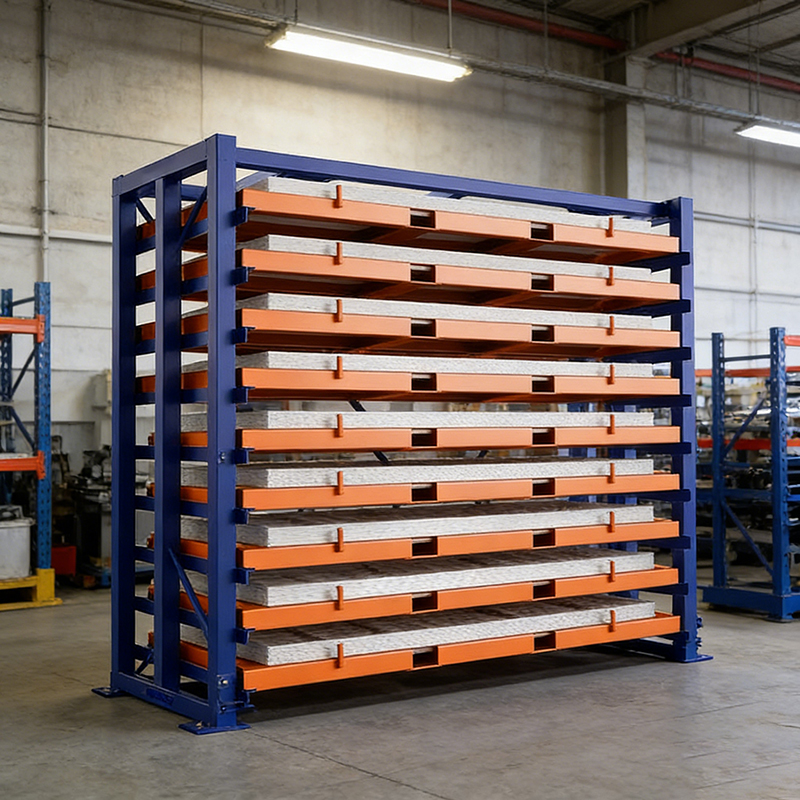

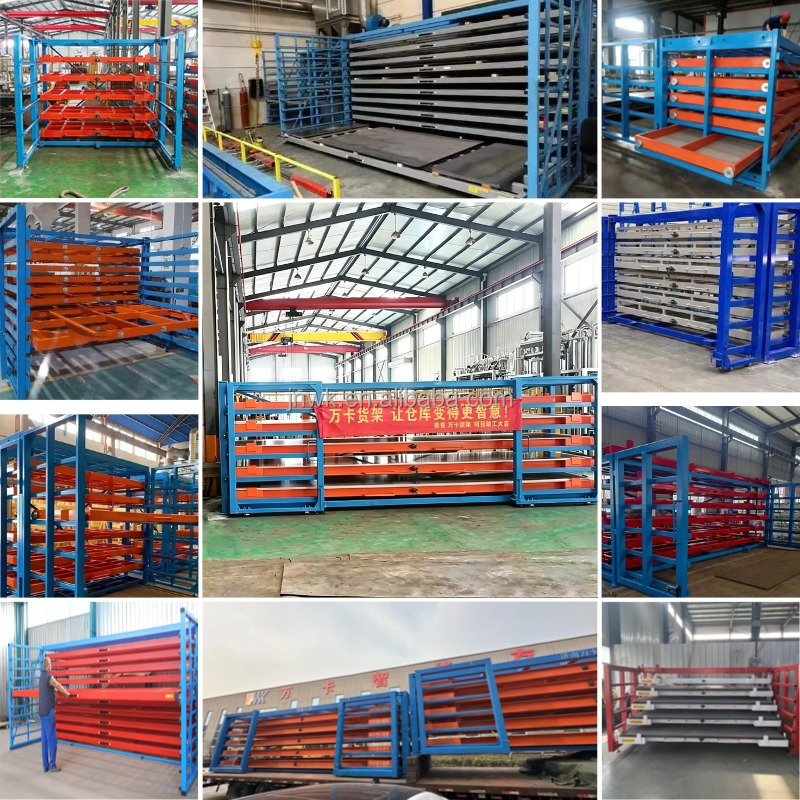

High-Capacity Vertical Sheet Metal Rack | Forklift-Compatible Roll-Out Tray System
Product Description

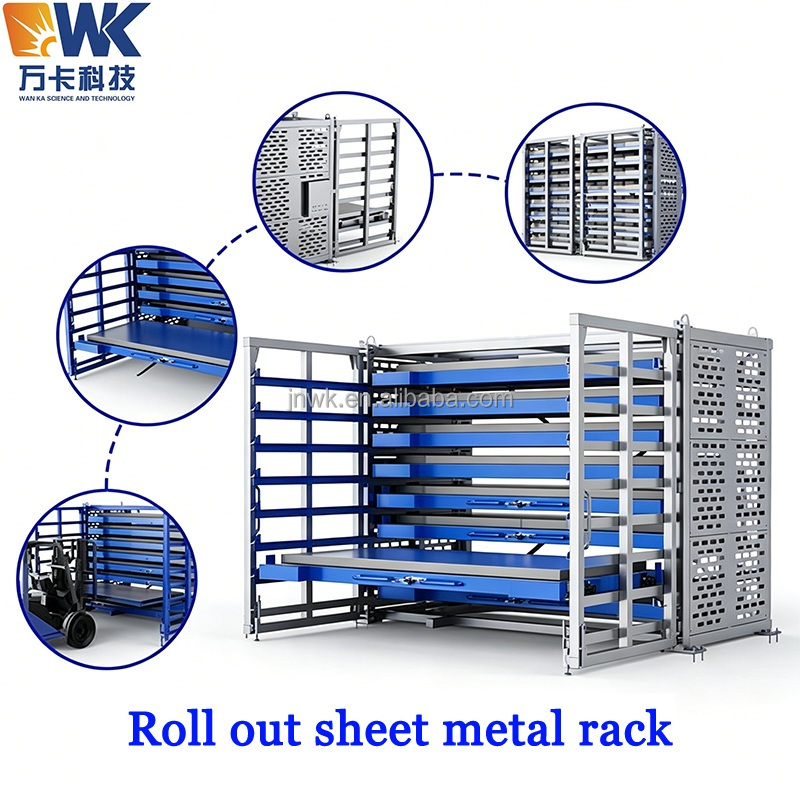

Drawer-Type Forklift Metal Shelf
Efficient, Durable, and Space-Saving Storage Solution for Forklift Operations
The drawer-type forklift metal shelf is a high-performance storage accessory designed specifically for forklifts, integrating durability, functionality, and space optimization. Compared to ordinary shelves and flat stacking storage, drawer-type forklift plate racks are centered around "saving space, saving labor, ensuring safety, and being easy to operate". They address the pain points of traditional plate storage, such as large footprint, difficult access, high loss, and chaotic management. They require no complex installation, are compatible with existing forklift operations, and quickly achieve cost reduction and efficiency improvement after being put into use. They are the upgraded choice for heavy-duty plate storage!
| Specifications | Load (single layer) | Size | Layers | Overall dimensions |
| WK3015 | 2/3/5/8Ton customizable | 3*1.5m | 5-8 customizable | 3505x2280x2000mm |
| WK4015 | 2/3/5/8Ton customizable | 4*1.5m | 5-8 customizable | 4505x2280x2000mm |
| WK4020 | 2/3/5/8Ton customizable | 4*2m | 5-8 customizable | 4505x2280x2500mm |
| WK6020 | 2/3/5/8Ton customizable | 6*2m | 5-8 customizable | 6505x2280x2500mm |
| Install | On site installation and online guidance | |||
| The load-bearing capacity, length, number of layers, and layer height can be customized. | ||||
Customizable Items

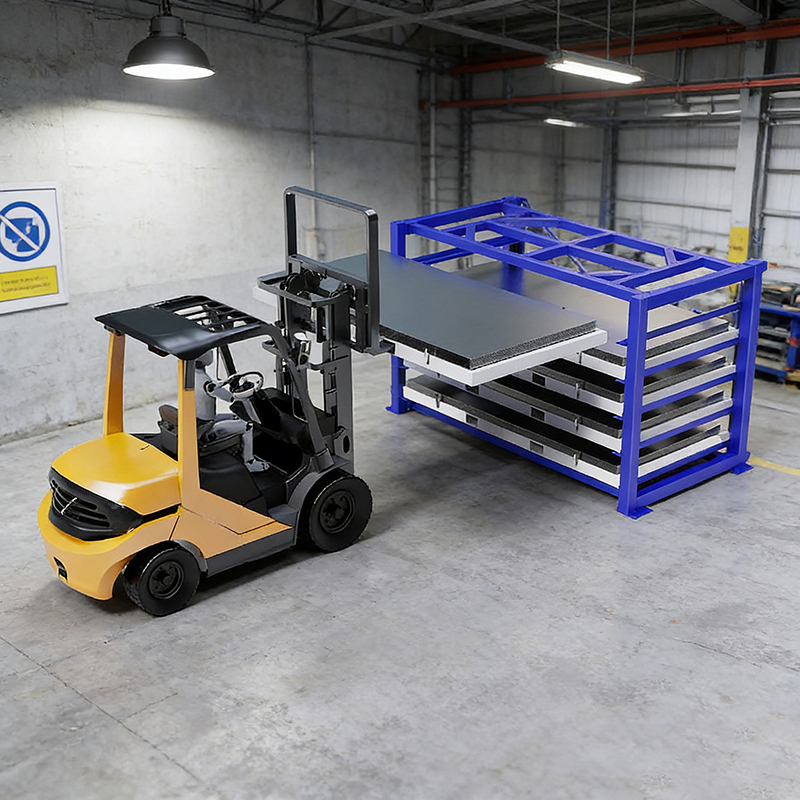

Customization of Layers
Customize the required number of layers based on the thickness and storage capacity of the board.

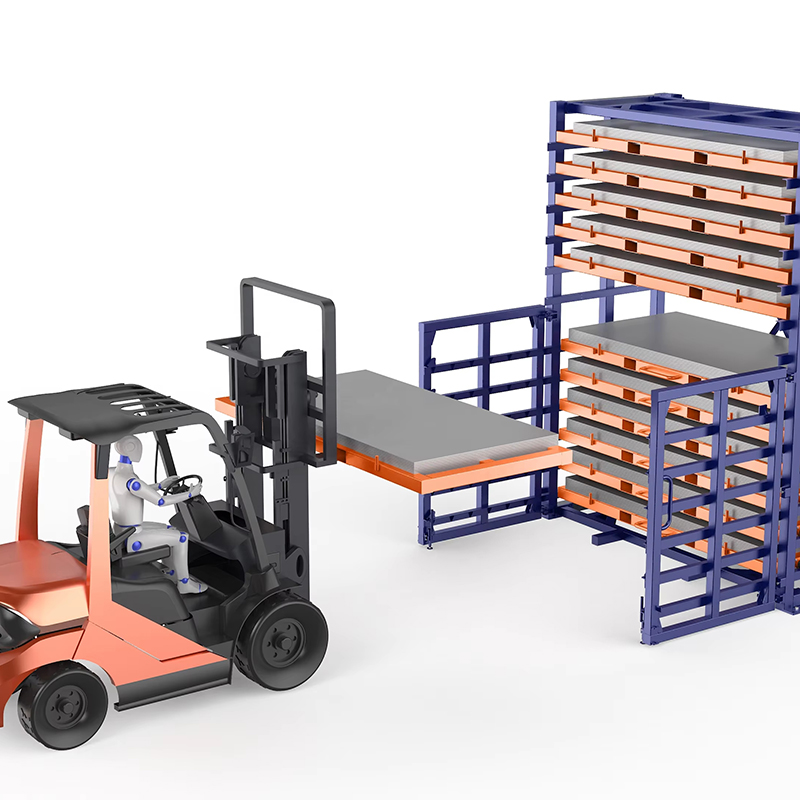

Load bearing customization
Recommend and design guide rails and frame structures with different load-bearing levels based on the maximum weight of a single stack of boards.

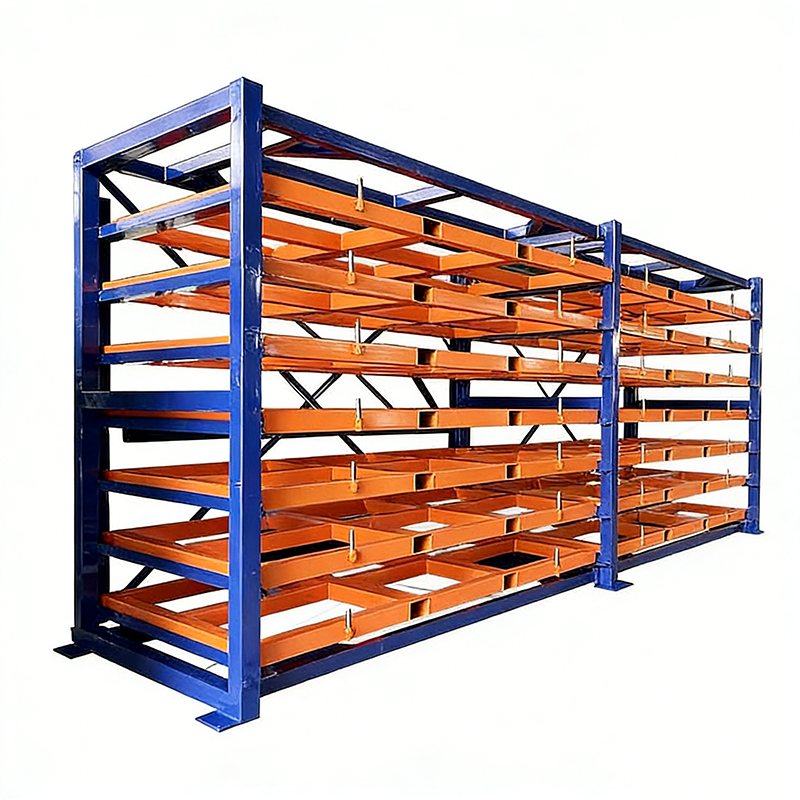

Custom sizing
According to the size of the board: the depth and width can be designed with extra allowance (usually+500mm in length and width) based on the customer's longest and widest board size. According to the size of the warehouse, the height can be customized to closely adhere to the ceiling of the factory, maximizing the use of space.
Details of Safety and Humanized Design

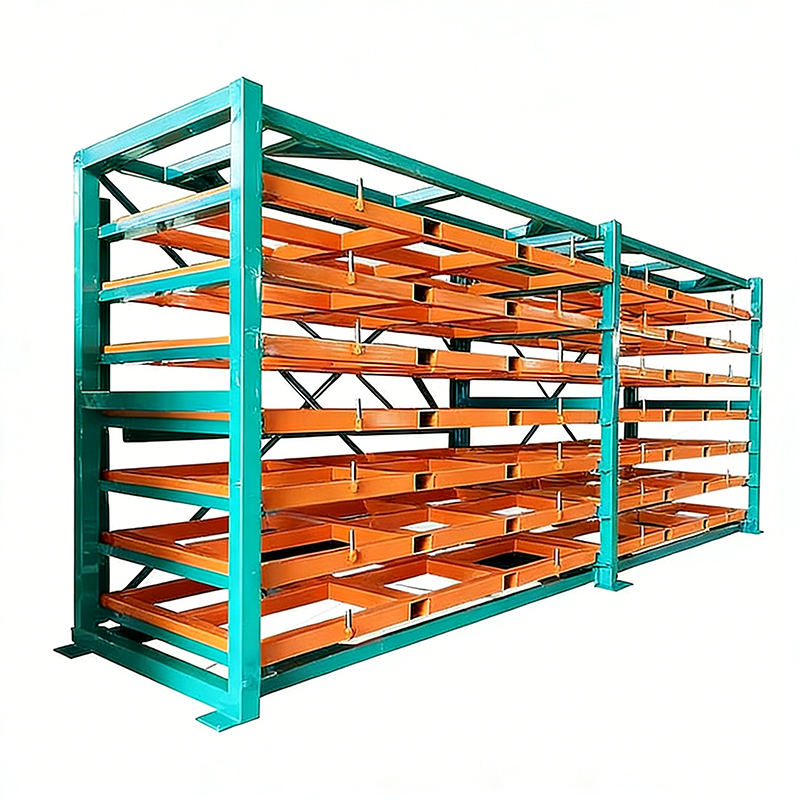

Superior Durability
Made of high-strength cold-rolled steel, the shelf undergoes strict rust-proof and anti-corrosion treatment (electrophoresis + powder coating), ensuring long-term use in harsh industrial environments. It has excellent load-bearing capacity, with a single drawer load-bearing ranging from 2Ton to 8Ton (customizable according to requirements), resisting deformation and damage even under heavy load.

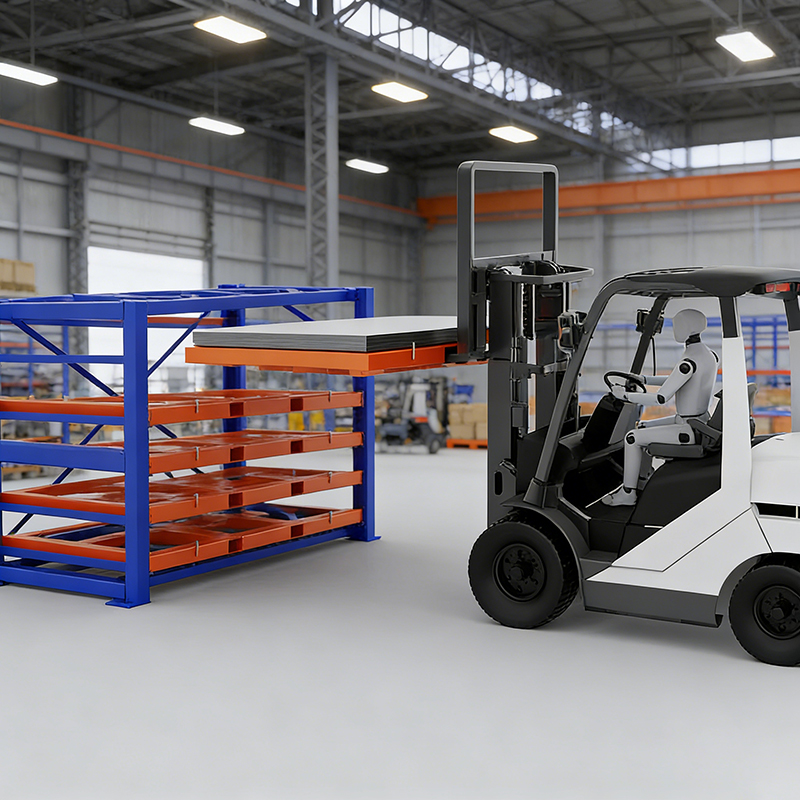

Drawer Safety Lock Design
The drawer can be pulled out completely, allowing full access to the internal space, avoiding the trouble of reaching for items in deep positions. Each drawer is equipped with a safety lock to prevent items from falling during forklift movement, ensuring operational safety.
Space-Saving
Each single layer can support a load of 2-8 tons, with a common arrangement of 5-10 layers. The storage capacity per unit area is 3-5 times that of flat stacking/ordinary racks.

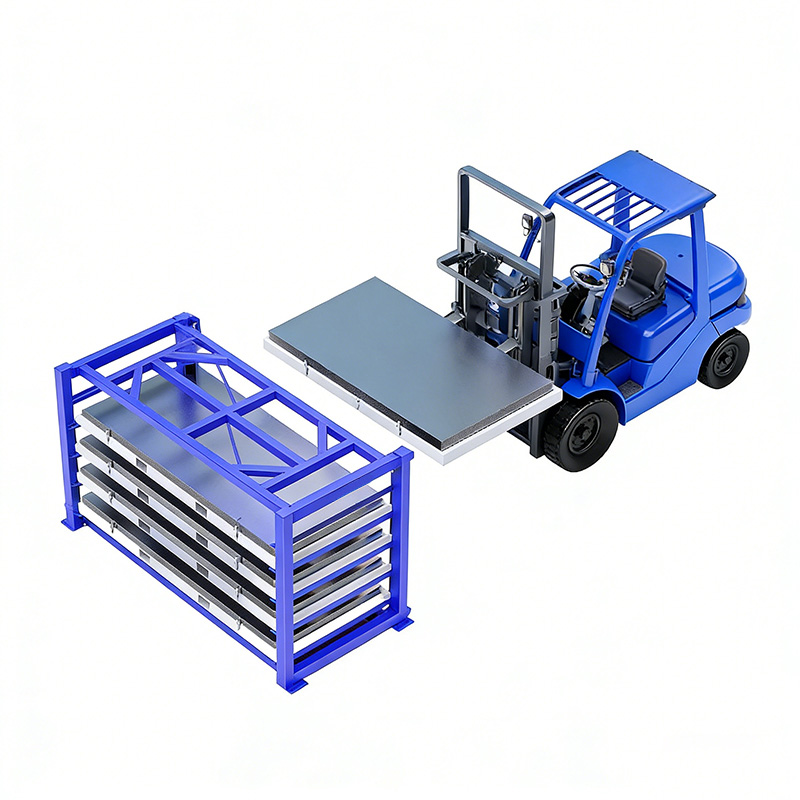

Orderly storage, labor-saving
Store materials by layer according to their material, thickness, and specifications, with signboards on each layer for quick access and retrieval without the need for extensive material flipping, reducing labor costs by 30%–50%.
Customizable
Dimensions, number of layers, and load-bearing capacity can be customized according to needs, adapting to various board specifications and meeting the requirements of different workshops/warehouses. It is the preferred storage equipment for laser cutting, sheet metal processing, and steel storage!
Our services
Our Advantages

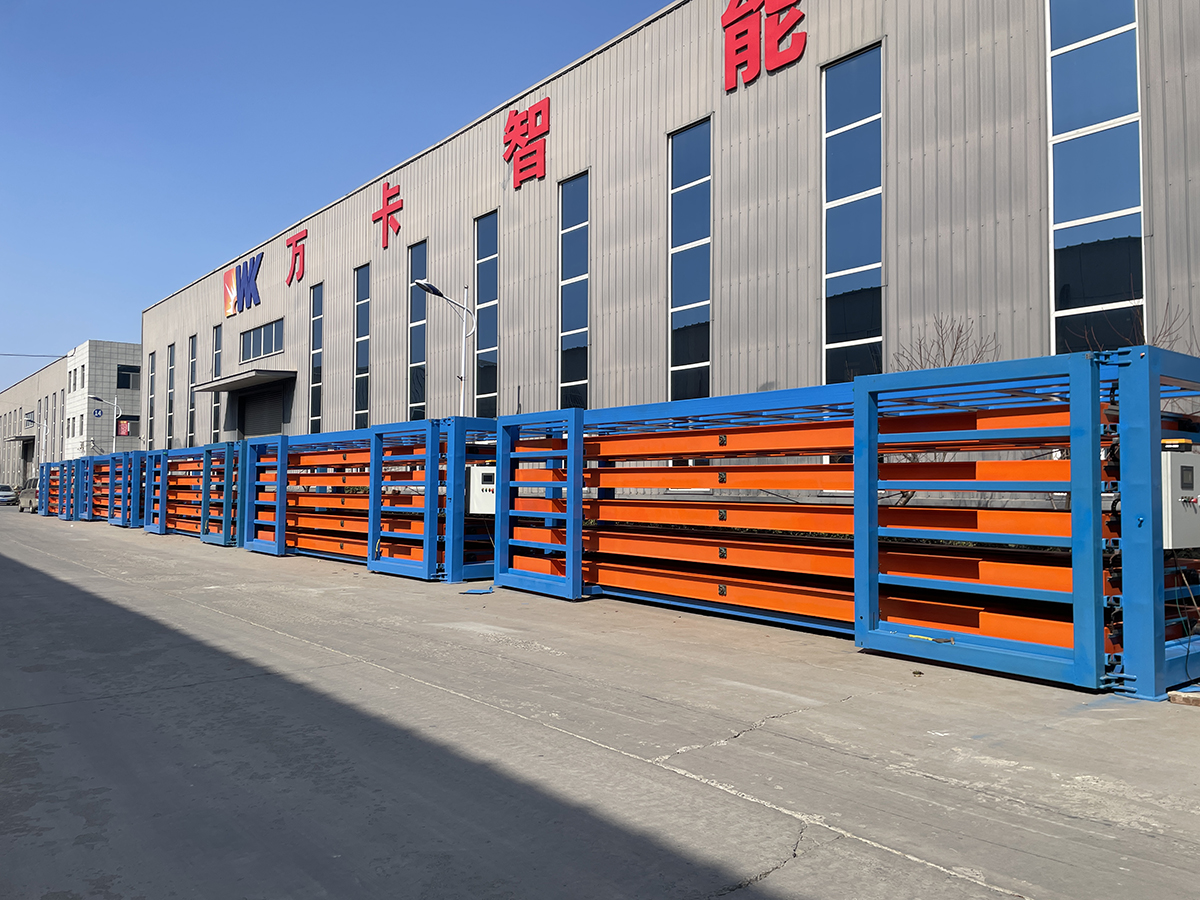

Wanka Storage Co., Ltd.

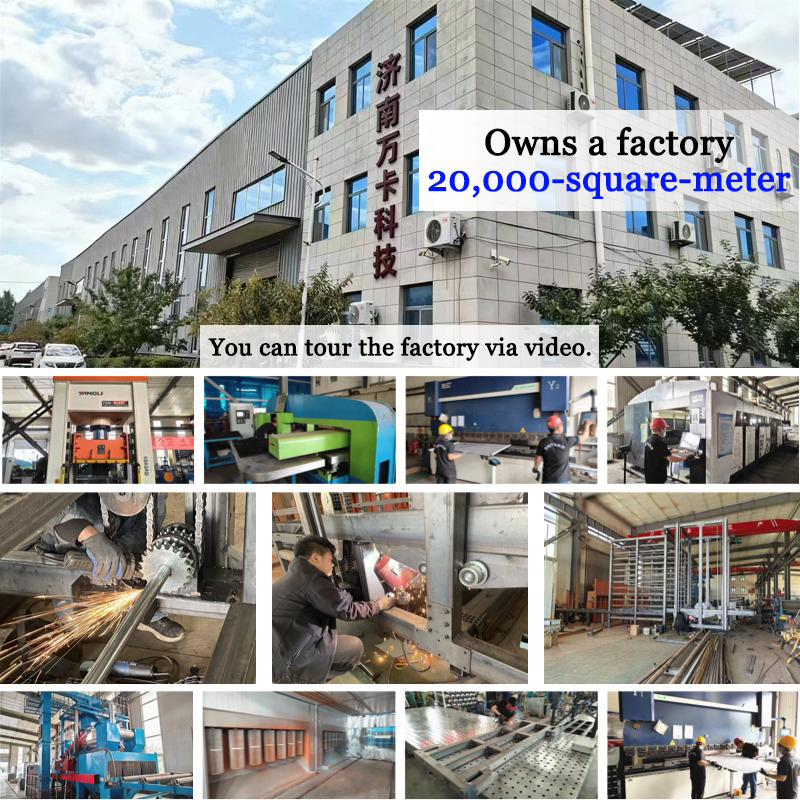

Wanka Storage Co., Ltd. boasts a long history of development and is a high-tech enterprise integrating the research and development, production, sales, installation, and service of storage machinery. Specializing in providing storage services for raw materials such as metal plates and tubes, the company also tailors various integrated solutions for customers. The company has a modern standard factory building spanning 20,000 square meters and employs over 200 staff members. It possesses a professional research and design team. Additionally, the company has a dedicated service team that offers customized services integrating production, delivery, and installation guidance. As an industry leader, our company provides comprehensive after-sales services to ensure a worry-free user experience.
Production & Testing Equipment
We are equipped with advanced production and testing equipment, which is the guarantee of product quality and production efficiency, and proves that we are a professional manufacturer, not a small workshop.

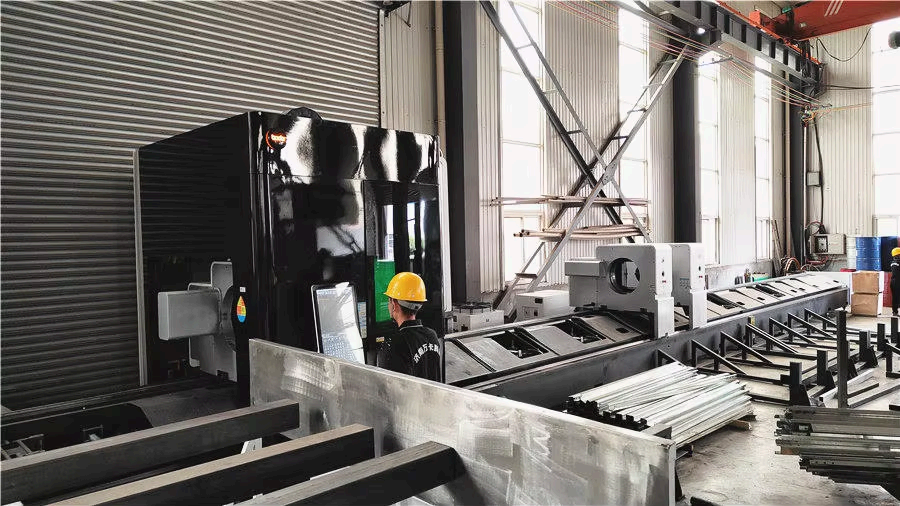

Laser Tube Cutting Machine

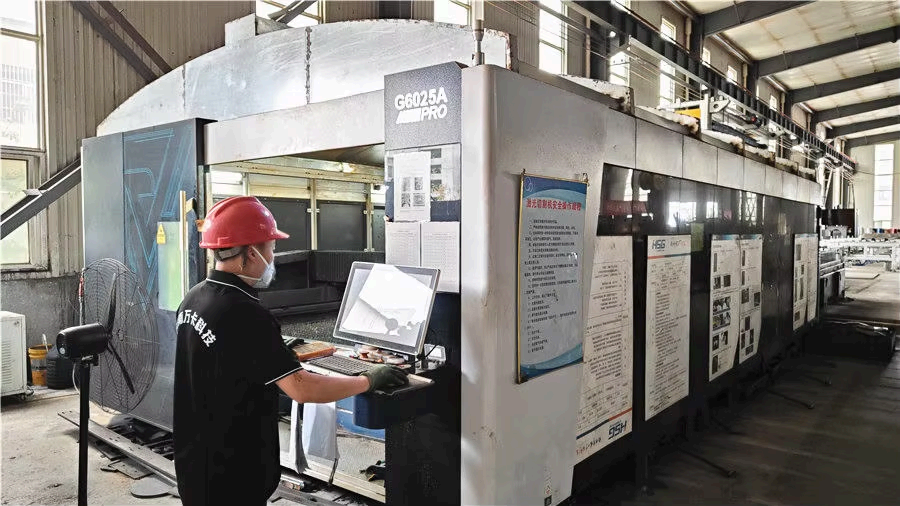

Laser Cutting Machine

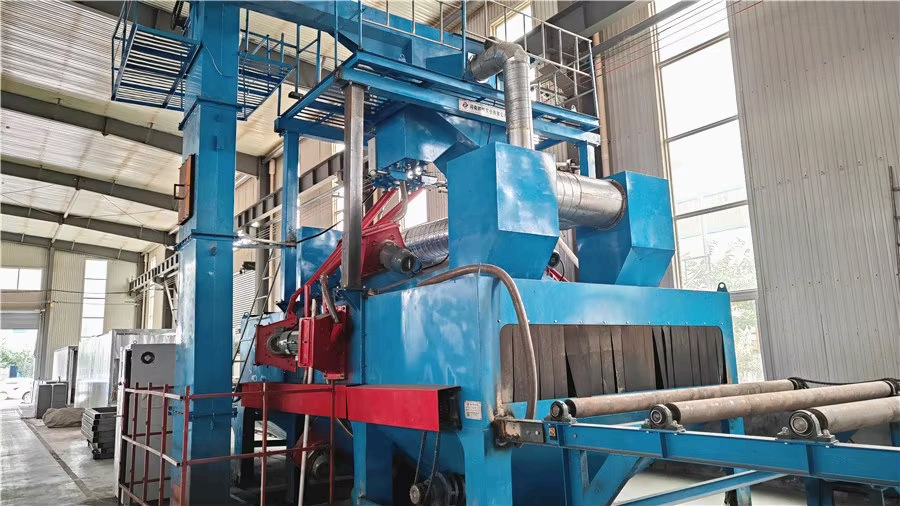

Shot Blasting Machine

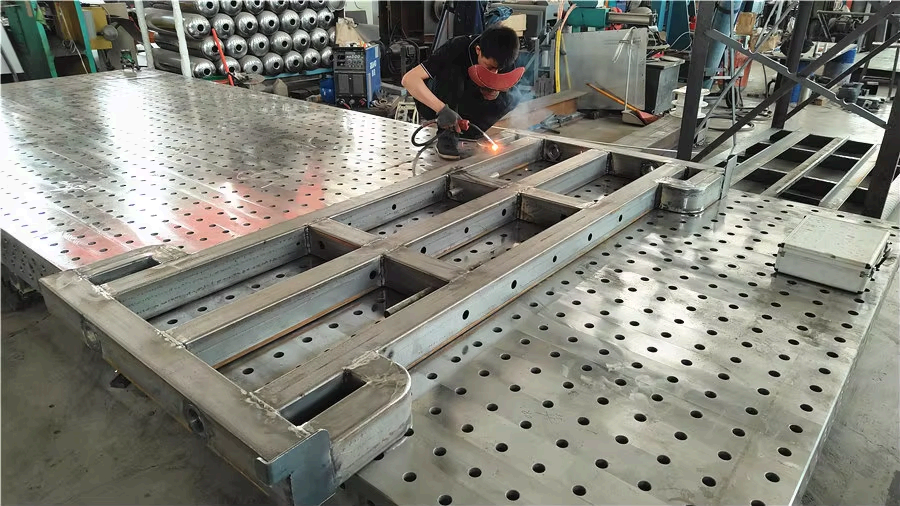

Welding Platform

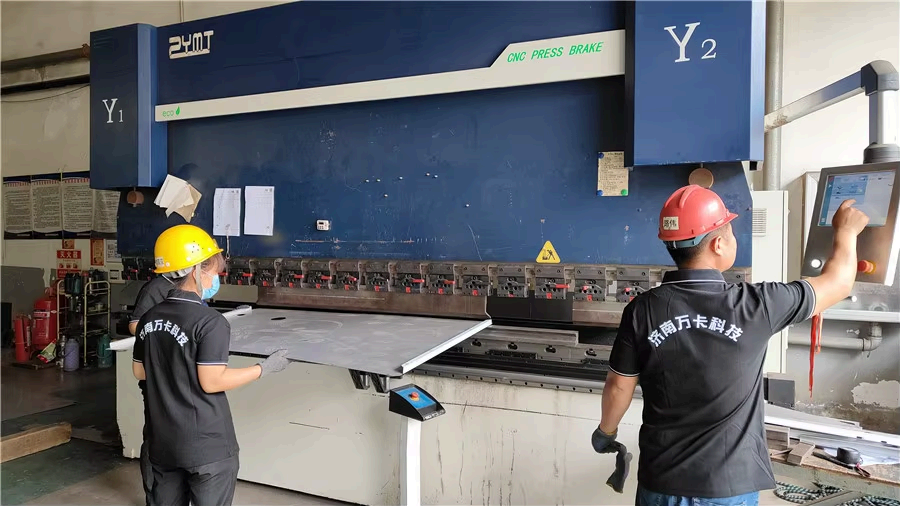

CNC Bending Machine

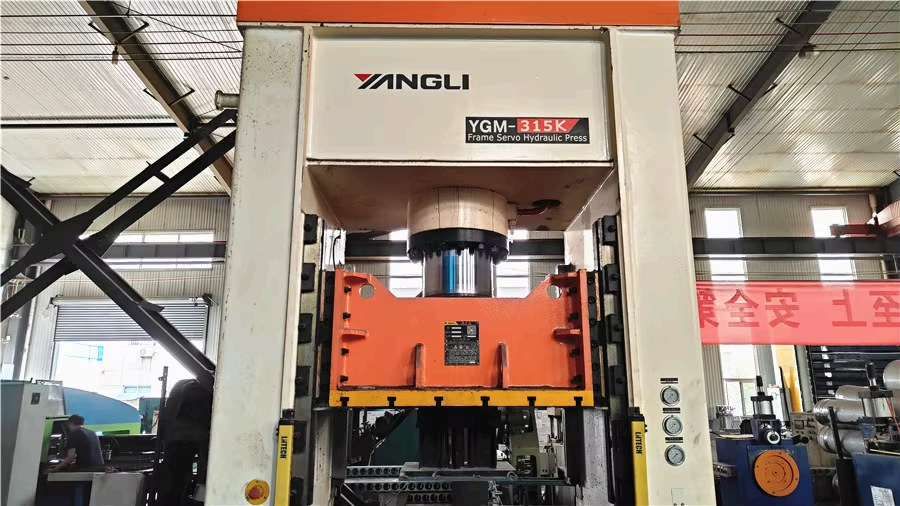

Press Machine
Strict Quality Control - Zero Defect Commitment: Experienced quality inspectors, equipped with advanced testing equipment to provide professional quality guarantee.
Sales and Service Network
Our products have passed a number of international authoritative certifications (ISO 9001, ISO 14001, CE), which can fully meet the quality and safety requirements of different markets, and provide you with a strong guarantee for market entry.
We can provide complete certification documents and test reports according to your market needs, ensuring that your import and sales go smoothly.
Similar Products

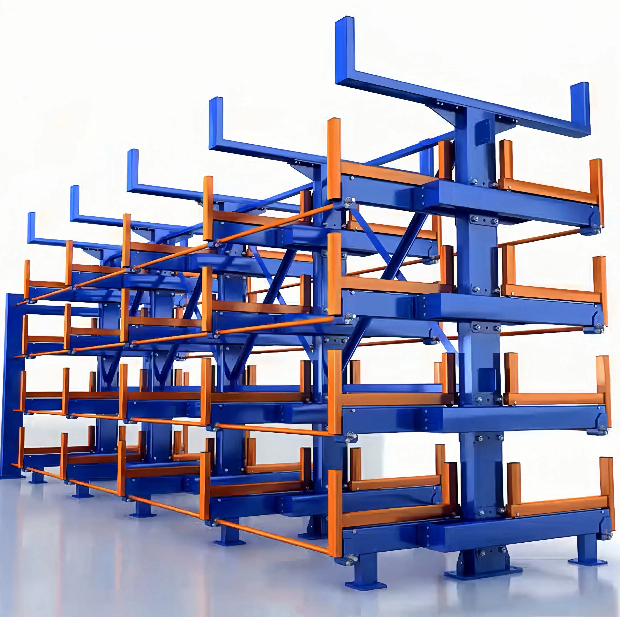

Telescopic Cantilever Rack

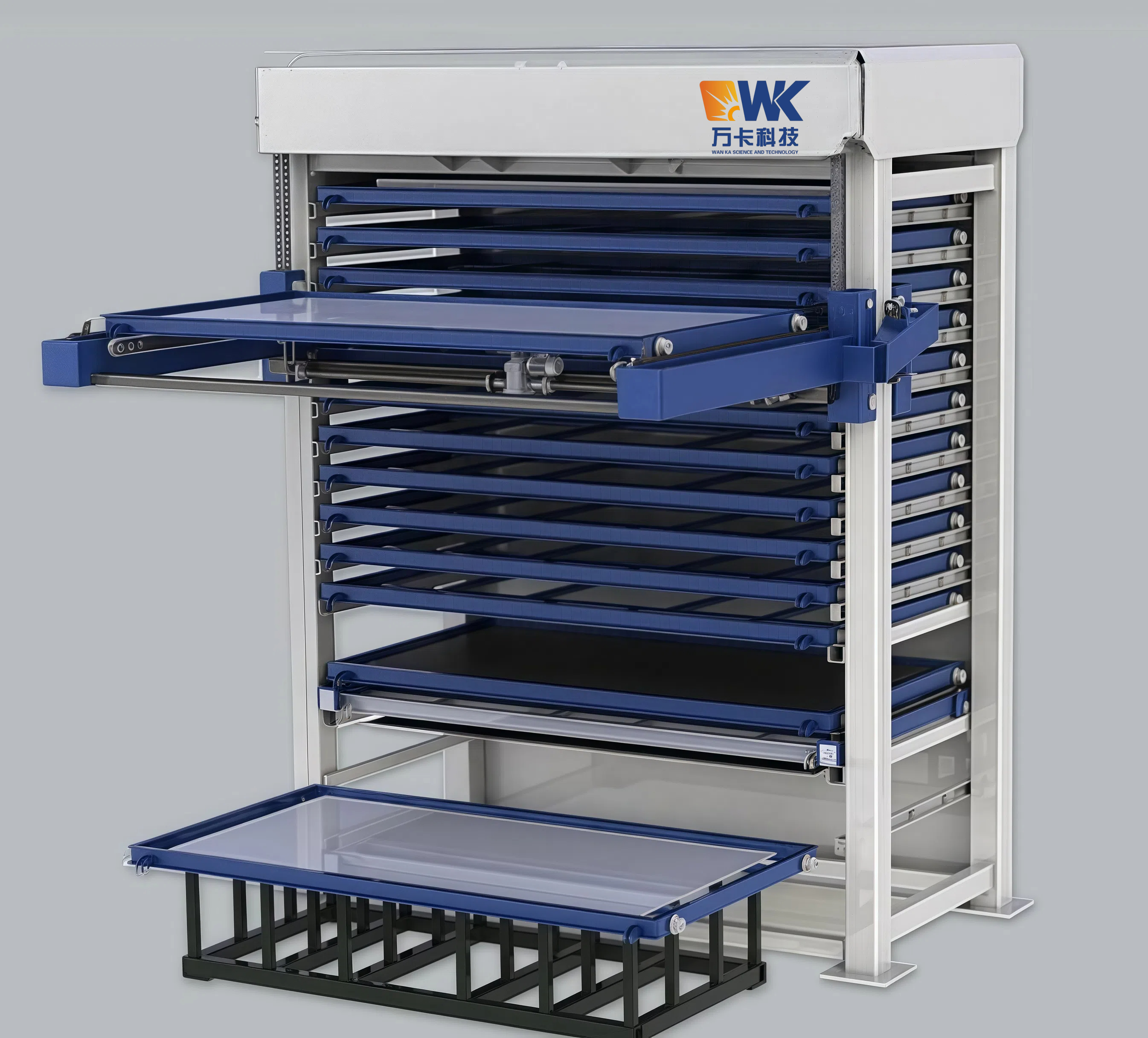

Intelligent Vertical Plate Storage System

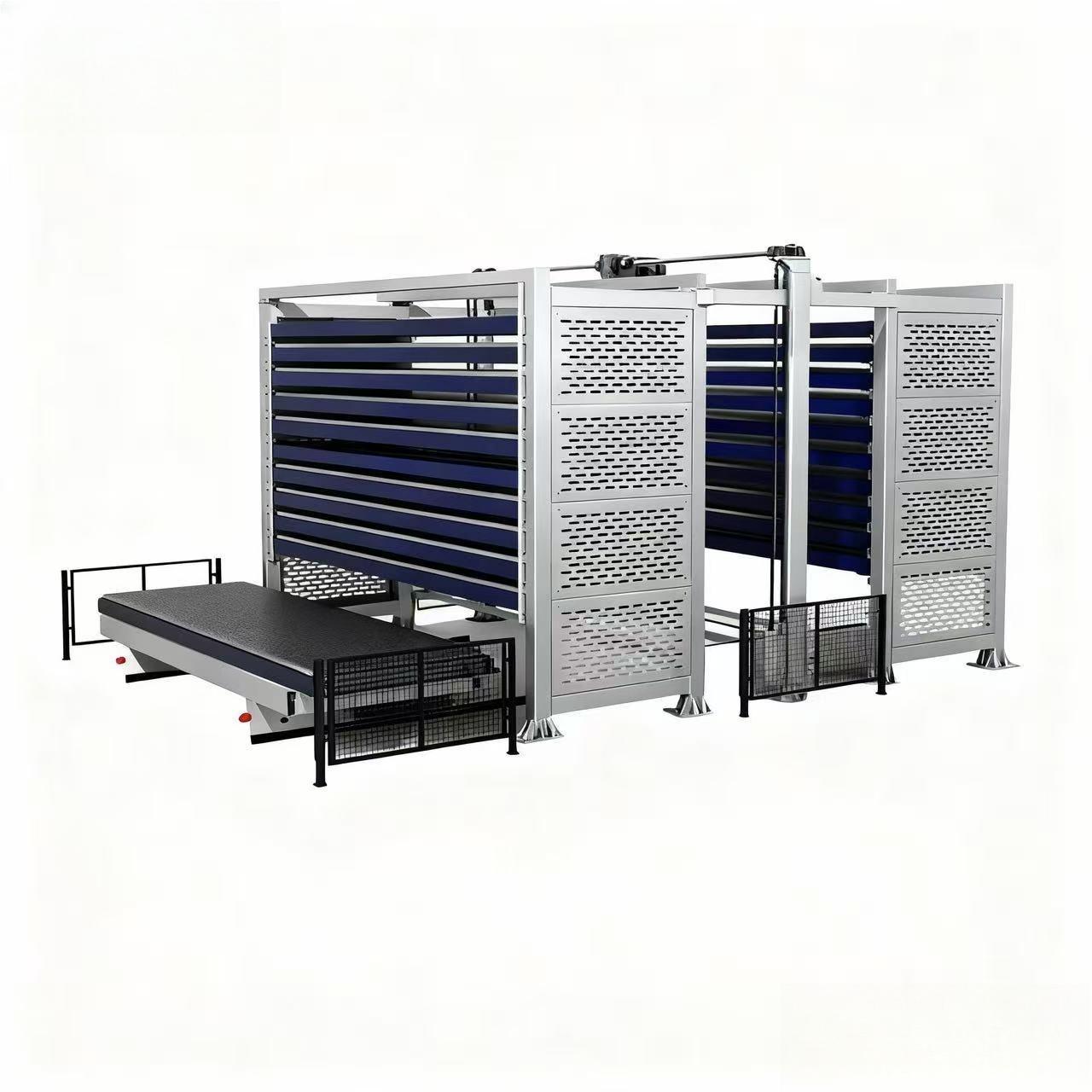

Modular Vertical Plate Storage System
FAQ
Q1: How can I proceed with procurement?
You can contact our technical personnel in the background, and we will provide you with a suitable technical solution and quotation based on your parameters, or leave your contact information such as WhatsApp, WeChat, email, etc. We will have a professional sales team to contact you.
Q2: How do I let you know I need the right shelves?
You can tell us the material you want to put, as well as tell us the size of the material, the number of shelves, and some other detail that you need, then we will make professional solution for you. or leave your contact information, there will be a professional team to answer your questions.
Q3: Do you need a loading robotic arm or an integrated loading and unloading system?
Loading and unloading require the size of the laser cutting machine table to meet the requirements, and it is also necessary to know the specific loading method: board rack, exchange platform, or material warehouse. For specific needs, please leave your contact information to serve you.
Q4: Can you provide on-site installation and debugging?
Yes, we can send professional personnel to the factory to install and debug the robotic arm until successful trial operation. Our team has served in South Africa, the United States, Russia, South Korea, Qatar, Egypt, Lebanon, Mexico and other places.
Q5: How will you ensure the quality of the product?
We have over 50 technical engineers, and we will have professional mechanical engineers to debug and solve any concerns; There is a dedicated quality inspection department that strictly implements ISO9001 quality standards to ensure product quality meets standards. We have professional CE certification to ensure smooth exports. Load testing shall be conducted before the equipment leaves the factory to ensure the safety and stability of the structure.
Q6: Where is your factory located and what kind of company are you?
Our factory is located in Jiyang District, Jinan, Shandong Province, China. Wanka Storage Co., Ltd is a high-tech enterprise that integrates research and development, production, sales, installation, and service. The company focuses on intelligent sheet metal material warehouses, drawer style sheet metal shelves, telescopic cantilever shelves, servo swing arm manipulators, gantry loading and unloading manipulators, fully automatic loading and unloading series, heavy-duty sheet metal and pipe storage shelves. We have a professional technical team and advanced production equipment, committed to providing high-quality and high-performance mechanical products and solutions for global customers.
